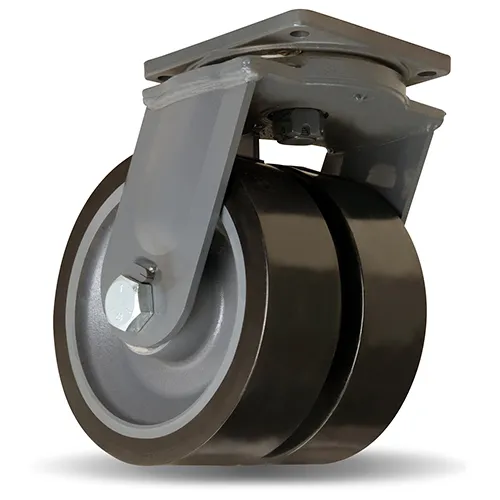

HAMILTON S-MDD-124SYT70 Maxi-Duty Swivel Caster, 12 X 4 Inch Size, Steel Wheel
12400 lbs.
12"
4"
Swivel
Get it by Tuesday, Sep 1
€2,256.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | High |
| Bearing Type | Tapered Roller |
| Bolt Holes | 7" x 7" |
| Caster Color/finish | Platinum Powder |
| Caster Rig Type | Integral Forged Kingpin |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | High |
| Load Capacity | 12400 lbs. |
| Load Capacity @ 3 Mph | 12400 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 5/8" |
| Mounting Plate | 8 1/2" x 8 1/2" |
| Overall Height | 15 1/2" |
| Relative Capacity | High |
| Relative Cost | Very High |
| Replacement Wheel | W-1240-SYT70-1-1/4 |
| Swivel Offset | 3 1/4" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Thick Black Poly On Gray Center |
| Wheel Dia. | 12" |
| Wheel Face | 4" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Superlast Xc |
Shipping Info:
| Ship weight (kg) | 95.85 |
| Ship height (cm) | 39.37 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Mounting Bolt Dia. | Core Color | Inside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Mounting Height | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-MDD-83DT | 8" | 5/8" | Gray | 7" x 7" | - | Roller | 11" | 11" | €1,683.35 | |
 |
R-MDD-83DT | 8" | 5/8" | Gray | 7" x 7" | 3" | Roller | 11" | 11" | €1,326.84 | |
 |
S-MDD-83SYT | 8" | 5/8" | Gray | 7" x 7" | 3" | Roller | 11" | 11" | €2,047.11 | |
 |
R-MDD-83SYT | 8" | 5/8" | Gray | 7" x 7" | 3" | Roller | 11" | 11" | €1,472.34 | |
 |
S-MDD-13DT | 10" | 5/8" | Gray | 7" x 7" | - | Roller | 13" | 13" | €1,847.18 | |
 |
R-MDD-13DT | 10" | 5/8" | Gray | 7" x 7" | 3" | Tapered Roller | 13" | - | €1,291.16 | |
 |
S-MDD-104SYT | 10" | 5/8" | Gray | 7" x 7" | - | Tapered Roller | 13" | 13" | €2,497.76 |
