HAMILTON S-MDD-83SYT Dual Wheel Swivel Caster 7000 Lb 8 Inch Pureth
6300 lbs.
8"
3"
Swivel
Get it by Thursday, Feb 19
10.00% off
€1,842.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Dual Wheel Swivel Caster |
| Abrasion Resistance | High |
| Bearing Type | Tapered Roller |
| Bolt Hole Spacing - Length | 7" |
| Bolt Hole Spacing - Width | 7" |
| Bolt Holes | 7" x 7" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake |
| Caster Color/finish | Platinum Powder |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Greater Than 6000 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Rig Type | Integral Forged Kingpin |
| Caster Shape | Standard |
| Caster Temp. Range | Yes |
| Caster Type | Swivel |
| Chemical Resistant | Medium |
| Core Color | Gray |
| Core Material | Forged Steel |
| Cushioning (resilience) | Medium |
| Durometer | 90 Shore A |
| Duty Rating | Medium Duty |
| For Axle Diameter | 1 1/4" |
| For Surface Type | Concrete |
| Frame Finish | Enamel |
| Frame Material | Steel |
| High Temp. Range (f) | 200°F |
| Hole Pattern | D |
| Impact Resistance | Very High |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 7" x 7" |
| Load Capacity | 6300 lbs., 990 lbs. |
| Load Capacity @ 3 Mph | 6300 lbs. |
| Load Rating | 7000 lbs. |
| Lock Type | No Lock Included |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 5/8" |
| Mounting Bolt Dia. | 5/8" |
| Mounting Height | 11" |
| Mounting Hole Type | Hole |
| Mounting Plate | 8 1/2" x 8 1/2" |
| Mounting Plate Length | 8 1/2" |
| Mounting Plate Shape | Square |
| Mounting Plate Thickness | 5/8" |
| Mounting Plate Width | 8 1/2" |
| Mounting Type | Plate |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 2 |
| Outside Bolt Hole Spacing | 7" x 7" |
| Overall Height | 11" |
| Overall Wheel Width | 6" |
| Plate Size | 8 1/2" x 8 1/2" |
| Plate Thickness | 5/8" |
| Plate Type | D |
| Raceway Type | Hardened Precision Roller |
| Relative Capacity | High |
| Relative Cost | High |
| Replacement Wheel | W-830-SYT-1-1/4 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Swivel Raceway Type | Roller |
| Temp. Range | -40°F to +200°F |
| Tread Material | Polyurethane |
| Tread Shape | Standard |
| Unit Of Measurement | Imperial |
| Wheel Bearing Type | Roller |
| Wheel Color | Blue |
| Wheel Color/finish | Thick Blue Poly On Gray Center |
| Wheel Core Material | Steel |
| Wheel Core Type | Solid |
| Wheel Dia. | 8" |
| Wheel Diameter | 8" |
| Wheel Face | 3" |
| Wheel Hardness | Firm, Extra Hard |
| Wheel Hardness Rating | 95 Shore A |
| Wheel Material | Polyurethane |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Flat Free, Superlast |
| Wheel Width | 3" |
| Wheel/tread Color | Blue |
Shipping Info:
| Ship weight (kg) | 44.37 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 36.83 |
| Ship width (cm) | 32.26 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Bearing Type | Caster Type | Load Rating | Caster Load Rating Range | Wheel Width | Wheel Color | Core Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-MDD-83DT | 8" | Roller | Swivel | 5000 lbs. | - | - | Green | Cast Iron | €1,683.35 | |
 |
R-MDD-83DT | 8" | Roller | Rigid | 5000 lbs. | 3000 lbs. to 5999 lbs. | 3" | Green | Cast Iron | €1,326.84 | |
 |
R-MDD-83SYT | 8" | Roller | Rigid | 990 lbs. | Greater Than 6000 lbs. | 3" | Blue | Forged Steel | €1,472.34 | |
 |
S-MDD-13DT | 10" | Roller | Swivel | 6000 lbs. | Greater Than 6000 lbs. | - | Green | Cast Iron | €1,847.18 | |
 |
R-MDD-13DT | 10" | Tapered Roller | Rigid | 6000 lbs. | Greater Than 6000 lbs. | 3" | Green | Cast Iron | €1,291.16 | |
 |
S-MDD-104SYT | 10" | Tapered Roller | Swivel | 10000 lbs. | - | - | Blue | Forged Steel | €2,497.76 | |
 |

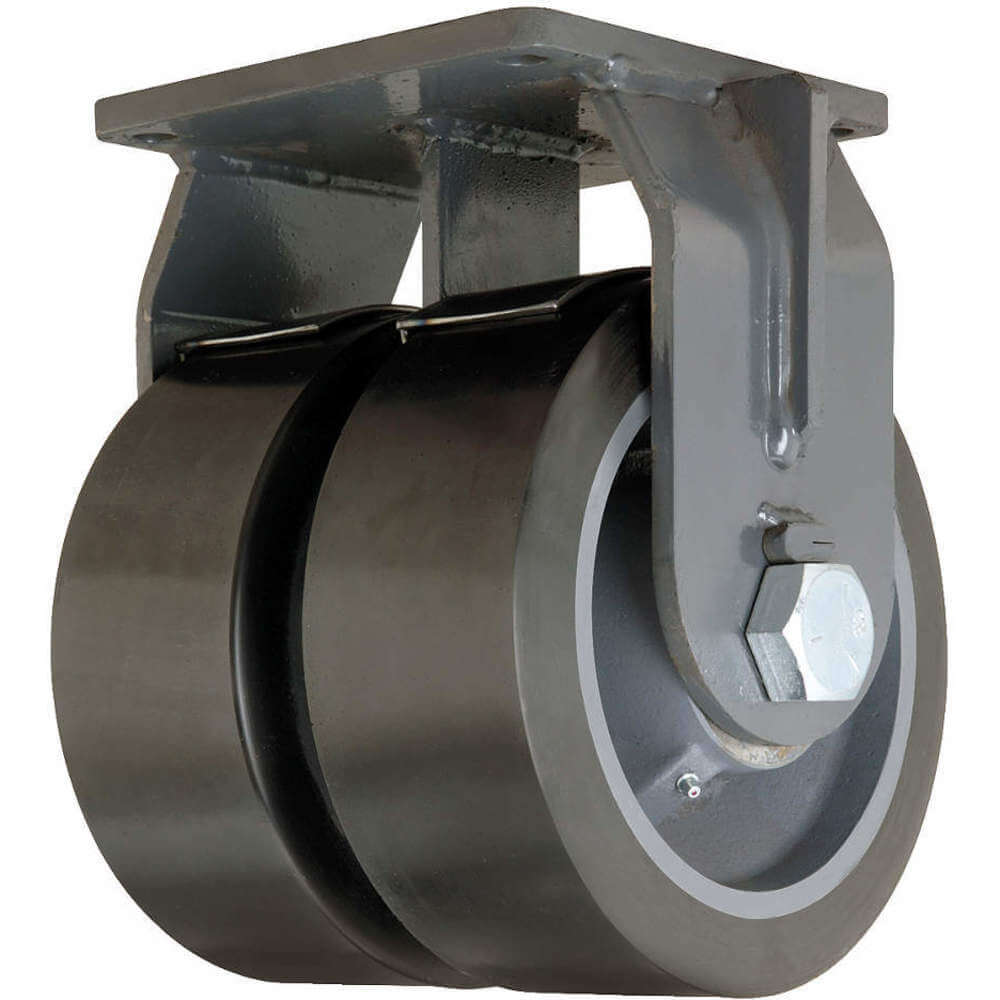

R-MDD-104SYT | 10" | Tapered Roller | Rigid | 10000 lbs. | Greater Than 6000 lbs. | 4" | Blue | Forged Steel | €2,231.90 |
