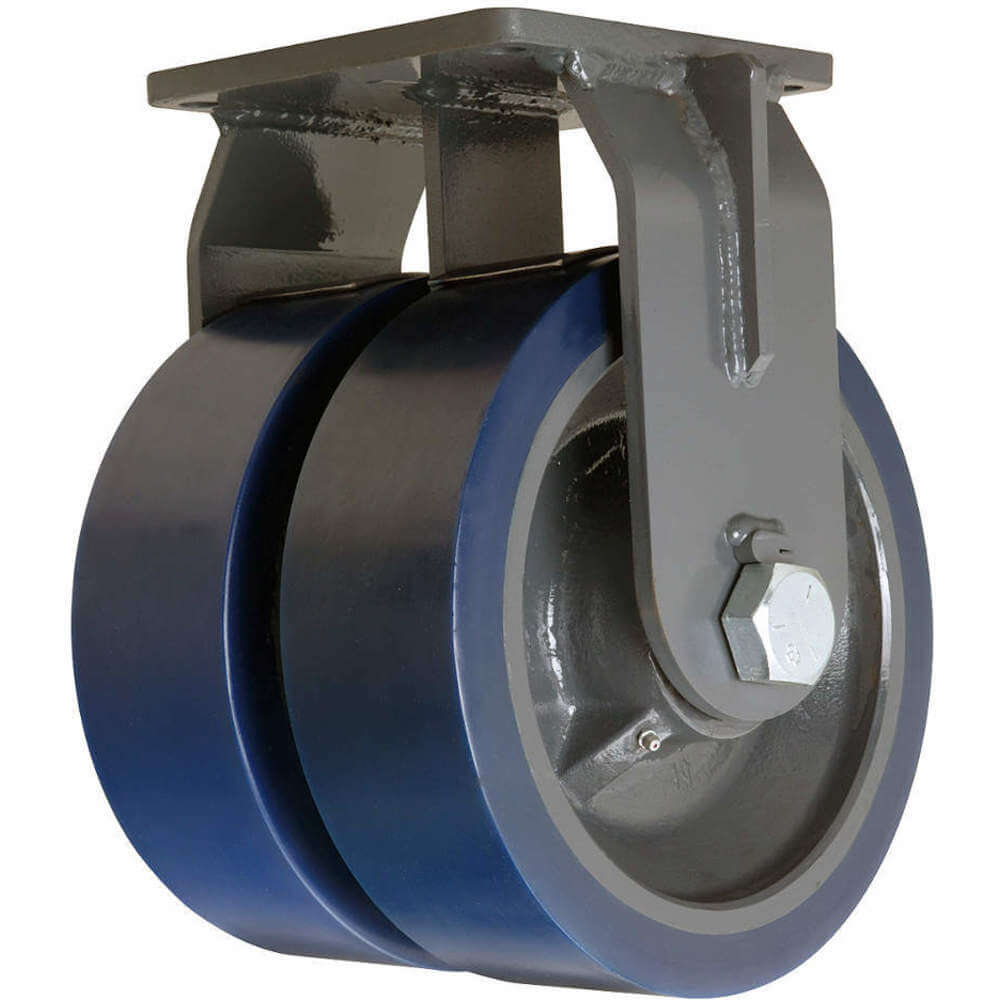

HAMILTON R-MDD-124SYT Dual Wheel Rigid Caster 12000 Lb 12 Inch Pureth
10800 lbs.
12"
4"
Rigid
Get it by Friday, Dec 19
10.00% off
€2,403.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Dual Wheel Rigid Caster |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Greater Than 6000 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Shape | Standard |
| Caster Sub-type | Rigid |
| Caster Temp. Range | Yes |
| Caster Type | Rigid |
| Core Color | Gray |
| Core Material | Forged Steel |
| Durometer | 90 Shore A |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | D |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 7" x 7" |
| Load Rating | 12000 lbs. |
| Mounting Bolt Dia. | 5/8" |
| Mounting Height | 15 1/2" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 8 1/2" x 8 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 8 1/2" X 8 1/2" ( D ) |
| Mounting Type | Plate |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 2 |
| Outside Bolt Hole Spacing | 7" x 7" |
| Overall Height | 15 1/2" |
| Plate Size | 8 1/2" x 8 1/2" |
| Plate Thickness | 1/2" |
| Plate Type | D |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Temp. Range | -40°F to +200°F |
| Tread Shape | Standard |
| Wheel Bearing Type | Tapered Roller |
| Wheel Color | Blue |
| Wheel Core Material | Forged Steel |
| Wheel Dia. | 12" |
| Wheel Material | Polyurethane |
| Wheel Width | 4" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 72 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 35.56 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Bearing Type | Caster Type | Load Rating | Caster Load Rating Range | Wheel Width | Wheel Color | Core Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-MDD-83DT | 8" | Roller | Swivel | 5000 lbs. | - | - | Green | Cast Iron | €1,683.35 | |
 |
R-MDD-83DT | 8" | Roller | Rigid | 5000 lbs. | 3000 lbs. to 5999 lbs. | 3" | Green | Cast Iron | €1,326.84 | |
 |
S-MDD-83SYT | 8" | Roller | Swivel | 7000 lbs. | Greater Than 6000 lbs. | 3" | Blue | Forged Steel | €2,047.11 | |
 |
R-MDD-83SYT | 8" | Roller | Rigid | 990 lbs. | Greater Than 6000 lbs. | 3" | Blue | Forged Steel | €1,472.34 | |
 |
S-MDD-13DT | 10" | Roller | Swivel | 6000 lbs. | Greater Than 6000 lbs. | - | Green | Cast Iron | €1,847.18 | |
 |
R-MDD-13DT | 10" | Tapered Roller | Rigid | 6000 lbs. | Greater Than 6000 lbs. | 3" | Green | Cast Iron | €1,291.16 | |
 |
S-MDD-104SYT | 10" | Tapered Roller | Swivel | 10000 lbs. | - | - | Blue | Forged Steel | €2,497.76 |
