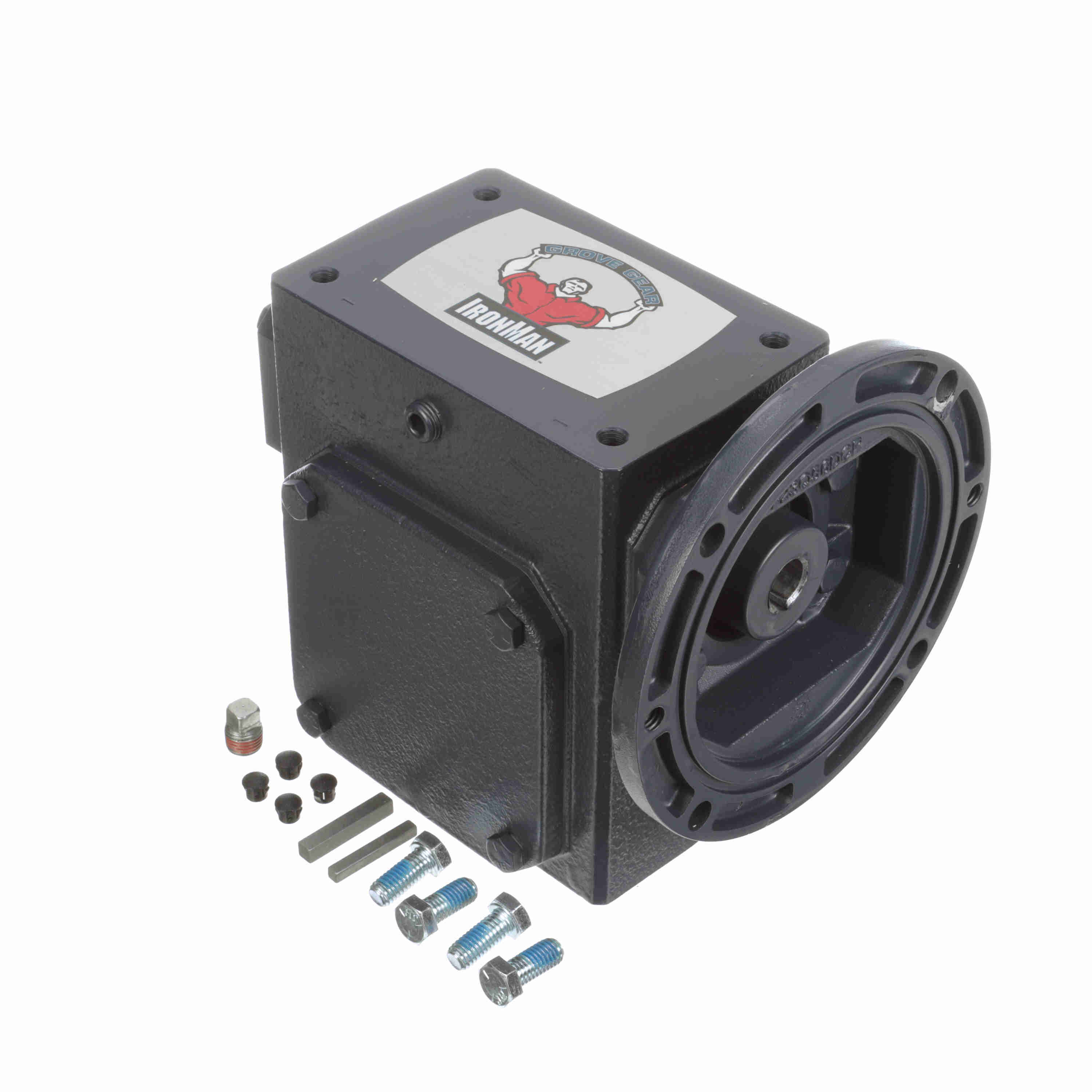

GROVE GEAR GR8240163.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Right Angle Cast Iron | AX7DUX GR-BMQ824-30-R-56

GROVE GEAR GR8240163.00 GR-BMQ824-30-R-56 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 1423 lb-in Torque, H1 Right Output

Item: AX7DUXModel: GR8240163.00Cross Ref: GR-BMQ824-30-R-56
Check Availability
In Stock
Ratio

Get it by Tuesday, Aug 18

€1,119.76 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 4.06
Aj 5.88
Application General Purpose
B 6.12
Be 0.38"
Bf 0.41
C 6.94"
Center Distance 2.38"
Centre Distance 2.38"
F 2.88
Family Name Cast Iron Housing Material Worm Gear Reducers
Frame 56
Frame Size 56C
G 1.44
Gear Drive Reductions Single
Gear Ratio 30:1
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Hp 1 13/20 hp
I 3.77"
Input Bore (c Face) 0.625
Input Bore Size 5/8"
Input Dia. 5/8"
Input Flange 56C
Input Hp 1.653 hp
Input Hp @ 1750 Rpm 1.653 hp
Input Keyway Size 3/16" x 3/32"
Input Size 5/8"
Input Style C Face Quill
J 5"
K 2 1/2"
Lq 4.63"
Lubrication PAG Synthetic Oil
Lubrication Type Pag Synthetic Oil
Material Cast Iron
Max. Hp 1 13/20 hp
Max. Input Hp 1 653/1000 hp , 1.653 hp
Max. Ohl (output Shaft) 1770
Max. Overhung Load 1255 lbs.
Max. Thrust Load (output Shaft) 2091
Mounting Type Base
N 5.14
No. Of Gear Reductions Single
O 2.66"
Output Right
Output Dia. 1 1/8"
Output Hp 1.317 hp
Output Keyway Size 1/4" x 1 3/4"
Output Shaft Solid Shaft
Output Shaft Dia 1.125
Output Shaft Dia. 1 1/8"
Output Shaft Direction Right
Output Shaft Length 2.66"
Output Shaft Orientation R
Output Shaft Thrust Rating 2091
Output Shaft Type Right Handed Shaft
Output Speed 58.3 RPM
Output Style R
Output Torque 1194
Output Type Shaft
Overhung Load Rating 1770 lbs.
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
Product Series GR Series
Ratio 30:1
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Rq 4.09"
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1 1.1 SF @ 1 1/2 HP
Service Factor 2 1.65 SF @ 1 HP
Service Factor 3 2.2 SF @ 3/4 HP
Shaft Seal Material Viton
Speed 58 RPM
T 1.125
Tap Depth 0.69"
Torque 1423 lbs.-in.
Torque (lb-in)@1750rpm 1423
Type Right Angle Single Reduction

Shipping Info:

Ship weight (kg) 20.25
Ship height (cm)26.67
Ship length (cm)27.15
Ship width (cm)23.01

Product Variants

ProductModelOutput HpOutput SpeedMax. Input HpOutput TorqueInput Dia.Input Hp @ 1750 RpmInput StyleNo. Of Gear ReductionsPrice
GROVE GEAR GR8240161.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AX6GWM GR-BMQ824-20-R-56 GR8240161.001.972 hp87.5 RPM2.326 hp11925/8"2.326 hpC Face QuillSingle€1,265.18
GROVE GEAR GR8240230.00 Worm Reducer, 7.5:1 Ratio, 1.125 Inch I.D, 1.125 Inch O.D, Cast Iron | AX7YZB GR-BMQ824-7.5-R-180 GR8240230.003.685 hp233.3 RPM3.992 hp16891 1/8"3.992 hpC Face QuillSingle€1,540.94
GROVE GEAR GR8240229.00 Worm Reducer, 5:1 Ratio, 1.125 Inch I.D, 1.125 Inch O.D, Cast Iron | AX8MTA GR-BMQ824-5-R-180 GR8240229.004.985 hp350 RPM5 323/1000 hp898-5.323 hpC-Face QuillSingle€1,519.55
GROVE GEAR GR8240158.00 Worm Reducer, 7.5:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AY3AMU GR-BMQ824-7.5-R-56 GR8240158.003.685 hp233.3 RPM3 124/125 hp--3.992 hpC-Face QuillSingle€1,540.94
GROVE GEAR GR8240160.00 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AY3LFH GR-BMQ824-15-R-56 GR8240160.002.439 hp116.7 RPM2.765 hp15265/8"2.765 hpC Face QuillSingle€1,519.55
GROVE GEAR GR8240232.00 Worm Reducer, 15:1 Ratio, 1.125 Inch I.D, 1.125 Inch O.D, Cast Iron | AY3LFJ GR-BMQ824-15-R-180 GR8240232.002.439 hp116.7 RPM2.765 hp1318 lbs.-in.1 1/8"2.765 hpC Face Quill1€864.47
GROVE GEAR GR8240194.00 Worm Reducer, 7.5:1 Ratio, 0.875 Inch I.D, 1.125 Inch O.D, Cast Iron | AY3VLF GR-BMQ824-7.5-R-140 GR8240194.003.685 hp233.3 RPM3.992 hp995 lbs.-in.7/8"3.992 hpC Face Quill1€1,540.94
