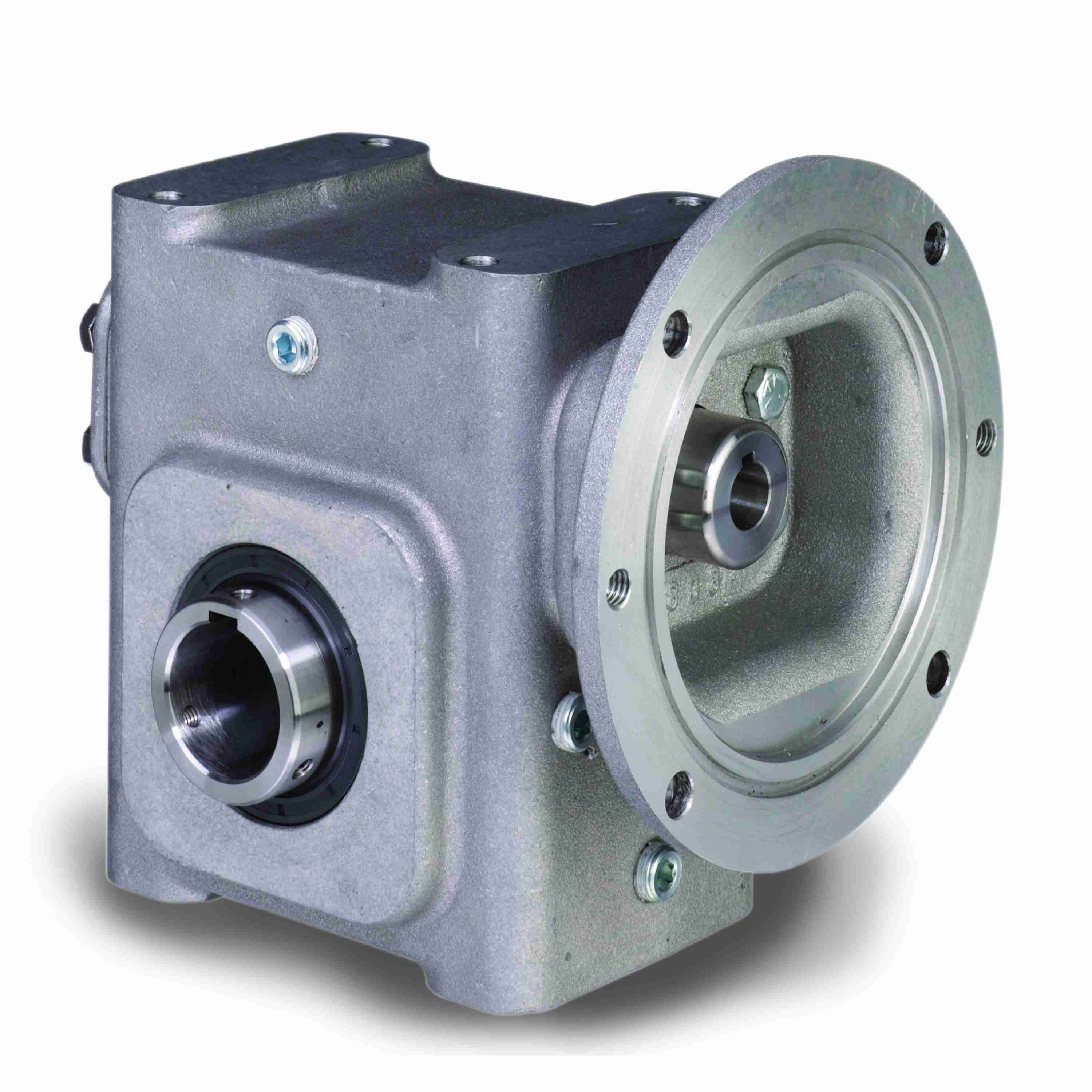

GROVE GEAR EL8320522.19 EL-HM832-40-H_-140-19 Right Angle Gear Reducer, 40 to 1 Reduction Ratio, 43 RPM Output, 3303 lb-in Torque, Aluminum
Get it by Tuesday, Aug 25
€2,512.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | General Purpose |
| Assembly | HM-H1 |
| Bore Code | 19 |
| Center Distance | 3 1/4" |
| Frame | 140TC |
| Gear Type | Worm |
| Housing | Aluminum |
| Housing Material | Aluminum |
| Input Bore (c Face) | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 2.926 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| Material | Aluminum |
| Max. Input Hp | 2.926 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1.188" |
| Output Hp | 2.293 hp |
| Output Key Size | 1/4" x 2.5" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Speed | 43 RPM |
| Output Style | H1 |
| Output Torque | 3303 lbs.-in. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-HM-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Torque (lb-in)@1750rpm | 3303 |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Product | Model | Output Hp | Output Speed | Output Torque | Output Dia. | Input Dia. | Max. Input Hp | Input Speed | No. Of Gear Reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8320543.24 | 4 67/125 hp | 87 RPM | 3267 lbs.-in. | 1 1/2" | 7/8" | 5 9/50 hp | 1750 RPM | 1 | €2,512.30 | |
 |
EL8320241.00 | 11 29/100 hp | 350 RPM | 2033 lbs.-in. | 1 5/8" | 7/8" | 11 23/25 hp | 1750 RPM | 1 | €3,482.88 | |
|
EL8320518.23 | 5.516 hp | 116 RPM | 2980 lbs.-in. | 1.438" | 7/8" | 6.127 hp | 1750 RPM | 1 | €4,204.29 | |
|
EL8320583.23 | 0.695 hp | 21.9 RPM | - | 1.438" | 1 3/8" | 1 3/100 hp | 1750 RPM | 1 | €2,512.30 | |
|
EL8320580.27 | 2.293 hp | 43 RPM | 3303 lbs.-in. | 1.688" | 1 3/8" | 2.926 hp | 1750 RPM | 1 | €2,512.30 | |
|
EL8320602.23 | 3.732 hp | - | 3360 lbs.-in. | - | 1 3/8" | 4 373/1000 hp | - | 1 | €4,262.95 | |
 |
EL8320557.28 | - | - | - | - | - | - | - | - | €1,694.91 | RFQ
|
