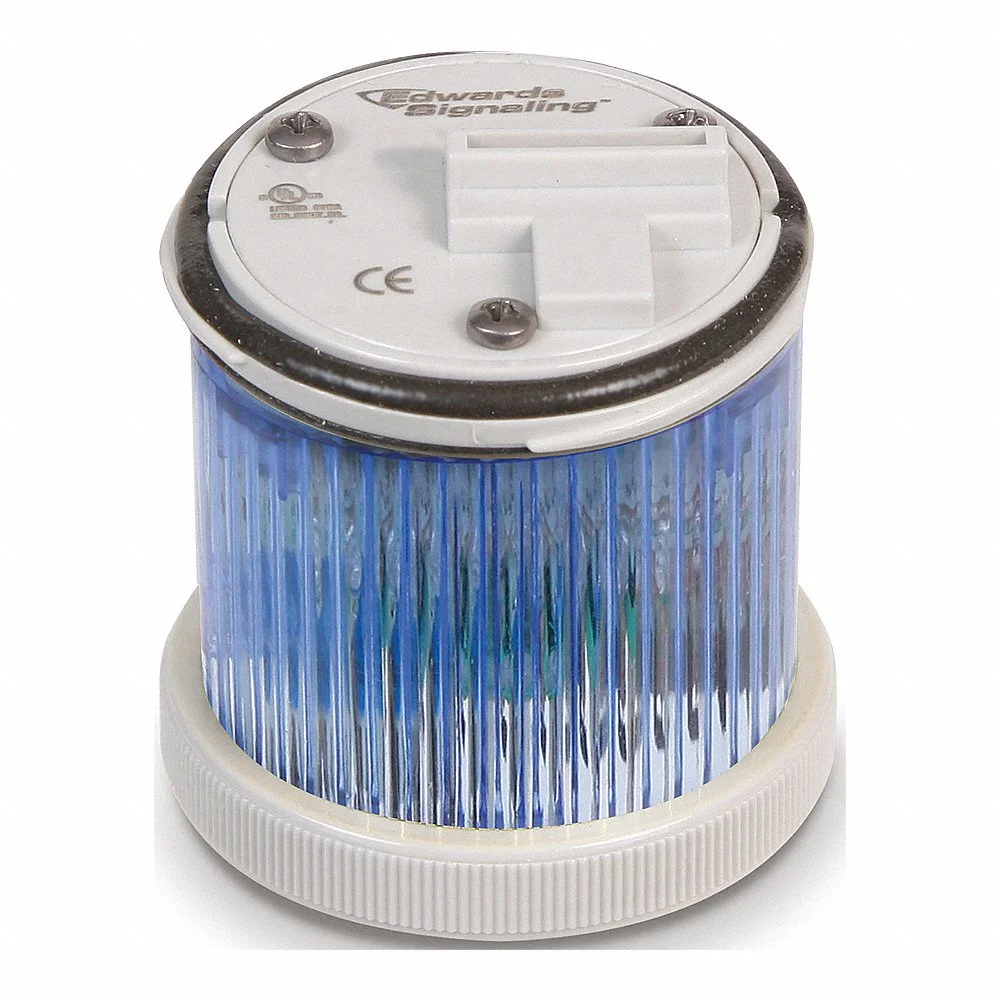

EDWARDS SIGNALING 248LEDMB24AD Tower Light Module Multimode, 24 VAC/DC, Blue, 48 mm Dia, LED
Item: AA7QCEModel: 248LEDMB24ADCross Ref: 16G696
7 In Stock
Ships within 2 days via
5.00% off
€161.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Stacklight |
| Color | Blue |
| Compatible With Series | 200 Class |
| Dia. | 48 mm |
| Flashes Per Minute | 110 FPM |
| For Location | Indoor, Outdoor |
| Height | 1.85" |
| Housing Material | Polycarbonate |
| Included | Gasket |
| Ip Rating | IP54, IP66 |
| Lamp Life | 100 k hrs. |
| Lamp Type | LED |
| Lens Color | Blue |
| Lens Design | Simple |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 100000 hrs. |
| Light Operating Mode | Flashing, Steady |
| Light Source | LED |
| Max. Operating Temp. | 122°F |
| Min. Operating Temp. | -22°F |
| Mounting | Base |
| Nema Rating | NEMA 3R, NEMA 4X |
| Operating Amps | 0.03A |
| Operating Temp. | -22°F to +122°F |
| Operating Voltage | 24V AC/DC |
| Overall Height | 1 7/8" |
| Product Datasheet | edwards-signaling-248ledma120a.pdf |
| Rating | UL |
| Width | 2.17" |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 5.51 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 7.59 |
| HS code | 8531800050 |
| Country of Origin | IT |
Documentation:
Product Variants
| Product | Model | Nema Rating | Lens Design | Housing Material | Ip Rating | Lens Material | Operating Temp. | Mounting | Lamp Life | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
248LEDMA120A | NEMA 3R, NEMA 4X | Simple | Polycarbonate | IP54, IP66 | Polycarbonate | -22°F to +122°F | Base | 100 k hrs. | €187.22 | |
|
248LEDMA240A | NEMA 3R, NEMA 4X | Simple | Polycarbonate | IP54, IP66 | Polycarbonate | -22°F to +122°F | Base | 100 k hrs. | €210.38 | |
|
248LEDMA24AD | NEMA 3R, NEMA 4X | Simple | Polycarbonate | IP54, IP66 | Polycarbonate | -22°F to +122°F | Base | 100 k hrs. | €174.67 | |
|
248LEDMB120A | NEMA 3R, NEMA 4X | Simple | Polycarbonate | IP54, IP66 | Polycarbonate | -22°F to +122°F | Base | 100 k hrs. | €189.69 | |
|
248LEDMB240A | NEMA 3R, NEMA 4X | Simple | Polycarbonate | IP54, IP66 | Polycarbonate | -22°F to +122°F | Base | 100 k hrs. | €204.20 | |
 |
248LEDMG120A | NEMA 3R, NEMA 4X | Simple | Polycarbonate | IP54, IP66 | Polycarbonate | -22°F to +122°F | Base | 100 k hrs. | €203.93 | |
|
248LEDMG240A | NEMA 3R, NEMA 4X | Simple | Polycarbonate | IP54, IP66 | Polycarbonate | -22°F to +122°F | Base | 100 k hrs. | €207.47 |
