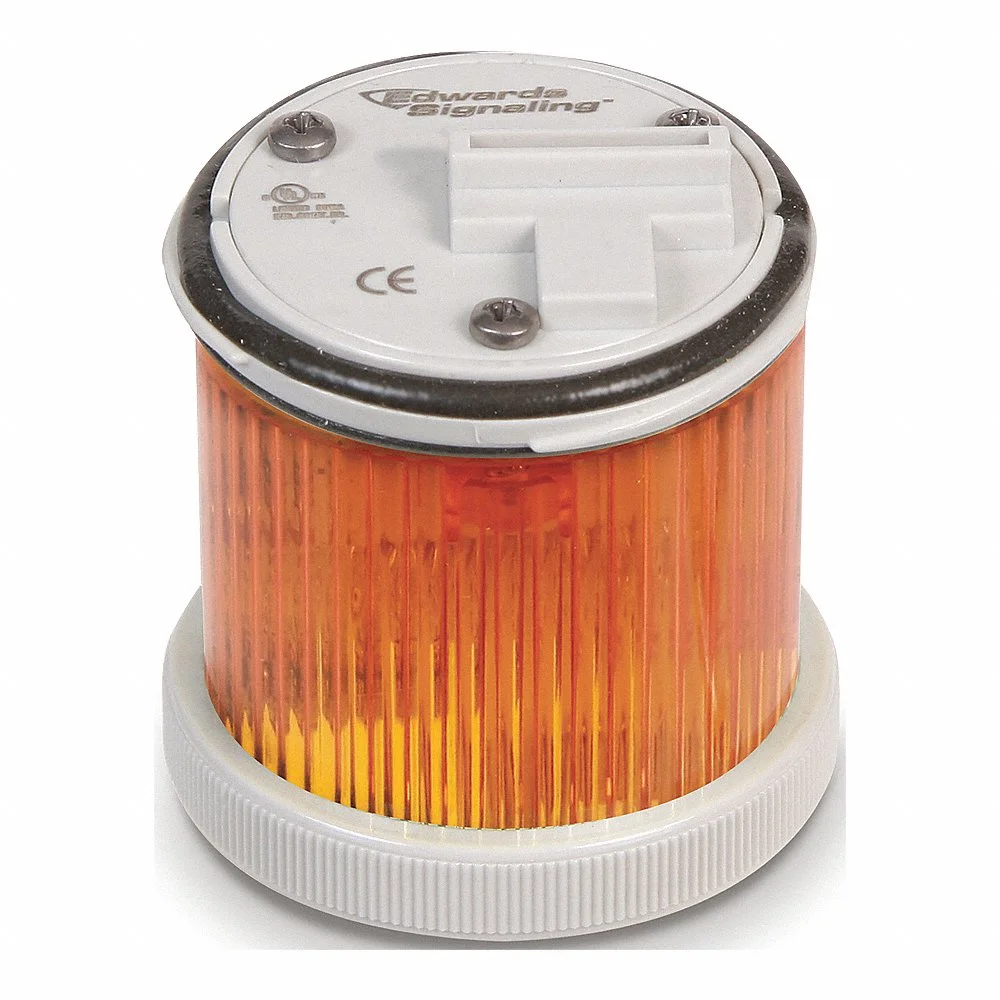

EDWARDS SIGNALING 248LEDMA240A LED Stack Light, Amber, 48mm Size
Item: AA7QCAModel: 248LEDMA240ACross Ref: 16G692
7 In Stock
Ships within 2 days via
5.00% off
€199.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Stacklight |
| Amps Draw | 0.055A |
| Color | Amber |
| Compatible With Series | 200 Class |
| Dia. | 48 mm |
| Flashes Per Minute | 110 FPM |
| For Location | Indoor, Outdoor |
| Height | 1.85" |
| Housing Material | Polycarbonate |
| Included | Gasket |
| Ip Rating | IP54, IP66 |
| Lamp Life | 100 k hrs. |
| Lamp Type | LED |
| Lens Color | Amber |
| Lens Design | Simple |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 100000 hrs. |
| Light Operating Mode | Flashing, Steady |
| Light Source | LED |
| Max. Operating Temp. | 122°F |
| Min. Operating Temp. | -22°F |
| Mounting | Base |
| Nema Rating | NEMA 3R, NEMA 4X |
| Operating Amps | 0.055A |
| Operating Temp. | -22°F to +122°F |
| Operating Voltage | 240V AC |
| Overall Height | 1 7/8" |
| Product Datasheet | edwards-signaling-248ledma120a.pdf |
| Rating | UL |
| Width | 2.17" |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 5.51 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 7.59 |
| HS code | 8531800050 |
| Country of Origin | IT |
Documentation:
Product Variants
| Product | Model | Ip Rating | Color | Dia. | Lens Design | Nema Rating | Operating Amps | Operating Voltage | Lens Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
248LEDMA120A | IP54, IP66 | Amber | - | Simple | NEMA 3R, NEMA 4X | 0.065A | 120V AC | Amber | €187.22 | |
|
248LEDMA24AD | IP54, IP66 | Amber | 48 mm | Simple | NEMA 3R, NEMA 4X | 0.03A | 24V AC/DC | Amber | €174.67 | |
 |
248LEDMB120A | IP54, IP66 | Blue | 48 mm | Simple | NEMA 3R, NEMA 4X | 0.065A | 120V AC | Blue | €189.69 | |
|
248LEDMB240A | IP54, IP66 | Blue | 48 mm | Simple | NEMA 3R, NEMA 4X | 0.055A | 240V AC | Blue | €204.20 | |
|
248LEDMB24AD | IP54, IP66 | Blue | 48 mm | Simple | NEMA 3R, NEMA 4X | 0.03A | 24V AC/DC | Blue | €169.48 | |
 |
248LEDMG120A | IP54, IP66 | Green | 48 mm | Simple | NEMA 3R, NEMA 4X | 0.065A | 120V AC | Green | €203.93 | |
|
248LEDMG240A | IP54, IP66 | Green | 48 mm | Simple | NEMA 3R, NEMA 4X | 0.055A | 240V AC | Green | €207.47 |
