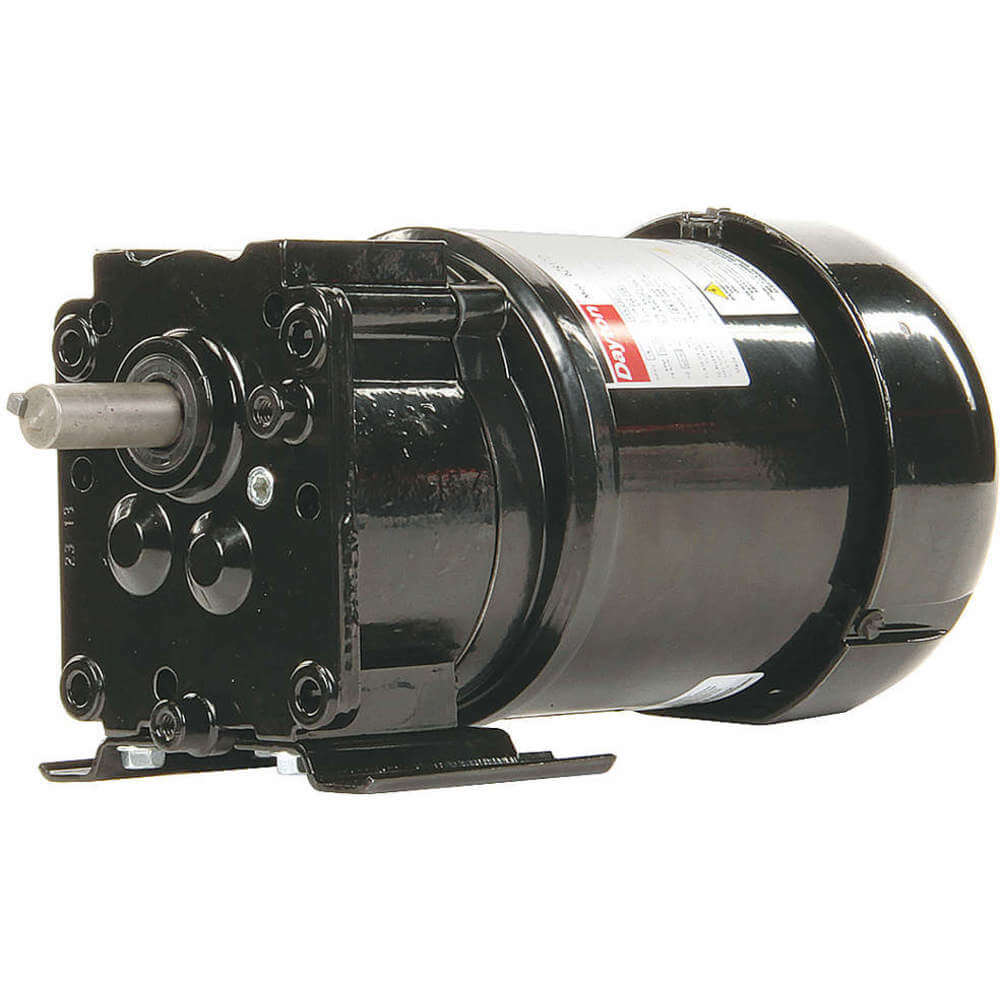

DAYTON 6Z817 Ac Gearmotor 16 Rpm Tefc 115/230v
16 RPM
167/1000 hp
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,038.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Agma Gear Class | Class 9 |
| Amps | 2.1/1.1A |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Type | Ball On Motor, Heavy Duty Needle Roller And Thrust Balls On Case |
| Brake Type | None |
| Capacitor Required | Yes |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.1/1.1A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Hardened Steel |
| Gear Ratio | 102:1 |
| Gear Type | Helical, Spur |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Housing Material | Die Cast Aluminium |
| Includes Capacitor | Capacitor Included |
| Input Horsepower | 0.167 hp |
| Input Hp | 167/1000 hp |
| Inverter Rated | No |
| Inverter Rating | 1021 |
| Keyway Depth | 1/16" |
| Keyway Type | Rounded |
| Keyway Width | 0.19 mm |
| Length Less Shaft | 9 14/25" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 385 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Thermal Protection | None |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 1 1/2" |
| Mount Hole Center-to-center Width | 4" |
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 16 RPM |
| Nameplate Rpm Range | 16-30 RPM |
| No. Of Output Shafts | 1 |
| Number Of Brake Discs Required | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Output Shaft Dia. | 5/8" |
| Output Shaft Diameter | 5/8" |
| Output Shaft Height | 3 1/2" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 5.13" |
| Overall Width | 6" |
| Overhung Load | 175 lbs. |
| Overhung Load Capacity | 175 lbs.-ft. |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm Range | 16-30 RPM |
| Seal Type | Lip Type on Input, Output Shaft |
| Seals | Lip Type On Input, Output Shaft |
| Shaft Dia. | 5/8" |
| Shaft Orientation | Parallel |
| Thermal Protection | No |
| Type | Permanent Split Capacitor |
Shipping Info:
| Ship weight (kg) | 7.54 |
| Ship height (cm) | 16.26 |
| Ship length (cm) | 37.34 |
| Ship width (cm) | 20.83 |
| HS code | 8501404020 |
| Country of Origin | US |
Product Variants
| Model | Operating Voltage | Gear Ratio | Nameplate Rpm Range | Overhung Load Capacity | Rotation | Shaft Orientation | Base To Center Of Shaft | Overhung Load | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1L518 | 230V AC | 17:1 | - | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €668.22 | |
| 1L519 | 230V AC | 186:1 | 0-15 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €706.35 | |
| 1L530 | 230V AC | 13:1 | 101-150 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €681.68 | |
| 1L532 | 230V AC | 1369:1 | 0-15 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €702.87 | |
| 1LPL3 | 115/230V AC | 81:1 | 16-30 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,106.22 | |
| 1LPL4 | 115/230V AC | 135:1 | 0-15 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,097.44 | |
| 1LPL5 | 115/230V AC | 267:1 | 0-15 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,122.24 |
