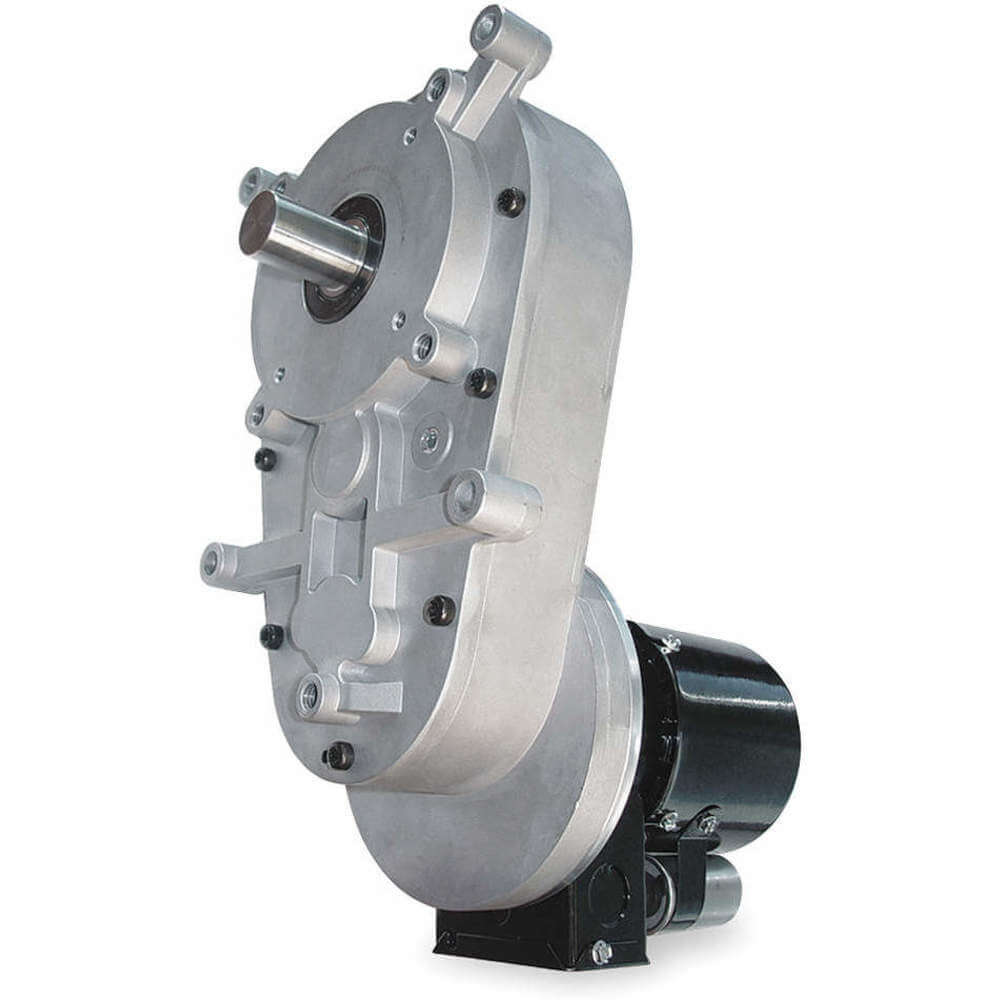

DAYTON 1LPY7 Ac Gearmotor 2 Rpm Tefc 115/230v
2 RPM
83/1000 hp
Get it by Tuesday, Dec 23
10.00% off
€1,543.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 1.2/0.63A |
| Bearing Type | Ball And Needle On Case, Ball On Motor , Ball On Motor |
| Capacitor Required | Yes |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Finish | Unpainted |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.2/0.63A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Hardened Steel |
| Gear Ratio | 835:1 |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Housing Material | Die Cast Aluminium |
| Housing Material Finish | Unpainted |
| Includes Capacitor | Capacitor Included |
| Input Horsepower | 21/253 hp |
| Input Hp | 83/1000 hp |
| Inverter Rated | No |
| Keyway Size | #806 |
| Keyway Type | Woodruff |
| Length Less Shaft | 10.13" |
| Lubrication | Grease Filled |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 1900 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class B |
| Motor Thermal Protection | None |
| Motor Type | Permanent Split Capacitor |
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 2 RPM |
| Nameplate Rpm Range | 0-15 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Output Shaft Dia. | 1" |
| Output Shaft Diameter | 1" |
| Output Shaft Length | 1 1/2" |
| Overhung Load | 550 lbs. |
| Overhung Load Capacity | 550 lbs.-ft. |
| Phase | 1 |
| Reversible Shaft Output | No |
| Rpm @ 50 Hz | 1.7 |
| Rpm @ 50 Hz | 1.7 RPM |
| Rpm Range | 0-15 RPM |
| Seal Type | Lip Type On Output Shaft |
| Seals | Lip Type On Output Shaft |
| Shaft | Single Output |
| Shaft Dia. | 1" |
| Shaft Orientation | Parallel |
| Standards | Cruus |
| Type | Permanent Split Capacitor |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| HS code | 8501402020 |
| Country of Origin | US |
Product Variants
| Model | Operating Voltage | Gear Ratio | Nameplate Rpm Range | Overhung Load Capacity | Rotation | Shaft Orientation | Base To Center Of Shaft | Overhung Load | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1L518 | 230V AC | 17:1 | - | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €668.22 | |
| 1L519 | 230V AC | 186:1 | 0-15 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €706.35 | |
| 1L530 | 230V AC | 13:1 | 101-150 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €681.68 | |
| 1L532 | 230V AC | 1369:1 | 0-15 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €702.87 | |
| 1LPL3 | 115/230V AC | 81:1 | 16-30 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,106.22 | |
| 1LPL4 | 115/230V AC | 135:1 | 0-15 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,097.44 | |
| 1LPL5 | 115/230V AC | 267:1 | 0-15 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,122.24 |
