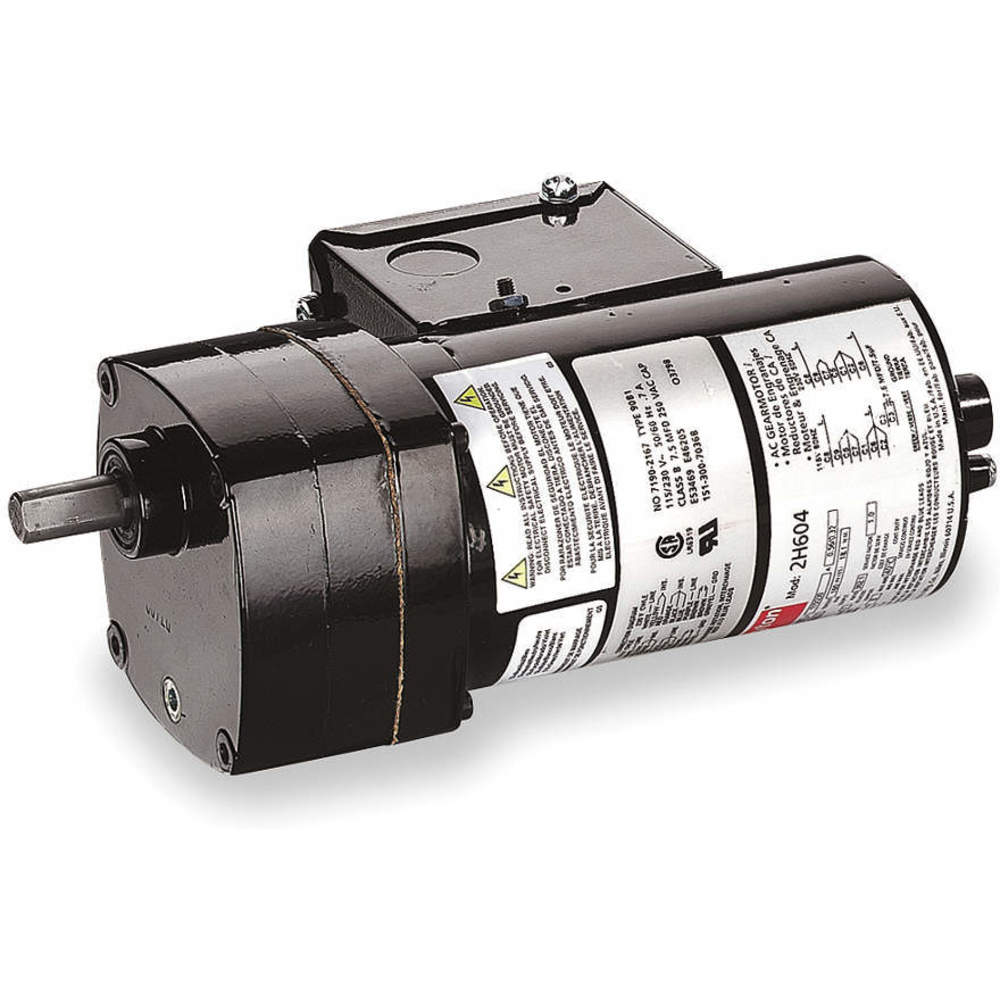

DAYTON 2H604 Ac Gearmotor 4.6 Rpm Tenv 115/230v
Item: AB9ZUNModel: 2H604
7 In Stock
4.6 RPM
1/20 hp
Ships within 2 days via
10.00% off
€917.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Amps | 0.38/0.22A |
| Bearing Type | Needle Throughout, Ball On Motor |
| Brake Type | None |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frequency | 50/60 Hz |
| Full Load Current | 0.38/0.22A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Hardened Steel |
| Gear Ratio | 362:1 |
| Gear Type | Helical, Spur |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Housing Material | Die Cast Aluminium |
| Includes Capacitor | Capacitor Included |
| Input Hp | 1/20 hp |
| Inverter Rated | No |
| Inverter Rating | 3621 |
| Keyway Depth | 3/4" |
| Keyway Width | 1/8" |
| Length Less Shaft | 7 1/2" |
| Lubrication | Permanent Heavy Fluid Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 160 lbs.-in. |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Thermal Protection | None |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 2.63" |
| Mount Hole Center-to-center Width | 2.63" |
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 4.6 RPM |
| Nameplate Rpm Range | 0-15 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Output Shaft Dia. | 1/2" |
| Output Shaft Diameter | 1/2" |
| Output Shaft Length | 1" |
| Overall Height | 3.63" |
| Overall Width | 3.63" |
| Overhung Load | 115 lbs. |
| Overhung Load Capacity | 115 lbs.-ft. |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm Range | 0-15 RPM |
| Seal Type | Spring Loaded Lip Type on Input, Output Shaft |
| Seals | Spring Loaded Lip Type On Input And Output Shaft |
| Shaft Dia. | 1/2" |
| Shaft Orientation | Parallel |
| Thermal Protection | No |
| Type | Permanent Split Capacitor |
Shipping Info:
| Ship weight (kg) | 4.34 |
| Ship height (cm) | 16.26 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 20.83 |
| HS code | 8501104020 |
| Country of Origin | US |
Product Variants
| Model | Operating Voltage | Gear Ratio | Nameplate Rpm Range | Overhung Load Capacity | Rotation | Shaft Orientation | Base To Center Of Shaft | Overhung Load | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1L518 | 230V AC | 17:1 | - | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €668.22 | |
| 1L519 | 230V AC | 186:1 | 0-15 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €706.35 | |
| 1L530 | 230V AC | 13:1 | 101-150 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €681.68 | |
| 1L532 | 230V AC | 1369:1 | 0-15 RPM | 90 lbs.-ft. | CW/CCW | Parallel | - | 90 lbs. | €702.87 | |
| 1LPL3 | 115/230V AC | 81:1 | 16-30 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,106.22 | |
| 1LPL4 | 115/230V AC | 135:1 | 0-15 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,097.44 | |
| 1LPL5 | 115/230V AC | 267:1 | 0-15 RPM | 250 lbs.-ft. | CW/CCW | Parallel | 2 1/2" | 250 lbs. | €1,122.24 |
