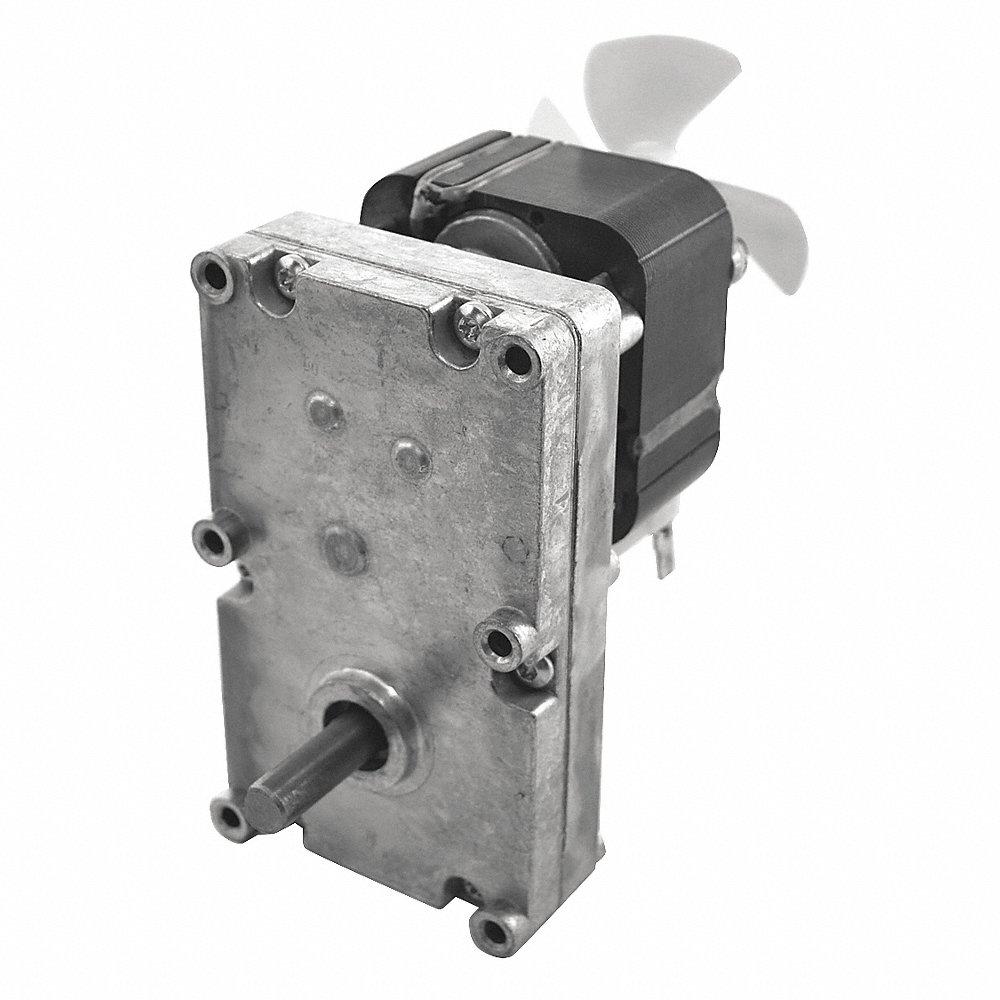

DAYTON 52JE01 AC Gearmotor, 50 RPM, 12 Inch lbs. Max. Torque, Single, CW
Item: CH9NFWModel: 52JE01
7 In Stock
50 RPM
167/1000 hp
Ships within 2 days via
10.00% off
€118.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Capacitor Required | No |
| Enclosure Type | Open |
| Gear Material | Sintered Steel |
| Gear Type | Spur |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Input Hp | 1/60 hp , 167/1000 hp |
| Length Less Shaft | 4 1/4" |
| Motor Shaft Design | Flat |
| Mount Hole Center-to-center Length | 4 3/4" |
| Mount Hole Center-to-center Width | 2.38" |
| Mount Type | Any Position |
| Mounting Orientation | Any Angle |
| Number Of Brake Discs Required | 0 |
| Number Of Output Shafts | 1 |
| Output Shaft Dia. | 3/8" |
| Output Shaft Height | 3 8/25" |
| Output Shaft Length | 1" |
| Overall Height | 4.69" |
| Overall Length | 5 1/4" |
| Overall Width | 2 3/4" |
| Reversible Shaft Output | No |
| Service Factor | 1 |
| Shaft | Single Output |
| Shaft Dia. | 3/8" |
| Shaft Orientation | Parallel |
| Thermal Protection | Auto |
| Type | Shaded Pole |
Shipping Info:
| Ship weight (kg) | 2.12 |
| Ship height (cm) | 11.91 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Product Variants
| Model | Mounting Orientation | Operating Voltage | Gear Ratio | Overhung Load Capacity | Rotation | Base To Center Of Shaft | Nameplate Rpm Range | Brake Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LNF7 | Any Angle | 115V AC | 762:1 | 56 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €141.41 | |
| 1LNF8 | Any Angle | 115V AC | 529:1 | 65 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €158.33 | |
| 1LNF9 | Any Angle | 115V AC | 126:1 | 15 lbs.-ft. | CW | 1.38" | 16-30 RPM | - | €168.16 | |
| 1LNG1 | Any Angle | 115V AC | 63:1 | - | - | - | 51-75 RPM | - | €168.03 | |
| 1LNG2 | Any Angle | 115V AC | 63:1 | 10 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €151.07 | |
| 1MBF3 | Any Angle | 115V AC | 3231:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €136.13 | |
| 1MBF4 | Any Angle | 115V AC | 1526:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €142.00 |
