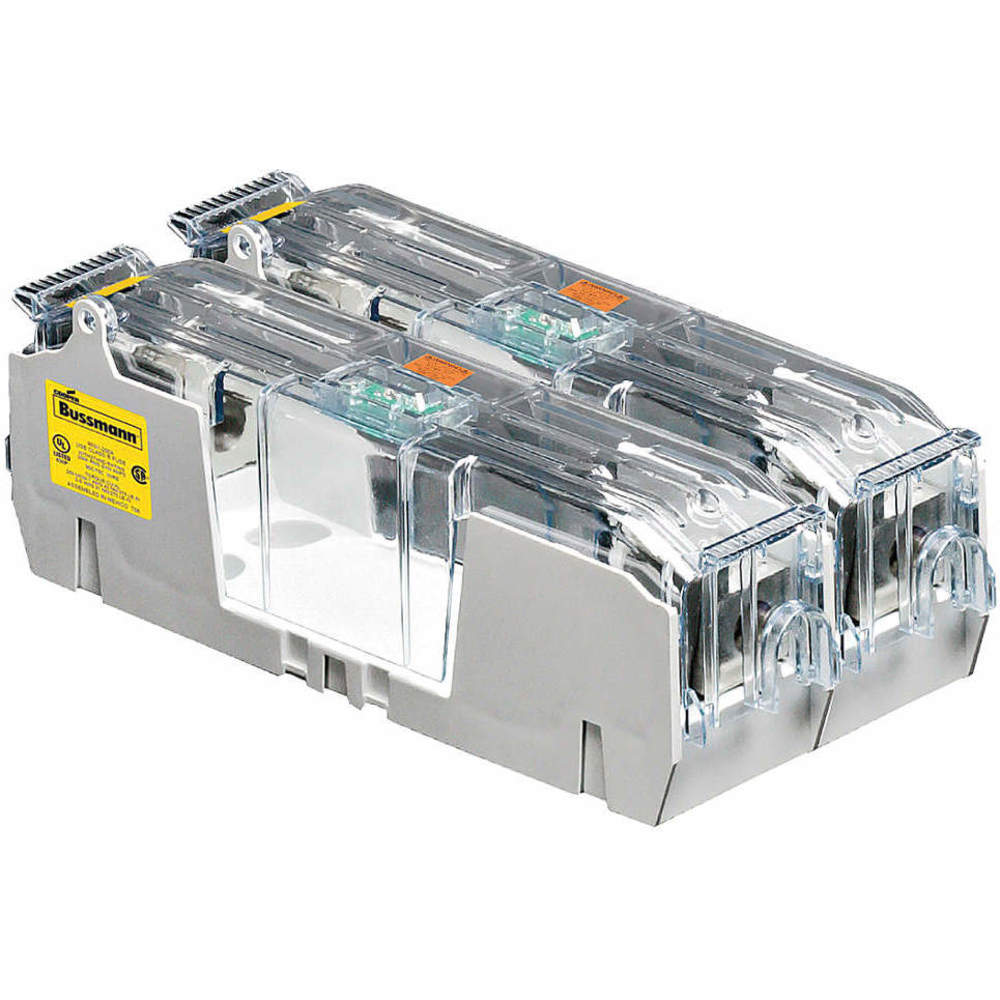

BUSSMANN RM60200-2CR Fuse Block, Fits Industrial Fuse Type, 2 Poles, 101 To 200 Amp, 600 VAC/300 VDC, R Class, 6 AWG to 250 MCM, Box Lug
Item: AC8FDEModel: RM60200-2CRCross Ref: 39P382
7 In Stock
Ships within 2 days via
5.00% off
€735.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amperage Range | 110 to 200 |
| Amps | 101-200A , 110-200A |
| Blown Fuse Indicator | No |
| Body Material | Thermoplastic |
| Connector Type | Box Lug |
| Dc Voltage | 300V DC |
| Depth | 3" |
| Features | Short Circuit And Overload Protection |
| Fits Fuse Type | Industrial |
| For Fuse Size | 7 1/8" x 1 9/16" Dia. |
| Fuse Amps | 101-200A |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Dia. | 2 4/5" |
| Fuse Holder Code | S |
| Fuse Length | 9 3/5" |
| Fuse Overall Dia. | 1 9/16" |
| Fuse Overall Length | 11 1/5" |
| Fuse Ul Class | R |
| Height | 3 4/5" |
| Indicating/nonindicating | Non Indicating |
| Length | 11 1/5" |
| Material | Thermoplastic |
| Max. Voltage | 600V |
| Mounting Style | Bolt-Down, DIN Rail |
| Mounting Type | Bolt Down, DIN Rail |
| No. Of Poles | 2 |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Width | 5.3" |
| Wire | 6 AWG to 250 mcm |
| Wire Size | 6 AWG to 250 mcm |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 6.53 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 11.3 |
| HS code | 8536908085 |
| Country of Origin | MX |
Product Variants
| Product | Model | Fuse Ul Class | Connector Type | Voltage | Fuse Block Design | Amps | Height | Wire Size | Dc Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RM25100-1CR | R | Box Lug | 250V | Barrier | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €179.53 | |
 |
RM25100-2CR | R | Box Lug | 250V | Open | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €318.69 | |
 |
RM25100-3CR | R | Box Lug | 250V | Open | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €244.60 | |
 |
RM25200-1CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €401.11 | |
|
RM25200-2CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €707.09 | |
|
RM25200-3CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €1,147.64 | |
 |
RM25400-1CR | R | Box Lug | 250V | Open | 201-400A | 4 4/5" | 600 kcmil to 4 AWG | 250V DC | €1,193.30 |
