Home
Test Instruments
Electronic/Bench Testing
Bench Single Output DC Power Supplies

Bench Single Output DC Power Supplies

Filter

B&K PRECISION -

Dc Power Supply

B&K PRECISION XLN10014-GL

A

B&K PRECISION XLN8018-GL

B

B&K PRECISION XLN6024-GL

C

B&K PRECISION XLN3640

D

Style	Model	Output Amps	Max. Voltage Output	Line Voltage Regulation	Load Regulation	Max. Output Amps	Load Regulation Voltage	Load Regulation Amps	Line Regulation Voltage	Price
A	XLN10014-GL	0-14.4A	100V	Less Than Or Equal To 10 mV	Less Than Or Equal To 12 mV	14.4A	12 mV	6 mA	10 mV	€3,074.82
A	XLN10014	0-14.4A	100V	Less Than Or Equal To 10 mV	Less Than Or Equal To 12 mV	14.4A	12 mV	6 mA	10 mV	€2,610.51
B	XLN8018-GL	0-18A	80V	Less Than Or Equal To 8 mV	Less Than Or Equal To 10 mV	18A	10 mV	6.5 mA	8 mV	€3,121.72
B	XLN8018	0-18A	80V	Less Than Or Equal To 8 mV	Less Than Or Equal To 10 mV	18A	10 mV	6.5 mA	8 mV	€2,690.40
C	XLN6024-GL	0-24A	60V	Less Than Or Equal To 6 mV	Less Than Or Equal To 8 mV	24A	8 mV	7 mA	6 mV	€3,121.72
C	XLN6024	0-24A	-	Less Than Or Equal To 6 mV	Less Than Or Equal To 8 mV	-	-	-	-	€2,669.63
D	XLN3640	0-40A	36V	Less Than Or Equal To 4 mV	Less Than Or Equal To 8 mV	40A	8 mV	8 mA	4 mV	€2,595.29
D	XLN3640-GL	0-40A	36V	Less Than Or Equal To 4 mV	Less Than Or Equal To 8 mV	40A	8 mV	8 mA	4 mV	€3,106.51

B&K PRECISION -

Bench Single Output DC Power Supplies

B&K PRECISION 9132C

A

B&K PRECISION 9130C

B

B&K PRECISION 9131C

C

B&K PRECISION 1902B

D

B&K PRECISION 1901B

E

B&K PRECISION 9241-GPIB

F

B&K PRECISION 9240-GPIB

G

Style	Model	Output Amps	Overall Width	Overall Height	Overall Depth	Max. Voltage Output	Dimensions	Ripple Voltage Regulation	Output Dc Voltage	Price
A	9132C	0-3A	8.45"	3.47"	17.52"	-	-	1M Vrms	0-60/0-5V	€1,979.21
B	9130C	0-3A	8.45"	3.47"	13.96"	-	-	1M Vrms	0-30/0-5V	€1,474.31
C	9131C	0-3A, 0-6A	8.45"	3.47"	13.96"	-	-	1M Vrms	0-30/0-5V	€1,979.21
D	1902B	0-15A	7.9"	3 1/2"	10.8"	60V	3.5" x 7.9" x 10.8"	5 Mvrms	1-60V	€836.71
E	1901B	0-30A	7.9"	3 1/2"	10.8"	32V	3.5" x 7.9" x 10.8"	5 Mvrms	1-32V	€874.42
E	1900B	0-60A	7.9"	3 1/2"	10.8"	16V	3.5" x 7.9" x 10.8"	5 Mvrms	1-16V	€874.42
F	9241-GPIB	4A	8 2/5"	3 1/2"	13"	60V	3.5" x 8.4" x 13"	10 mV	60V	€1,595.36
F	9241	4A	8 2/5"	3 1/2"	13"	60V	3.5" x 8.4" x 13"	10 mV	60V	€1,352.46
G	9240-GPIB	8A	8 2/5"	3 1/2"	13"	32V	3.5" x 8.4" x 13"	5 mV	32V	€1,592.90
F	9242-GPIB	10A	-	-	-	-	-	Less Than Or Equal To 10 mV	60V	€1,871.37

B&K PRECISION -

Bench Power Supplies

B&K PRECISION 9201B

A

B&K PRECISION 9206B

B

B&K PRECISION 9202B

C

B&K PRECISION 9205B

D

Style	Model	Output Amps	Max. Voltage Output	Overall Depth	Dimensions	Ripple Voltage Regulation	Max. Output Amps	Load Regulation Voltage	Load Regulation Amps	Price
A	9201B	10A	60V	13.96"	3.47" x 8.45" x 13.96"	8 Mv Pp	10A	0.01% +8 mV	0.1% + 6 mA	€988.84
B	9206B	10A	150V	17.52"	3.47" x 8.45" x 17.52"	50 Mvpp	10A	0.01% +15 mV	0.1% + 10 mA	€2,227.67
C	9202B	15A	60V	13.96"	3.47" x 8.45" x 13.96"	15 Mvpp	15A	0.01% +8 mV	0.1% + 6 mA	€1,266.61
D	9205B	25A	60V	17.52"	3.47" x 8.45" x 17.52"	20 Mvpp	25A	0.01% +15 mV	0.1% + 10 mA	€1,977.69

TRIPP LITE -

DC Power Supplies

TRIPP LITE PR 25

A

TRIPP LITE PR 60

B

TRIPP LITE PS305

C

Style	Model	Max. Voltage Output	Overall Width	Overall Height	Overall Depth	Output Amps	Dimensions	Height	Input Frequency	Price
A	PR 25	13.8V	10 1/2"	6.9"	11.5"	20A	6.9" x 10.5" x 11.5"	6 3/4"	60 Hz	€362.03
A	PR 40	13.8V	6 1/4"	6.9"	6.31"	32A	6.9" x 6.25" x 6.31"	6 3/4"	60 Hz	€449.05
B	PR 60	13.8V	10 1/2"	6.9"	11.5"	48A	6.9" x 10.5" x 11.5"	6 3/4"	60 Hz	€573.49
A	PR 7	13.8V	6 1/2"	3.7"	7.5"	7A	3.7" x 6.5" x 7.5"	3 3/4"	60 Hz	€128.61
C	PS305	30V	4.1"	8.3"	6.1"	-	-	8.3"	50/60 Hz	€191.20
C	PS305NIST	30V	4.1"	8.3"	6.1"	-	-	-	-	€300.20

EXTECH -

Digital Single Output Dc Power Supply

A

B

Style	Model	Output Amps	Max. Voltage Output	Ripple Voltage Regulation	Max. Output Amps	Output Dc Voltage	Overall Width	Overall Height	Overall Depth	Price
A	382200	0-1A	30V DC	Less Than 0.5 Mv	1A	0-30V DC	9 2/5"	4 1/4"	6"	€318.08
B	382202	0-3A	18V DC	Less Than 0.5 Mv	3A	0-18V DC	9 2/5"	4 1/4"	6"	€349.06

B&K PRECISION -

Single Output DC Power Supplies

B&K PRECISION 1715A

A

B&K PRECISION 1735A

B

B&K PRECISION 9110

C

B&K PRECISION 1743B

D

B&K PRECISION 1692

E

Style	Model	Output Amps	Max. Voltage Output	Overall Width	Overall Height	Overall Depth	Dimensions	Max. Input Voltage	Ripple Voltage Regulation	Price
A	1715A	0-2A	60V	5 1/2"	6 1/5"	12.5"	6.2" x 5.5" x 12.5"	240V AC	1 mV	€613.19
B	1735A	0-3A	30V	5 1/2"	6 1/5"	12.5"	6.2" x 5.5" x 12.5"	240V AC	1 mV	€557.28
C	9110	0-5A	60V	3.47"	6.9"	11.11"	6.9" x 3.47" x 11.11"	121V AC	2 Mvrms	€550.18
D	1743B	0-6A	35V	10 1/2"	5.7"	15"	5.7" x 10.5" x 15"	220V AC	1 Mvrms	€1,111.89
E	1692	0-40A	15V	8.67"	8.67"	11.82"	8.67" x 8.67" x 11.82"	120V AC	Less Than 10 Mvrms	€548.86

B&K PRECISION -

DC Power Supplies

B&K PRECISION 1747

A

B&K PRECISION 1670A

B

B&K PRECISION 1621A

C

B&K PRECISION 9111

D

B&K PRECISION 1745A

E

B&K PRECISION 1739

F

B&K PRECISION 1698B

G

B&K PRECISION 1697B

H

B&K PRECISION 1696B

I

Style	Model	Output Amps	Max. Voltage Output	Overall Width	Overall Height	Overall Depth	Dimensions	Max. Input Voltage	Min. Input Voltage	Price
A	1747	-	35V	5 1/2"	6 1/5"	12.5"	6.2" x 5.5" x 12.5"	230V AC	115V AC	€1,158.76
B	1670A	0-3A	30V	8 1/2"	4.9"	5.5"	4.9" x 8.5" x 5.5"	230V AC	115V AC	€422.24
C	1621A	0-5A	18V	4.53"	8.07"	10.63"	8.07" x 4.53" x 10.63"	230V AC	120V AC	€387.04
D	9111	0-8A	60V	3.47"	6.9"	11.11"	6.9" x 3.47" x 11.11"	121V AC	99V AC	€656.66
E	1745A	0-10A	35V	10 1/2"	5.7"	15"	5.7" x 10.5" x 15"	240V AC	120V AC	€940.51
F	1739	1A	30V	5 1/2"	6 1/5"	12.5"	6.2" x 5.5" x 12.5"	220V AC	110V AC	€858.35
G	1698B	3.3A	-	-	-	-	-	-	-	€544.35
H	1697B	5A	40V DC	7 3/5"	7 3/5"	7.6"	7.6" x 7.6" x 7.6"	240V AC	100V AC	€544.35
I	1696B	10A	20V DC	7 3/5"	7 3/5"	7.6"	7.6" x 7.6" x 7.6"	240V AC	100V AC	€544.35

B&K PRECISION -

Switching DC Power Supplies

B&K PRECISION 1685B

A

B&K PRECISION 1687B

B

B&K PRECISION 1688B

C

Style	Model	Output Amps	Max. Voltage Output	Max. Output Amps	Output Dc Voltage	Max. Power Output	Overall Width	Overall Height	Overall Depth	Price
A	1685B	5A	60V	5A	60V	300 W	7.9"	3 1/2"	8.2"	€529.84
B	1687B	10A	36V	10A	36V	360 W	7.9"	3 1/2"	8.2"	€557.08
C	1688B	20A	18V	20A	18V	360 W	7.9"	3 1/2"	8.2"	€557.08

B&K PRECISION -

Single Output Dc Power Supply Digital

B&K PRECISION XLN60026

A

Style	Model	Output Amps	Max. Voltage Output	Max. Output Amps	Load Regulation Voltage	Load Regulation Amps	Line Regulation Voltage	Output Dc Voltage	Line Regulation Amps	Price
A	XLN60026	0.01-2.6A	600V	2.6A	62 mV	10.4 mA	62 mV	5-600V DC	5.2 mA	€2,904.71
A	XLN60026-GL	0.01-2.6A	600V	2.6A	62 mV	10.4 mA	62 mV	5-600V DC	5.2 mA	€3,344.68
A	XLN30052	0.02-5.2A	300V	5.2A	32 mV	20.8 mA	32 mV	5-300V DC	10.4 mA	€2,864.40
A	XLN30052-GL	0.02-5.2A	300V	5.2A	32 mV	20.8 mA	32 mV	5-300V DC	10.4 mA	€3,313.42
A	XLN15010	0.04-10.4A	150V	10.4A	17 mV	40.4 mA	17 mV	5-150V DC	10.4 mA	€2,892.00
A	XLN15010-GL	0.04-10.4A	150V	10.4A	17 mV	40.4 mA	17 mV	5-150V DC	10.4 mA	€3,323.31

TRIPLETT -

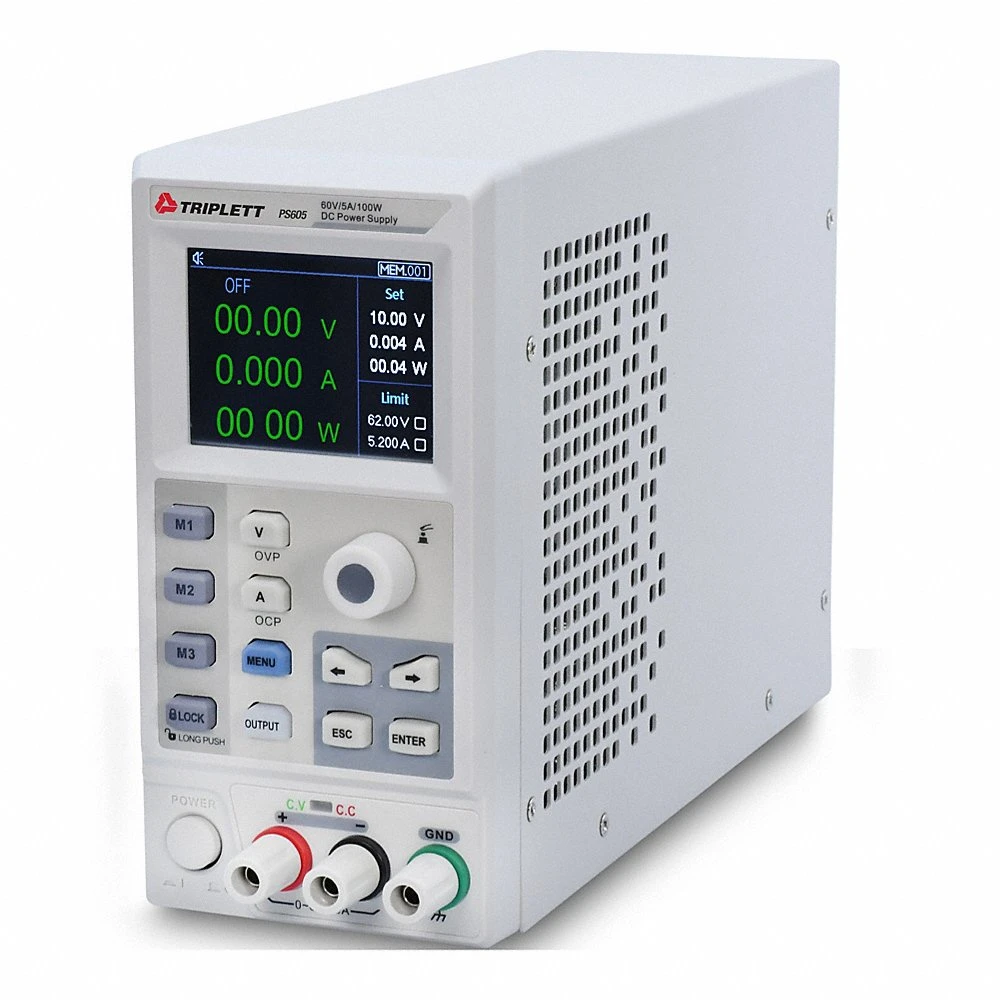

DC Power Supply, Digital DC, Included, 6.9 x 3.4 x 10 Inch, 3 Displays, NIST, LCD

DC Power Supply, Digital DC, Included, 6.9 x 3.4 x 10 Inch, 3 Displays, NIST, LCD

Model	Item	Price (ex. VAT)
PS605NIST	EA8FXF	€564.68

B&K PRECISION -

DC Power Supply, 0 to 80V, 0 to 60 A, 115/230V AC, Less Than or Equal To 60 mVp-p

DC Power Supply, 0 to 80V, 0 to 60 A, 115/230V AC, Less Than or Equal To 60 mVp-p

Model	Item	Price (ex. VAT)
9115B	CN2TNG	€2,574.99

EXTECH -

Lab Grade Dc Power Supply 230v

Lab Grade Dc Power Supply 230v

Model	Item	Price (ex. VAT)
382276	AF6DEG	€778.92

TRIPLETT -

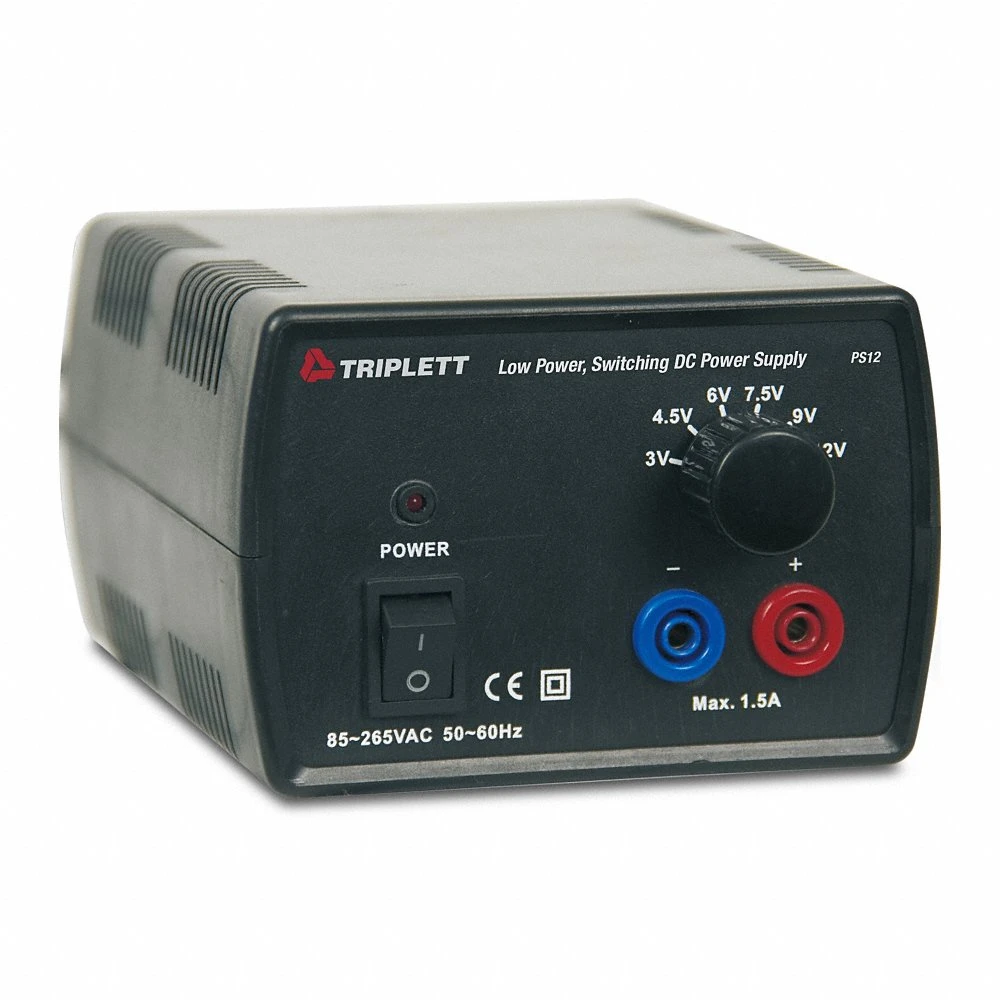

Output DC Power Supply, Digital DC, 4.3 Inch H x 3 Inch W x 5.5 Inch D, 1.5 A

Output DC Power Supply, Digital DC, 4.3 Inch H x 3 Inch W x 5.5 Inch D, 1.5 A

Model	Item	Price (ex. VAT)
PS12	EA8FXG	€119.08

TRIPLETT -

DC Power Supply, Digital DC, 3.4 x 6.9 x 10 Inch, 5 A Current Output Max, LCD

DC Power Supply, Digital DC, 3.4 x 6.9 x 10 Inch, 5 A Current Output Max, LCD

Model	Item	Price (ex. VAT)
PS605	EA8FXE	€508.28

EXTECH -

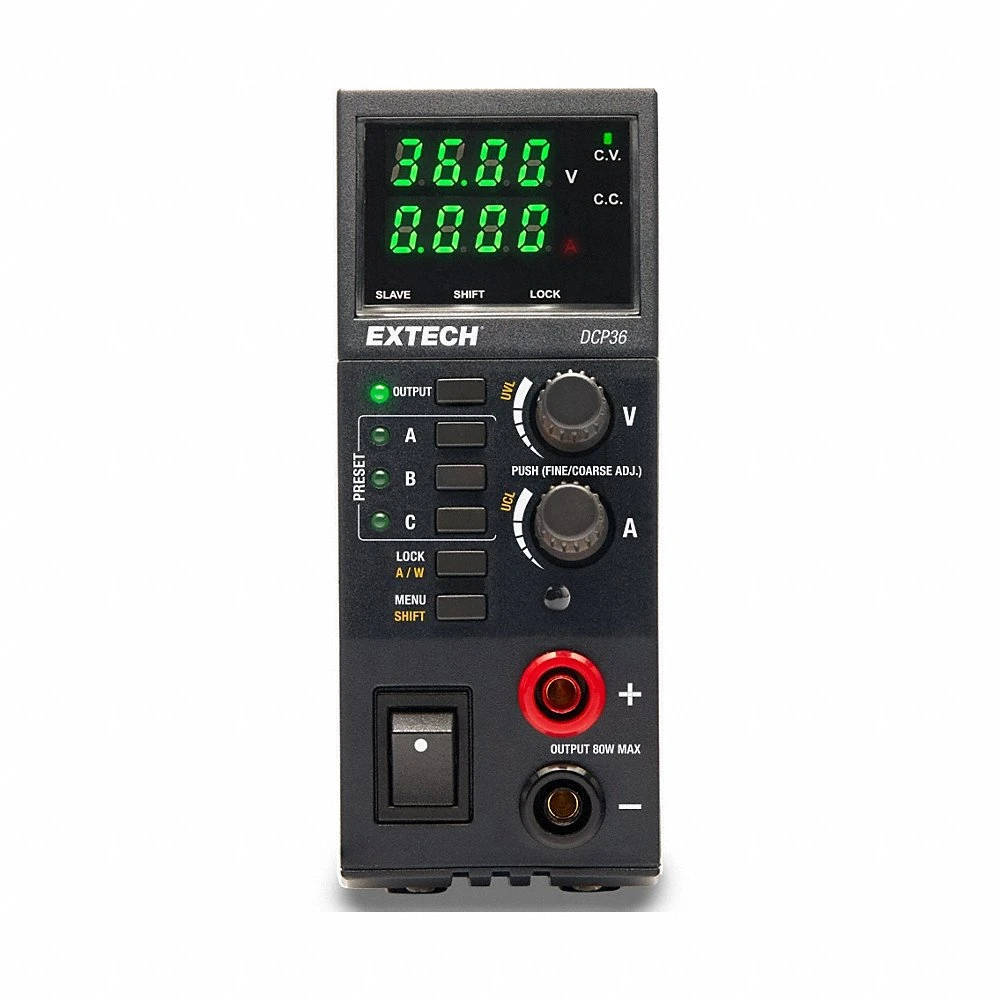

DC Power Supply, Switching Digital DC, 13 x 2 x 5 Inch, 5 A Current Output Max

DC Power Supply, Switching Digital DC, 13 x 2 x 5 Inch, 5 A Current Output Max

Model	Item	Price (ex. VAT)
DCP36	EA7QVJ	€603.49

EXTECH -

Power Supply 600w Dc

Power Supply 600w Dc

Model	Item	Price (ex. VAT)
382275	AA6GGK	€776.03

TRIPLETT -

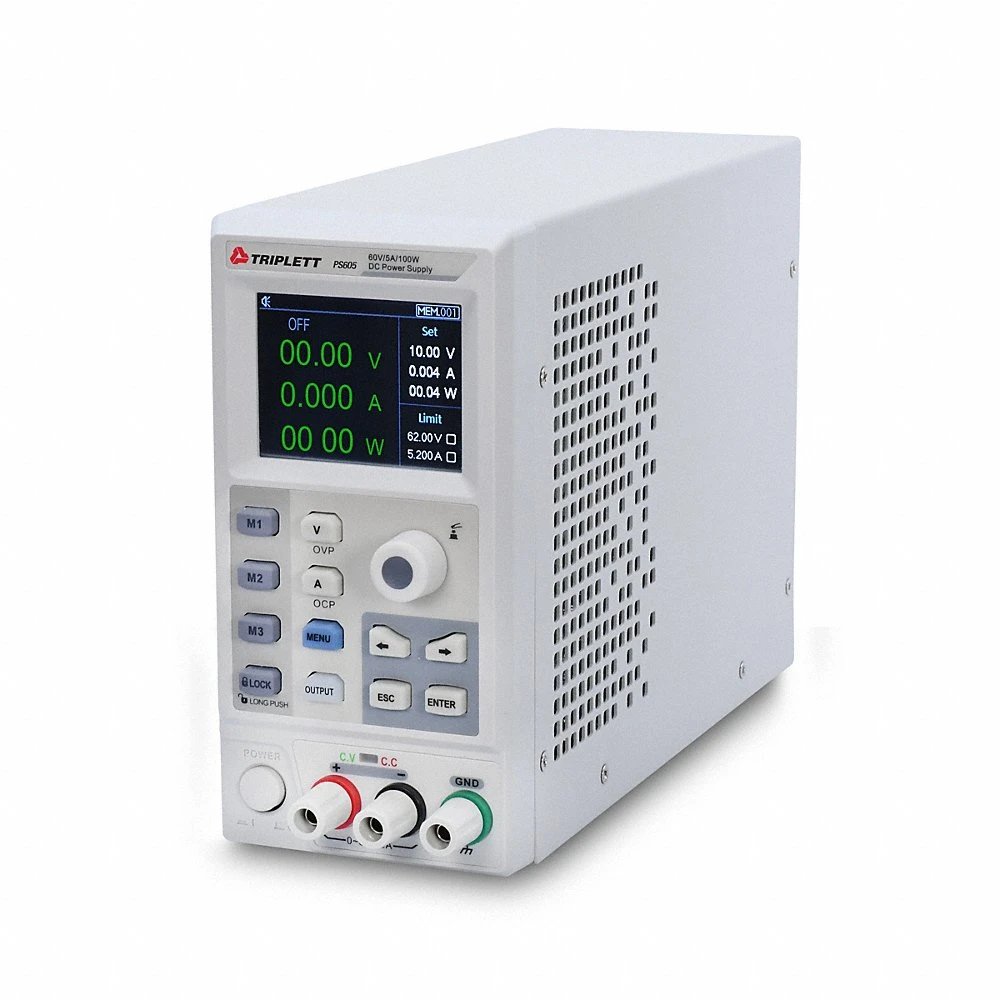

DC Power Supply, Digital DC, 3.4 x 6.9 x 10 Inch, 5 A Current Output Max, LCD

DC Power Supply, Digital DC, 3.4 x 6.9 x 10 Inch, 5 A Current Output Max, LCD

Model	Item	Price (ex. VAT)
PS605	EA7QTY	€480.29

B&K PRECISION -

Dual Range Dc Power Supply 30v/3a 60v/2a

Dual Range Dc Power Supply 30v/3a 60v/2a

Model	Item	Price (ex. VAT)
1737	AD6MZW	€664.35

TRIPLETT -

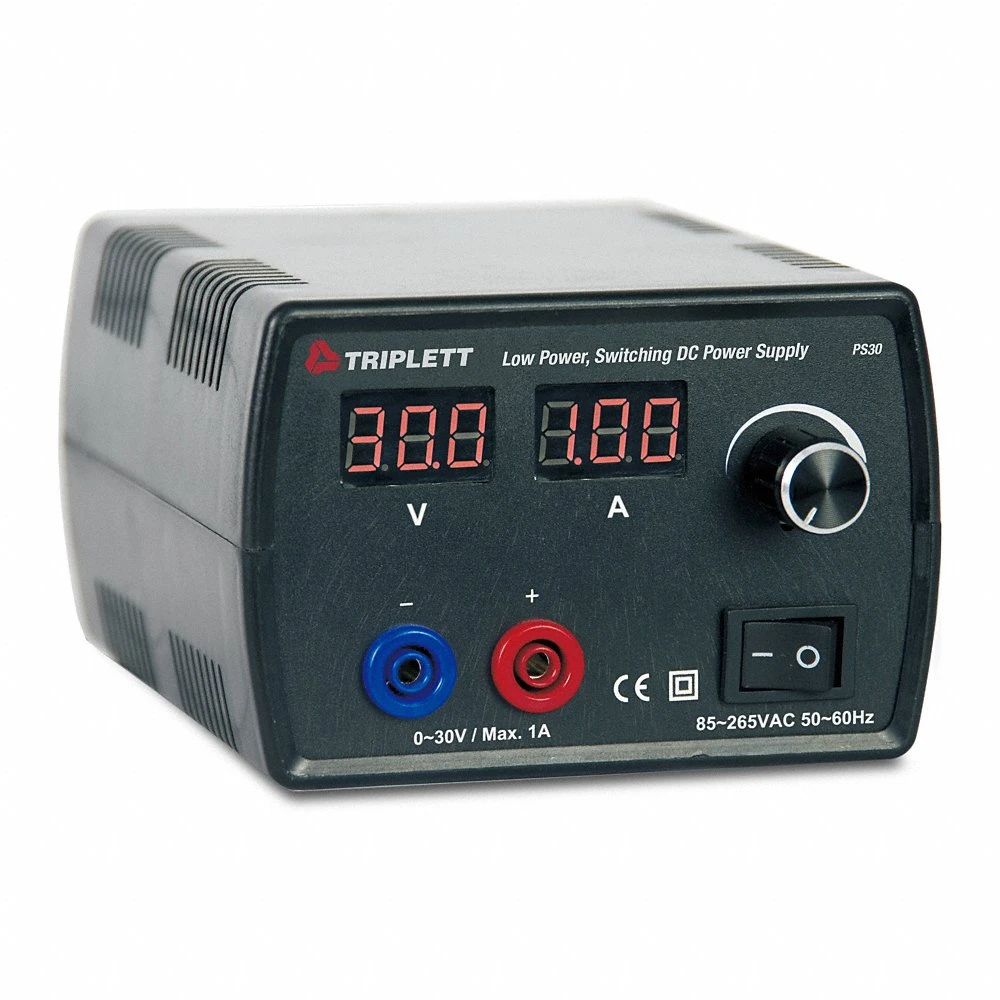

Output DC Power Supply, Digital DC, 4.3 x 3 x 5.5 Inch, 1 A Current Output Max

Output DC Power Supply, Digital DC, 4.3 x 3 x 5.5 Inch, 1 A Current Output Max

Model	Item	Price (ex. VAT)
PS30	EA8FXH	€153.61

TRIPP LITE -

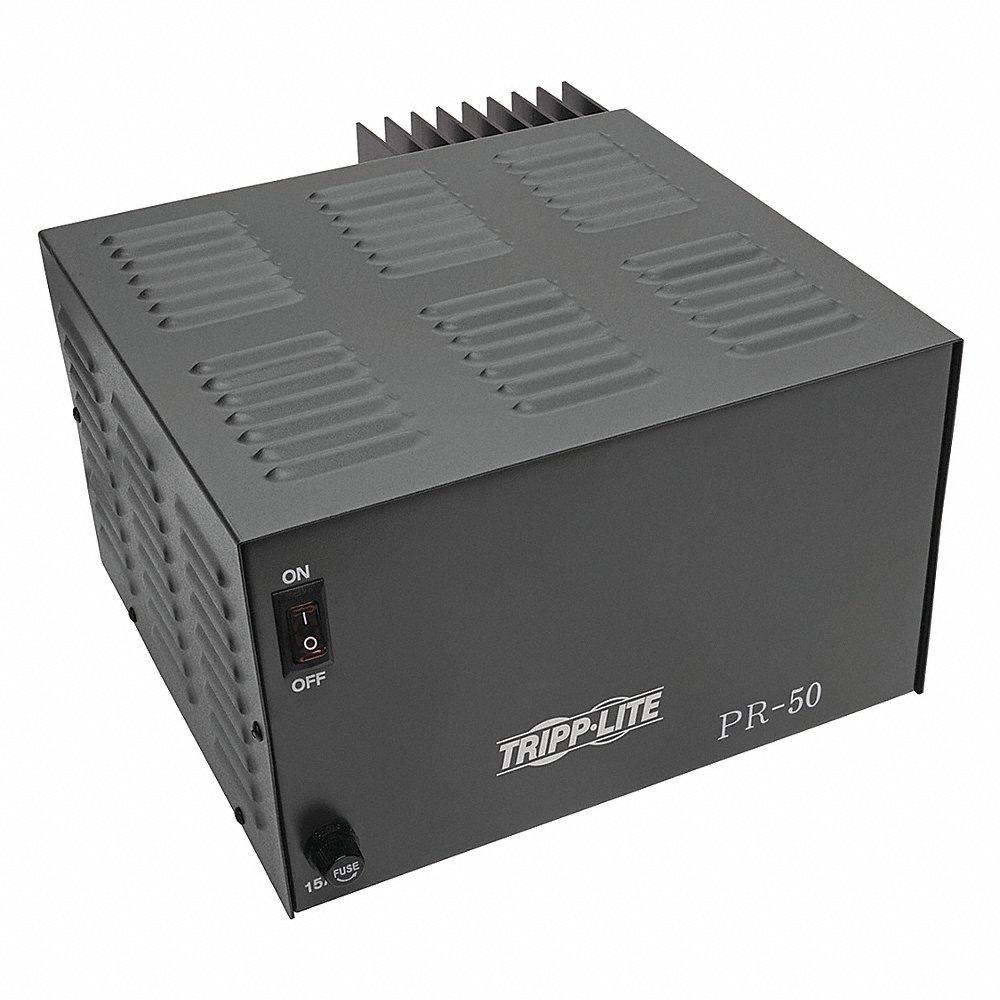

Dc Power Supply, 13.8V, 50 A, 120VAC

Dc Power Supply, 13.8V, 50 A, 120VAC

Model	Item	Price (ex. VAT)
PR50	CU6XWG	-	RFQ
