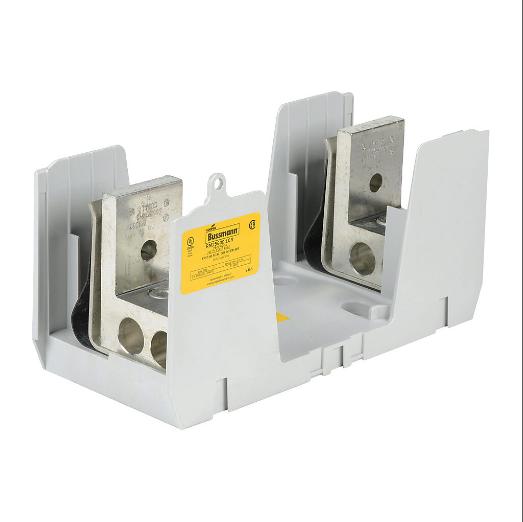

BUSSMANN RM25600-1CR-1 Modular Fuse Block, 600A, 250V, 1-Pole, 2 Line/2 Load Opening Per Pole
€1,317.60 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Block |
| Accepts Fuse Class | Class R |
| Amps Rating | 600A |
| Conductor Connection Type | Box Lug |
| Conductor Size | (2) 4 AWG to 500 MCM Copper Or Aluminum |
| Modular | Yes |
| Mounting | Panel |
| No. Of Poles | 1 |
| Product Datasheet | bussmann-cvri-rh-25100-1.pdf |
| Voltage Rating | 250V |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Amps | Height | Mounting Type | Fuse Ul Class | Connector Type | Fuse Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RM25100-1CR | 1 | 250V | 70-100A | 2 4/5" | Bolt Down, DIN Rail | R | Box Lug | 61-100A | €179.53 | |
 |
RM25100-2CR | 2 | 250V | 70-100A | 2 4/5" | Bolt Down, DIN Rail | R | Box Lug | 61-100A | €318.69 | |
 |
RM25100-3CR | 3 | 250V | 70-100A | 2 4/5" | Bolt Down, DIN Rail | R | Box Lug | 61-100A | €244.60 | |
 |
RM25200-1CR | 1 | 250V | 110-200A | 3 4/5" | Bolt Down, DIN Rail | R | Box Lug | 101-200A | €401.11 | |
|
RM25200-2CR | 2 | 250V | 110-200A | 3 4/5" | Bolt Down, DIN Rail | R | Box Lug | 101-200A | €707.09 | |
|
RM25200-3CR | 3 | 250V | 110-200A | 3 4/5" | Bolt Down, DIN Rail | R | Box Lug | 101-200A | €1,147.64 | |
 |
RM25400-1CR | 1 | 250V | 201-400A | 4 4/5" | Bolt Down, DIN Rail | R | Box Lug | 201-400A | €1,193.30 |
