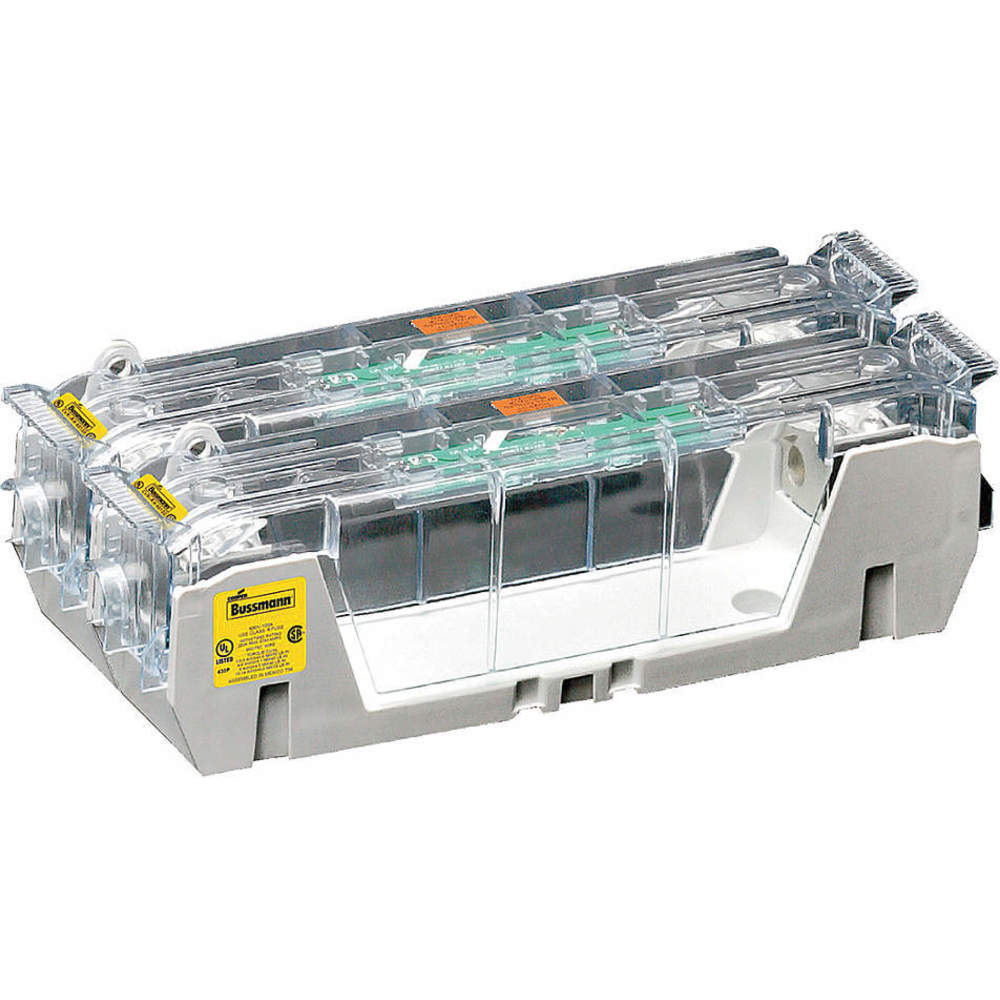

BUSSMANN HM60100-2CR Fuse Block 70 To 100 Amps 600max Volt 2p
Item: AC8FCTModel: HM60100-2CRCross Ref: 39P367
7 In Stock
Ships within 2 days via
10.00% off
€186.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amp Range | 61-100A |
| Amperage Range | 70 to 100 |
| Amps | 70-100A |
| Blown Fuse Indicator | No |
| Body Material | Thermoplastic |
| Connector Type | Box Lug |
| Dc Voltage | Not Applicable |
| Depth | 2 1/5" |
| Fits Fuse Type | Industrial |
| For Fuse Size | 7 15/16" x 1 5/16" |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Current | 61-100A |
| Fuse Dia. | 1.333" |
| Fuse Holder Code | R |
| Fuse Length | 8" |
| Fuse Overall Diameter | 1 5/16" |
| Fuse Overall Length | 8.7" |
| Fuse Type | Industrial |
| Fuse Ul Class | Class H, Class K5 |
| Height | 2 4/5" |
| Indicating / Nonindicating | Non Indicating |
| Length | 8.7" |
| Material | Thermoplastic |
| Max. Voltage | 600V |
| Mounting Style | Bolt Down |
| Mounting Type | Bolt Down |
| Number Of Poles | 2 |
| Spring Reinforced Clip | Yes |
| Visual Indication | Non Indicating |
| Voltage | 600V AC |
| Voltage Rating | 600V AC |
| Width | 4" |
| Wire Range | 14 AWG to 1 AWG |
| Wire Size | 14 AWG to 1/0 AWG |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 10.67 |
| HS code | 8536908085 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amp Range | Voltage Rating | Height | Wire Size | Dc Voltage | Max. Voltage | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HM25100-1CR | 1 | 61-100A | 250V AC | 2 4/5" | 14 AWG to 1/0 AWG | Not Applicable | 250V | 250V AC | €103.85 | |
 |
HM25100-2CR | 2 | 61-100A | 250V AC/125V DC | 2 4/5" | 14 AWG to 1/0 AWG | 125V DC | 250V | 250V AC/125V DC | €172.32 | |
 |
HM25100-3CR | 3 | 61-100A | 250V AC/125V DC | 2 4/5" | 14 AWG to 1/0 AWG | 125V DC | 250V | 250V AC/125V DC | €240.70 | |
 |
HM25200-1CR | 1 | 101-200A | 250V AC | 3 4/5" | 6 AWG to 250 mcm | Not Rated | 250V | 250V AC | €243.08 | |
 |
HM25200-2CR | 2 | 101-200A | 250V AC | 3 4/5" | 6 AWG to 250 mcm | Not Rated | 250V | 250V AC | €547.67 | |
 |
HM25200-3CR | 3 | 101-200A | 250V AC | 3 4/5" | 6 AWG to 250 mcm | Not Applicable | 250V | 250V AC | €723.42 | |
 |
HM25400-1CR | 1 | 201-400A | 250V AC | 4 4/5" | 600 kcmil to 4 AWG | Not Applicable | 250V | 250V AC | €771.73 |
