BUSSMANN Class H(K) Modular Knifeblade Fuse Blocks
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q| Style | Model | Amps | Height | No. Of Poles | Voltage | Ac Voltage Rating | Fuse Amps | Fuse Overall Length | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HM25100-1CR | 70-100A | 2 4/5" | 1 | 250V AC | 250V AC | 61-100A | 9 1/5" | 14 AWG to 1/0 AWG | €103.85 | |
| B | HM25100-3CR | 70-100A | 2 4/5" | 3 | 250V AC/125V DC | 250V AC | 61-100A | 9 1/5" | 14 AWG to 1/0 AWG | €240.70 | |
| C | HM25100-2CR | 70-100A | 2 4/5" | 2 | 250V AC/125V DC | 250V AC | 61-100A | 9 1/5" | 14 AWG to 1/0 AWG | €172.32 | |
| D | HM60100-1CR | 70-100A | 2 4/5" | 1 | 600V AC | 600V AC | 61-100A | 8.7" | 14 AWG to 1/0 AWG | €246.74 | |
| E | HM60100-2CR | 70-100A | 2 4/5" | 2 | 600V AC | 600V AC | 61-100A | 8.7" | 14 AWG to 1/0 AWG | €207.50 | |
| F | HM60100-3CR | 70-100A | 2 4/5" | 3 | 600V AC | 600V AC | 61-100A | 8.7" | 14 AWG to 1/0 AWG | €270.16 | |
| G | HM25200-1CR | 110-200A | 3 4/5" | 1 | 250V AC | 250V AC | 101-200A | 11 1/5" | 6 AWG to 250 mcm | €243.08 | |
| H | HM25200-2CR | 110-200A | 3 4/5" | 2 | 250V AC | 250V AC | 101-200A | 11 1/5" | 6 AWG to 250 mcm | €547.67 | |
| I | HM25200-3CR | 110-200A | 3 4/5" | 3 | 250V AC | 250V AC | 101-200A | 11 1/5" | 6 AWG to 250 mcm | €723.42 | |
| J | HM60200-1CR | 110-200A | 3 4/5" | 1 | 600V AC | 600V AC | 101-200A | 10.7" | 6 AWG to 250 mcm | €279.84 | |
| K | HM60200-3CR | 110-200A | 3 4/5" | 3 | 600V AC | 600V AC | 101-200A | 10.7" | 6 AWG to 250 mcm | €1,002.98 | |
| L | HM60400-3CR | 225-400A | 4 4/5" | 3 | 600V AC | 600V AC | 201-400A | 12 1/2" | 600 kcmil to 4 AWG | €2,896.19 | |
| M | HM25400-1CR | 225-400A | 4 4/5" | 1 | 250V AC | 250V AC | 201-400A | 13 1/5" | 600 kcmil to 4 AWG | €771.73 | |
| N | HM25400-3CR | 225-400A | 4 4/5" | 3 | 250V AC | 250V AC | 201-400A | 13 1/5" | 600 kcmil to 4 AWG | €2,654.94 | |
| O | HM60400-1CR | 225-400A | 4 4/5" | 1 | 600V AC | 600V AC | 201-400A | 12 1/2" | 600 kcmil to 4 AWG | €720.31 | |
| P | HM25600-3CR | 450-600A | 5.3" | 3 | 250V AC | 250V AC | 401-600A | 11.41" | 4 AWG to 250 kcmil | €5,017.65 | |

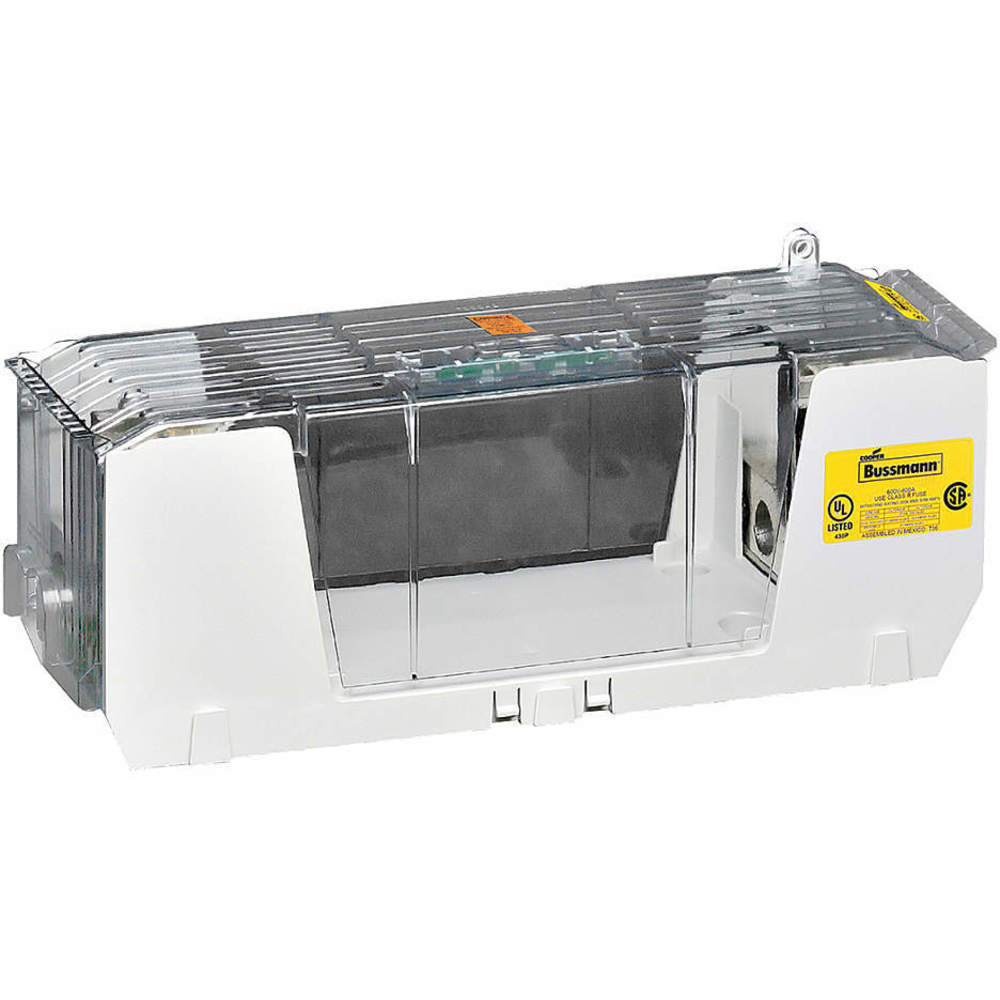

| Q | HM60600-1CR | 450-600A | 6" | 1 | 600V AC | 600V AC | 401-600A | 14 2/5" | 4 AWG to 250 kcmil | €1,609.06 |
