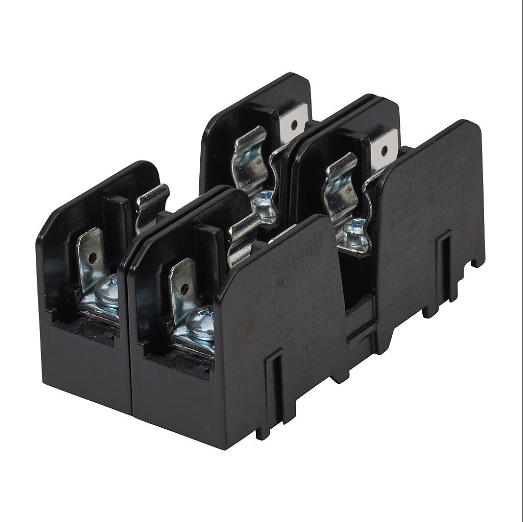

BUSSMANN BMM603-2PQ Modular Fuse Block, 30A, 600V, 2-Pole, 18-10 Awg Copper Only
Get it by Tuesday, Aug 18
€154.80 /pkg. of 5
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Block |
| Accepts Fuse Class | Midget |
| Conductor Connection Type | Pressure Plate With Quick Connect Terminals |
| Conductor Size | 18 AWG to 10 AWG Copper Only |
| Connection Type | Pressure Connector, Quick Connects |
| Family Series | Bussmann Fuseblocks, Holders, BMM Series |
| Fuse Class | CC |
| Length | 0.0254 mm |
| Modular | Yes |
| Mounting | 35 mm DIN Rail, Panel |
| Product Datasheet | bussmann-bcm603-1pq-1.pdf |
| Series | BMM Series |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Fuse Block Style | Wire | Amps | Height | Mounting Type | Fuse Amps | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BMM603-1PQ | 1 | 600V AC/300V DC | Nonrejection | 18 AWG to 10 AWG | 0-30A | 1.3" | Bolt Down, DIN Rail | 0-30A | 1 | €28.85 | |
 |
BMM603-1SQ | 1 | 600V AC/300V DC | Nonrejection | 18 AWG to 10 AWG | 0-30A | 1.3" | Bolt Down, DIN Rail | 0-30A | 1 | €21.64 | |
|
BMM603-3SQ | 3 | 600V AC/300V DC | Nonrejection | 18 AWG to 10 AWG | 0-30A | 1.3" | Bolt Down, DIN Rail | 0-30A | 1 | €68.60 | |
|
BMM603-3PQ | 3 | 600V AC/300V DC | Nonrejection | 18 AWG to 10 AWG | 0-30A | 1.3" | Bolt Down, DIN Rail | 0-30A | 1 | €50.16 | |
 |
BMM603-1C | 1 | 600V AC/DC | Non Rejection | 14 AWG to 2 AWG | 0-30A | 1.3" | Bolt Down, DIN Rail | 0-30A | 1 | €37.86 | |
 |
BMM603-2SQ | 2 | 600V AC/DC | Non Rejection | 18 AWG to 10 AWG | 0-30A | 1.3" | Bolt Down, DIN Rail | 0-30A | 1 | €30.29 | |
|
BMM603-2C | 2 | 600V AC/DC | Non Rejection | 2 AWG to 14 AWG | 0-30A | 1.3" | Bolt Down, DIN Rail | 0-30A | 1 | €74.69 |
