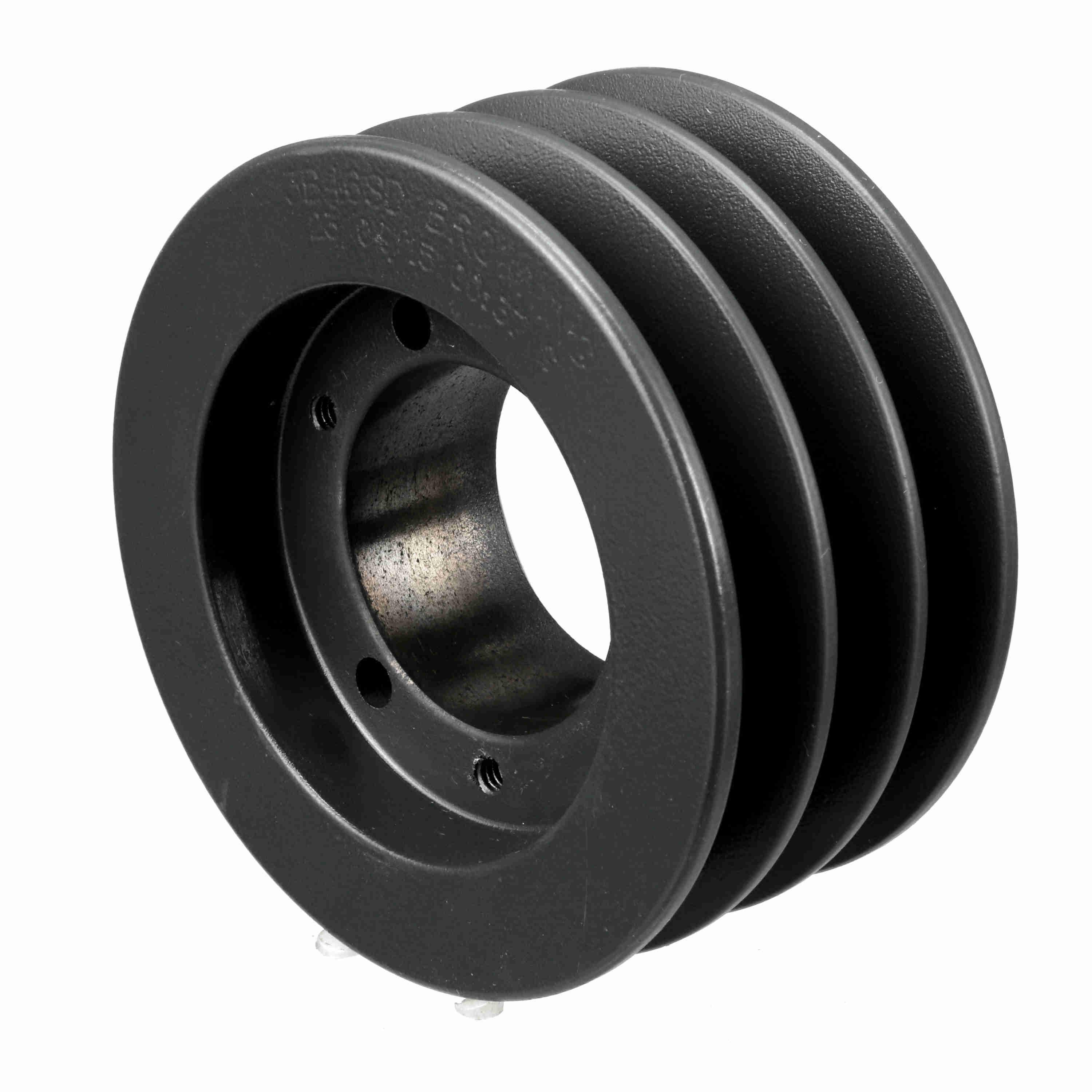

BROWNING 1004522 3B46SD V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
Item: AZ9JALModel: 1004522Cross Ref: 3B46SD
7 In Stock
4.95"
1/2" to 2"
Ships within 2 days via
€289.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SD |
| Face Width | 2 1/2" |
| Hub Projection | 0.10625" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 3/5" |
| Min. Pitch Dia. | 4 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 4.95" |
| Overall Length | 2.60625" |
| Pitch Dia. (a) | 4 2/5" |
| Pitch Dia. (b) | 4.9" |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type D1 |
| Weight | 2.474 Kg |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 12.57 |
| Ship length (cm) | 6.63 |
| Ship width (cm) | 12.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1004753 | 20.35" | 1/2" to 2 15/16" | 2 1/2" | 20.35" | Type D Arm | QD | Cast Iron | €1,465.39 | |
 |
1004662 | 8.35" | 1/2" to 2 5/8" | 2 7/16" | 8.35" | Type D Arm | QD | Cast Iron | €271.53 | |
 |
1004704 | 12 3/4" | 1/2" to 2 5/8" | 2 7/16" | 12 3/4" | Type D Arm | QD | Cast Iron | €444.31 | |
|
1004787 | 38.35" | 22/25" to 3 1/2" | 2 1/2" | 38.35" | Type D Arm | QD | Cast Iron | €3,882.99 | |
 |
1004712 | 13.95" | 1/2" to 2 5/8" | 2 7/16" | 13.95" | Type D Arm | QD | Cast Iron | €692.24 | |
 |
1004589 | 6.15" | 1/2" to 2" | 2 1/2" | 6.15" | Type A Solid | QD | Cast Iron | €358.81 | |
 |
1004639 | 7.15" | 1/2" to 2" | 2 1/2" | 7.15" | Type B Arm | QD | Cast Iron | €361.84 |
