BROWNING 1004753 3B200SF V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
20.35"
1/2" to 2 15/16"
Get it by Tuesday, Dec 23
€1,465.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 2 1/2" |
| Material | Cast Iron |
| No. Of Grooves | 3 |
| Outside Dia. | 20.35" |
| Overall Length | 20.35" |
| Pitch Dia. (a) | 19 4/5" |
| Pitch Dia. (b) | 20.3" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| Type | Type D Arm |
Shipping Info:
| Ship weight (kg) | 23.7 |
| Ship height (cm) | 51.69 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 51.69 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1004662 | 8.35" | 1/2" to 2 5/8" | 2 7/16" | 8.35" | Type D Arm | QD | Cast Iron | €271.53 | |
 |
1004704 | 12 3/4" | 1/2" to 2 5/8" | 2 7/16" | 12 3/4" | Type D Arm | QD | Cast Iron | €444.31 | |
|
1004787 | 38.35" | 22/25" to 3 1/2" | 2 1/2" | 38.35" | Type D Arm | QD | Cast Iron | €3,882.99 | |
 |
1004712 | 13.95" | 1/2" to 2 5/8" | 2 7/16" | 13.95" | Type D Arm | QD | Cast Iron | €692.24 | |
 |
1004589 | 6.15" | 1/2" to 2" | 2 1/2" | 6.15" | Type A Solid | QD | Cast Iron | €358.81 | |
 |
1004639 | 7.15" | 1/2" to 2" | 2 1/2" | 7.15" | Type B Arm | QD | Cast Iron | €361.84 | |
 |

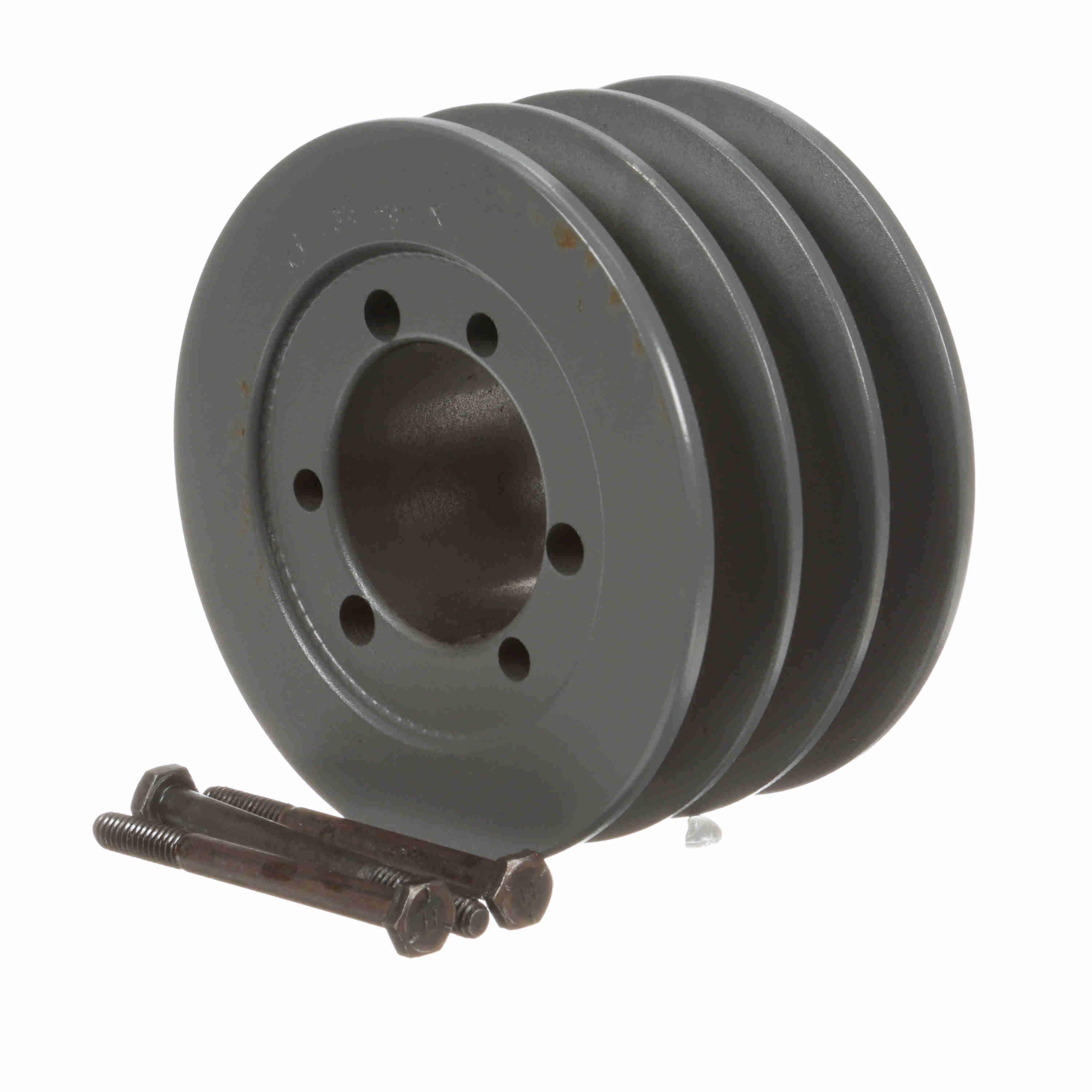

1004506 | 4.55" | 1/2" to 1 5/8" | 2 1/2" | 3.0125" | Type D1 | QD | Cast Iron | €274.41 |
