Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 1 5/8" |
| Bore Type | QD |
| Bushing Type | SH |
| Face Width | 2 1/2" |
| Hub Projection | 0.5125" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 3 3/5" |
| Min. Pitch Dia. | 3 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 3.95" |
| Overall Length | 3.0125" |
| Pitch Dia. (a) | 3 2/5" |
| Pitch Dia. (b) | 3.9" |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type D1 |
| Weight | 1.662 Kg |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 10.03 |
| Ship length (cm) | 7.65 |
| Ship width (cm) | 10.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1004753 | 20.35" | 1/2" to 2 15/16" | 2 1/2" | 20.35" | Type D Arm | QD | Cast Iron | €1,465.39 | |
![]() |
1004662 | 8.35" | 1/2" to 2 5/8" | 2 7/16" | 8.35" | Type D Arm | QD | Cast Iron | €271.53 | |
![]() |
1004704 | 12 3/4" | 1/2" to 2 5/8" | 2 7/16" | 12 3/4" | Type D Arm | QD | Cast Iron | €444.31 | |
![]() |
1004787 | 38.35" | 22/25" to 3 1/2" | 2 1/2" | 38.35" | Type D Arm | QD | Cast Iron | €3,882.99 | |
![]() |
1004712 | 13.95" | 1/2" to 2 5/8" | 2 7/16" | 13.95" | Type D Arm | QD | Cast Iron | €692.24 | |
![]() |
1004589 | 6.15" | 1/2" to 2" | 2 1/2" | 6.15" | Type A Solid | QD | Cast Iron | €358.81 | |
![]() |
1004639 | 7.15" | 1/2" to 2" | 2 1/2" | 7.15" | Type B Arm | QD | Cast Iron | €361.84 |
Explore Products
- MAIN FILTER INC. MF0316550 HF957 Interchange Hydraulic Filter, Glass, 5 Micron, Viton Seal, 8.18 Inch Height
- GROVE GEAR GRL8260203.00 GRL-BMQ826-80-R-140 Worm Reducer, 80:1 Ratio, 0.875 Inch I.D, 1.125 Inch O.D, Cast Iron
- SQUARE D BJA260404 PowerPact B Circuit Breaker, 600Y / 347VAC, 2 Poles
- KERN AND SOHN DS 20K0.1 Platform Balance, 20000g Max. Weighing, 0.1g Readability
- UNISTRUT P6346-EG 90 Degree Fitting, 3 Hole, Electrogalvanized
- EATON AN59DN0T5G005 Overload Relay Starter, Nema Size 1, 27 A, 24/50 V, Ground Fault Feature Set-1-5 A
- EATON XTAR050D11C016 Reversing Electronic Motor Starter, 50 A, Top-Mounted, 415-480 V, 50/60 Hz, 55 mm, 12-16 A
- BALDOR / DODGE 226874 XTB40 X 2-15/16 QD Bushing
Explore More
- AMPROBE
- KEYSHAFT
- SNOWEX
- BUCKET BOSS
- VIVOTEK
- Label Applicators
- Stud Finders
- Step Drill Bit Sets
- Pipe Wrenches
- Critical Area Vacuums
- CONDOR Cowhide Leather Blue/Gray Palm Gloves
- CONDOR Knit Gloves, Full Finger, Uncoated, Cotton, 7 Gauge, Beige
- KUSHLAN PRODUCTS Pedestal Cement Mixer
- JOHN GUEST Stem Adapters, BSPP Thread, Acetal Gray
- KEO Combined Drills And Countersinks, Jig Bore Type, 60 Degrees Countersink Angle
- COOPER B-LINE Type 1 Quick Connect Hinge Cover Lay In Wireways
- BRADY HMIG Labels
- ENCORE Sealer Tools for Steel Strapping
- LAVI Safety Handrail Posts
- MORSE CUTTING TOOLS 5601 Series High Performance ShearDrills, 3xD Coolant-Through, Short Length
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

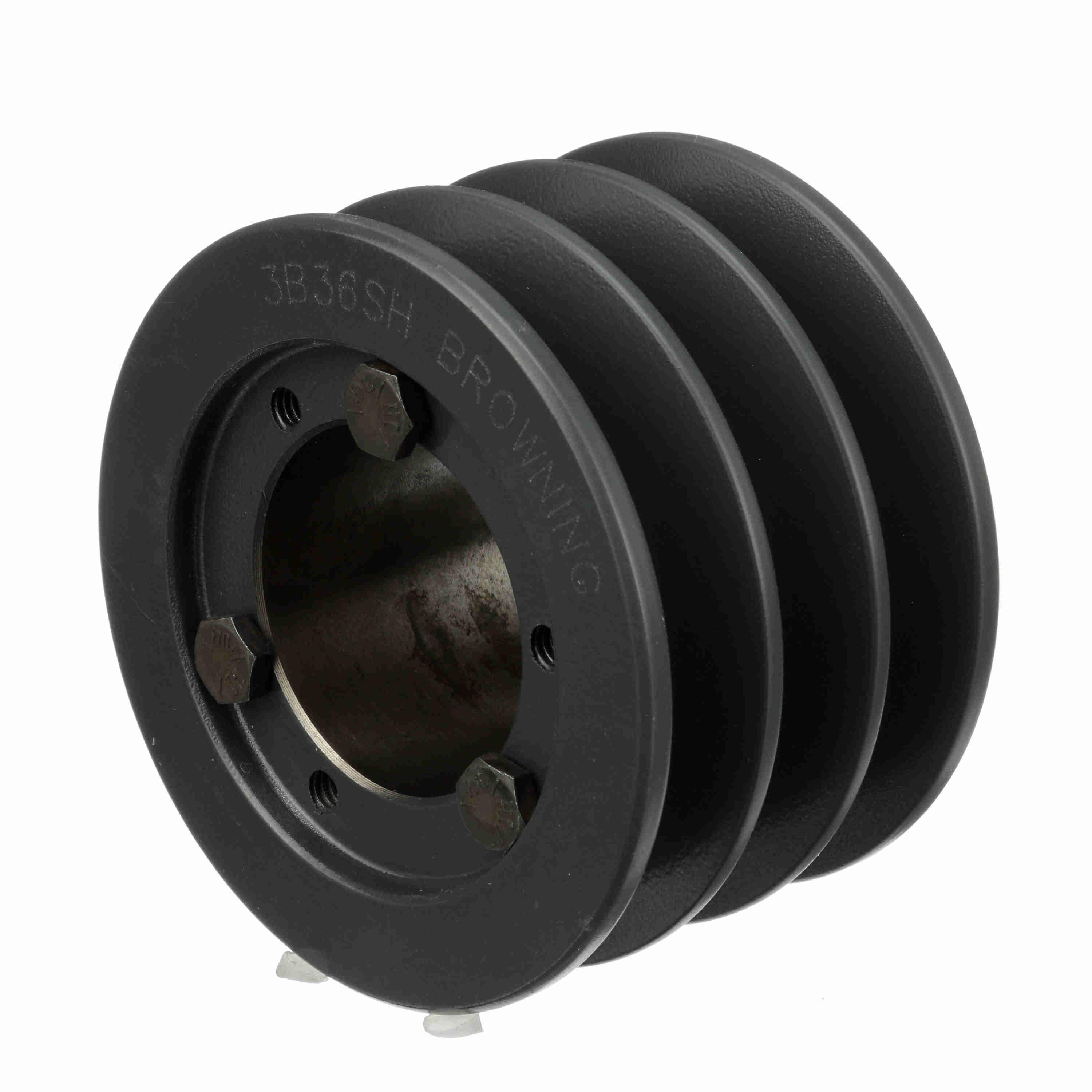

BROWNING 1004472 3B36SH V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
