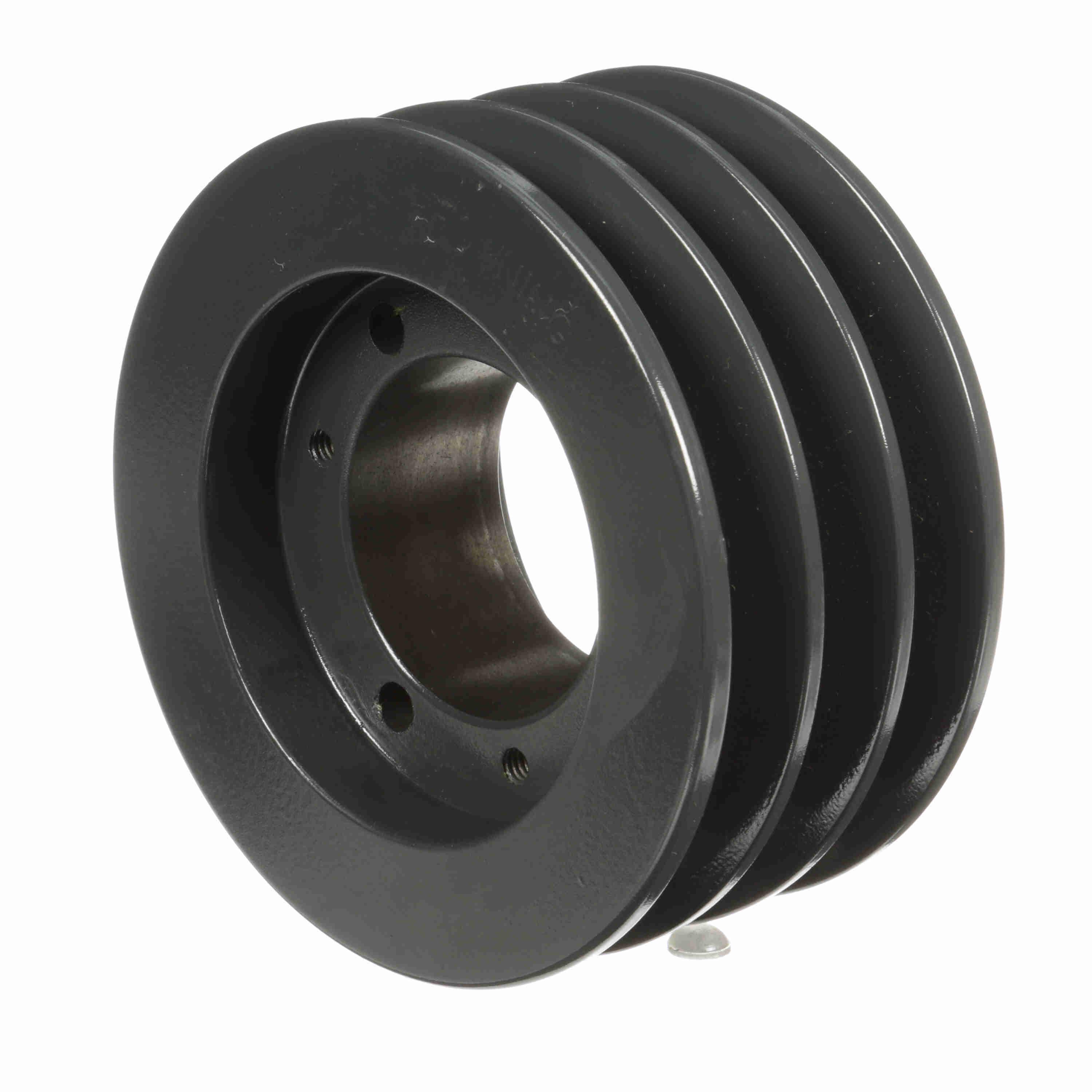

BROWNING 1004530 3B48SD V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron, 5.15 in OD, 1/2 in to 2 in Bore Dia
Item: CE7NBCModel: 1004530Cross Ref: 3B48SD
7 In Stock
5.15"
1/2" to 2"
Ships within 2 days via
€300.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SD |
| Face Width | 2 1/2" |
| Hub Projection | 0.10625" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 4/5" |
| Min. Pitch Dia. | 4 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 5.15" |
| Overall Length | 2.60625" |
| Pitch Dia. | 4 3/5" |
| Pitch Dia. (b) | 5.1" |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type D1 |
Shipping Info:
| Ship weight (kg) | 2.82 |
| Ship height (cm) | 13.08 |
| Ship length (cm) | 6.63 |
| Ship width (cm) | 13.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1004753 | 19 4/5" | 2 1/2" | 1/2" to 2 15/16" | Type D Arm | - | - | 20.3" | SF | €1,465.39 | |
 |
1004662 | 7 4/5" | 2 7/16" | 1/2" to 2 5/8" | Type D Arm | 8" | 7 3/5" | 8.3" | SK | €271.53 | |
 |
1004704 | 12 1/5" | 2 7/16" | 1/2" to 2 5/8" | Type D Arm | 12 2/5" | 12" | 12.7" | SK | €444.31 | |
|
1004787 | 37 4/5" | 2 1/2" | 22/25" to 3 1/2" | Type D Arm | 38" | 37 3/5" | 38.3" | E | €3,882.99 | |
 |
1004712 | 13 2/5" | 2 7/16" | 1/2" to 2 5/8" | Type D Arm | 13 3/5" | 13 1/5" | 13.9" | SK | €692.24 | |
 |
1004589 | 5 3/5" | 2 1/2" | 1/2" to 2" | Type A Solid | 5 4/5" | 5 2/5" | 6.1" | SD | €358.81 | |
 |
1004639 | 6 3/5" | 2 1/2" | 1/2" to 2" | Type B Arm | 6 4/5" | 6 2/5" | 7.1" | SD | €361.84 |
