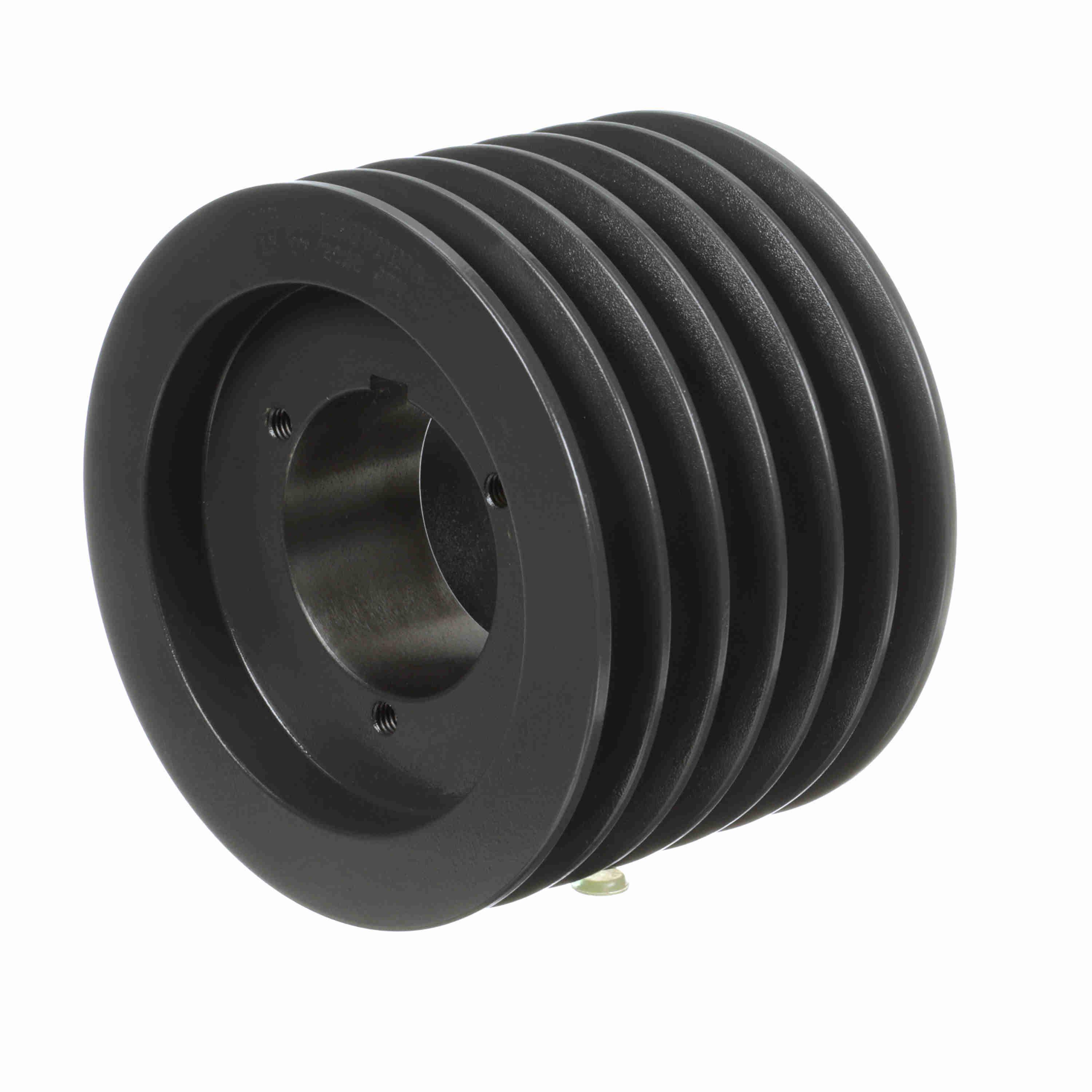

BROWNING 1002195 6TB66 V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron, 6.95 in OD, 3/4 to 2-11/16 in Bore Dia, 6.4 in A/6.9 in B Pitch Dia, Q1 Bushing Type
6.95"
Get it by Tuesday, Aug 18
€574.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 4 3/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 6 3/5" |
| Min. Pitch Dia. | 6 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 6.95" |
| Overall Length | 5 1/32" |
| Pitch Dia. | 6 2/5" |
| Pitch Dia. (b) | 6.9" |
| Product Datasheet | browning-1097849.pdf |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 8.8 |
| Ship height (cm) | 17.65 |
| Ship length (cm) | 12.78 |
| Ship width (cm) | 17.65 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1002070 | 6" | 3/4" to 2 11/16" | Type 13 Web | 6 1/5" | 5 4/5" | 6 1/2" | Q1 | Cast Iron | €403.91 | |
 |
1002492 | 8 2/5" | 1" to 2 5/8" | Type 15 Web | 8 3/5" | 8 1/5" | 8.9" | Q2 | Cast Iron | €784.34 | |
 |
1002559 | 8 4/5" | 1" to 2 5/8" | Type 15 Web | 9" | 8 3/5" | 9.3" | Q2 | Cast Iron | €924.16 | |
 |
1002310 | 6 4/5" | 1" to 2 5/8" | Type 15 Web | 7" | 6 3/5" | 7.3" | Q2 | Cast Iron | €629.14 | |
 |
1001296 | 3 2/5" | 3/4" to 1 3/4" | Type 2 | - | - | 3.9" | P2 | Cast Iron | €809.90 | |
 |
1002799 | 13 2/5" | 1" to 2 5/8" | Type 15 Arm | - | - | 13.9" | Q2 | Cast Iron | €1,140.39 | |
 |
1001957 | 5 3/5" | 3/4" to 2 11/16" | Type 13 Web | 5 4/5" | 5 2/5" | 6.1" | Q1 | Cast Iron | €646.64 |
