BROWNING TB Series Gripbelt Sheaves With Split Taper Bushings, 6 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V| Style | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1001296 | 3 2/5" | 3/4" to 1 3/4" | Type 2 | - | - | 3.9" | P2 | Cast Iron | €809.90 | |
| B | 1001411 | 3 4/5" | 3/4" to 1 3/4" | Type 5 | 4" | 3 3/5" | 4.3" | P2 | Cast Iron | €770.02 | |
| A | 1001536 | 4 1/5" | 3/4" to 1 3/4" | Type 13 Web | 4 2/5" | 4" | 4.7" | - | Cast Iron | €859.38 | |
| A | 1001593 | 4 2/5" | 3/4" to 1 3/4" | Type 13 Web | - | - | 4.9" | P2 | Cast Iron | €834.37 | |
| A | 1001718 | 4 4/5" | 3/4" to 1 3/4" | Type 13 Web | 5" | 4 3/5" | 5.3" | P2 | Cast Iron | €790.58 | |
| C | 1001833 | 5 1/5" | 3/4" to 2 11/16" | Type 13 Web | 5 2/5" | 5" | 5.7" | Q1 | Cast Iron | €724.95 | |

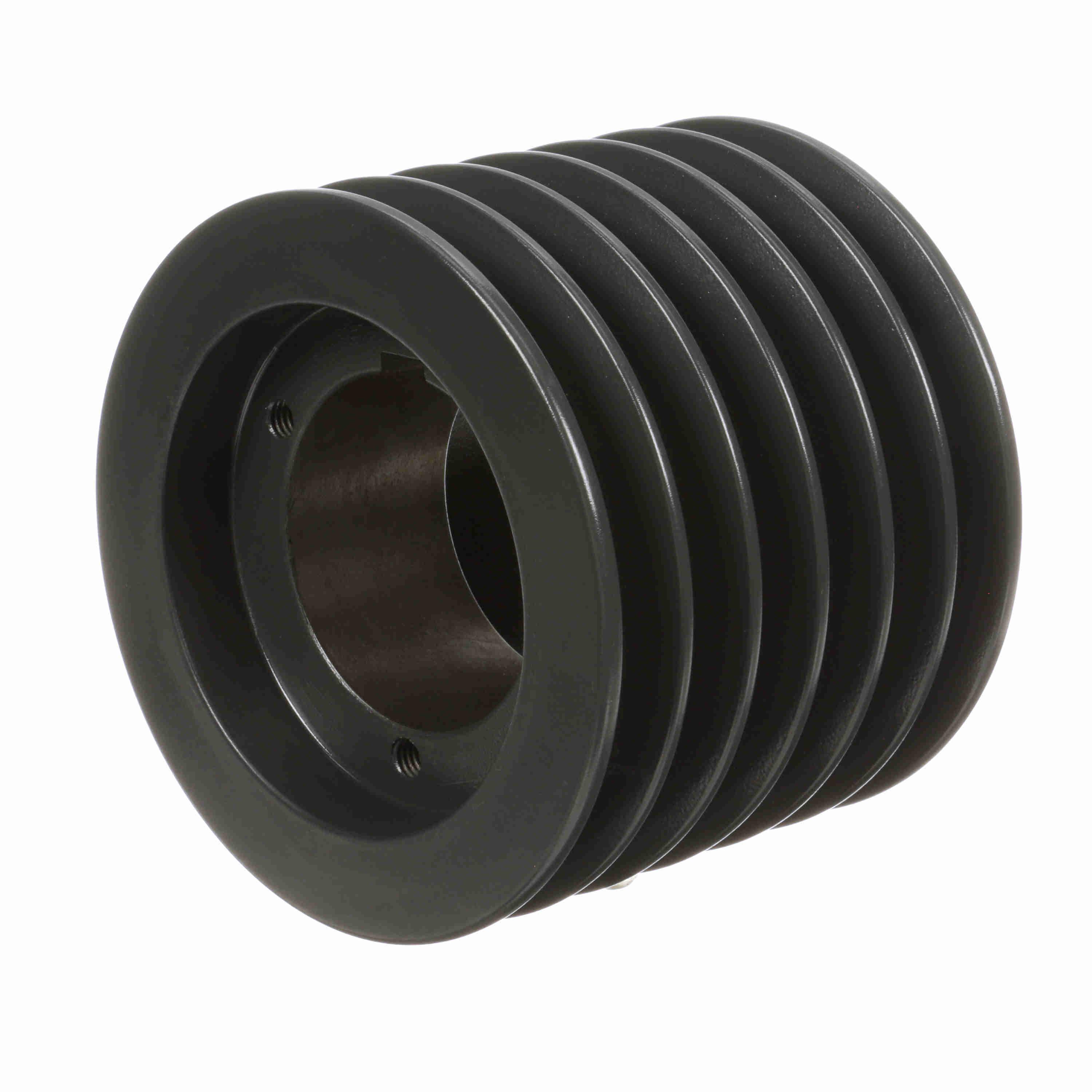

| D | 1001890 | 5 2/5" | 3/4" to 2 11/16" | Type 13 Web | 5 3/5" | 5 1/5" | 5.9" | Q1 | Cast Iron | €510.57 | |
| E | 1001957 | 5 3/5" | 3/4" to 2 11/16" | Type 13 Web | 5 4/5" | 5 2/5" | 6.1" | Q1 | Cast Iron | €646.64 | |

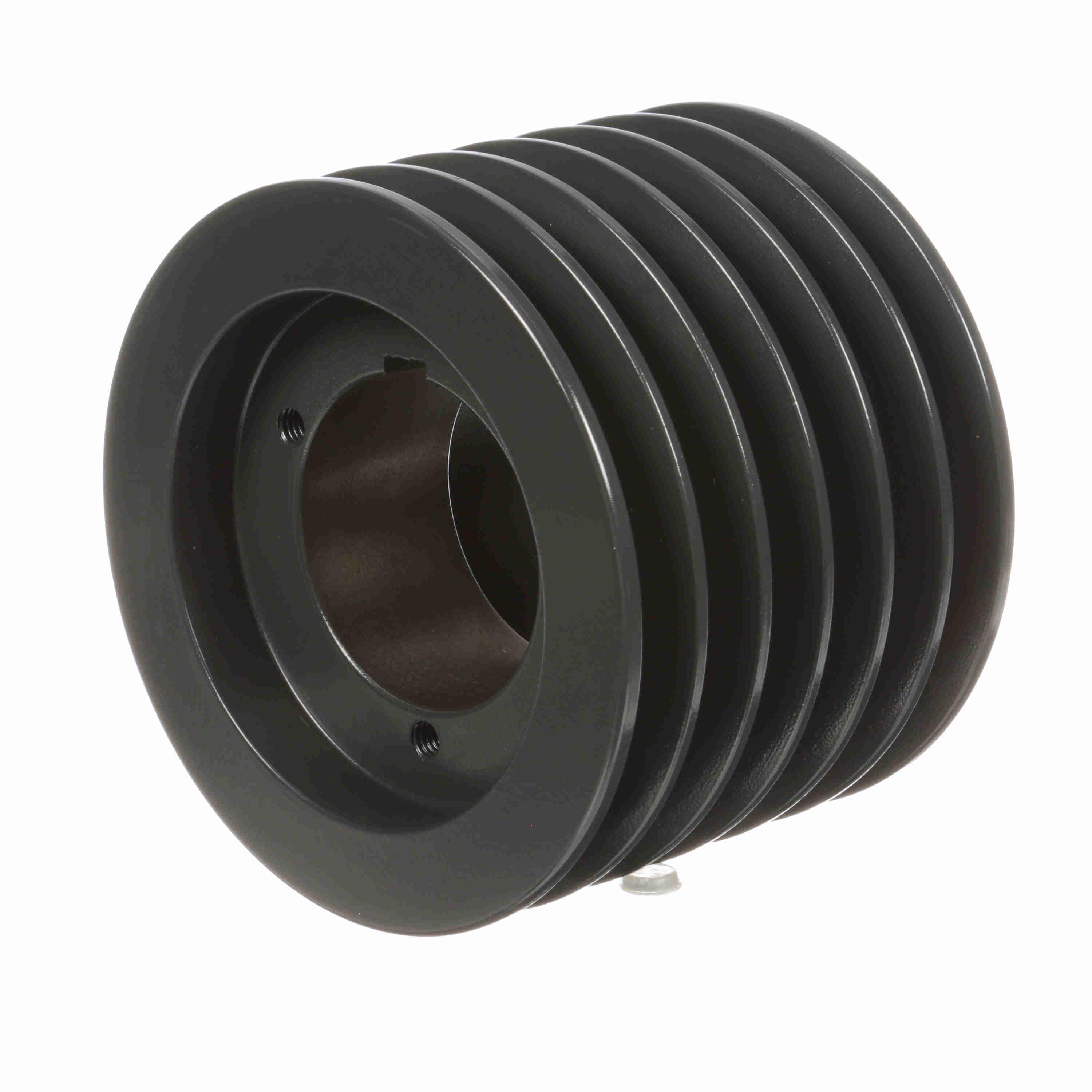

| F | 1002013 | 5 4/5" | 3/4" to 2 11/16" | Type 13 Web | 6" | 5 3/5" | 6.3" | Q1 | Cast Iron | €526.55 | |
| A | 1001775 | 5" | 3/4" to 1 3/4" | Type 13 Web | - | - | 5 1/2" | P2 | Cast Iron | €851.19 | |
| G | 1002138 | 6 1/5" | 3/4" to 2 11/16" | Type 13 Web | 6 2/5" | 6" | 6.7" | Q1 | Cast Iron | €668.65 | |
| H | 1002195 | 6 2/5" | 3/4" to 2 11/16" | Type 13 Web | 6 3/5" | 6 1/5" | 6.9" | Q1 | Cast Iron | €574.56 | |
| I | 1002252 | 6 3/5" | 3/4" to 2 11/16" | Type 13 Web | 6 4/5" | 6 2/5" | 7.1" | Q1 | Cast Iron | €504.00 | |
| J | 1002310 | 6 4/5" | 1" to 2 5/8" | Type 15 Web | 7" | 6 3/5" | 7.3" | Q2 | Cast Iron | €629.14 | |

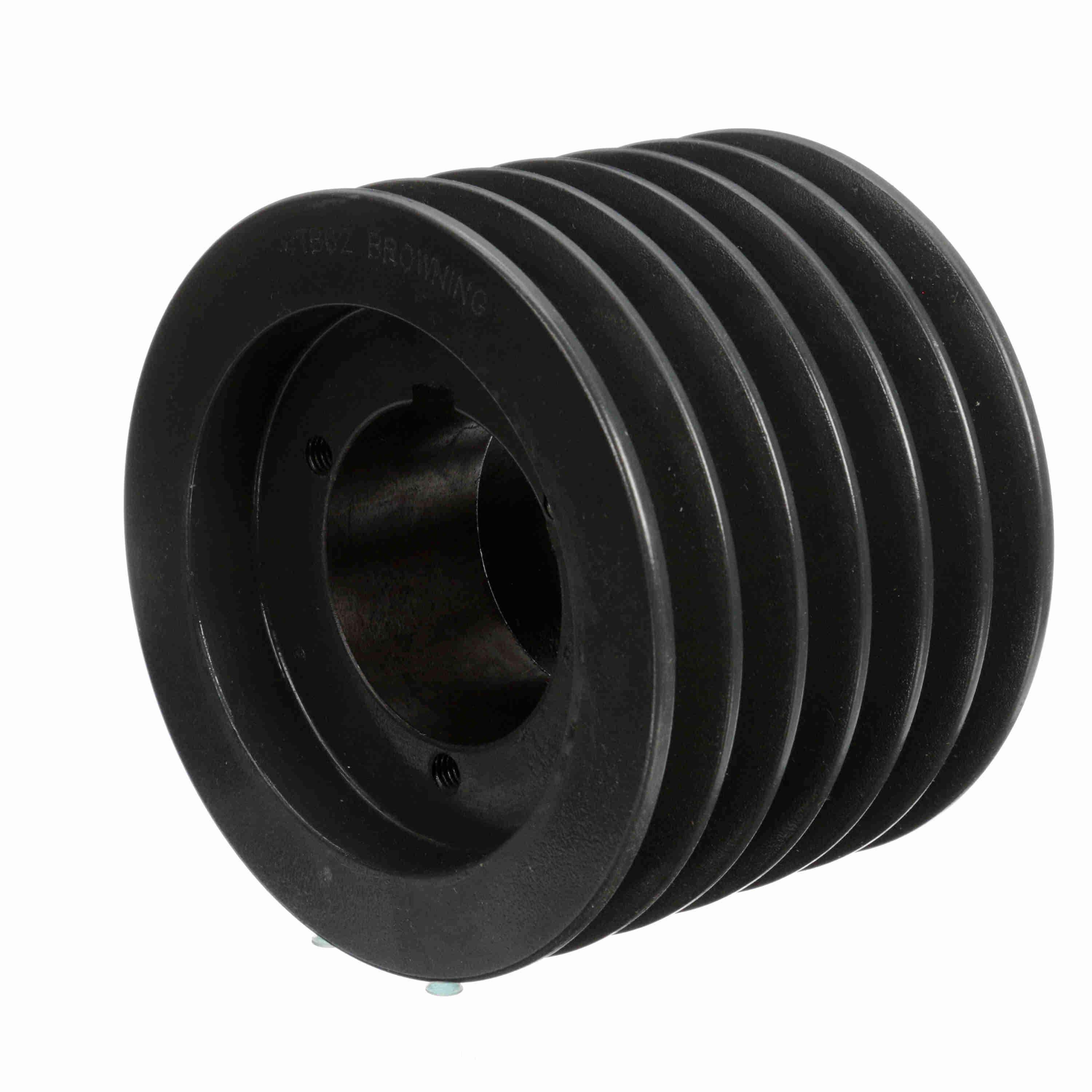

| K | 1002070 | 6" | 3/4" to 2 11/16" | Type 13 Web | 6 1/5" | 5 4/5" | 6 1/2" | Q1 | Cast Iron | €403.91 | |
| L | 1002377 | 7 1/5" | 1" to 2 5/8" | Type 15 Web | 7 2/5" | 7" | 7.7" | Q2 | Cast Iron | €857.63 | |
| M | 1002435 | 7 4/5" | 1" to 2 5/8" | Type 15 Web | 8" | 7 3/5" | 8.3" | Q2 | Cast Iron | €857.13 | |
| N | 1002492 | 8 2/5" | 1" to 2 5/8" | Type 15 Web | 8 3/5" | 8 1/5" | 8.9" | Q2 | Cast Iron | €784.34 | |

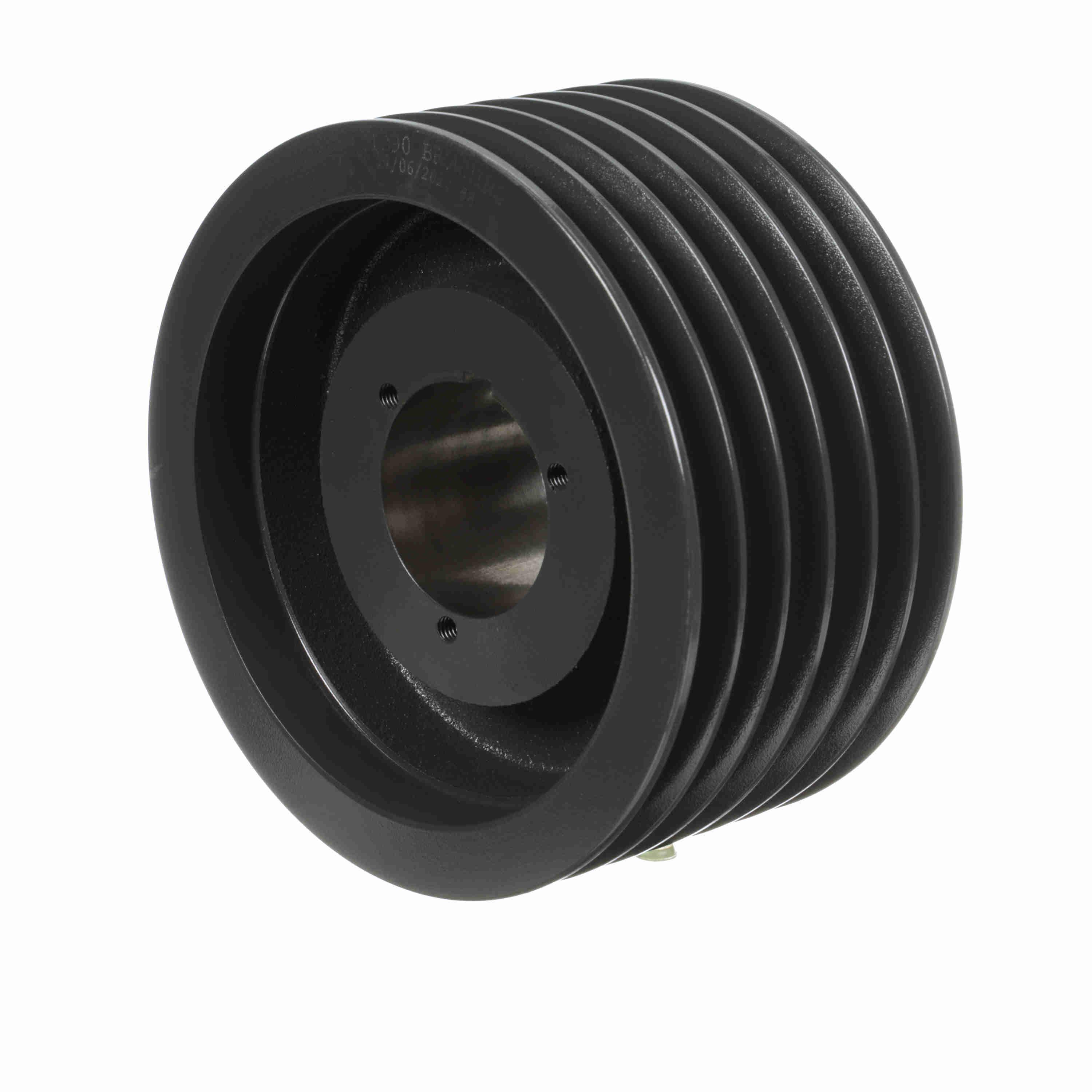

| O | 1002559 | 8 4/5" | 1" to 2 5/8" | Type 15 Web | 9" | 8 3/5" | 9.3" | Q2 | Cast Iron | €924.16 | |
| P | 1002674 | 10 4/5" | 1" to 2 5/8" | Type 15 Arm | - | - | 11.3" | Q2 | Cast Iron | €1,014.45 | |

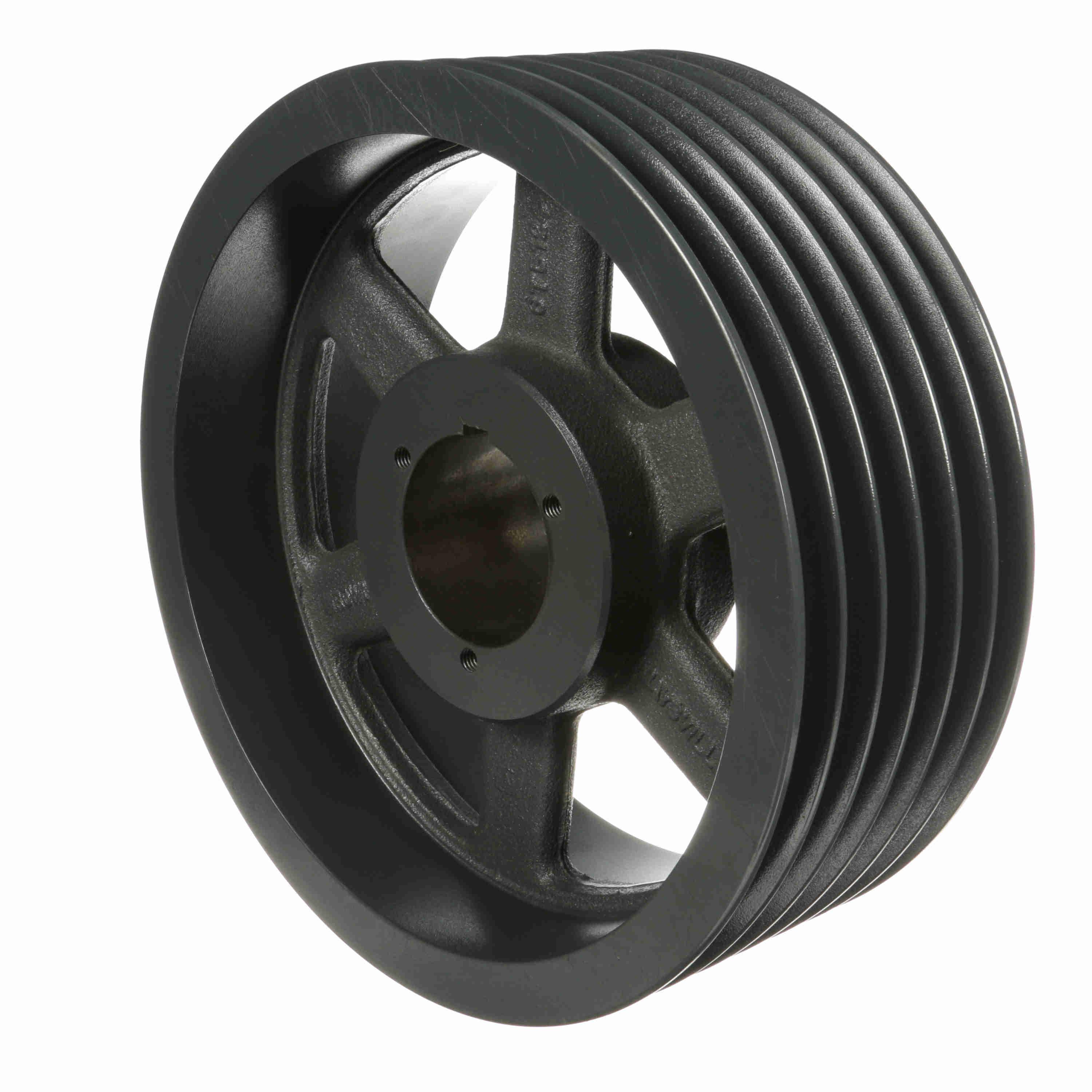

| Q | 1002732 | 12 1/5" | 1" to 2 5/8" | Type 15 Arm | 12 2/5" | 12" | 12.7" | Q2 | Cast Iron | €1,429.63 | |
| R | 1002799 | 13 2/5" | 1" to 2 5/8" | Type 15 Arm | - | - | 13.9" | Q2 | Cast Iron | €1,140.39 | |
| S | 1002856 | 15 1/5" | 1" to 2 5/8" | Type 15 Arm | 15 2/5" | 15" | 15.7" | Q2 | Cast Iron | €1,219.05 | |

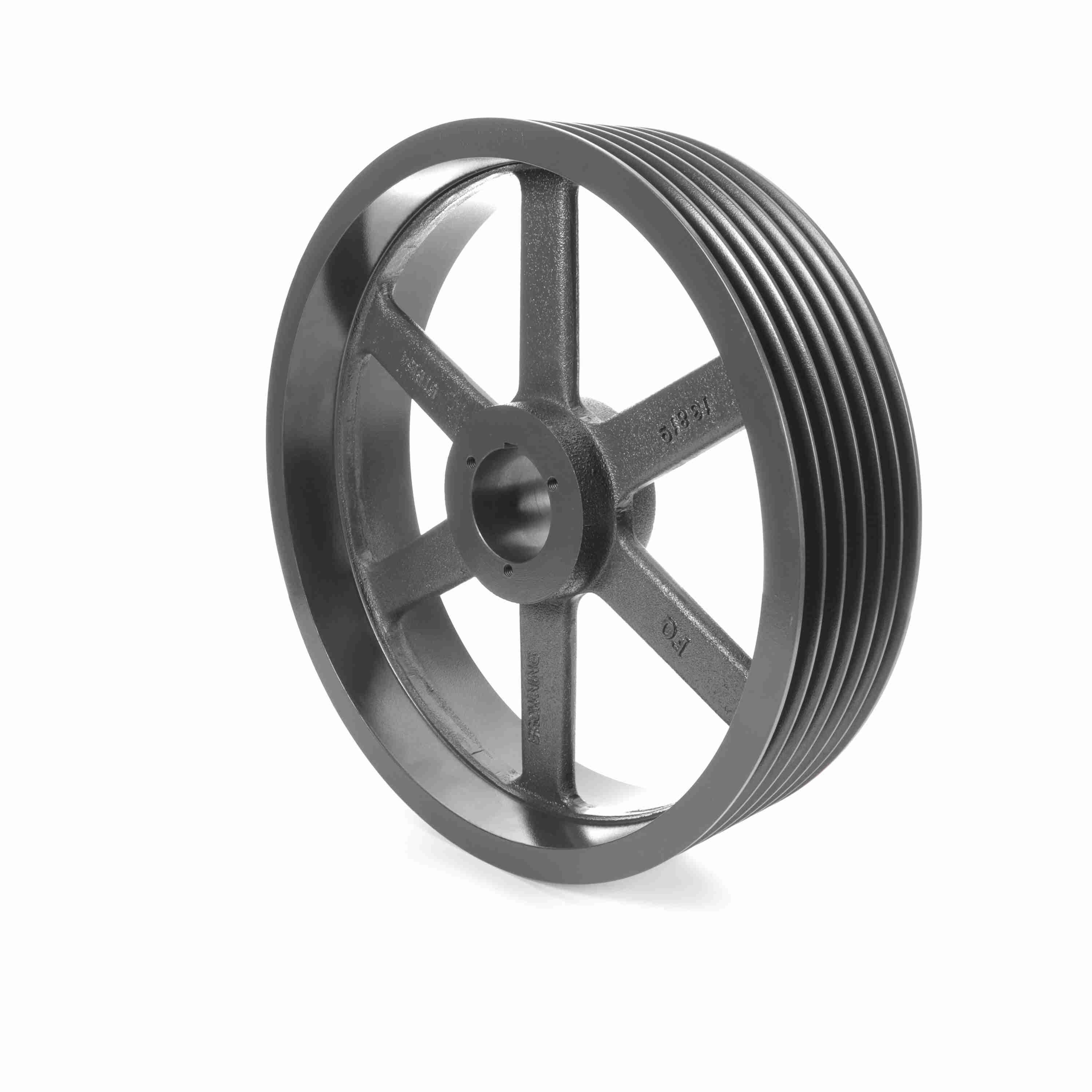

| T | 1002971 | 18 1/5" | 1" to 2 5/8" | Type 15 Arm | 18 2/5" | 18" | 18.7" | Q2 | Cast Iron | €1,971.75 | |
| U | 1003037 | 19 4/5" | 1" to 2 5/8" | Type 15 Arm | 20" | 19 1/2" | 20.3" | Q2 | Cast Iron | €3,355.42 | |
| V | 1003094 | 24 4/5" | 1" to 2 5/8" | Type 15 Arm | - | - | 25.3" | Q2 | Cast Iron | €2,143.28 | |
| V | 1003151 | 29 4/5" | 1" to 2 5/8" | Type 15 Arm | 30" | 29 1/2" | 30.3" | Q2 | Cast Iron | €5,104.28 |
