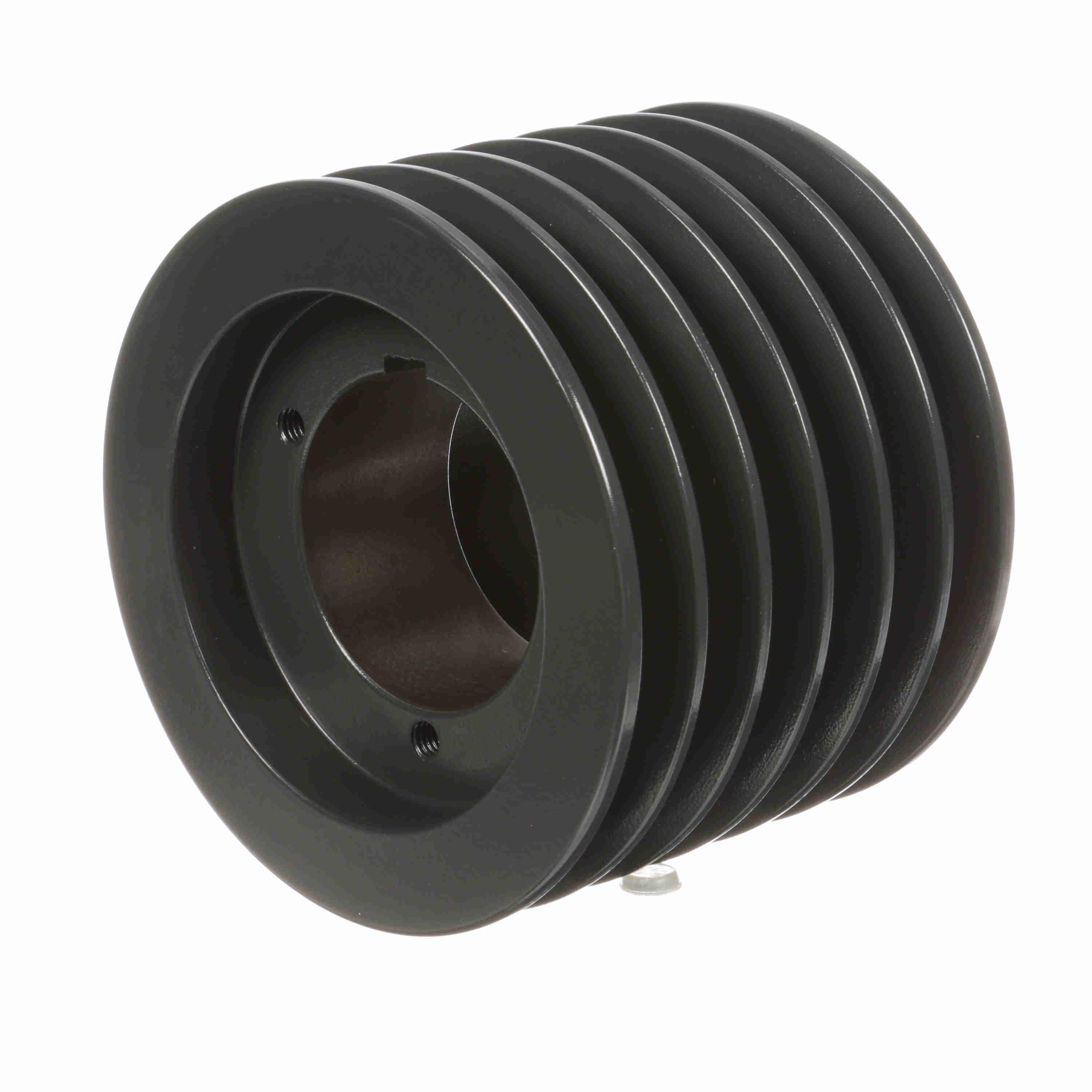

BROWNING 1002013 6TB60 V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron
6.35"
Get it by Tuesday, Dec 23
€526.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 4 3/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 6" |
| Min. Pitch Dia. | 5 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 6.35" |
| Overall Length | 5 1/32" |
| Pitch Dia. (a) | 5 4/5" |
| Pitch Dia. (b) | 6.3" |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
| Weight | 15.4 lbs. |
Shipping Info:
| Ship weight (kg) | 7.16 |
| Ship height (cm) | 16.13 |
| Ship length (cm) | 12.78 |
| Ship width (cm) | 16.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1002070 | 6.55" | 3/4" to 2 11/16" | 5 1/32" | Type 13 Web | Split Taper | Cast Iron | 4 3/4" | €403.91 | |
 |
1002617 | 9 3/4" | 1" to 2 5/8" | 4 25/32" | Type 15 Arm | Split Taper | Cast Iron | 4 3/4" | €746.46 | |
 |
1002492 | 8.95" | 1" to 2 5/8" | 4 25/32" | Type 15 Web | Split Taper | Cast Iron | 4 3/4" | €784.34 | |
 |
1002559 | 9.35" | 1" to 2 5/8" | 4 25/32" | Type 15 Web | Split Taper | Cast Iron | 4 3/4" | €924.16 | |
 |
1002310 | 7.35" | 1" to 2 5/8" | 4 53/64" | Type 15 Web | Split Taper | Cast Iron | 4 3/4" | €629.14 | |
 |
1001296 | 3.95" | 3/4" to 1 3/4" | 6 1/16" | Type 2 | Split Taper | Cast Iron | 4 3/4" | €809.90 | |
 |
1002799 | 13.95" | 1" to 2 5/8" | 4 25/32" | Type 15 Arm | Split Taper | Cast Iron | 4 3/4" | €1,140.39 |
