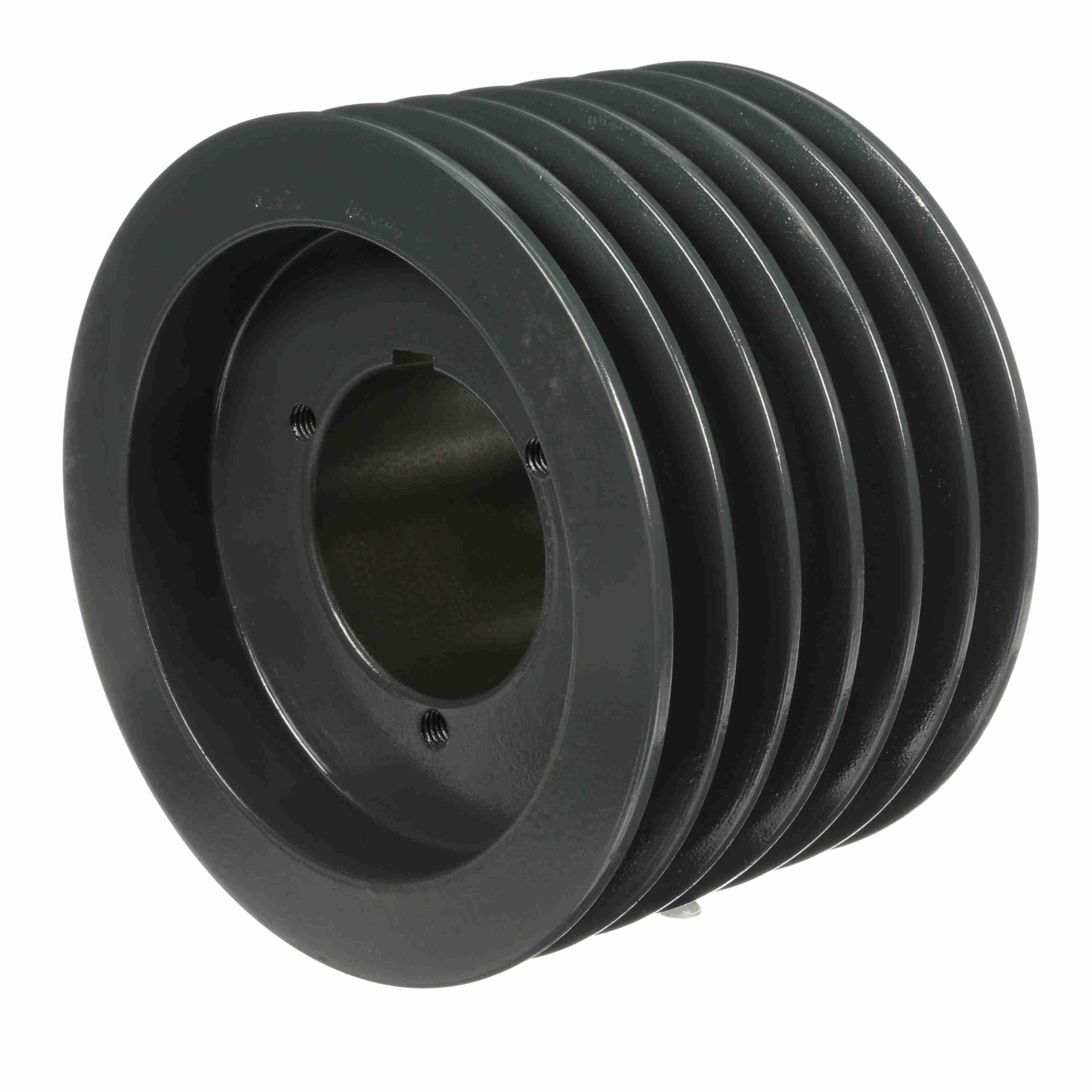

BROWNING 1002310 6TB70 V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron
7.35"
Get it by Tuesday, Dec 23
€629.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 4 3/4" |
| Hub Projection | 5/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7" |
| Min. Pitch Dia. | 6 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 7.35" |
| Overall Length | 4 53/64" |
| Pitch Dia. (a) | 6 4/5" |
| Pitch Dia. (b) | 7.3" |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
| Weight | 11.464 Kg |
Shipping Info:
| Ship weight (kg) | 11.36 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 20.02 |
| Ship width (cm) | 20.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1002070 | 6.55" | 3/4" to 2 11/16" | 5 1/32" | Type 13 Web | Split Taper | Cast Iron | 4 3/4" | €403.91 | |
 |

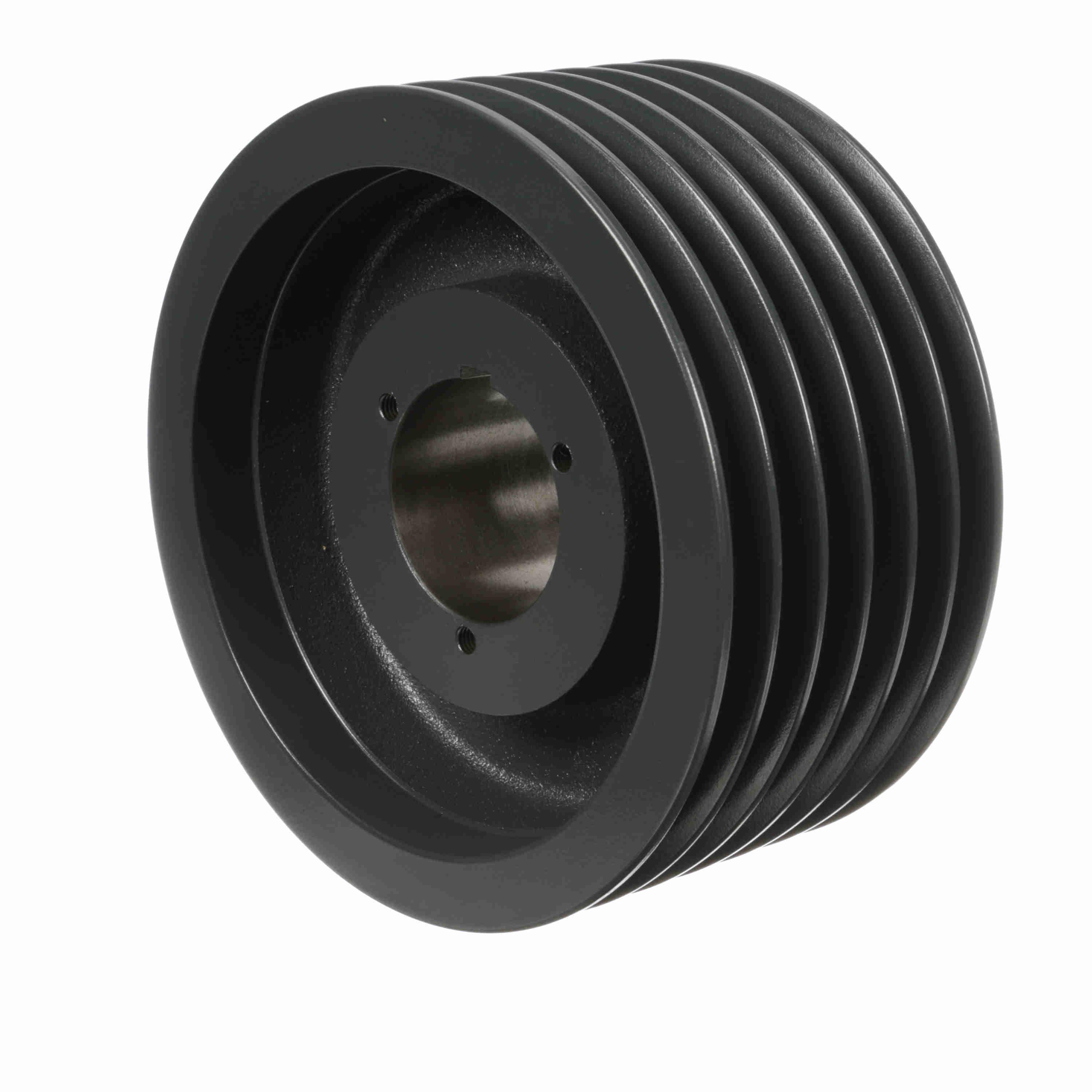

1002617 | 9 3/4" | 1" to 2 5/8" | 4 25/32" | Type 15 Arm | Split Taper | Cast Iron | 4 3/4" | €746.46 | |
 |

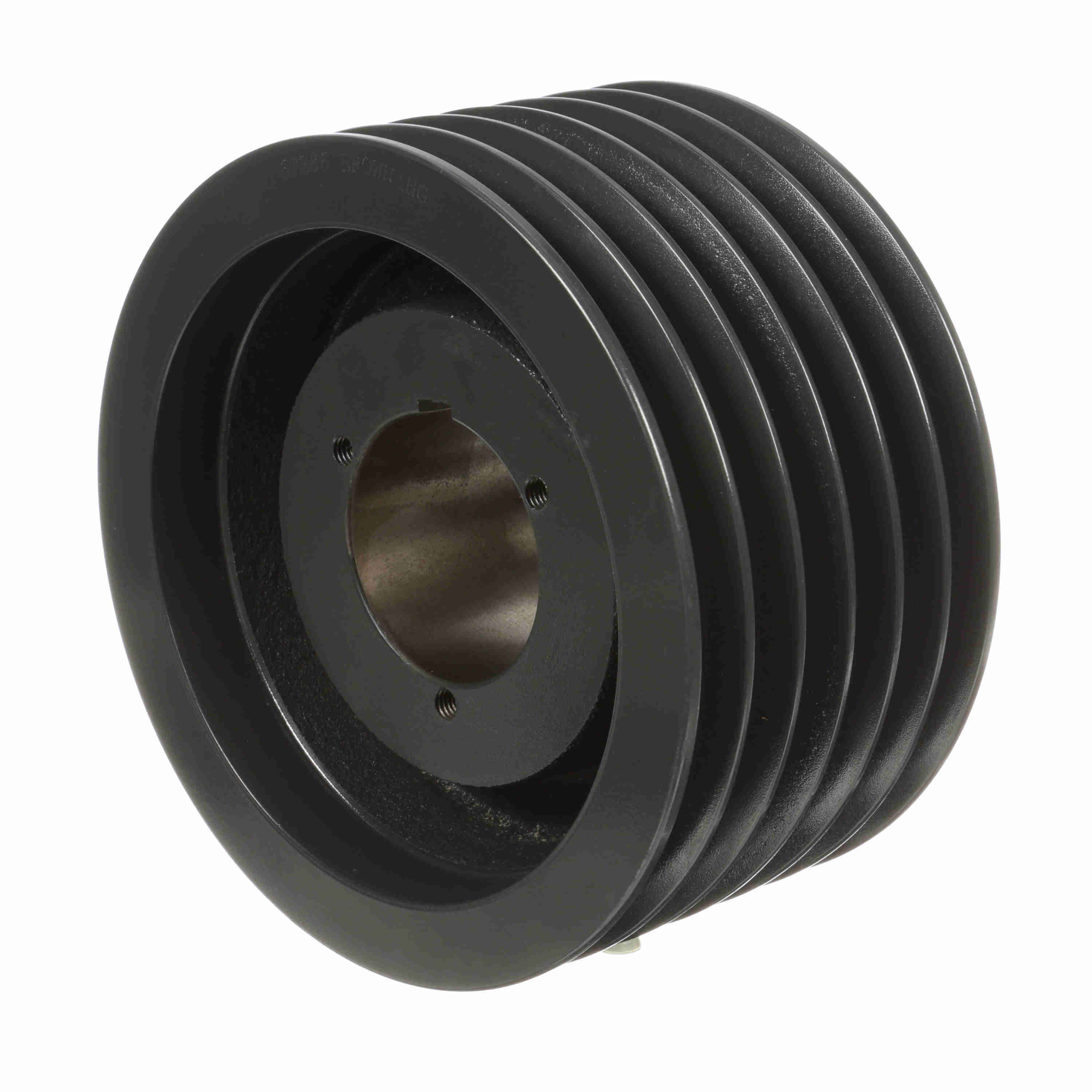

1002492 | 8.95" | 1" to 2 5/8" | 4 25/32" | Type 15 Web | Split Taper | Cast Iron | 4 3/4" | €784.34 | |
 |

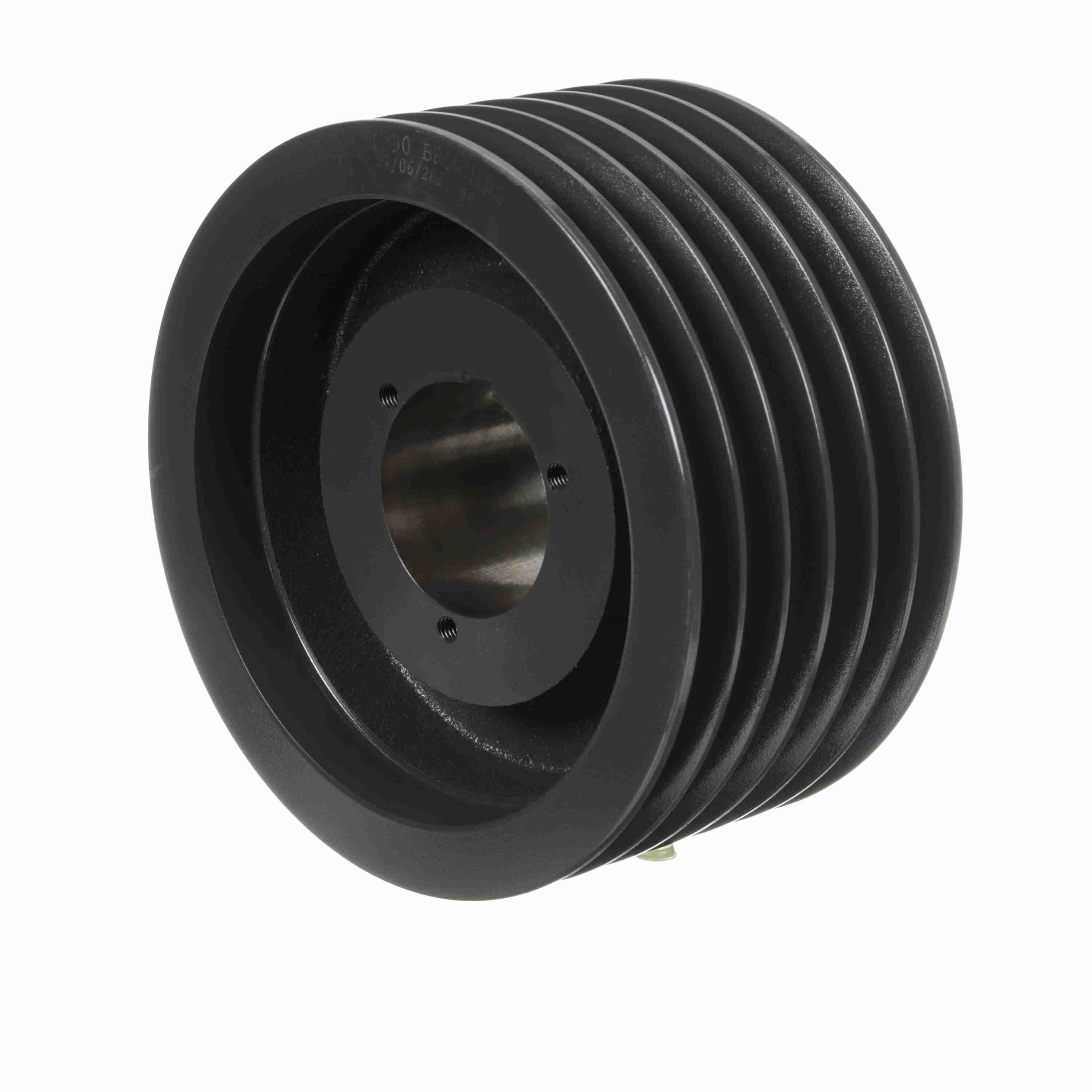

1002559 | 9.35" | 1" to 2 5/8" | 4 25/32" | Type 15 Web | Split Taper | Cast Iron | 4 3/4" | €924.16 | |
 |

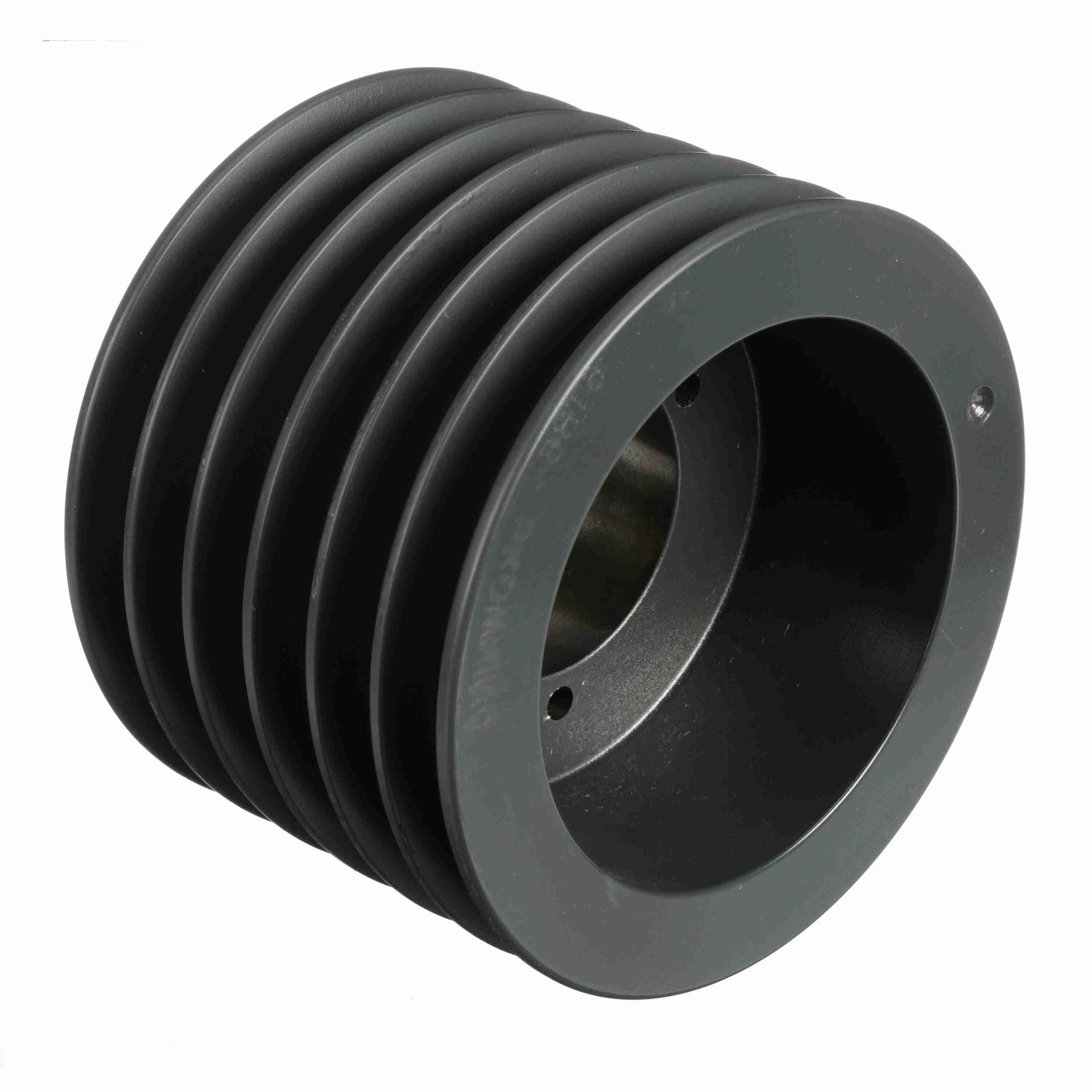

1001296 | 3.95" | 3/4" to 1 3/4" | 6 1/16" | Type 2 | Split Taper | Cast Iron | 4 3/4" | €809.90 | |
 |

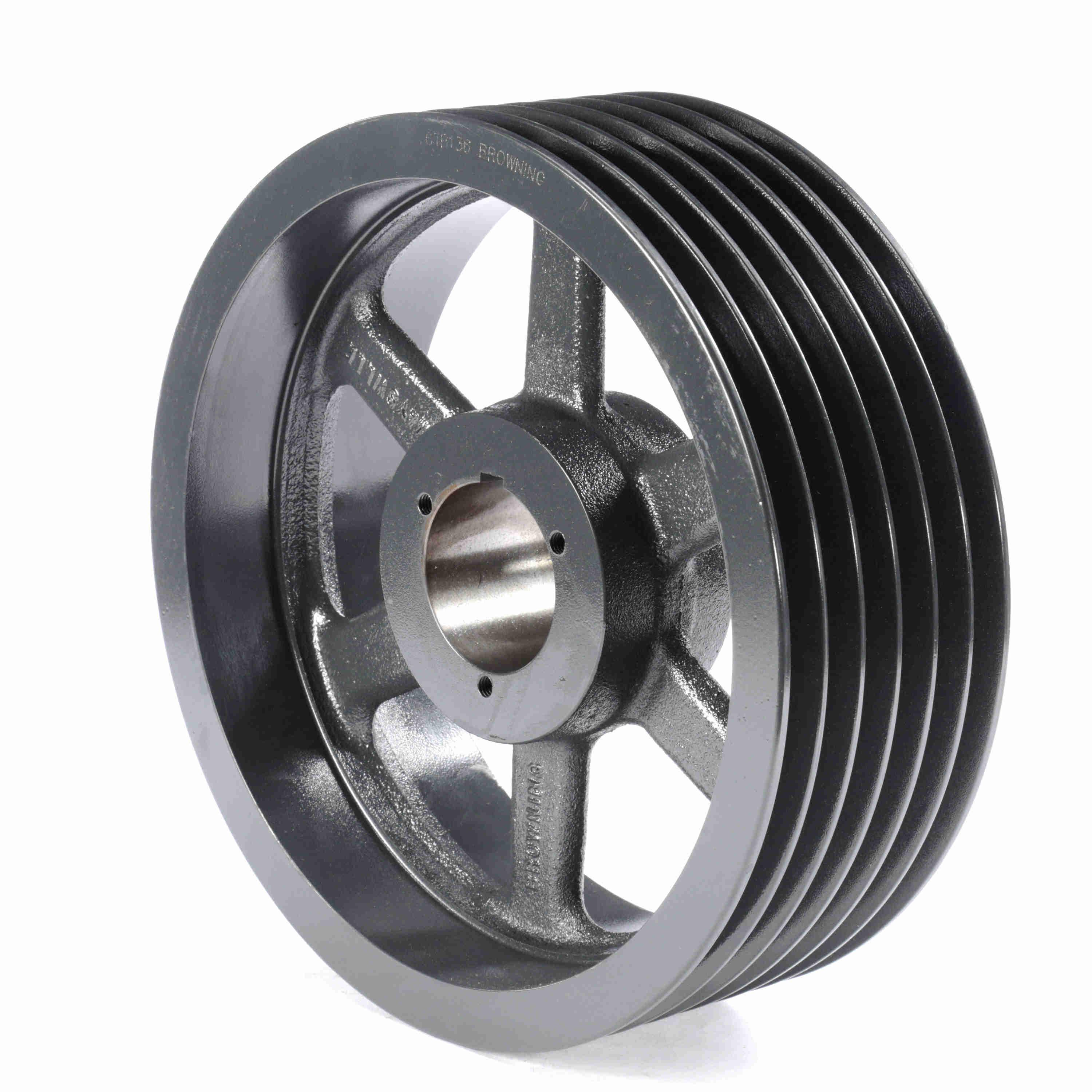

1002799 | 13.95" | 1" to 2 5/8" | 4 25/32" | Type 15 Arm | Split Taper | Cast Iron | 4 3/4" | €1,140.39 | |
 |

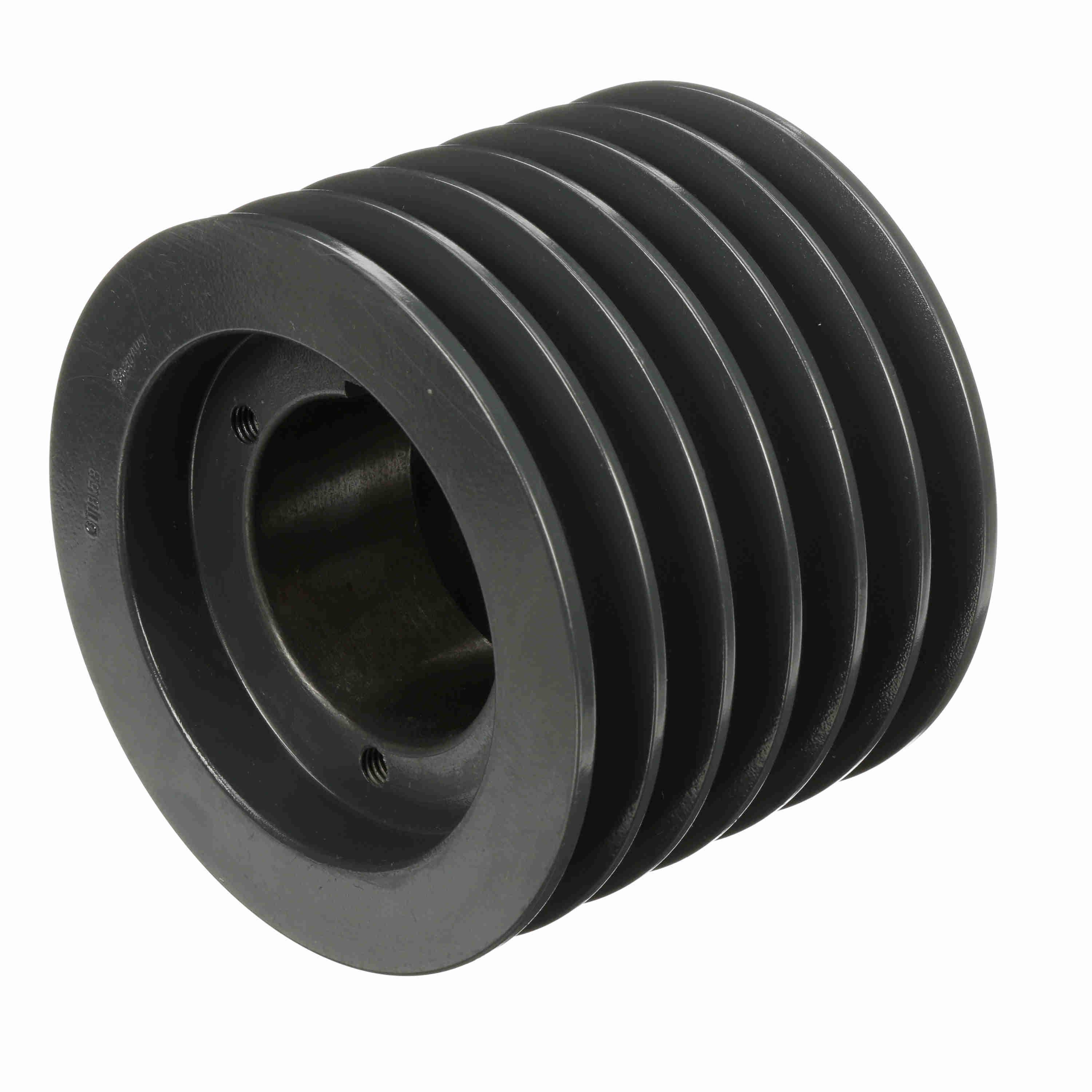

1001957 | 6.15" | 3/4" to 2 11/16" | 5 1/32" | Type 13 Web | Split Taper | Cast Iron | 4 3/4" | €646.64 |
