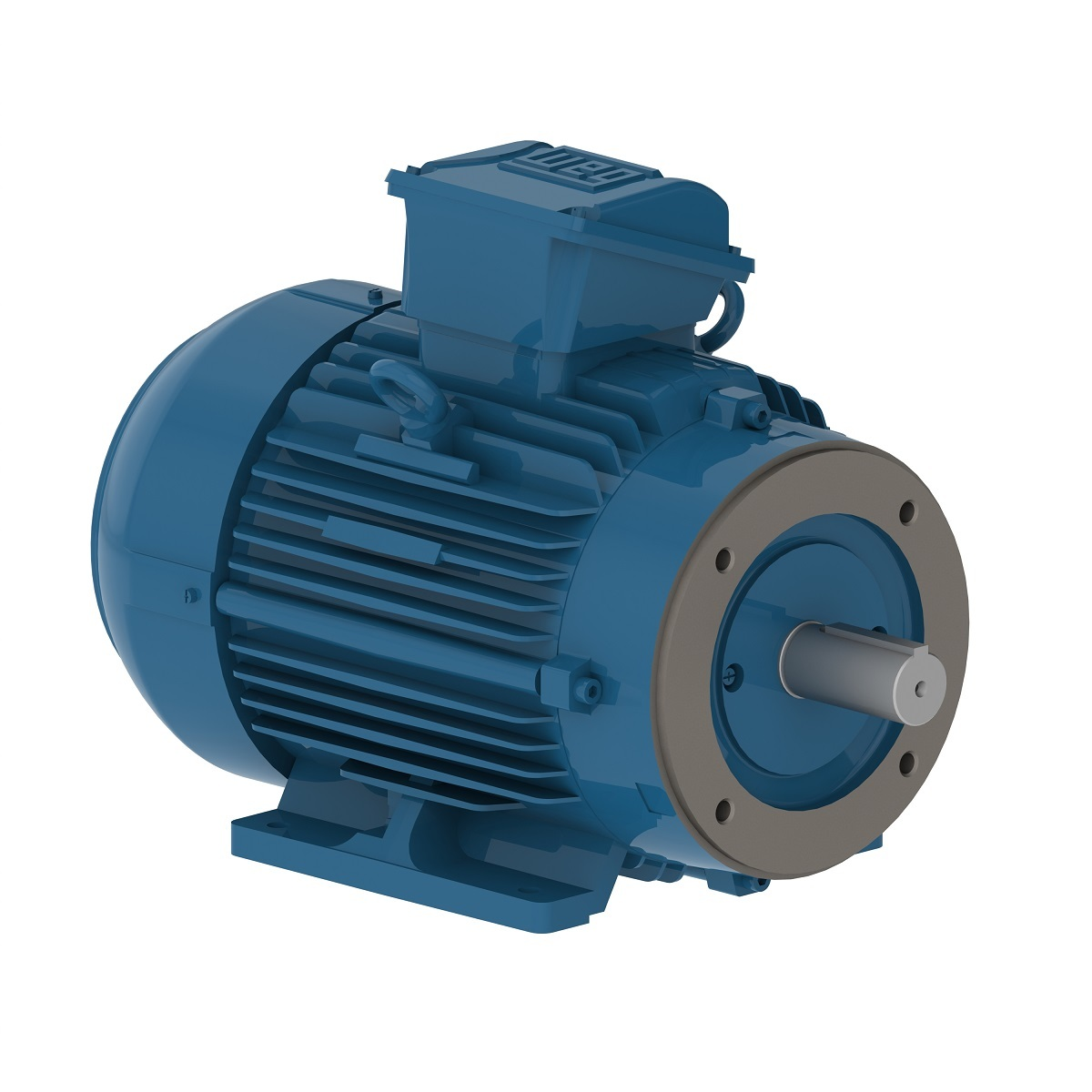

WEG 00736ET3E213TCF3-W22 13676910 General Purpose Motor, TEFC Cast Iron 213TC Frame, 7.5 HP, 2925 RPM, 415 V
Get it by Tuesday, Jul 14
€1,464.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 17.5/8.76A , 8.76/17.5A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Break Down Torque | 300% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 27 sec. , 39 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 75% , 87.5% |
| Efficiency 75% | 89.5% |
| Efficiency @ 1 % | 88% |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 75 % | 84% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 213TC |
| Frame Material | Cast Iron |
| Frame Size | 213TC |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 22 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 126/63.1A , 63.1/126A , 67.8A |
| Locked Rotor Time (cold) | 36 sec. |
| Locked Rotor Time(hot) | 15 sec. , 20 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 6.9x(Code H) , 7.2X(Code H) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.4665 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.4665 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3520 RPM |
| Mounting | F-3 , Foot Mounted |
| Nde Bearing Seal | V Ring |
| No Load Amps | 3/6A , 5.4/2.7A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 7 1/2 hp |
| Output Rating | 7 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.88 |
| Power Factor 50% | 0.75 |
| Power Factor 75% | 0.84 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 87.5 |
| Power Factor @ 75 % | 89.5 |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.94% , 2.22% |
| Speed | 3400-3600 RPM , 3530 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Torque | 11.2 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 230/460/380V AC , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 72 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Frame | Amps | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00436ET3EAL112M-W22 | 230/460V AC | 50 Hz | 1.25 | 5 1/2 hp | - | 112M | 13.3/6.67A | S1 | €1,042.74 | |
 |
.2512EP3EAL71-W22 | 230/460V | 60 Hz | 1 | 33/100 hp | 1/2A | 71 | 2/1A | Continuous | €300.79 | |
|
00118ET3EAL90S-W22 | 230/460V AC | 50 Hz | 1.25 | 1 3/10 hp | - | 90S/L | 4.1/2.05A | S1 | €363.49 | |
|
.3712EP3EAL80-W22 | 230/460V | 60 Hz | 1 | 1/2 hp | 1.07/2.14A | 80 | 2.14/1.07A | S1 | €313.23 | |
 |
.1809EP3WAL80-W22 | 460V AC | 60 Hz | 1 | 1/4 hp | 0.799A | 80 | 0.799A | S1 | €447.45 | |
|
.2509EP3WAL80-W22 | 460V AC | 60 Hz | 1 | 33/100 hp | 0.866A | 80 | 0.866A | S1 | €483.09 | |
 |
00136ET3WAL80-W22 | 460V AC | 60 Hz | 1.25 | 1 1/2 hp | - | 80 | 28A | S1 | €367.91 |
