SQUARE D PowerPact JJL Series Molded Case Circuit Breakers

Filter

SQUARE D JJL36250LC

A

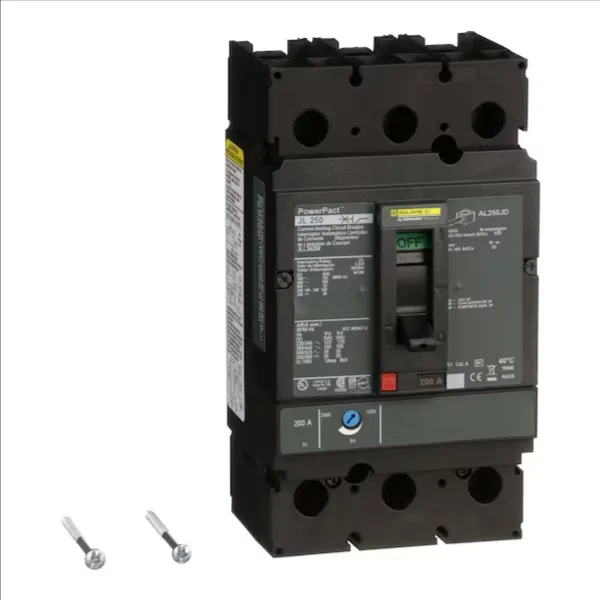

SQUARE D JLL36200

B

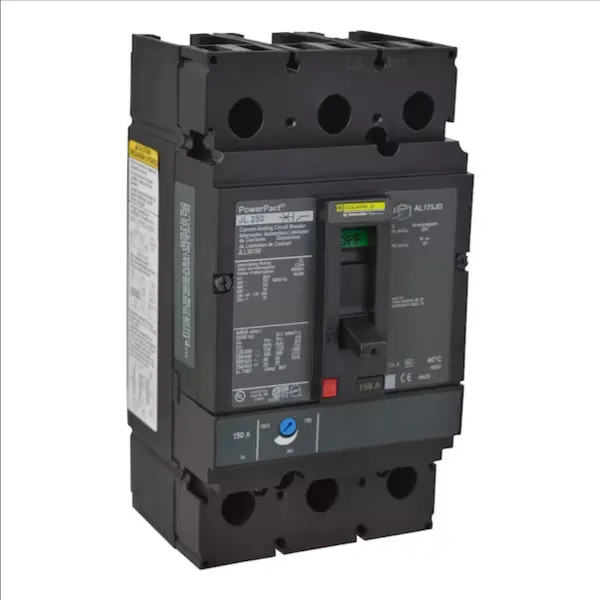

SQUARE D JLL36150

C

SQUARE D JJL36250M75

D

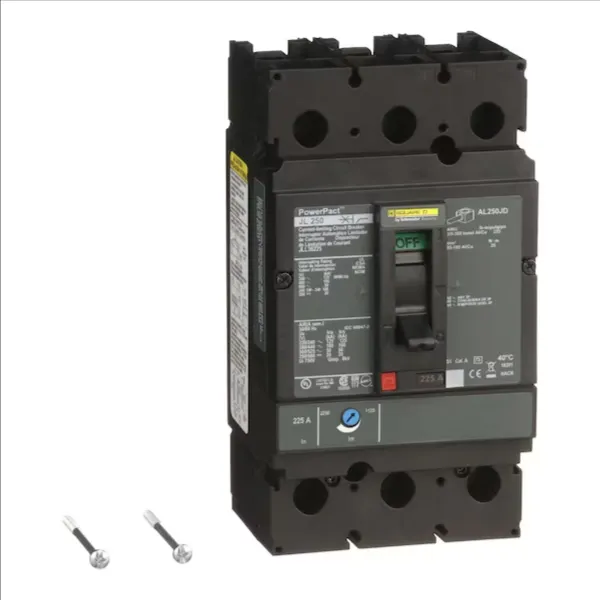

SQUARE D JLL36225

E

SQUARE D JJL36200

F

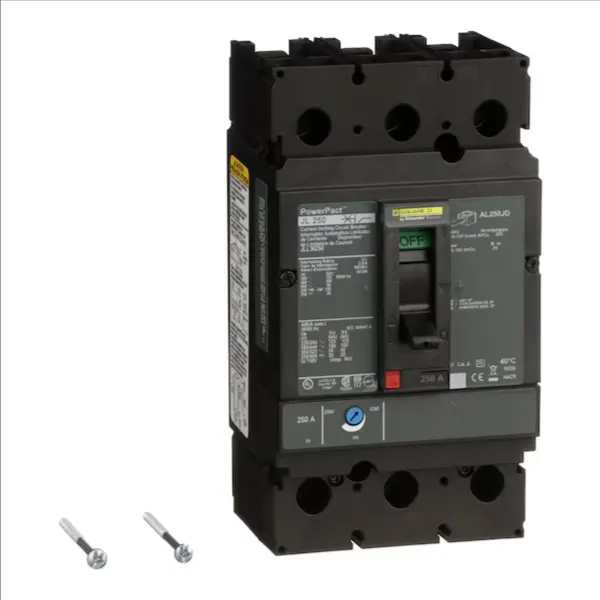

SQUARE D JLL36250

G

SQUARE D JLL36175

H

Style	Model	Height	Amps	Depth	Line Rated Amps	Breaking Capacity Code	Breaking Capacity	Awg Gauge	Frame Type	Price
A	JJL36250LC	-	250A	-	-	-	-	-	JJL	-	RFQ
B	JLL36200	7 1/2"	-	3.4"	200A	L	125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489	3/0 AWG to 350 kcmil	JLL	€8,210.40
C	JLL36150	7 1/2"	-	3.4"	150A	L	125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489	4 AWG to 4/0 AWG	JLL	€3,243.23
D	JJL36250M75	7 1/2"	250A	5"	250A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489	3/0 AWG to 350 kcmil	-	€2,777.51
A	JJL36250U31X	7 1/2"	250A	3.4"	250A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489	3/0 AWG to 350 kcmil	JJL	€5,863.67
E	JLL36225	7 1/2"	-	3.4"	225A	L	125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489	3/0 AWG to 350 kcmil	JLL	€8,210.40
F	JJL36200	7 1/2"	200A	3.4"	200A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489	3/0 AWG to 350 kcmil	JJL	€2,715.80
A	JJL36250U33X	7 1/2"	250A	3.4"	250A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489	3/0 AWG to 350 kcmil	JJL	€5,863.67
F	JJL36175	7 1/2"	-	3.4"	175A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489	4 AWG to 4/0 AWG	JJL	€2,715.80
F	JJL36150	7 1/2"	-	3.4"	150A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489	4 AWG to 4/0 AWG	JJL	€2,715.80
A	JJL36200SA	7 1/2"	200A	3.4"	200A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489	3/0 AWG to 350 kcmil	JJL	€5,173.16
G	JLL36250	7 1/2"	-	3.4"	250A	L	125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489	3/0 AWG to 350 kcmil	JLL	€10,414.80
F	JJL36225	7 1/2"	-	3.4"	225A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489	3/0 AWG to 350 kcmil	JJL	€2,715.80
F	JJL36250	7 1/2"	-	3.4"	250A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489	3/0 AWG to 350 kcmil	JJL	€3,009.01
A	JJL36250SA	7 1/2"	250A	3.4"	250A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489	3/0 AWG to 350 kcmil	JJL	€5,992.80
H	JLL36175	7 1/2"	-	3.4"	175A	L	125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489	4 AWG to 4/0 AWG	JLL	€8,210.40
A	JJL36250U44X	7 1/2"	250A	3.4"	250A	J	100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489	3/0 AWG to 350 kcmil	JJL	€9,035.40
