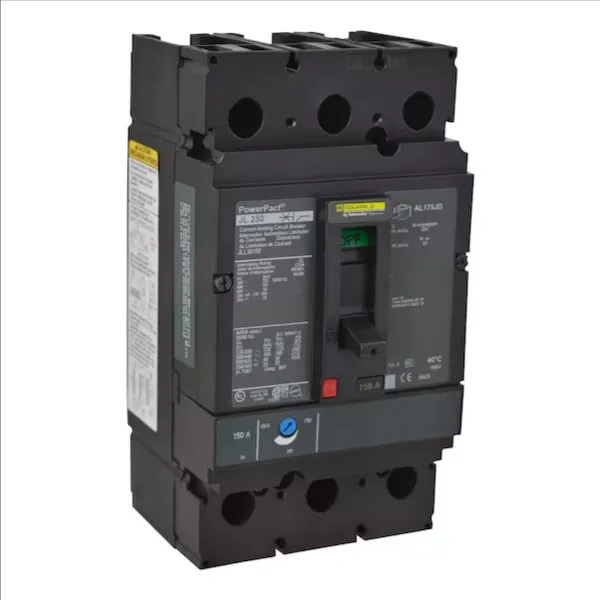

SQUARE D JLL36175 Circuit Breaker Feed-thru 175 Amp 600vac 3p 100kaic@480v
Get it by Wednesday, Apr 1
€8,210.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Aic Rating | 100 kAIC @ 480V |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Awg Gauge | 4 AWG to 4/0 AWG |
| Breaking Capacity | 125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489 |
| Breaking Capacity Code | L |
| Circuit Breaker Application | HACR Rated |
| Communication Interface | Modbus |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Toggle |
| Depth | 3.4" |
| Electrical Connection | Lugs, Line, Load |
| Frame Type | JLL |
| Height | 7 1/2" |
| Ip Degree Of Protection | IP40 |
| Line Rated Amps | 175A |
| Local Signalling | Switched Off 1 Trip Indicator Green |
| Long Time Pick-up Adjustment Range | 0.25-1 Times In |
| Magnetic Hold Amps | 875A |
| Magnetic Tripping Amps | 1750A |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Number Of Slots | 5 |
| Operating Altitude | 0 ft. to 6561.68 ft. Without Derating, 5000m With Derating |
| Pollution Degree | 3° |
| Power Wire Stripping Length | 1" |
| Protection Type | Overload Protection, Short Circuit Protection |
| Quality Labels | ce.png |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 600V |
| Rated Service Breaking Capacity | 125 kA @ 220/240V AC @ 50/60 Hz, 100 kA @ 380/440/415V AC @ 50/60 Hz, 50 kA @ 500/525V AC @ 50/60 Hz, 20 kA @ 250V DC, 20 kA @ 500V DC |
| Returnability | No |
| Suitability For Isolation | Yes, IEC 60947-2 |
| Tightening Torque | 25 N-m |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Voltage | 600V |
| Voltage Type | AC |
| Width | 4.09" |
Shipping Info:
| Ship weight (kg) | 2.21 |
| Ship height (cm) | 19.1 |
| Ship length (cm) | 8.6 |
| Ship width (cm) | 10.4 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Phase Connection | Frame Type | Aic Rating | Number Of Poles | Circuit Breaker Type | Frame Size | Ac Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JJL36250M75 | 250A | ABC | - | - | 3 | Motor Circuit Protector | 250A/JJ | 600V AC | €3,030.01 | |
 |
JJL36150 | - | BA | JJL | 65 kAIC @ 480V | 3 | - | - | - | €2,962.69 | |
|
JJL36175 | - | CB | JJL | 65 kAIC @ 480V | 3 | - | - | - | €2,962.69 | |
|
JJL36200 | 200A | ABC | JJL | 65 kAIC | 3 | - | - | - | €2,962.69 | |
|
JJL36225 | - | - | JJL | 65 kAIC @ 480V | 3 | - | - | - | €2,962.69 | |
|
JJL36250 | - | ABC | JJL | 65 kAIC @ 480V | 3 | - | - | - | €3,282.55 | |
 |
JLL36150 | - | - | JLL | 100 kAIC @ 480V | 3 | - | - | - | €3,243.23 |
