Black Max Inverter Duty Motors, TENV


Marathon inverter (vector) duty Black Max motors are suitable for powering cranes & hoists, textile processing, test stands, machine toos and other industrial applications. These motors are designed for vector or inverter duty applications that require a constant torque speed range.

Filter

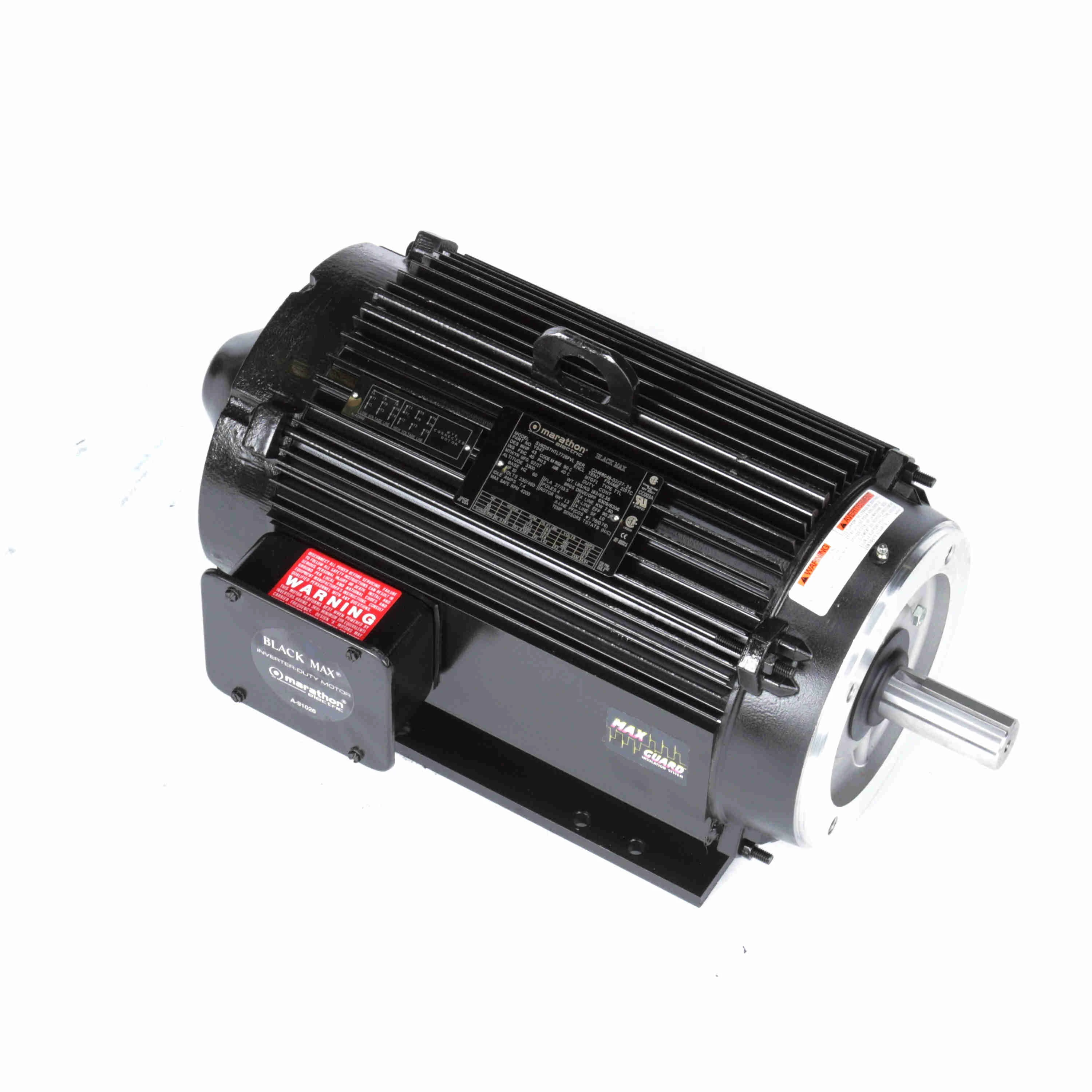

MARATHON MOTORS 215THTL7726A
LEESON 056H17T2001B

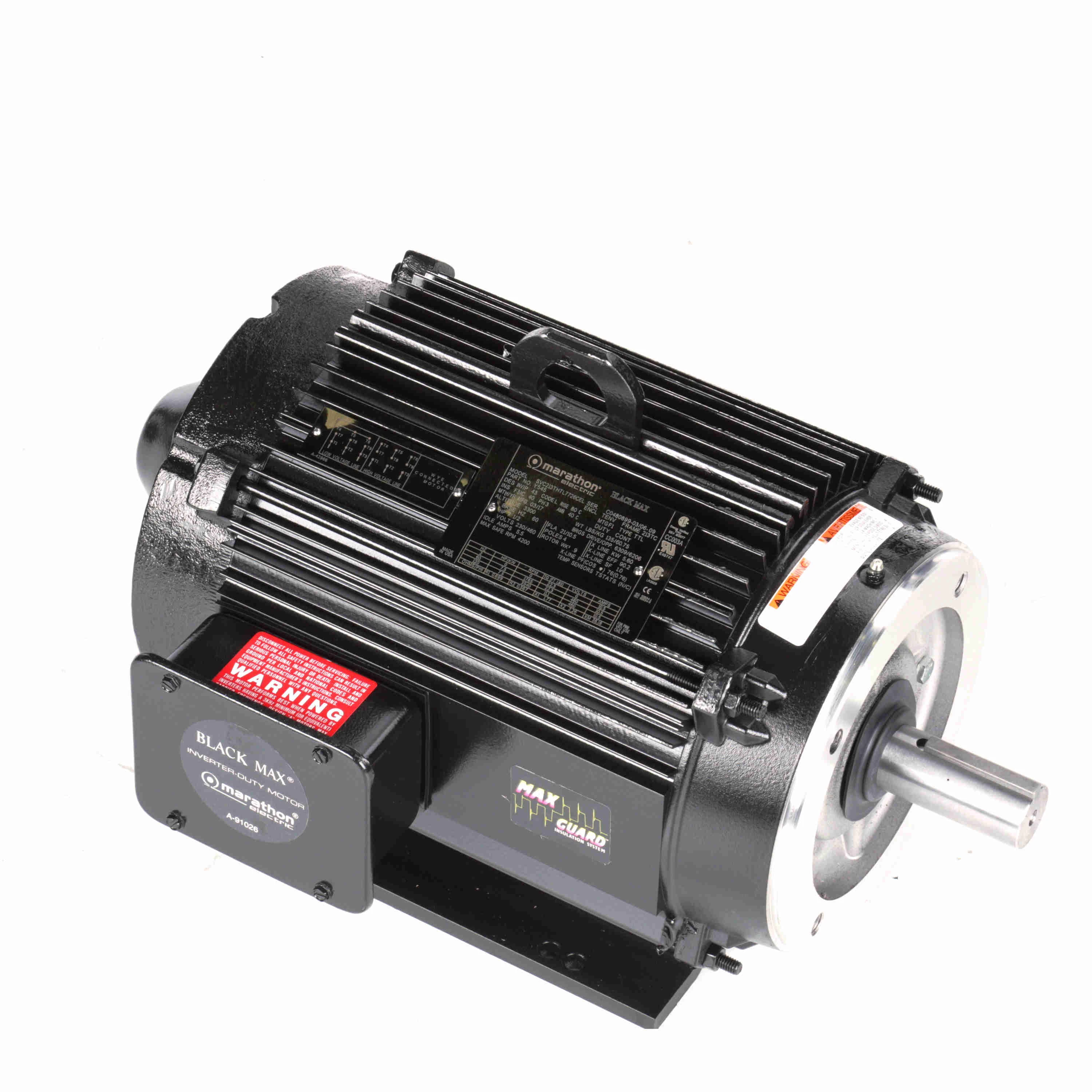

MARATHON MOTORS 213THTL7726C

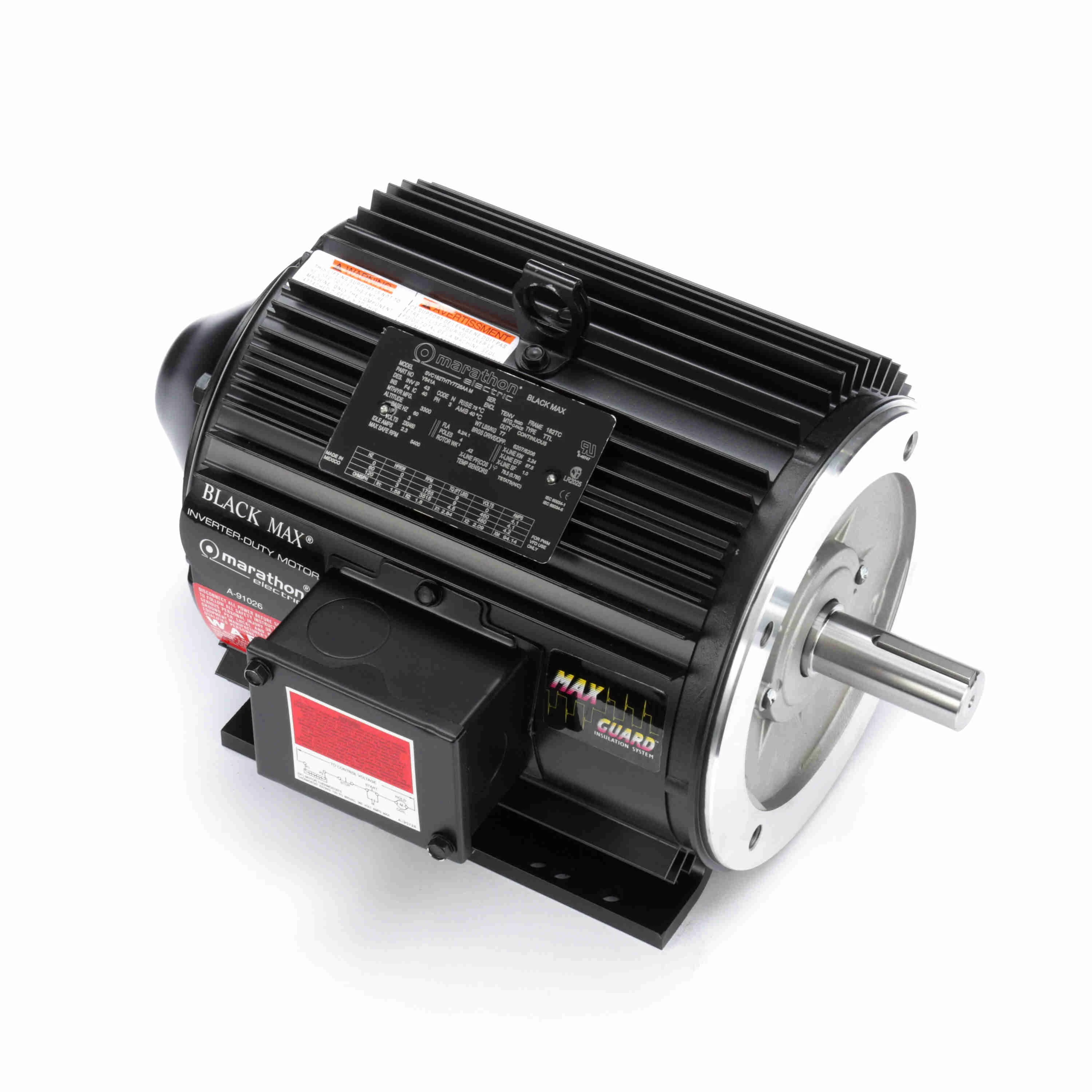

MARATHON MOTORS 182THTY7726D
LEESON 145THTN6046E
LEESON 145THTR5376F
LEESON 056H17T5301G
MARATHON MOTORS 213THTL7776H

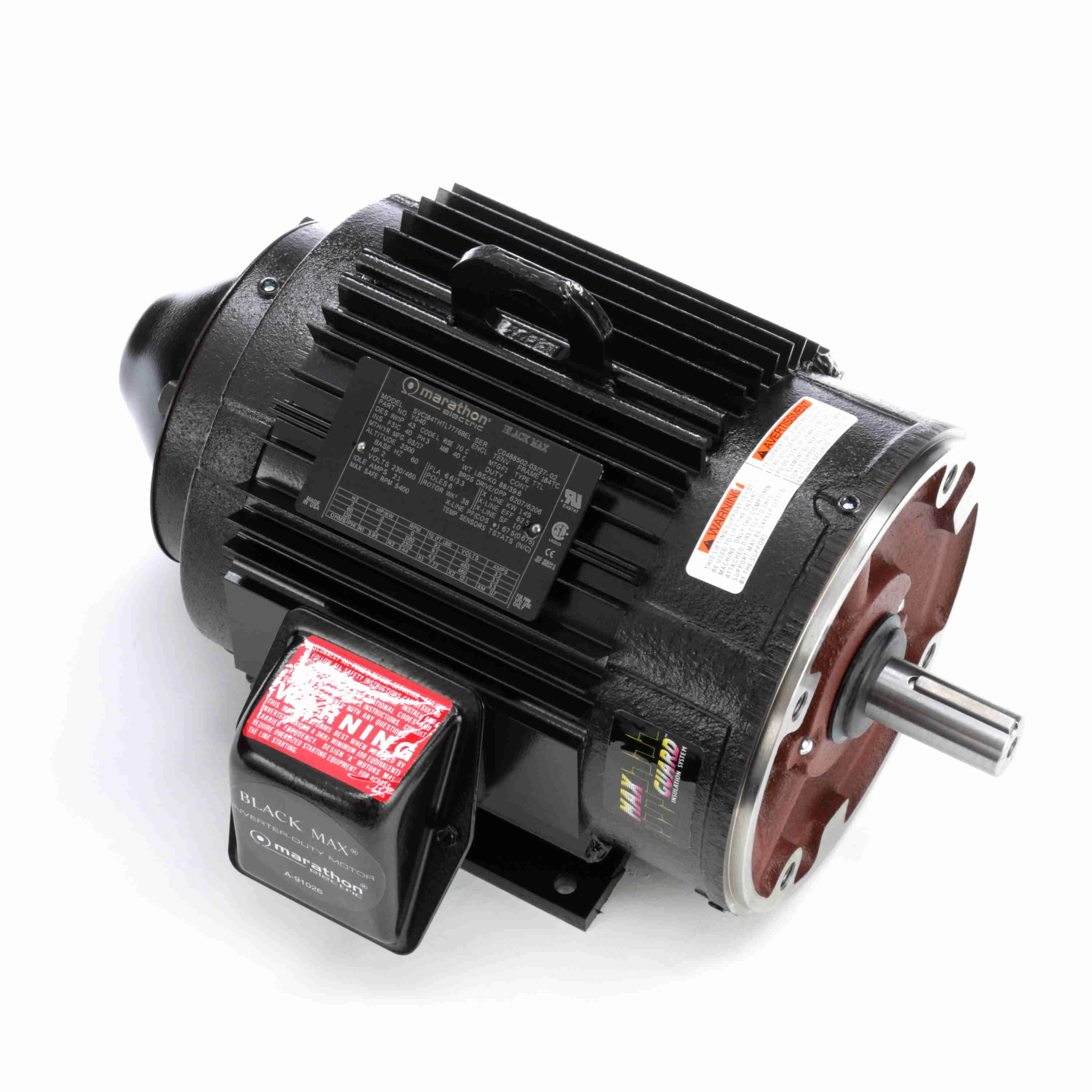

MARATHON MOTORS 184THTL7776I

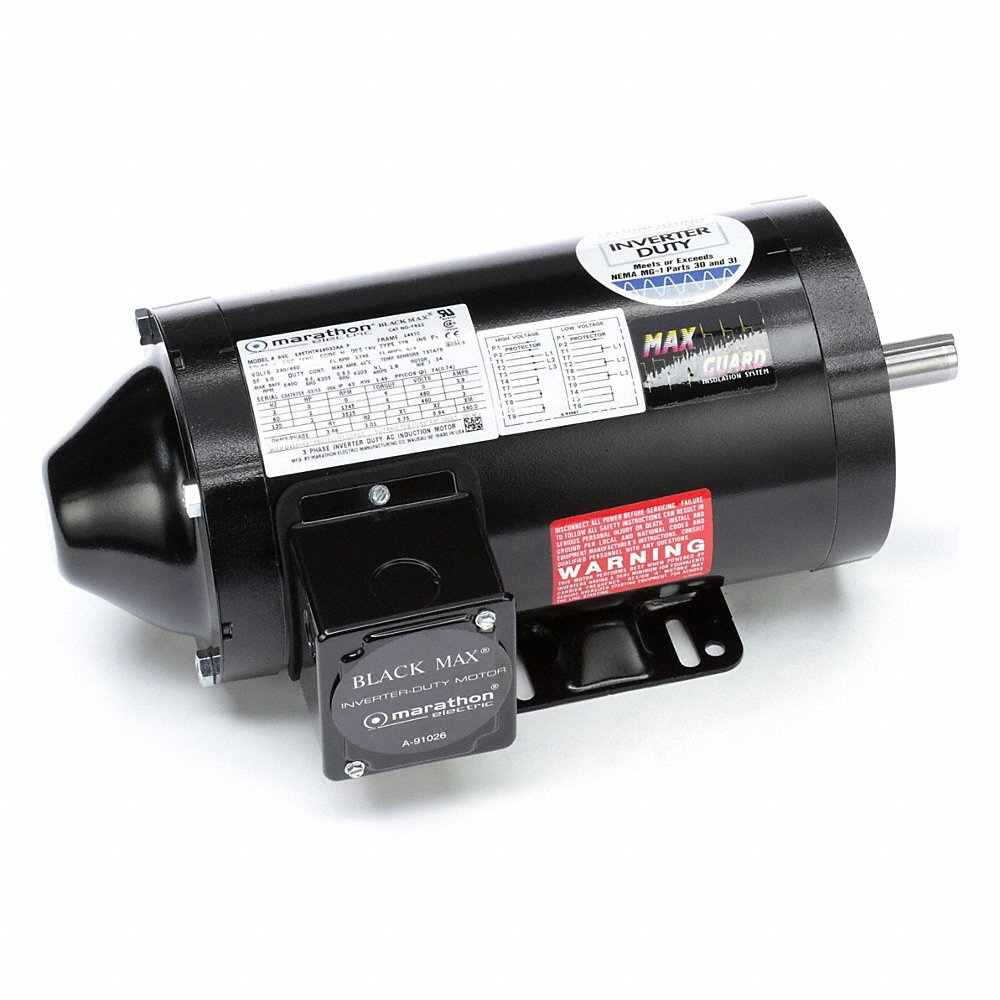

LEESON 145THTR16032J
MARATHON MOTORS 254THTL5726K

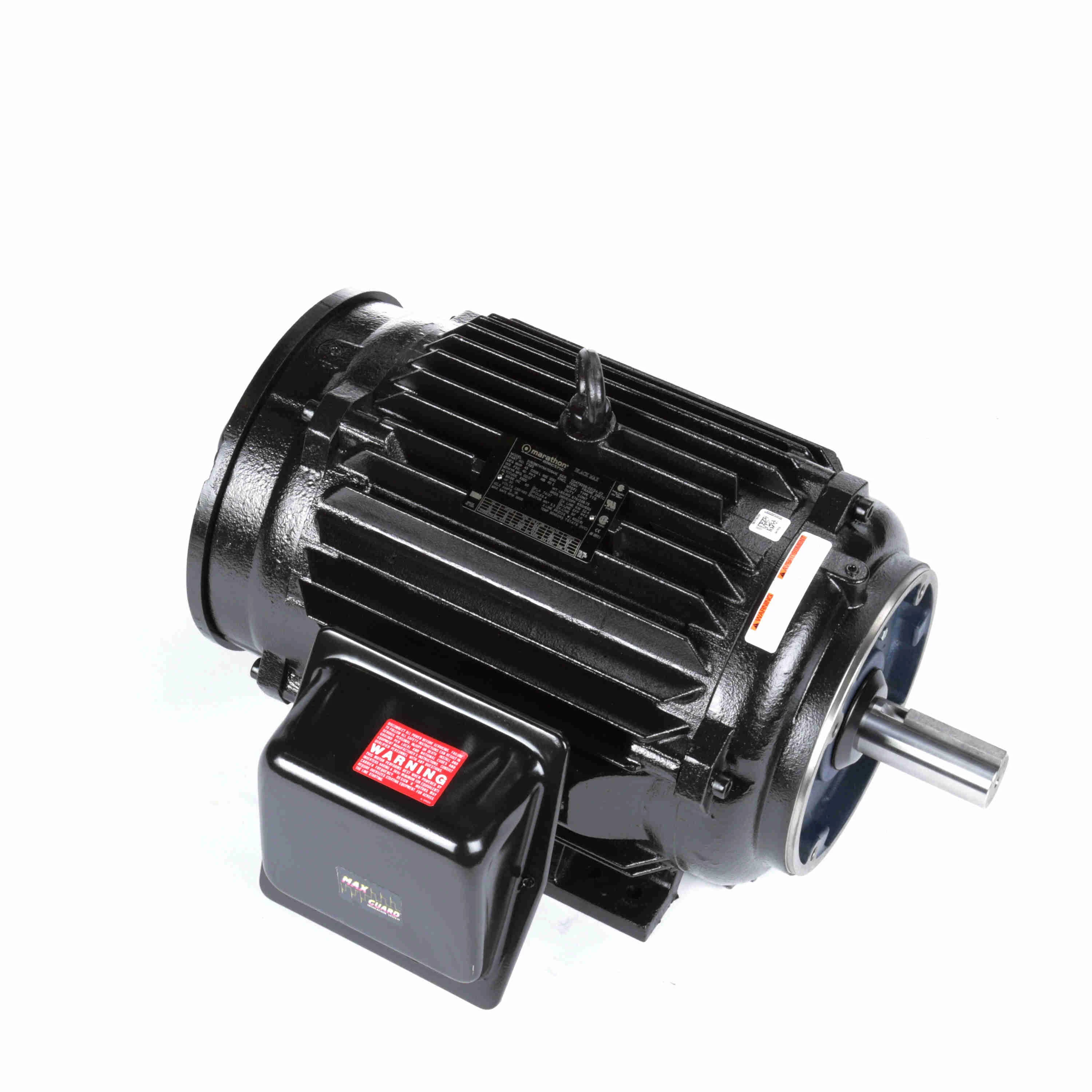

MARATHON MOTORS 286THTNA7026L
LEESON 145THTR5326M
LEESON 143THTR5326N
LEESON 056H17T5302O

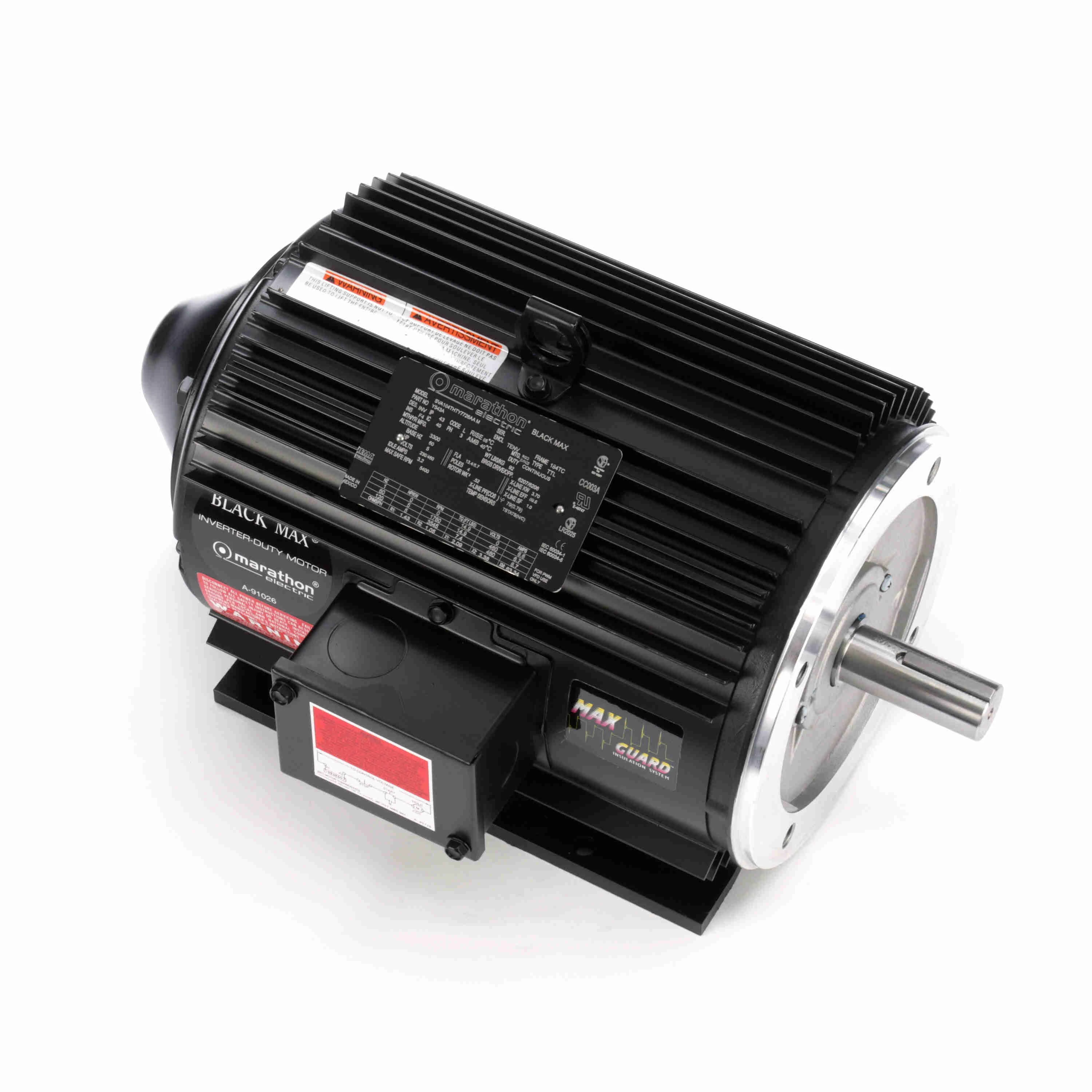

MARATHON MOTORS 184THTY7726P

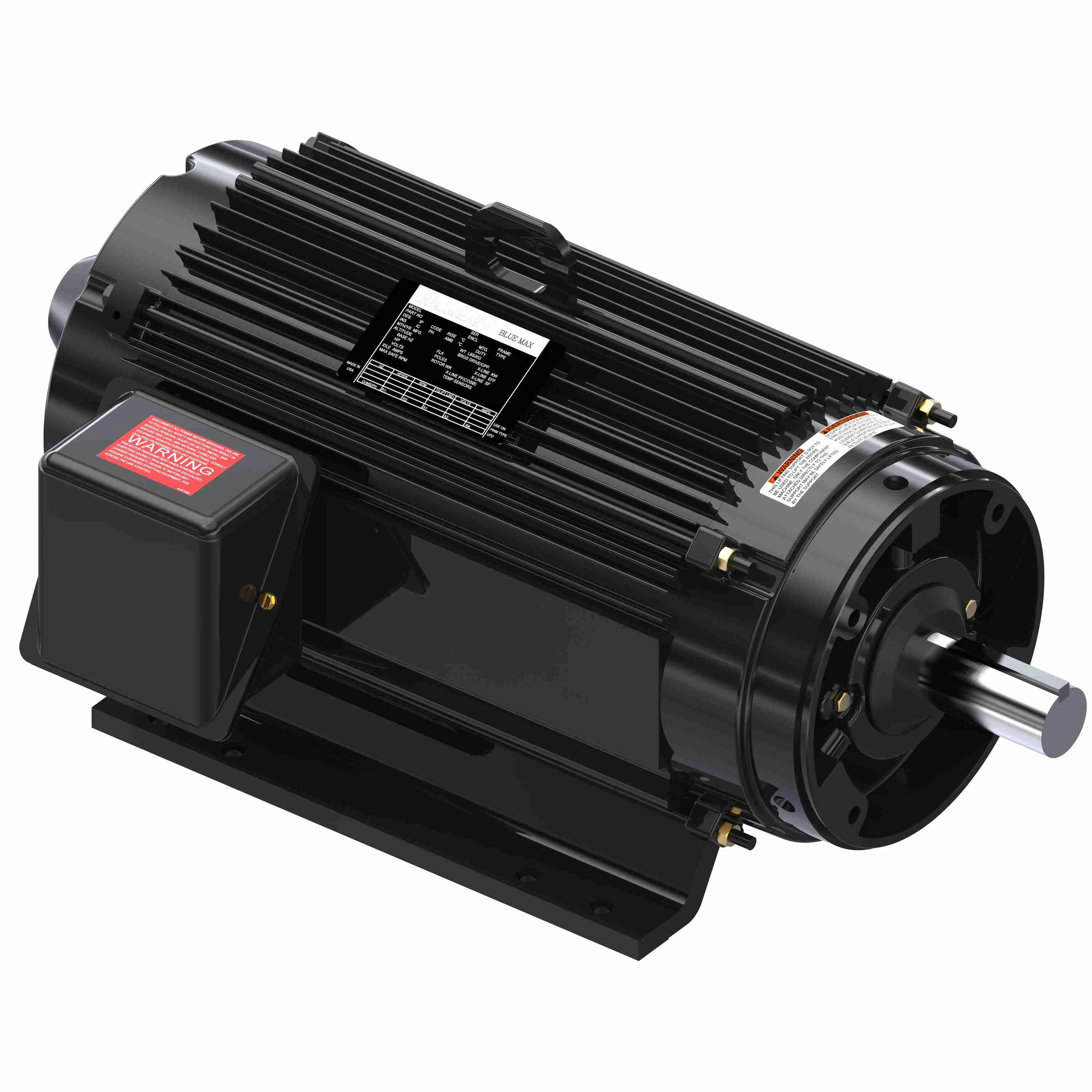

MARATHON MOTORS 256THTL5776Q

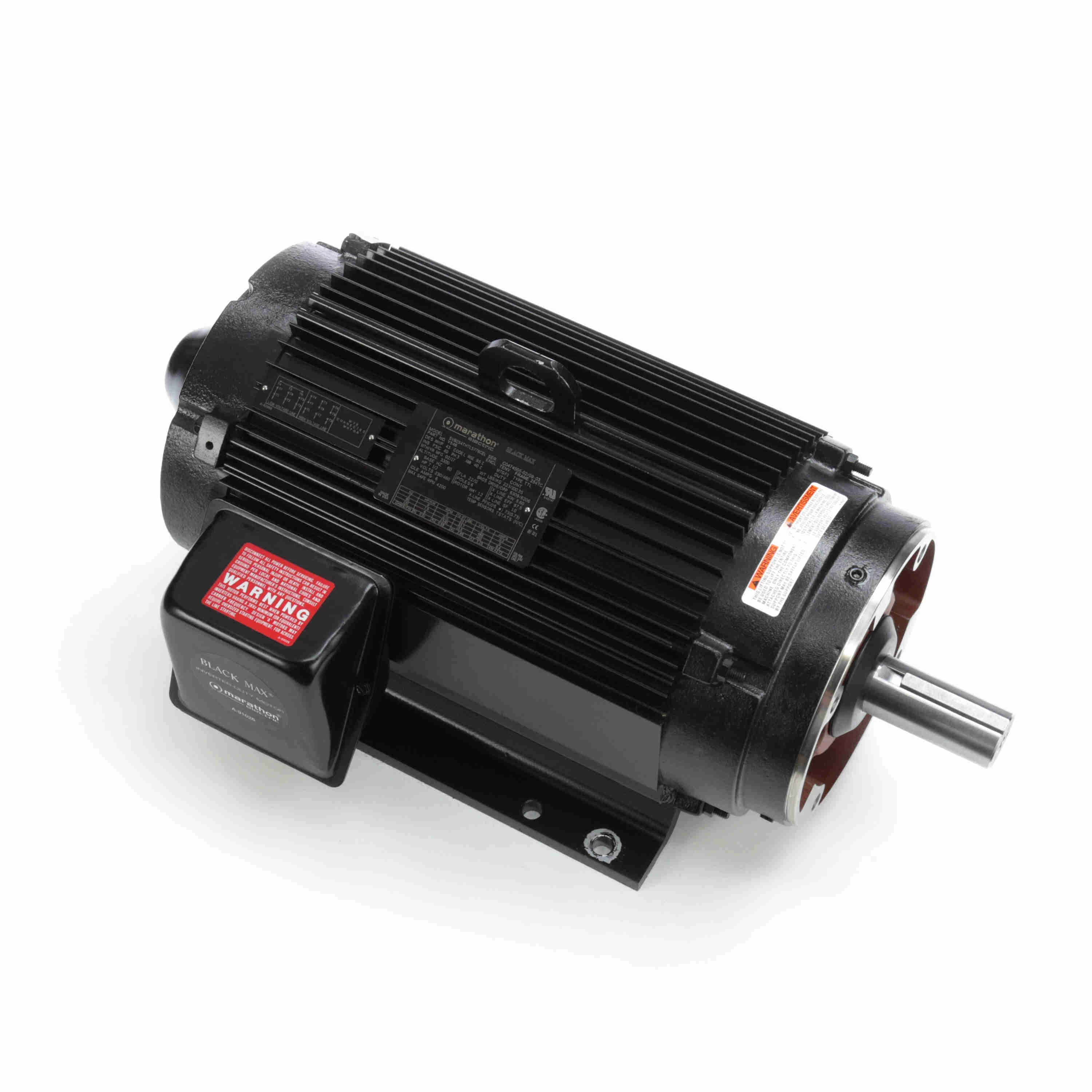

MARATHON MOTORS 254THTL5776R
MARATHON MOTORS 215THTL7776S
MARATHON MOTORS 213THTL7736T
LEESON 145THTN6060U
MARATHON MOTORS 254THTL5736V
MARATHON MOTORS 215THTL7736W
LEESON 056H17T5311X

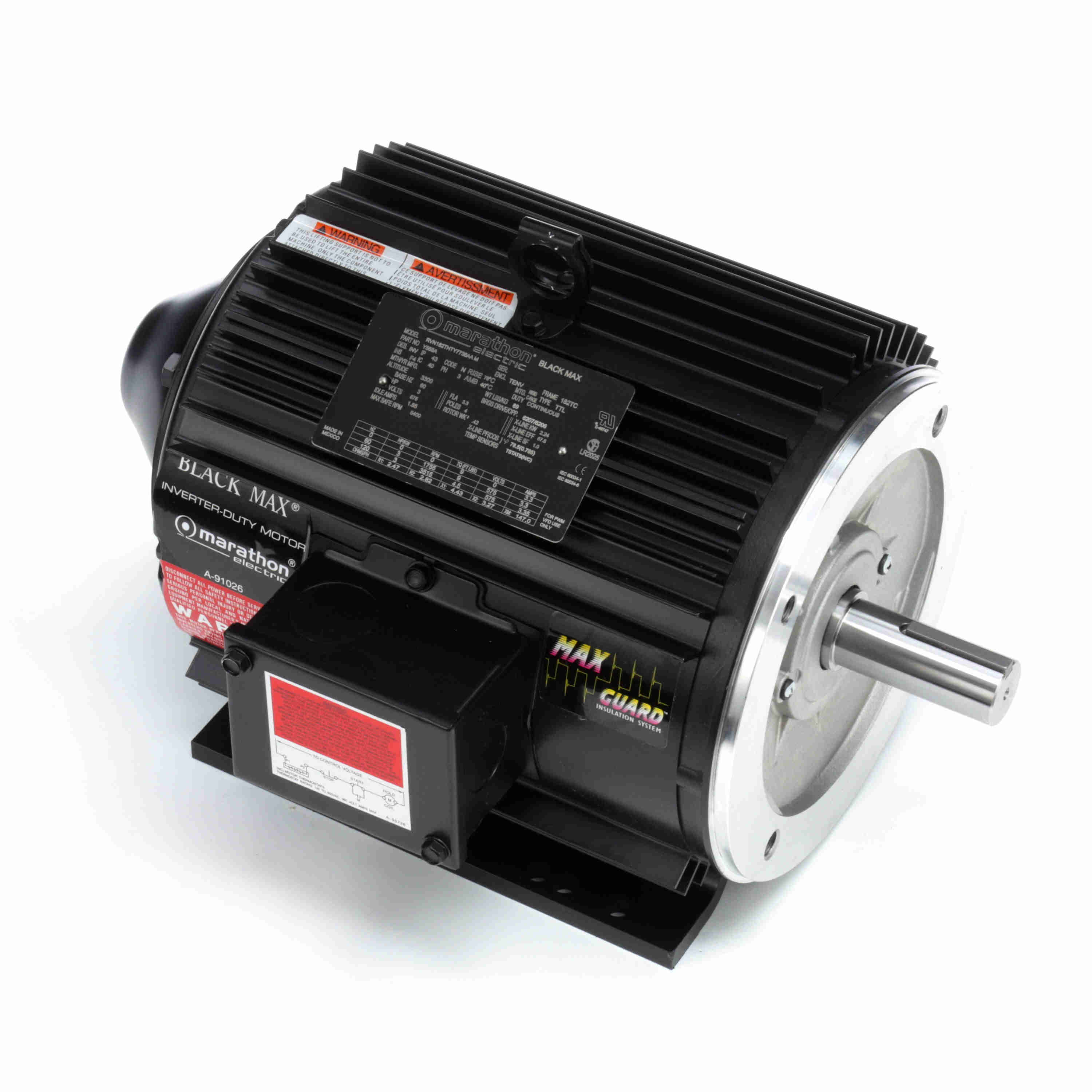

MARATHON MOTORS 182THTY7736Y
StyleModelVoltageHpFrameFull Load AmpsNameplate RpmMotor ApplicationNominal EfficiencyEfficiency GroupPrice
A
215THTL7726		230/460V AC10 hp215TC27/13.5A1774 RPMCrane90.2%Epact€4,758.73
B
056H17T2001		230/460V AC1/4 hp56C1.15/0.58A1725 RPMCrane70%-€664.38
C
213THTL7726		230/460V AC7 1/2 hp213TC21/10.5A1765 RPMCrane90.2%Epact€3,425.69
D
182THTY7726		230/460V AC3 hp182TC8.2/4.1A1755 RPMCrane87.5%Standard€2,047.96
E
145THTN6046		230/460V AC2 hp145TC6/3A1750 RPMCrane85.5%Epact€1,754.70
F
145THTR5376		230/460V AC1 hp145TC3.8/1.9A1145 RPMCrane80%Epact€1,096.88
G
056H17T5301		230/460V AC1/2 hp56C1.6/0.8A1735 RPMCrane80%-€937.54
H
213THTL7776		230/460V AC3 hp213TC9.4/4.7A1160 RPMCrane82.5%Standard€2,907.68
I
184THTL7776		230/460V AC2 hp184TC6.6/3.3A1160 RPMCrane82.5%Standard€2,402.59
J
145THTR16032		230/460V AC2 hp145TC6/3A1800 RPM---€2,107.64
K
254THTL5726		230/460V AC15 hp254TC40/20A1765 RPMCrane91.7%Epact€5,270.45
L
286THTNA7026		230/460V AC30 hp286TC74/37A1772 RPMCrane94.5%Premium€8,003.02
M
145THTR5326		230/460V AC1 1/2 hp145TC4.8/2.4A1755 RPMCrane85.5%Epact€1,004.92
N
143THTR5326		230/460V AC1 hp143TC3/1.5A1750 RPMCrane84%Epact€1,290.38
O
056H17T5302		230/460V AC1 hp56C3/1.5A1725 RPMCrane84%-€1,157.66
P
184THTY7726		230/460V AC5 hp184TC13.4/6.7A1760 RPMWashdown89.5%-€3,030.72
Q
256THTL5776		230/460V AC10 hp256TC28/14A1160 RPMCrane89.5%Epact€5,102.84
R
254THTL5776		230/460V AC7 1/2 hp254TC22/11A1170 RPMCrane87.5%Standard€5,899.24
S
215THTL7776		230/460V AC5 hp215TC15.4/7.7A-Crane-Standard€3,463.42
T
213THTL7736		575V AC7 1/2 hp213TC8.4A1765 RPMCrane90.2%Epact€3,368.66
U
145THTN6060		575V AC2 hp145TC2.4A1750 RPMCrane85.5%Epact€1,587.99
V
254THTL5736		575V AC15 hp254TC16A1765 RPMCrane91.7%Epact€5,661.13
W
215THTL7736		575V AC10 hp215TC10.8A1774 RPMCrane90.2%Epact€4,116.38
X
056H17T5311		575V AC1/2 hp56C0.65A1725 RPMCrane80%-€878.74
Y
182THTY7736		575V AC3 hp182TC3.3A1755 RPMWashdown87.5%-€1,875.84

Features

  • Marathon inverter (vector) duty Black Max motors feature MAX GUARD Class F insulation system for unlimited lead lengths from the motor to the drive and exceeding the NEMA MG1 Part 30 & 31 requirements.
  • They offer a constant horsepower operation, with a maximum of twice the base RPM speed and a constant torque up to the base speed on the vector drive.
  • The motors have ball bearings for smooth operations and can operate continuously at 40 degrees C ambient temperature.
  • They are optimised to operate with an IGBT inverter having NEMA design A.
  • These motors come with a standard F1 conduit box but can be field reversed to the F2 location (unless stated otherwise) for easy & quick electrical connections.
  • They feature encoder & brake provisions on their opposite drive end (a maximum of 10 lb-ft brake).

Standards and Approvals

  • CSA
  • UL
  • CE

Frequently Asked Questions

Do these motors have thermal protection?

These Marathon inverter (vector) duty Black Max motors feature one normally closed Class F thermostat per phase for turning Off the operation to prevent damage in case of overheating.

How are these motors installed?

These Marathon inverter (vector) duty Black Max motors are C-face footed (have a rigid base) for horizontal mounting on a surface for easy and secure installation.

Can these Marathon inverter (vector) duty Black Max motors handle low speeds?

These motors can run at 1/1000 of the base speed in pump, fan & blower applications without overheating.
