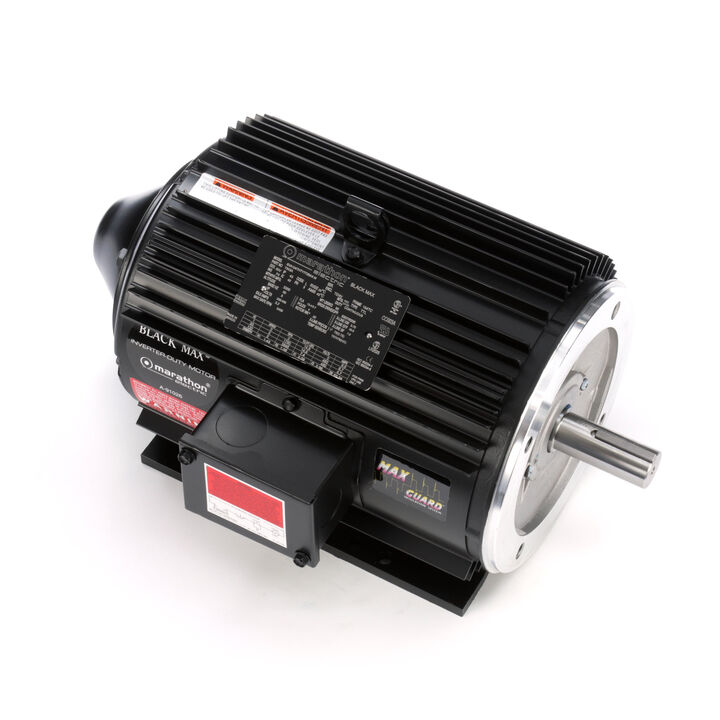

MARATHON MOTORS 184THTY7726 Y543A Vector Motor | AJ2MET Y543A

MARATHON MOTORS 184THTY7726 Y543A / 184THTY7726AA Inverter Duty Speed Ratio Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: AJ2METModel: 184THTY7726Cross Ref: 45KF27 / Y543A / 184THTY7726AA
Check Availability
In Stock

Get it by Wednesday, Apr 1

€3,030.72 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Vector Motor
Ambient Temp. 40°C
Application Washdown
Base Rigid
Bearing Type Ball
Bearings Ball
Cc Number CC003A
Conduit Box Position F1, F2
Constant Torque 1000:1
Duty Continuous
Duty Cycle Continuous
Efficiency 89.5%
Encoder Acceptable Yes
Encoder Shaft Yes
Encoder Shaft Dimension 5/8" x 1 3/4"
Finish Powder Coated
Frame 184TC
Frame Material Aluminum
Frequency 60 Hz
Full Load Amps 13.4/6.7A
Full Load Torque 14.9 lbs.-ft.
Full Load Torque 14.9 ft.-lbs.
Hp 5 hp
Insulation Class Class F
Max. Ambient Temp. 104°F
Max. Operating Frequency 120 Hz
Max. Rpm 3600 RPM
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Frame Material Aluminum
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Squirrel Cage Inverter Rated
Mounting Type Rigid Base
Nameplate Rpm 1760 RPM
Nema Design A
No. Of Speeds 1
Nominal Efficiency 89.5%
Number Of Speeds 1
Overall Length 17 11/16"
Phase 3
Service Factor 1
Shaft Dia. 1 1/8"
Shaft Length 2 5/8"
Speed Range 1000:1
Speed Ratio 1000:1
Standards Ce, Ul Recognized
Thermal Protection None
Torque 14.9 lbs.-ft.
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC

Shipping Info:

Ship weight (kg) 41.4
Ship height (cm)37.95
Ship length (cm)51.92
Ship width (cm)33.02
HS code8501524000
Country of OriginMX

Product Details:

    • Supersedes Marathon - Y543 / 184THTL7726

Product Variants

ProductModelVoltageHpFrameFull Load AmpsNameplate RpmMotor ApplicationNominal EfficiencyEfficiency GroupPrice
MARATHON MOTORS 213THTL7736 Vector Motor 7-1/2 Hp 22.3 Lb-ft 575v | AD6NVZ 46M716 / Y560 213THTL7736575V AC7 1/2 hp213TC8.4A1765 RPMCrane90.2%Epact€3,368.66
MARATHON MOTORS 213THTL7776 Vector Motor 3 Hp 13.6 Lb-ft 230/460v | AD6NWA 46M717 / Y542 213THTL7776230/460V AC3 hp213TC9.4/4.7A1160 RPMCrane82.5%Standard€2,907.68
MARATHON MOTORS 215THTL7736 Vector Motor 10 Hp 29.6 Lb-ft 575v | AD6NWB 46M718 / Y561 215THTL7736575V AC10 hp215TC10.8A1774 RPMCrane90.2%Epact€4,116.38
MARATHON MOTORS 254THTL5736 Vector Motor 15 Hp 44.6 Lb-ft 575v | AD6NWC 46M719 / Y562 254THTL5736575V AC15 hp254TC16A1765 RPMCrane91.7%Epact€5,661.13
MARATHON MOTORS 184THTL7776 Vector Motor 9.0 Lb-ft 2 Hp 230/460 V | AE6KKT 5THY3 / Y540 184THTL7776230/460V AC2 hp184TC6.6/3.3A1160 RPMCrane82.5%Standard€2,402.59
MARATHON MOTORS 182THTY7726 Vector Motor 9.0 Lb-ft 3 Hp 230/460 V | AE6KKU 5THY4 / Y541A 182THTY7726230/460V AC3 hp182TC8.2/4.1A1755 RPMCrane87.5%Standard€2,047.96
MARATHON MOTORS 215THTL7776 Vector Motor 22.5 Lb-ft 5 Hp 230/460 V | AE6KKV 5THY6 / Y544 215THTL7776230/460V AC5 hp215TC15.4/7.7A-Crane-Standard€3,463.42
