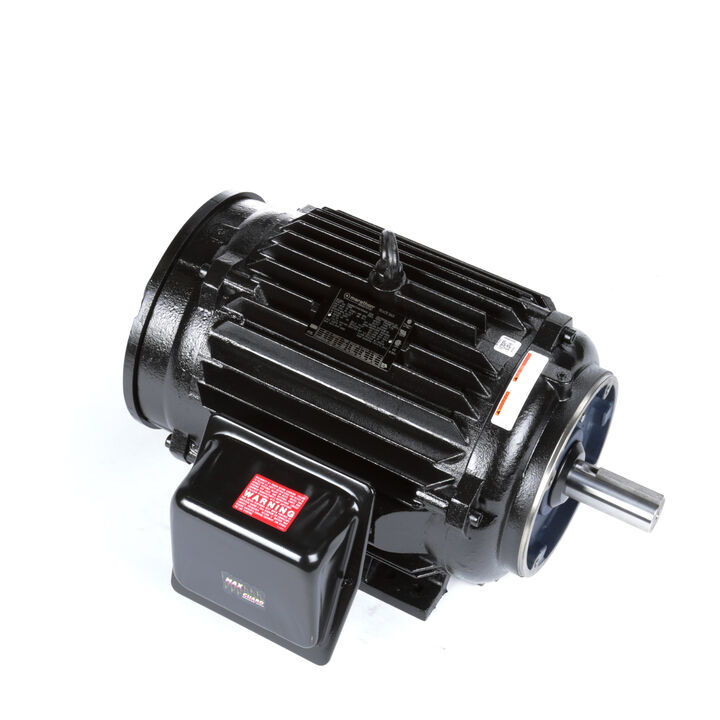

MARATHON MOTORS 286THTNA7026 Y393 / 286THTNA7026AA Inverter Duty Speed Ratio Motor, 30 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Friday, Dec 26
10.00% off
€7,202.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Color | Black |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Constant Torque | 1000:1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 94.5% |
| Efficiency Group | Premium |
| Encoder Acceptable | Yes |
| Encoder Shaft | 5/8 x 1-3/4" |
| Encoder Shaft Dimension | 5/8" x 1 3/4" |
| Finish | Black |
| Frame | 286TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 74/37A |
| Full Load Torque | 89 ft.-lbs. |
| Full Load Torque | 89 lbs.-ft. |
| Hp | 30 hp |
| Insulation Class | Class F |
| Insulation Feature | Patented Max Guard |
| Length Less Shaft | 24 3/16" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 1800 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1772 RPM |
| Nema Design | A |
| Nominal Efficiency | 94.5% |
| Number Of Speeds | 1 |
| Overall Length | 28 9/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 4 3/8" |
| Speed Range | 1000:1 |
| Speed Ratio | 1000:1 |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Thermostat |
| Torque | 89 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Weight | 575 lbs. |
Shipping Info:
| Ship weight (kg) | 258.75 |
| Ship height (cm) | 61.85 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 66.04 |
| HS code | 8501528040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Frame | Full Load Amps | Nameplate Rpm | Motor Application | Nominal Efficiency | Efficiency Group | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
145THTN6060 | 575V AC | 2 hp | 145TC | 2.4A | 1750 RPM | Crane | 85.5% | Epact | €1,587.99 | |
 |
213THTL7736 | 575V AC | 7 1/2 hp | 213TC | 8.4A | 1765 RPM | Crane | 90.2% | Epact | €3,368.66 | |
 |
213THTL7776 | 230/460V AC | 3 hp | 213TC | 9.4/4.7A | 1160 RPM | Crane | 82.5% | Standard | €2,907.68 | |
 |
215THTL7736 | 575V AC | 10 hp | 215TC | 10.8A | 1774 RPM | Crane | 90.2% | Epact | €4,116.38 | |
 |
254THTL5736 | 575V AC | 15 hp | 254TC | 16A | 1765 RPM | Crane | 91.7% | Epact | €5,661.13 | |
 |
143THTR5326 | 230/460V AC | 1 hp | 143TC | 3/1.5A | 1750 RPM | Crane | 84% | Epact | €1,290.38 | |
 |
145THTR5376 | 230/460V AC | 1 hp | 145TC | 3.8/1.9A | 1145 RPM | Crane | 80% | Epact | €1,096.88 |
