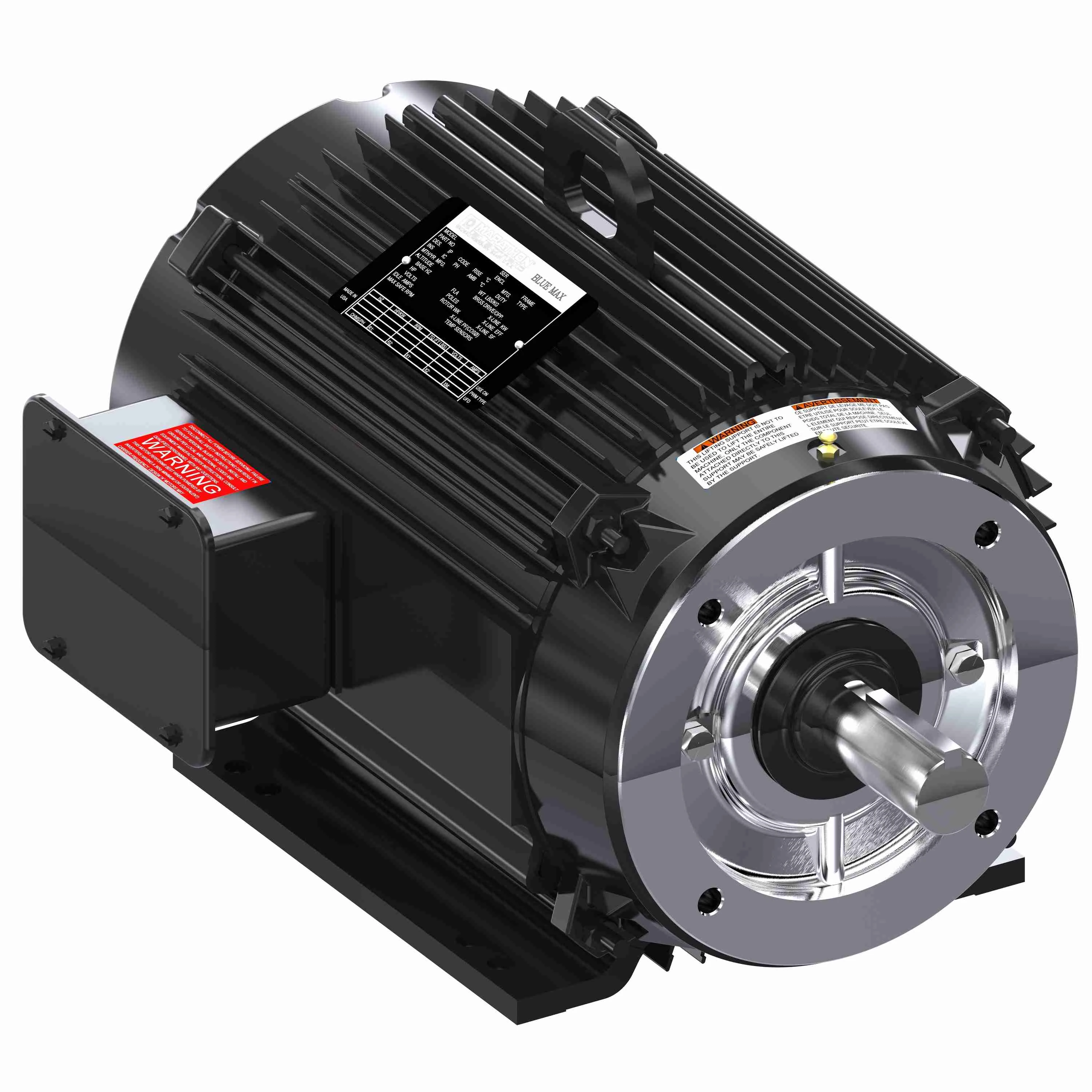

MARATHON MOTORS 215THTL7776 Y544 / 215THTL7776CE Inverter Duty Speed Ratio Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 1200 RPM
Get it by Wednesday, Dec 24
10.00% off
€3,117.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bearings | Ball |
| Color | Black |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Constant Torque | 1000:1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Efficiency Group | Standard |
| Encoder Acceptable | Yes |
| Encoder Shaft | 5/8 x 1-3/4" |
| Encoder Shaft Dimension | 5/8" x 1 3/4" |
| Finish | Black |
| Frame | 215TC |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Full Load Amps | 15.4/7.7A |
| Full Load Torque | 22.5 ft.-lbs. |
| Full Load Torque | 22.5 lbs.-ft. |
| Hp | 5 hp |
| Insulation Class | Class F |
| Insulation Feature | Patented Max Guard |
| Length Less Shaft | 17 7/16" |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 1200 RPM |
| Motor Application | Crane |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Base/Face |
| Nema Design | A |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 20 9/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 1/8" |
| Speed Range | 1000:1 |
| Speed Ratio | 1000:1 |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 65.7 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.7 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Frame | Full Load Amps | Nameplate Rpm | Motor Application | Nominal Efficiency | Efficiency Group | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

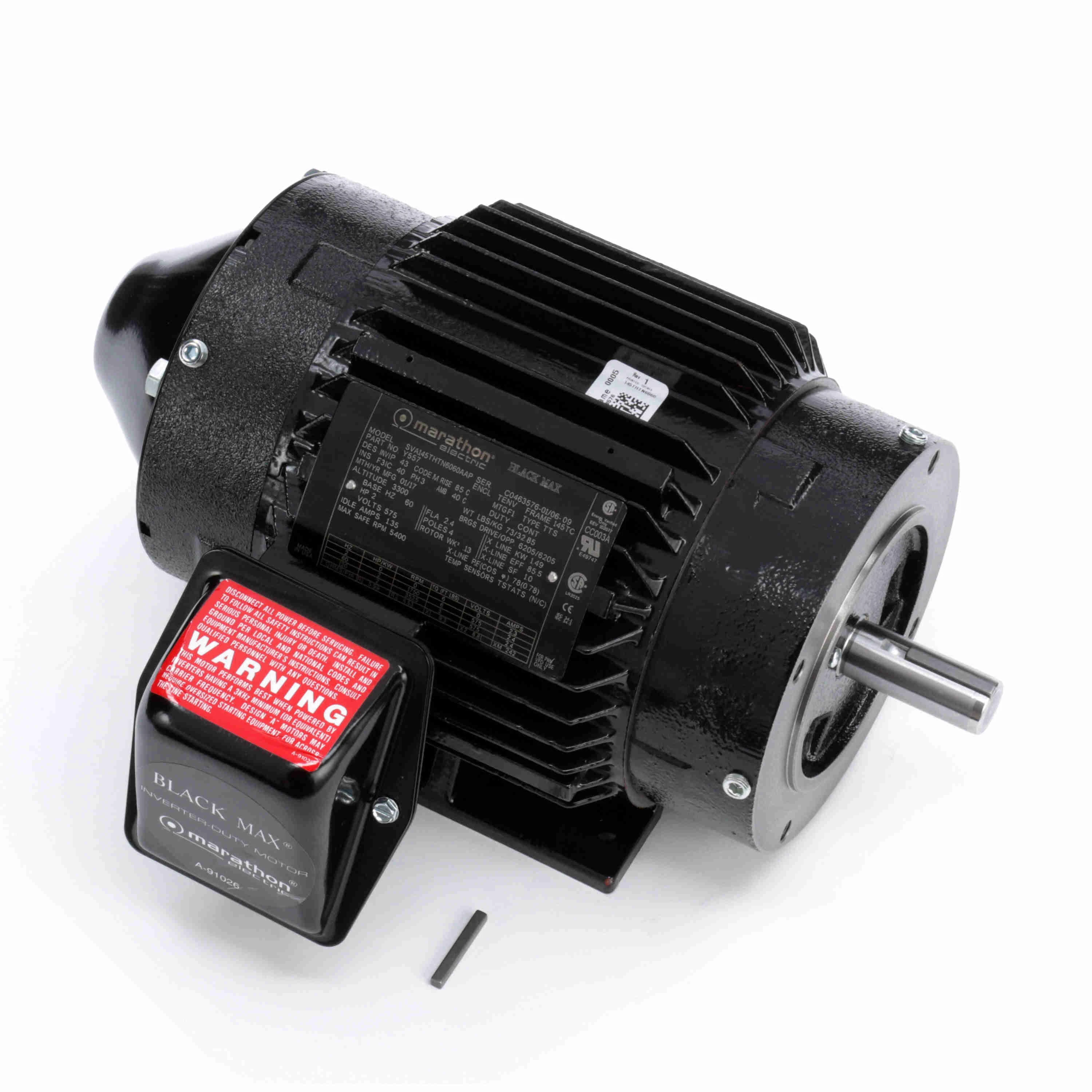

145THTN6060 | 575V AC | 2 hp | 145TC | 2.4A | 1750 RPM | Crane | 85.5% | Epact | €1,587.99 | |
 |
213THTL7736 | 575V AC | 7 1/2 hp | 213TC | 8.4A | 1765 RPM | Crane | 90.2% | Epact | €3,368.66 | |
 |

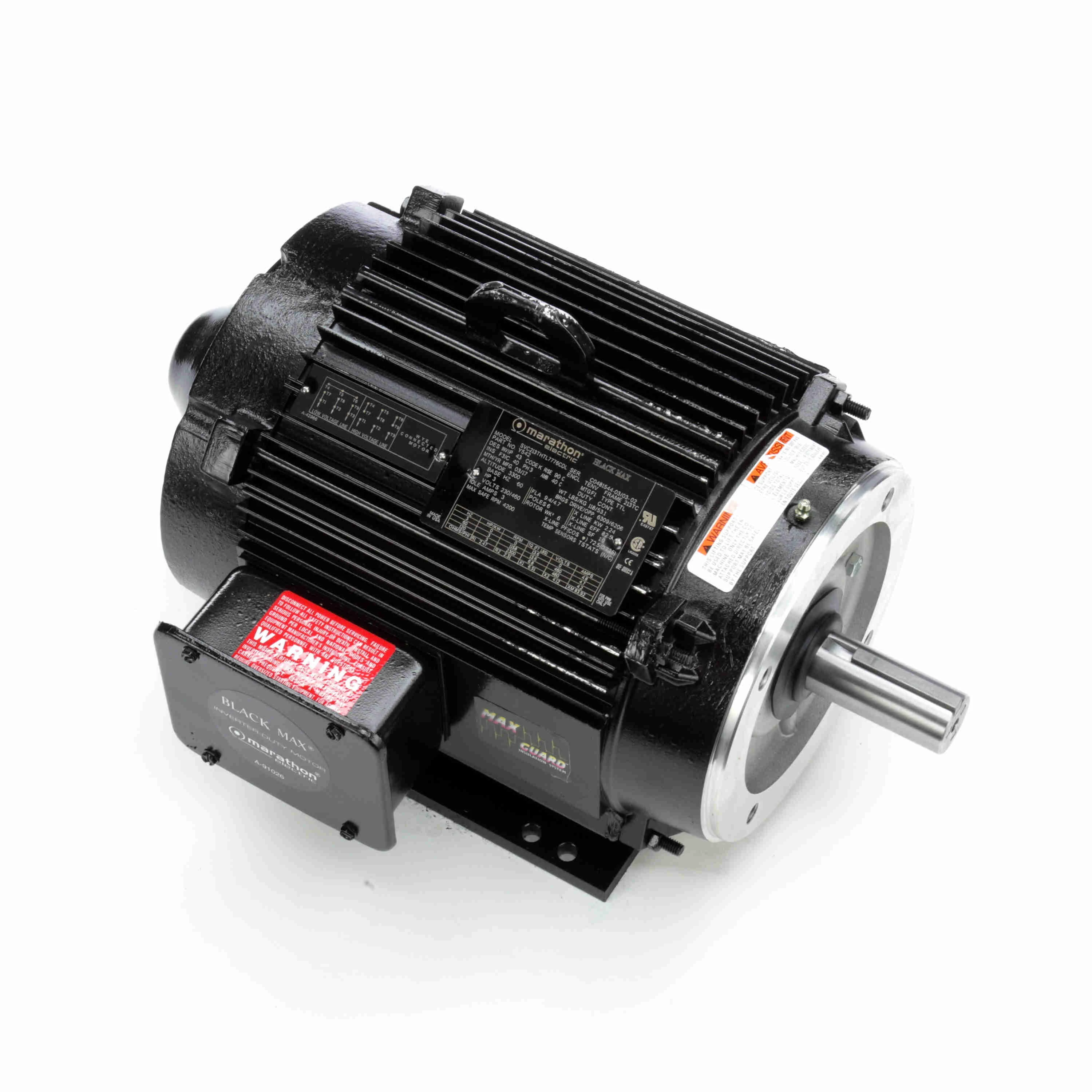

213THTL7776 | 230/460V AC | 3 hp | 213TC | 9.4/4.7A | 1160 RPM | Crane | 82.5% | Standard | €2,907.68 | |
 |

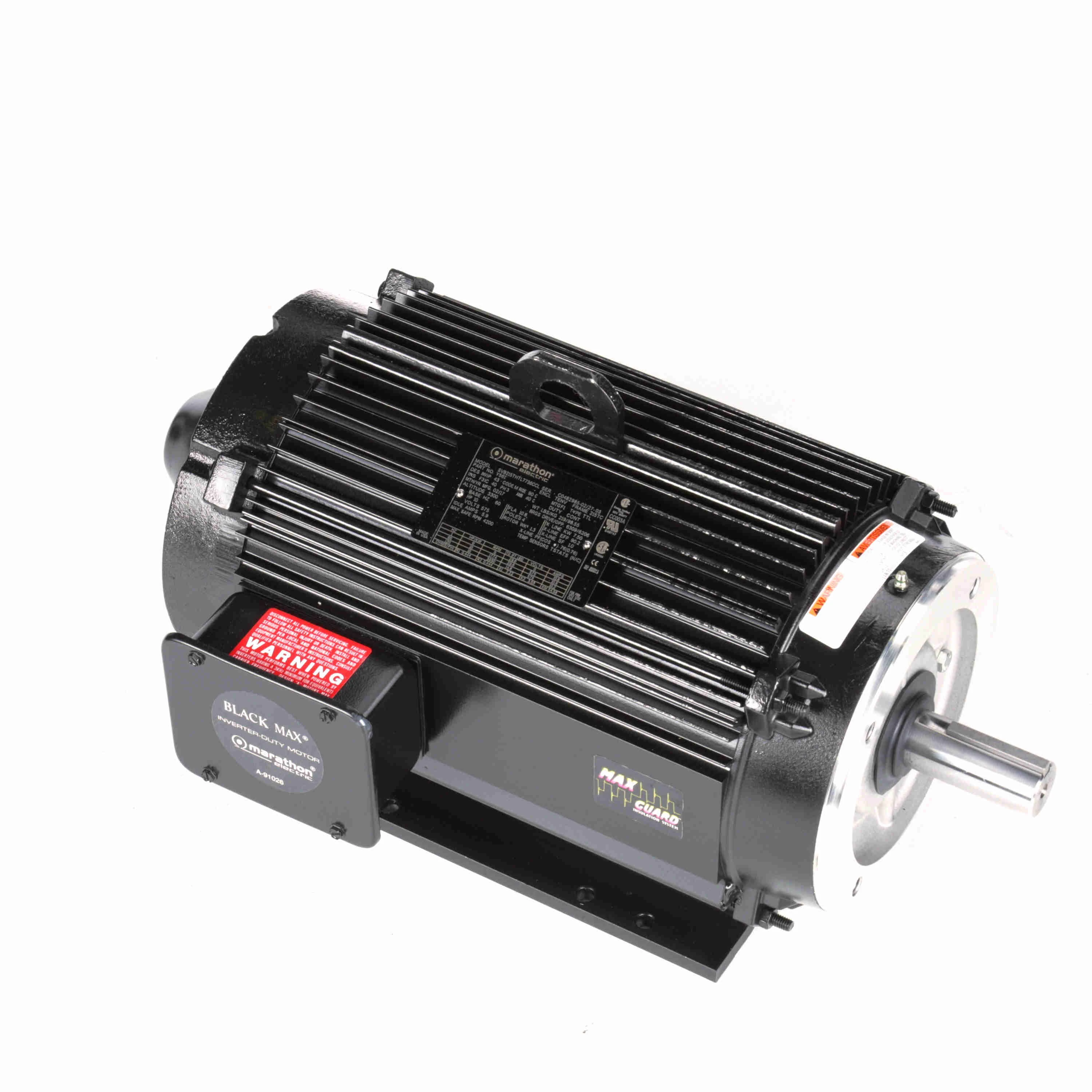

215THTL7736 | 575V AC | 10 hp | 215TC | 10.8A | 1774 RPM | Crane | 90.2% | Epact | €4,116.38 | |
 |

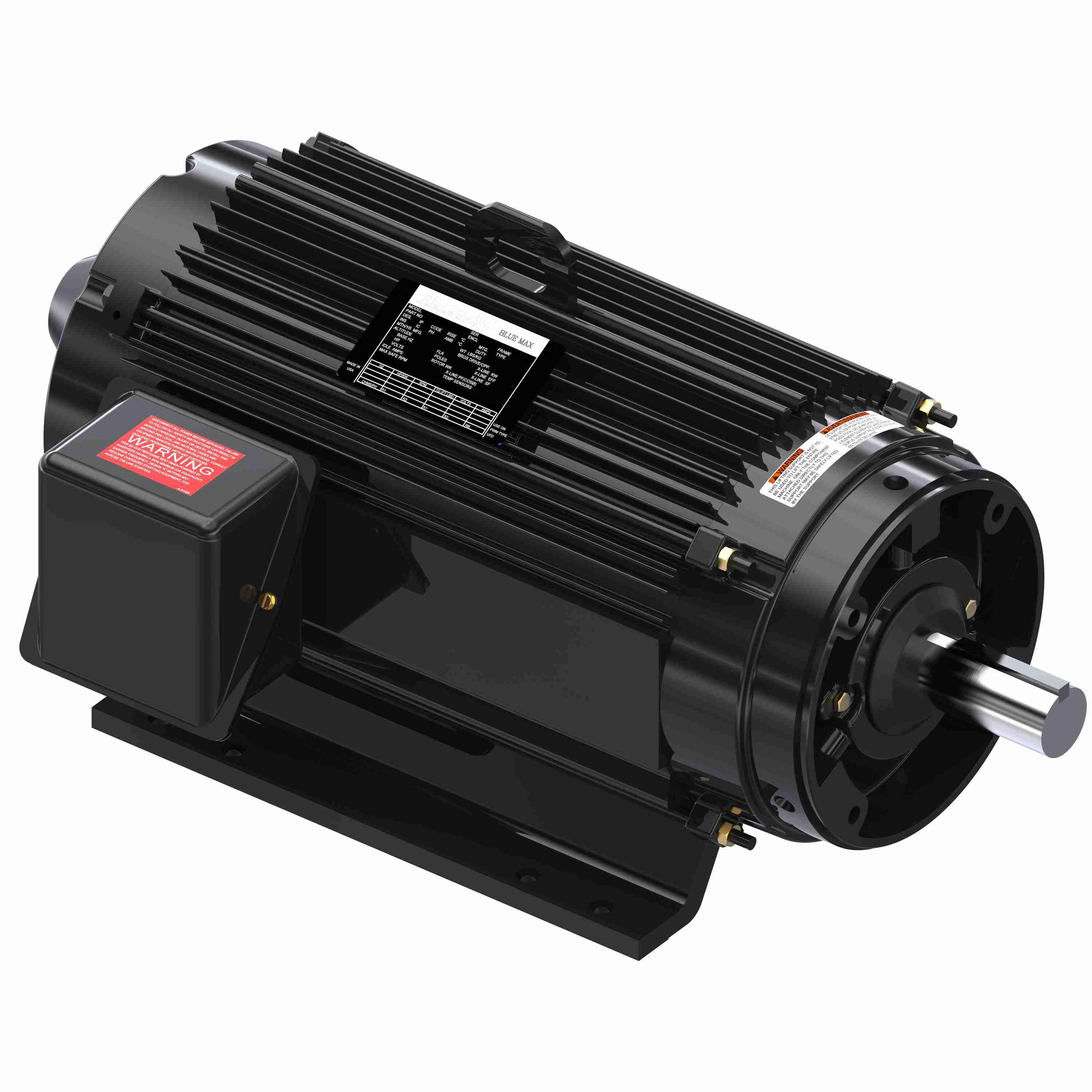

254THTL5736 | 575V AC | 15 hp | 254TC | 16A | 1765 RPM | Crane | 91.7% | Epact | €5,661.13 | |
 |

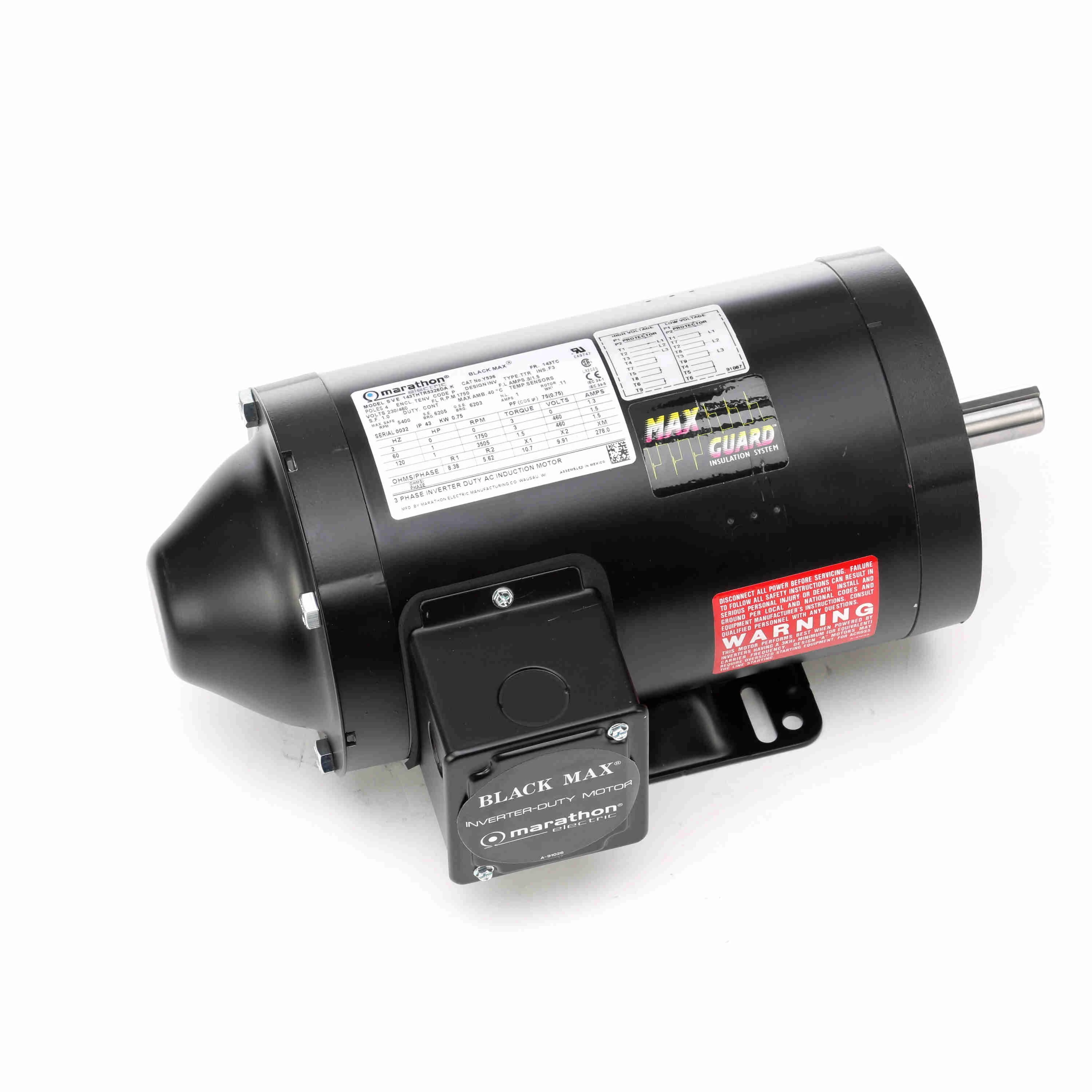

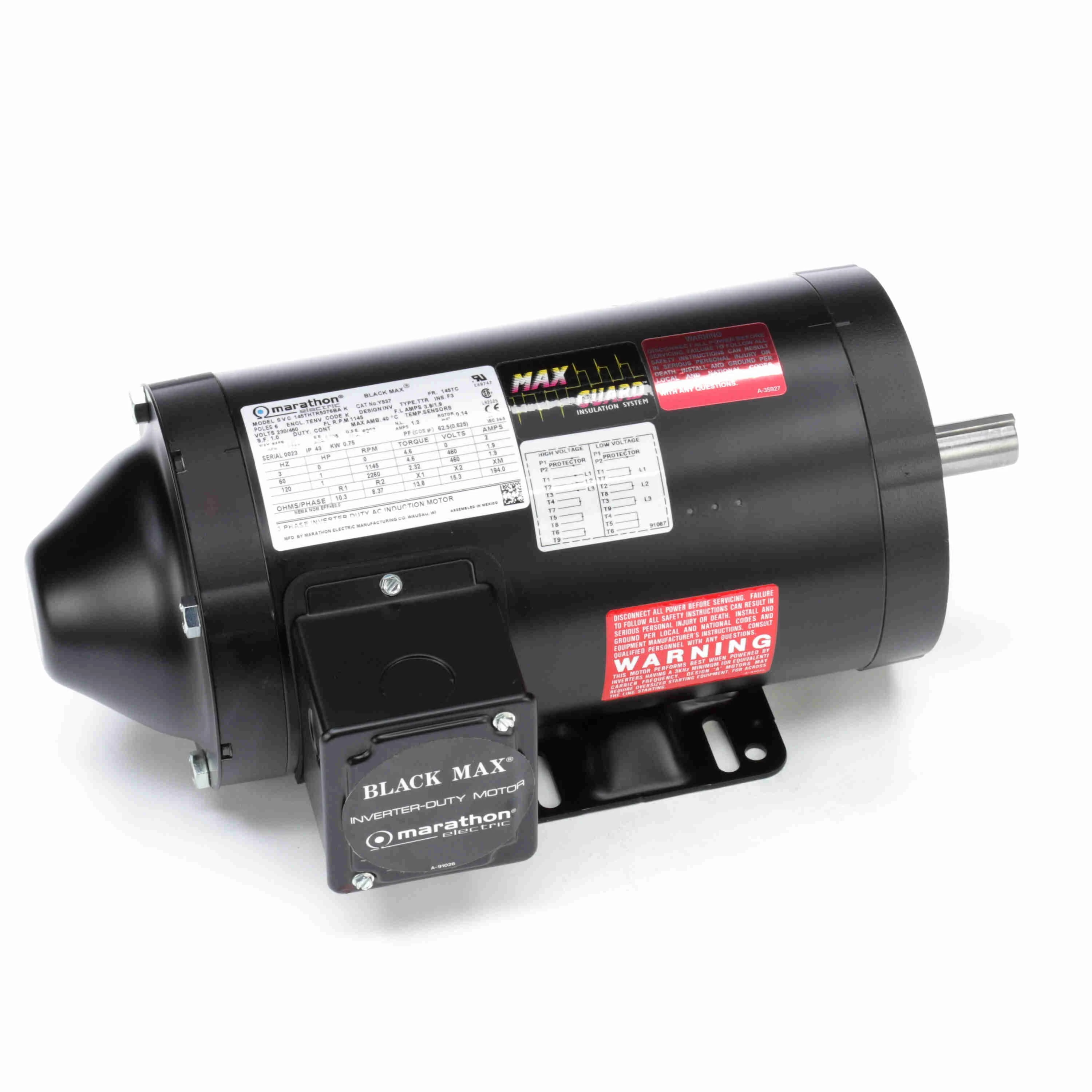

143THTR5326 | 230/460V AC | 1 hp | 143TC | 3/1.5A | 1750 RPM | Crane | 84% | Epact | €1,290.38 | |
 |
145THTR5376 | 230/460V AC | 1 hp | 145TC | 3.8/1.9A | 1145 RPM | Crane | 80% | Epact | €1,096.88 |
