LEESON Farm Duty/Agricultural Motors, Single Phase, TEAO, Resilient Base-Thru Bolt


Marathon farm duty / agricultural motors are suitable for demanding environments of agricultural applications. These single-phase motors offer rugged construction and a permanent split capacitor for producing high starting torque.

Filter
LEESON 5KCR49ZN0785SA
LEESON 5KHC39QN9575TB
LEESON 5KCR49SN0493SC
LEESON 5KHC39QN9584XD
LEESON 5KH42JN0328SE
LEESON 5KCR49SN0042SF
LEESON 5KCP36NNB059SG
LEESON 5KH33JNA500SH
LEESON 5KH42GN0337I
LEESON 5KH32FN3122SJ
LEESON 5KH49MN6057SK
LEESON 5KH32FNA499SL
StyleModelVoltageHpRpm RangeNameplate RpmMotor DesignFrameMotor Thermal ProtectionMotor Service FactorPrice
A
5KCR49ZN0785S		115/208-230V AC1 1/2 hp1701-1800 RPM1725.0Capacitor Start/Run56Automatic1.3€729.54
B
5KHC39QN9575T		115/208-230V AC1/4 hp1701-1800 RPM1725 RPMSplit-Phase48Auto1€273.49
C
5KCR49SN0493S		115/208-230V AC1 hp1701-1800 RPM1725 RPMCapacitor Start/Run56Automatic1.3€543.50
D
5KHC39QN9584X		115/208-230V AC1/2 hp1701-1800 RPM1725 RPMSplit-Phase56Automatic1.3€630.91
E
5KH42JN0328S		115/208-230V AC1/2 hp1701-1800 RPM1725 RPMSplit-Phase56Auto1€457.32
F
5KCR49SN0042S		115/208-230V AC1 hp1701-1800 RPM1725 RPMCapacitor Start/Run56Automatic1.3€595.23
G
5KCP36NNB059S		115/230V AC1/2 hp1001-1100 RPM1075 RPMPermanent Split Capacitor48ZAuto1€280.72
H
5KH33JNA500S		115V AC1/3 hp1701-1800 RPM1725 RPMSplit-Phase48ZAutomatic1.35€266.17
I

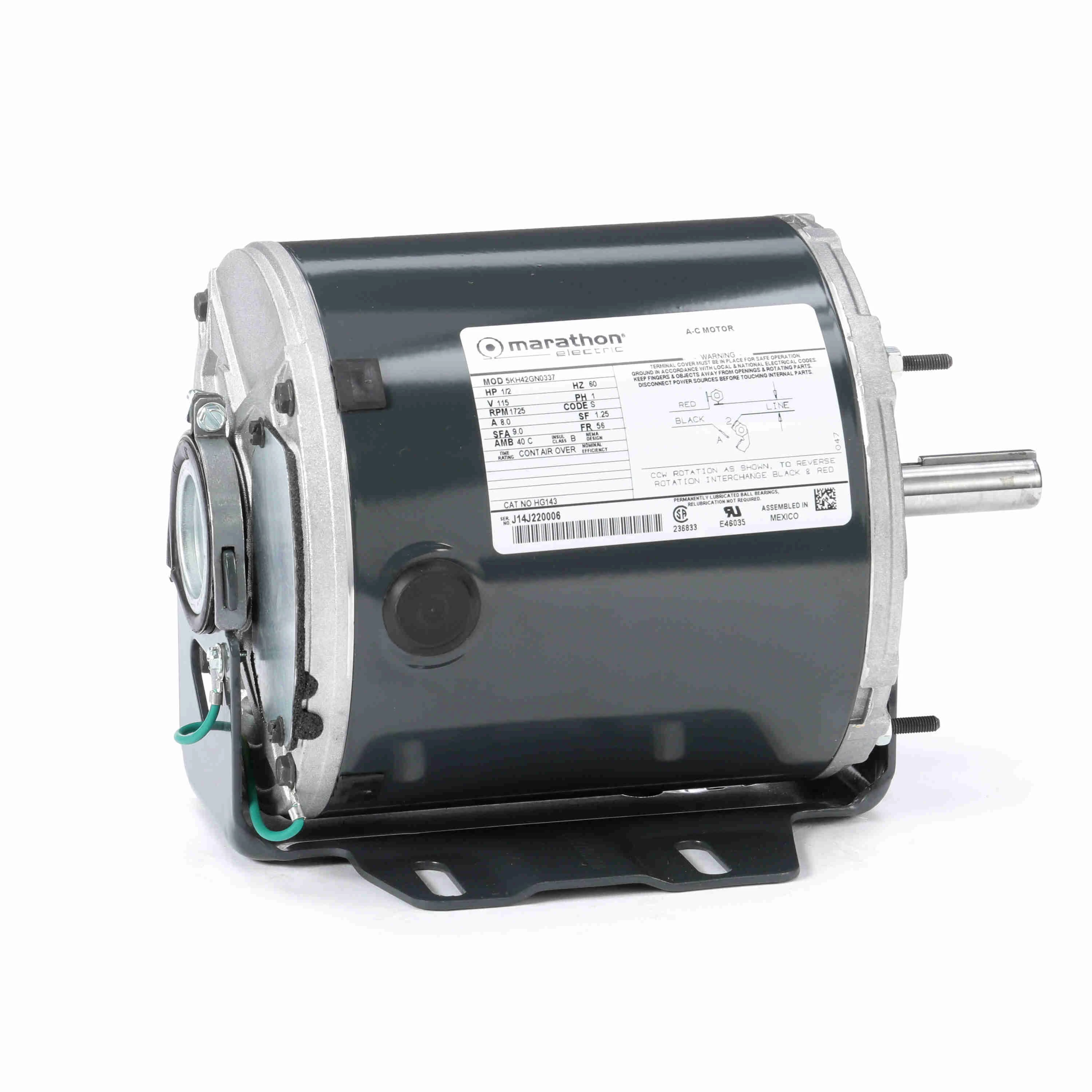

5KH42GN0337		115V AC1/2 hp1701-1800 RPM1725 RPMSplit-Phase56None1.25€505.48
J
5KH32FN3122S		115V AC1/4 hp1701-1800 RPM1725Split-Phase48Automatic1€258.79
K
5KH49MN6057S		115V AC1/4 hp1101-1200 RPM1140 RPMSplit-Phase56Auto1€508.80
L
5KH32FNA499S		115V AC1/4 hp1701-1800 RPM1725 RPMSplit-Phase48ZAuto1€285.03

Working Mechanism

  • Split-phase motors come with a single cage rotor and a stator with two windings (main and starting) displaced 90 degrees in space.
  • The main winding has low resistance and high inductive reactance, while the starting winding has high resistance & low inductive reactance.
  • As the current in the two windings is not equal, the rotating field is not uniform. Hence, the starting torque is smaller than the stated starting torque.
  • Just as the motor reaches the speed of 70 to 80 percent of the synchronous speed, the starting winding splits automatically from the main supply.
  • Now, the motor starts running on the main winding only, providing increased torque to perform the desired application.

Features

  • Farm Duty Motors, such as 5KH42JN0328S features resilient base-extended studs for suspending the motor to dampen vibrations and noise during the operation.
  • Their single-phase design delivers speeds up to 1800 rpm and has keyed or flat type motor shaft for efficient energy conversion.
  • These farm duty motors are available in a split-phase / PSC (permanent split capacitor) / capacitor-start / capacitor-run motor design and are capable of producing higher starting torque in agricultural equipment.

Standards and Approvals

  • UL
  • CSA
  • CE

Frequently Asked Questions

What is a TEAO enclosure?

TEAO (totally enclosed air over) enclosure is typically installed in the airstream where the air movement generated by the fan passes over the motor to cool it.

What is the purpose of motor thermal protection?

Motor thermal protectors help to shut off the motor operation during excessive heat generation and reset the power as soon as the motor cools down.

What are ball bearings?

Ball bearings are lubricated moving components that provide smooth and continuous operation of a motor by reducing frictional loss.
