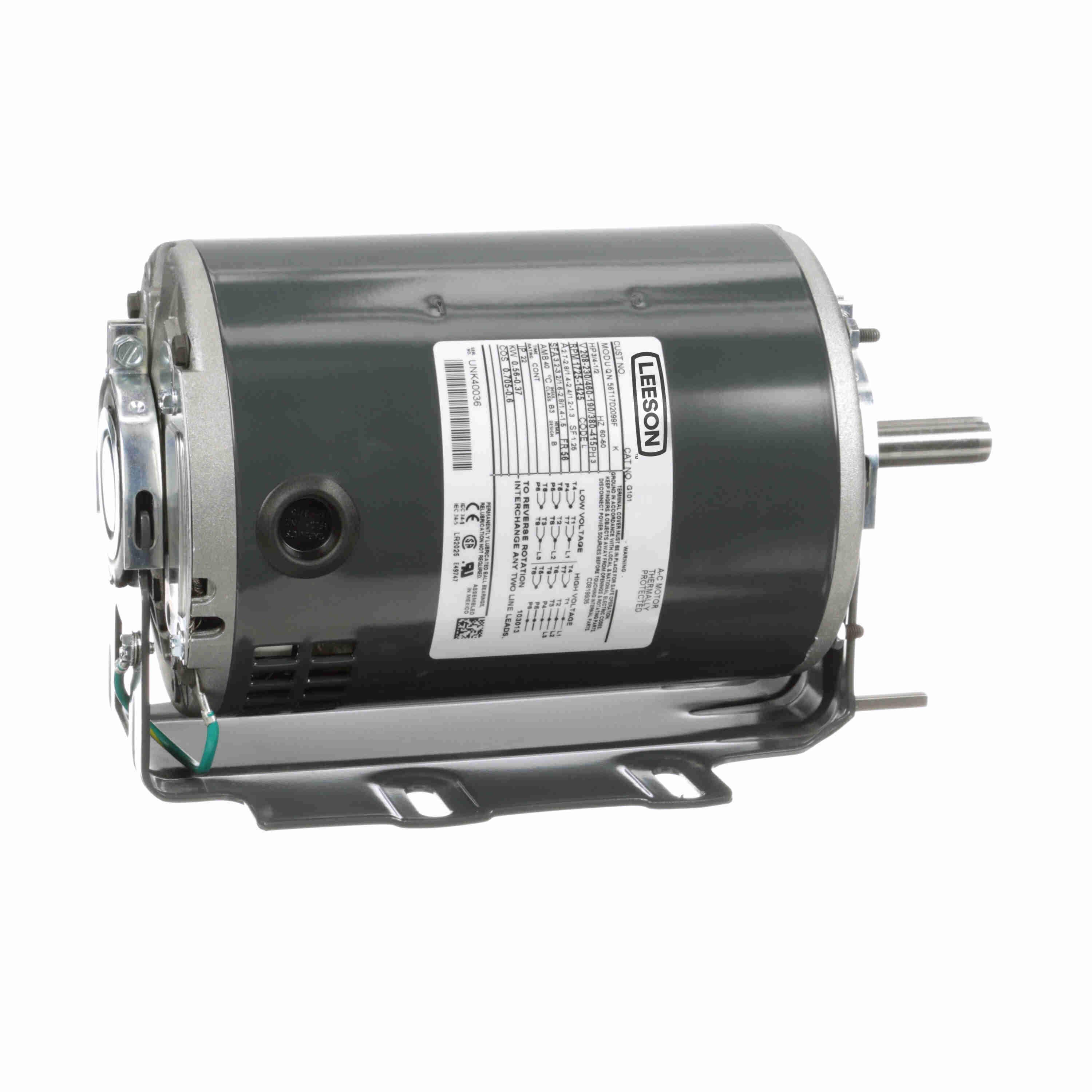

LEESON 056T17D2099 56T17D2099F / G101 Direct Drive Blower Motor, 1 Speed, Open Dripproof, Resilient Base Mount, 1/2/3/4 HP, Auto
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€716.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower |
| Body Dia. | 5 3/5" |
| Capacitor Required | Capacitor Not Required |
| Frame Type | 56 |
| Frequency | 60/50 Hz |
| Full Load Amps | 2.7-2.8/1.4/2.4/1.2-1.3A |
| Hp | 3/4 hp, 1/2 hp |
| Insulation Class | Class B |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Open Drip Proof |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Auto |
| Nameplate Speed | 1725 RPM |
| No. Of Speeds | 1 |
| Phase | 3 |
| Product Datasheet | leeson-056t17d2099.pdf |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1450-1800 RPM |
| Usable @ 208 V | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.78 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Hp | Phase | Voltage | Frame | Shaft Length | Motor Enclosure Design | Motor Mounting Position | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K49PN4088X | 1 1/2 hp | 3 | 200-230/460V AC | 56H | 1 7/8" | Open Dripproof | Horizontal | Automatic | €688.69 | |
 |
5K49UN4086X | 2 hp | 3 | 208-230/460V AC | 56H | 1 7/8" | Open Dripproof | Horizontal | None | €737.00 | |
 |
5K46KN4085 | 3/4 hp | 3 | 208-230/460V AC | 56 | 1 7/8" | Open Dripproof | Horizontal | None | €463.96 | |
 |
056T17D5350 | 3 hp | 3 | 208-230/460V AC | 56HZ | 2 1/4" | Open Dripproof | Horizontal | Auto | €969.96 | |
 |
056T17D2104 | 1/3 hp | 3 | 208-230/460V | 56 | 1.97" | Dripproof | Horizontal | Automatic | €695.20 | |
 |
5K49PN3052 | 3 1/4 hp | 3 | 460V AC | 56 | 1 22/25" | Dripproof | All Angle | No | €790.82 | |
 |
056T17D2101 | 1 hp | 3 | 208-230/460V AC | 56 | 1 15/16" | Open Dripproof | Horizontal | Auto | €589.63 |
