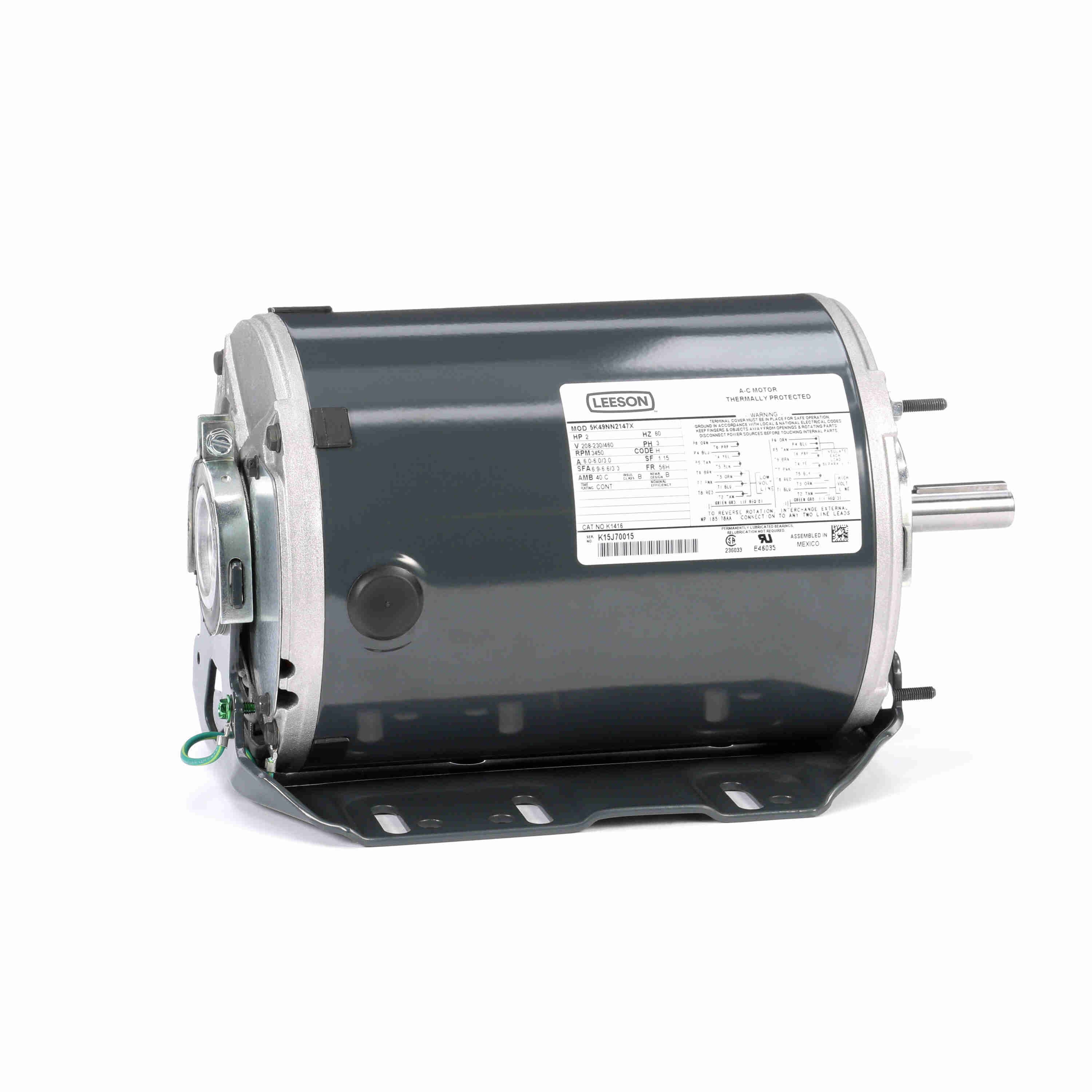

LEESON 5K49NN2147X K1416 Fan and Blower Motor, 2 HP, 3 Phase, 60 Hz, 208-230/460V, 3600 RPM
Get it by Tuesday, Aug 25
5.00% off
€636.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 6 7/16" |
| Design | B |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Frame | 56H |
| Frequency | 60 Hz |
| Full Load Amps | 6/3A |
| Full Load Efficiency | 80.2% |
| Hp | 2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 10" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | ODP |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Belt Drive Fan, Blower |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Resilient Base |
| No. Of Speed | 1 |
| Nominal Efficiency | 80.2% |
| Overall Length | 12" |
| Phase | 3 |
| Product Datasheet | leeson-5k49nn2147x.pdf |
| Resilient Ring Dia. | 2 1/2" |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Orientation | Horizontal/Vertical |
| Speed | 3001-3600 RPM , 3450 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Details:
- Starting Type: Squirrel Cage Induction
- KVA Code: H
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Documentation:
Product Variants
| Product | Model | Hp | Shaft Length | Voltage | Motor Enclosure Design | Motor Mounting Position | Frame | Motor Thermal Protection | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K49PN4088X | 1 1/2 hp | 1 7/8" | 200-230/460V AC | Open Dripproof | Horizontal | 56H | Automatic | Cradle Base | €688.69 | |
 |
5K49UN4086X | 2 hp | 1 7/8" | 208-230/460V AC | Open Dripproof | Horizontal | 56H | None | Cradle Base | €737.00 | |
 |
5K46KN4085 | 3/4 hp | 1 7/8" | 208-230/460V AC | Open Dripproof | Horizontal | 56 | None | Cradle Base | €463.96 | |
 |
056T17D5350 | 3 hp | 2 1/4" | 208-230/460V AC | Open Dripproof | Horizontal | 56HZ | Auto | - | €969.96 | |
 |
056T17D2104 | 1/3 hp | 1.97" | 208-230/460V | Dripproof | Horizontal | 56 | Automatic | Resilient Base | €695.20 | |
 |
5K49PN3052 | 3 1/4 hp | 1 22/25" | 460V AC | Dripproof | All Angle | 56 | No | Rigid Base | €790.82 | |
 |
056T17D2101 | 1 hp | 1 15/16" | 208-230/460V AC | Open Dripproof | Horizontal | 56 | Auto | Cradle Base | €589.63 |
