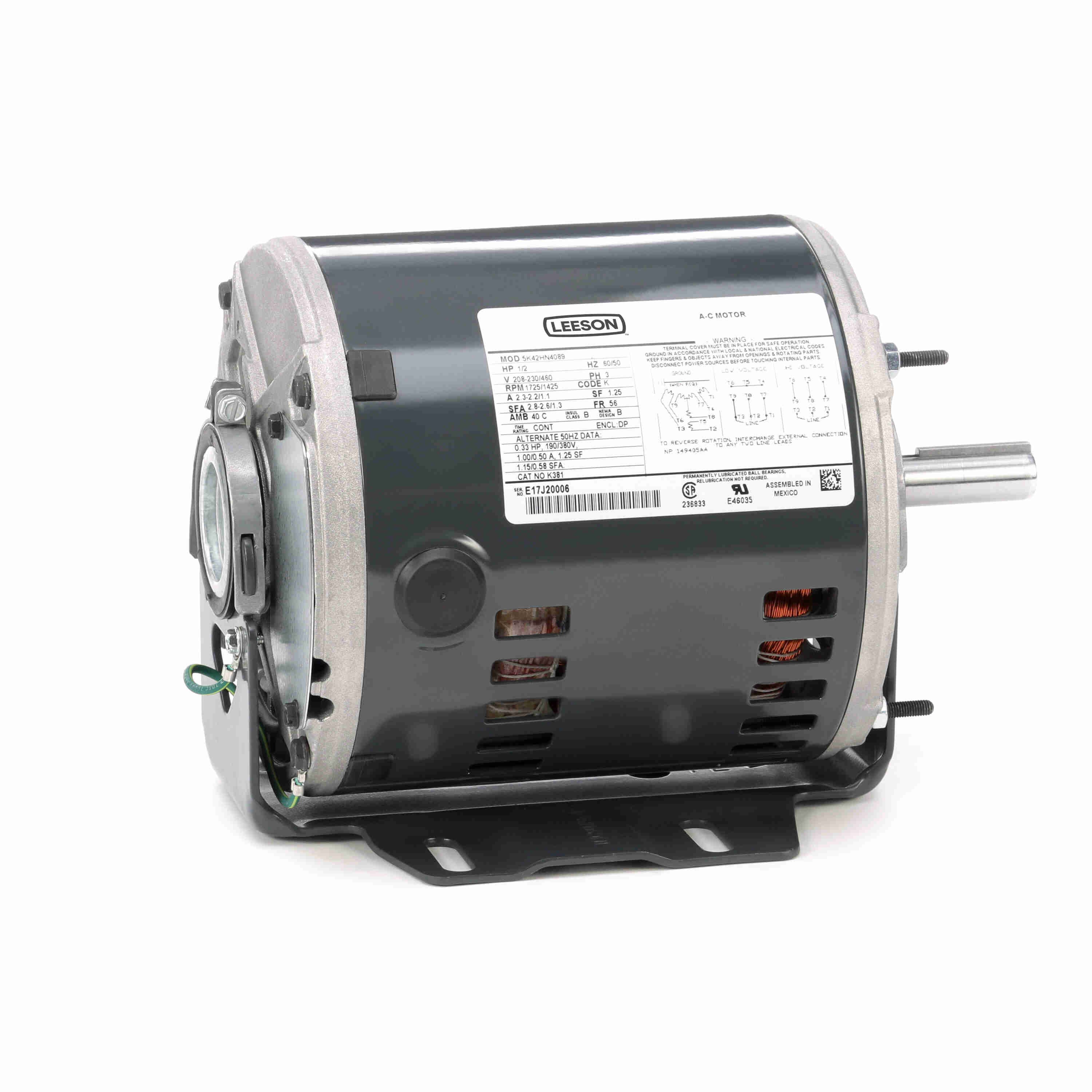

LEESON 5K42HN4089 K381 Fan and Blower Motor, 0.50 HP, 3 Phase, 60 Hz, 208-230/460V, 1800 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€429.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 6 3/8" |
| Design | B |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Extended Thru-bolts | Yes |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 1.1/2.2-2.3A |
| Full Load Efficiency | 78.7% |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Vertical/Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Three Phase |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| Nominal Efficiency | 78.7% |
| Number Of Speeds | 1 |
| Overall Length | 10" |
| Phase | 3 |
| Rpm | 1725/1425 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Orientation | Horizontal/Vertical |
| Standards | Csa, Ul Listed |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 20 lbs. |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Squirrel Cage Induction
- KVA Code: K
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Motor Mounting Position | Frame | Shaft Length | Voltage | Motor Enclosure Design | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K49PN4088X | 1 1/2 hp | Horizontal | 56H | 1 7/8" | 200-230/460V AC | Open Dripproof | 104°F | Automatic | €705.13 | |
 |
5K49UN4086X | 2 hp | Horizontal | 56H | 1 7/8" | 208-230/460V AC | Open Dripproof | 104°F | None | €766.96 | |
 |
5K46KN4085 | 3/4 hp | Horizontal | 56 | 1 7/8" | 208-230/460V AC | Open Dripproof | 104°F | None | €482.82 | |
 |
056T17D5350 | 3 hp | Horizontal | 56HZ | 2 1/4" | 208-230/460V AC | Open Dripproof | 104°F | Auto | €982.16 | |
 |
056T17D2104 | 1/3 hp | Horizontal | 56 | 1.97" | 208-230/460V | Dripproof | 40°C | Automatic | €668.61 | |
 |
5K49PN3052 | 3 1/4 hp | All Angle | 56 | 1 22/25" | 460V AC | Dripproof | 40°C | No | €790.82 | |
 |
056T17D2101 | 1 hp | Horizontal | 56 | 1 15/16" | 208-230/460V AC | Open Dripproof | 104°F | Auto | €576.81 |
