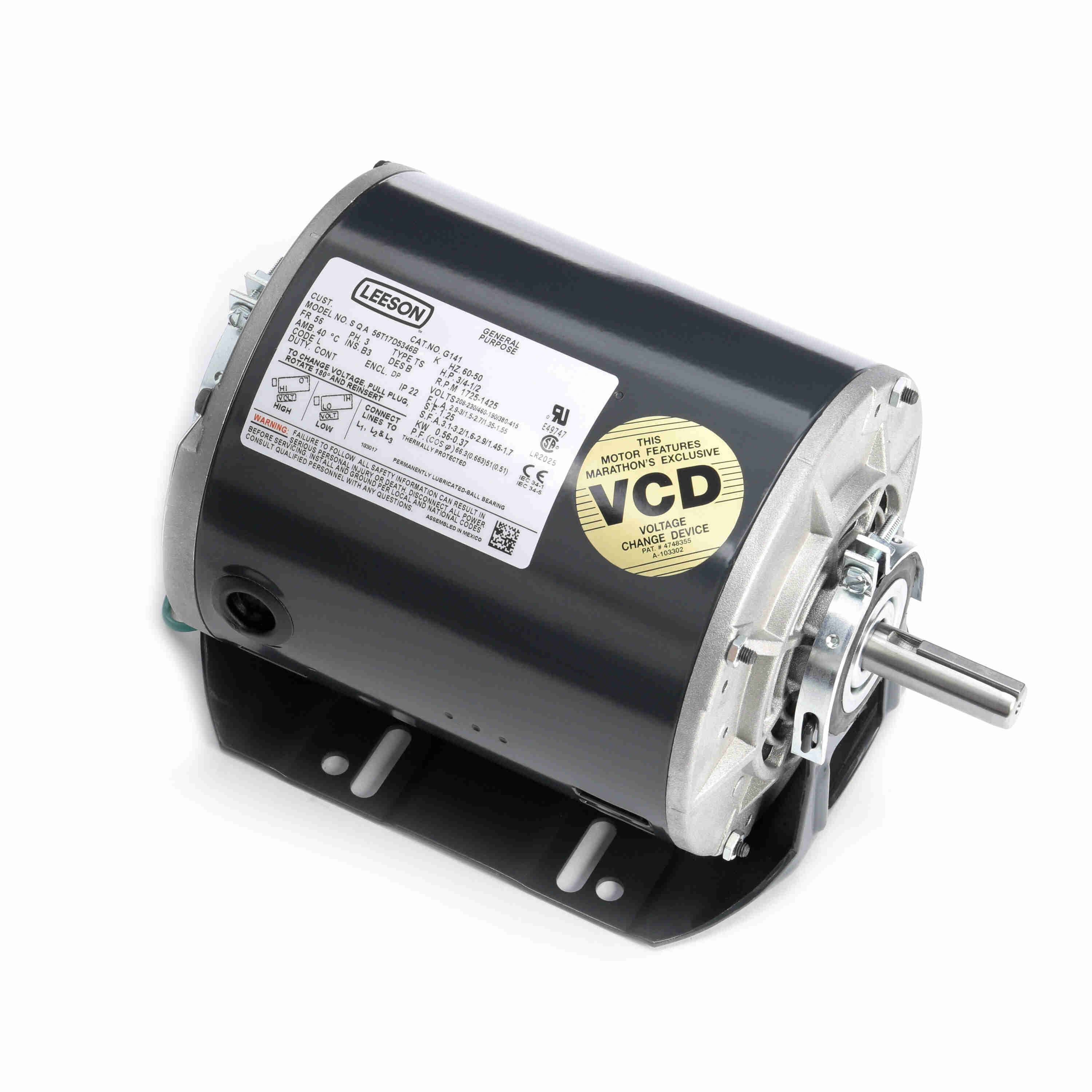

LEESON 056T17D5346 G141 / 56T17D5346B Fan/Blower Motor, 0.75/0.50 HP, 3 Phase, 60/50 Hz, 208-230/460V, 1800 RPM
Get it by Thursday, Dec 18
10.00% off
€759.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Conduit Box Position | F1 Only |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Dripproof |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 2.9-3/1.5A |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Resilient Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B |
| Number Of Speeds | 1 |
| Phase | 3 |
| Power | 0.56 kW |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.91" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 20.32 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: L
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Motor Mounting Position | Frame | Shaft Length | Voltage | Motor Enclosure Design | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K49PN4088X | 1 1/2 hp | Horizontal | 56H | 1 7/8" | 200-230/460V AC | Open Dripproof | 104°F | Automatic | €705.13 | |
 |
5K49UN4086X | 2 hp | Horizontal | 56H | 1 7/8" | 208-230/460V AC | Open Dripproof | 104°F | None | €766.96 | |
 |
5K46KN4085 | 3/4 hp | Horizontal | 56 | 1 7/8" | 208-230/460V AC | Open Dripproof | 104°F | None | €482.82 | |
 |
056T17D5350 | 3 hp | Horizontal | 56HZ | 2 1/4" | 208-230/460V AC | Open Dripproof | 104°F | Auto | €982.16 | |
 |
056T17D2104 | 1/3 hp | Horizontal | 56 | 1.97" | 208-230/460V | Dripproof | 40°C | Automatic | €668.61 | |
 |
5K49PN3052 | 3 1/4 hp | All Angle | 56 | 1 22/25" | 460V AC | Dripproof | 40°C | No | €790.82 | |
 |
056T17D2101 | 1 hp | Horizontal | 56 | 1 15/16" | 208-230/460V AC | Open Dripproof | 104°F | Auto | €576.81 |
