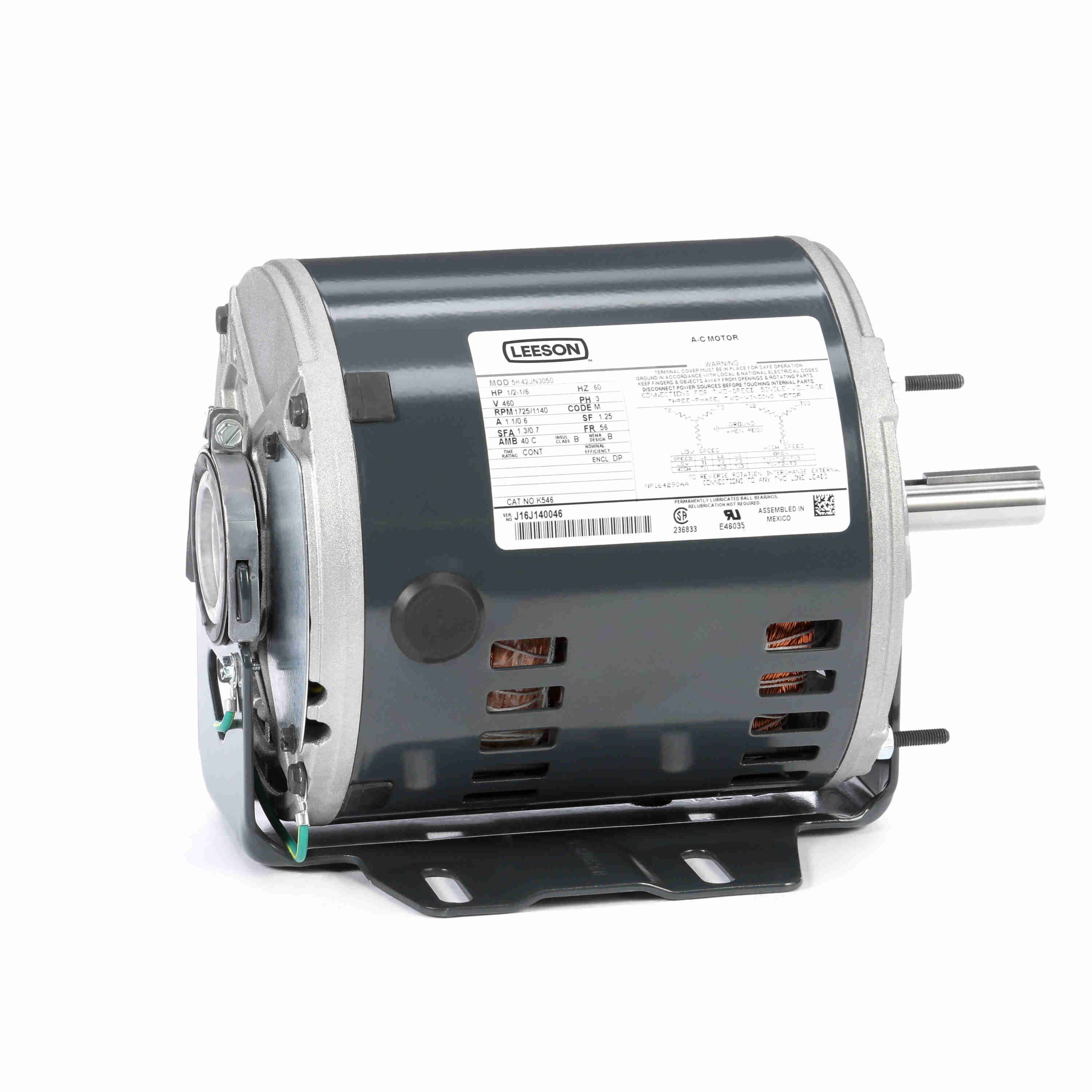

LEESON 5K42JN3050 K546 Fan and Blower Motor, .5,.17 HP, 3 Phase, 60 Hz, 460V, 1800 RPM
Get it by Tuesday, Dec 23
€665.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Design | B |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 1.1/0.6A |
| Hp | 1/2 hp, 1/6 hp , 1/6 hp to 1/2 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Three Phase |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1725/1140 RPM |
| Nema Design | B |
| Number Of Speeds | 2 |
| Phase | 3 |
| Rpm | 1725/1140 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 0.63" |
| Shaft Length | 1 22/25" |
| Shaft Orientation | Horizontal/Vertical |
| Thermal Protection | None |
| Voltage | 460V AC |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Squirrel Cage Induction
- KVA Code: M
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Motor Mounting Position | Frame | Shaft Length | Voltage | Motor Enclosure Design | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K49PN4088X | 1 1/2 hp | Horizontal | 56H | 1 7/8" | 200-230/460V AC | Open Dripproof | 104°F | Automatic | €705.13 | |
 |
5K49UN4086X | 2 hp | Horizontal | 56H | 1 7/8" | 208-230/460V AC | Open Dripproof | 104°F | None | €766.96 | |
 |
5K46KN4085 | 3/4 hp | Horizontal | 56 | 1 7/8" | 208-230/460V AC | Open Dripproof | 104°F | None | €482.82 | |
 |
056T17D5350 | 3 hp | Horizontal | 56HZ | 2 1/4" | 208-230/460V AC | Open Dripproof | 104°F | Auto | €982.16 | |
 |
056T17D2104 | 1/3 hp | Horizontal | 56 | 1.97" | 208-230/460V | Dripproof | 40°C | Automatic | €668.61 | |
 |
5K49PN3052 | 3 1/4 hp | All Angle | 56 | 1 22/25" | 460V AC | Dripproof | 40°C | No | €790.82 | |
 |
056T17D2101 | 1 hp | Horizontal | 56 | 1 15/16" | 208-230/460V AC | Open Dripproof | 104°F | Auto | €576.81 |
