INTERMATIC Electromechanical Timer
Intermatic electromechanical time switches combine electrical and mechanical components to control the timing of electrical circuits. They are used to automate the turning on and off of electrical devices or systems at predetermined times or intervals. These switches have clock-like mechanisms ...and timers that can be set to activate or deactivate connected electrical loads.Read more
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1| Style | Model | Amps | Depth | No. Of Poles | Overall Width | No. Of Trippers Included | Min. Time Setting | Max. On/off Cycles | Enclosure Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | T2005 | 20A | 3" | 1 | 5 1/8" | 84 | 2 hrs. | 42 | Steel Indoor | €468.54 | |

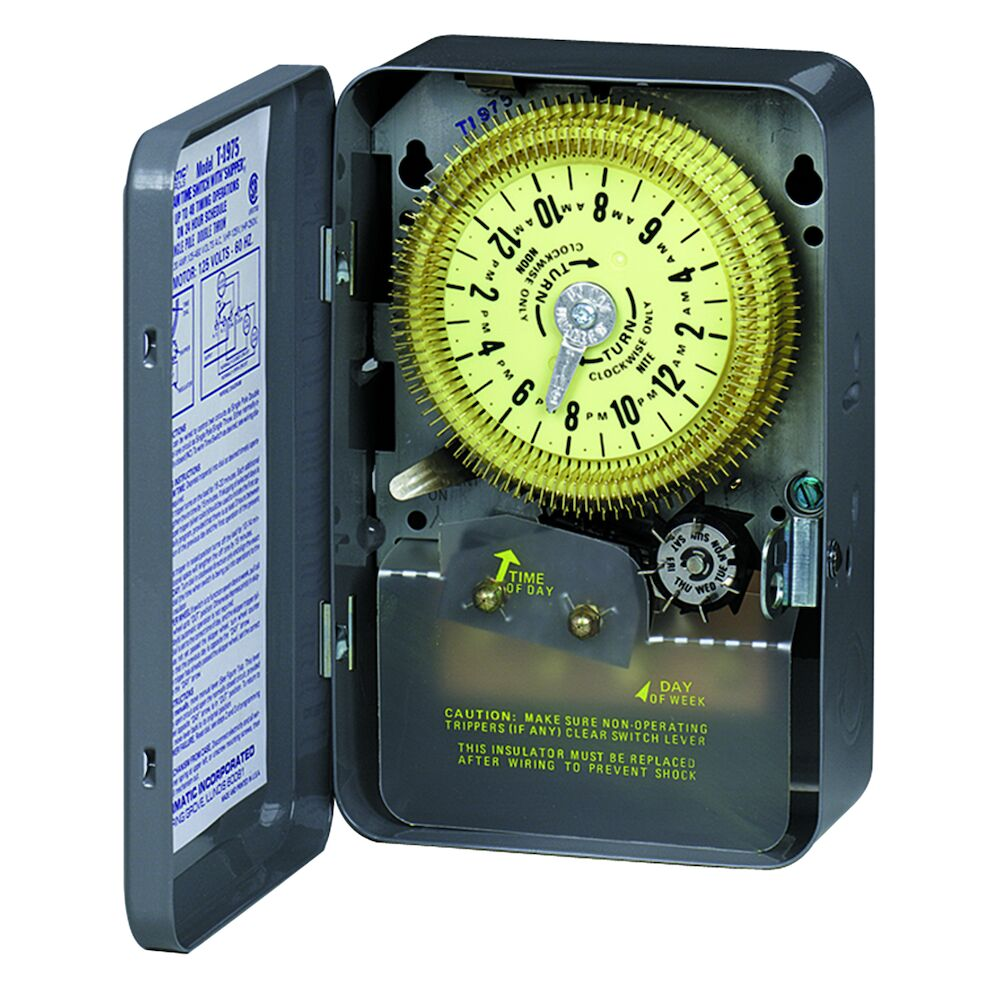

| B | T1975 | 20A | 3" | 1 | 5 1/8" | 96 | 15 min. | 48 | Steel Indoor | €407.29 | |
| C | T1905E | 20A | 3" | 1 | 5 1/8" | 96 | 15 min. | 48 | Steel Indoor | €301.85 | |
| D | T1976 | 20A | 3" | 1 | 5 1/8" | 96 | 15 min. | 48 | Steel Indoor | €377.15 | |

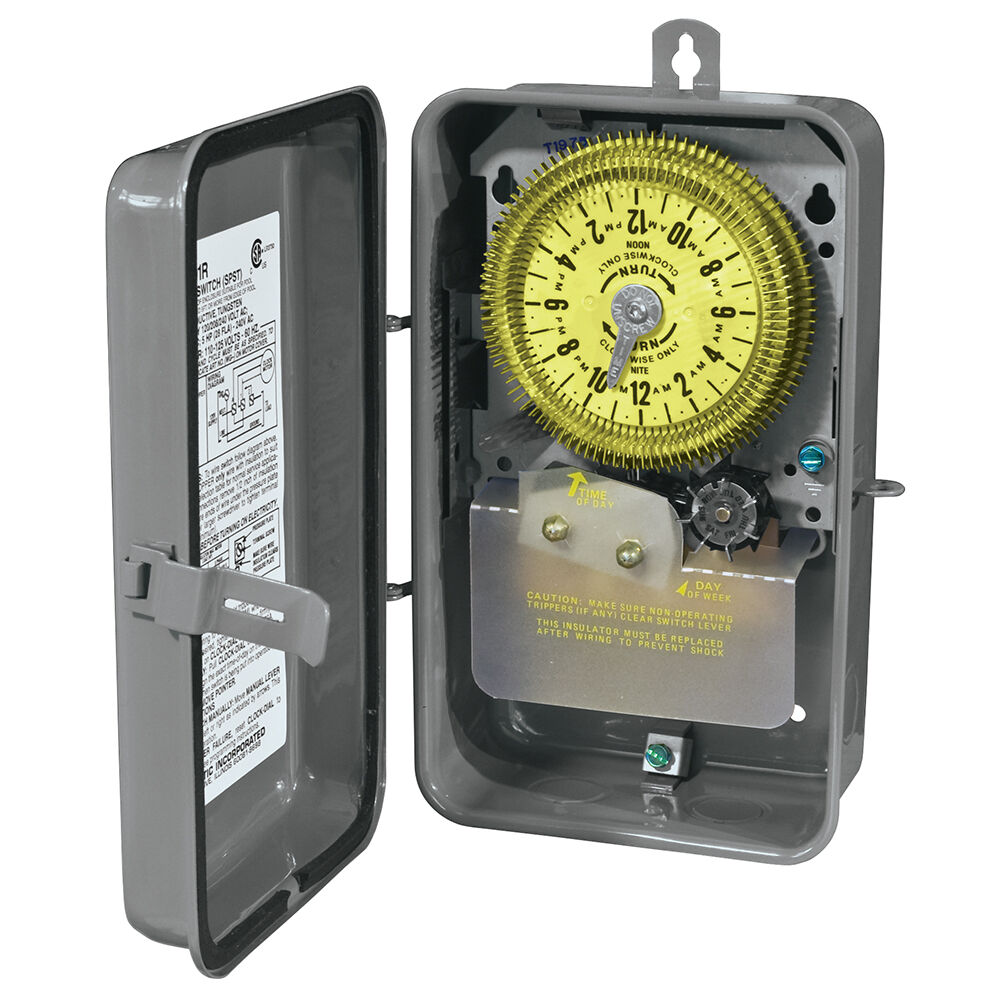

| E | T1975R | 20A | 3" | 1 | 6 1/2" | 96 | 15 min. | 48 | Steel | €564.83 | |
| F | T1905 | 20A | 3" | 1 | 5 1/8" | 96 | 15 min. | 48 | Steel Indoor | €325.61 | |

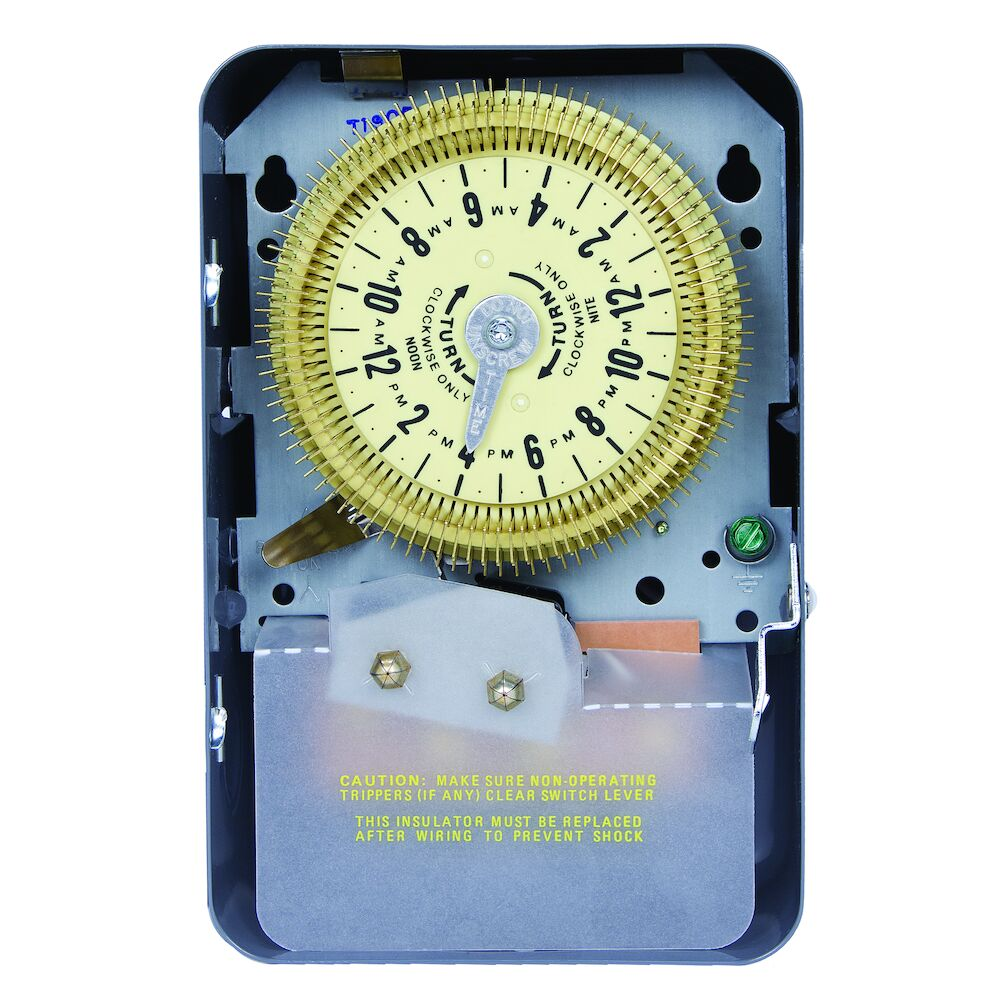

| G | T1906 | 20A | 3" | 1 | 5 1/8" | 96 | 15 min. | 48 | Steel Indoor | €303.14 | |
| H | T103PCD82 | 40A | 4" | 2 | 6 1/2" | 2 | 1 hr. | 12 | Polycarbonate | €205.24 | |
| I | T101P | 40A | 3 13/16" | 1 | - | 2 | 1 hr. | 12 | Plastic | €198.76 | |
| J | T103 | 40A | 3" | 2 | 5 1/8" | 2 | 1 hr. | 12 | Steel | €158.98 | |
| K | T101 | 40A | 3" | 1 | 5 1/8" | 2 | 1 hr. | 12 | Steel | €163.34 | |
| L | T7801B | 40A | 4" | 4 | 9" | 14 | 3.5 hrs. | 3 | Steel Indoor | €439.10 | |
| M | T105 | 40A | 3 1/2" | 1 | 5 1/8" | 4 | 1 hr. | 12 | Steel | €257.29 | |
| N | T1471BR | 40A | 3 5/8" | 4 | 6 1/2" | 2 | 1 hr. | 12 | Steel | €453.81 | |
| O | T173 | 40A | 3" | 2 | 5 1/8" | 2 | 1 hr. | 12 | Steel | €291.86 | |
| P | T102 | 40A | 3" | 1 | 5 1/8" | 2 | 1 hr. | 12 | Steel | €177.30 | |
| Q | T174 | 40A | 3" | 2 | 5 1/8" | 2 | 1 hr. | 12 | Steel | €266.83 | |
| R | T104P | 40A | 3 13/16" | 2 | 6 1/2" | 2 | 1 hr. | 12 | Plastic | €200.35 | |
| S | T103P | 40A | 3 13/16" | 2 | 6 1/2" | 2 | 1 hr. | 12 | Plastic | €239.42 | |
| T | T1472BR | 40A | 3 5/8" | 4 | 6 1/2" | 2 | 1 hr. | 12 | Steel | €478.47 | |
| U | T104PCD82 | 40A | 4" | 2 | 6 1/2" | 4 | 1 hr. | 12 | Polycarbonate | €225.82 | |
| V | T174R | 40A | 3 5/8" | 2 | 6 1/2" | 2 | 1 hr. | 10 | Steel | €377.18 | |
| W | T173R | 40A | 3 5/8" | 2 | 6 1/2" | 2 | 1 hr. | 10 | Steel | €321.19 | |
| X | T103R | 40A | 3" | 2 | 6 1/2" | 2 | 1 hr. | 12 | Steel | €267.56 | |
| Y | T106R | 40A | 4" | 2 | 6 1/2" | 4 | 1 hrs. | 12 | Steel | €212.53 | |
| Z | T104 | 40A | 3" | 2 | - | 2 | 1 hr. | 12 | Steel | €218.42 | |
| A1 | T104R | 40A | 3 5/8" | 2 | 6 1/2" | 2 | 1 hr. | 12 | Steel | €237.14 | |
| B1 | T7401BC | 40A | 4" | 4 | 9" | 14 | 3.5 hrs. | 3 | Steel Indoor | €1,351.55 | |
| C1 | T7401B | 40A | 4" | 4 | 9" | 14 | 3.5 hrs. | 3 | Steel Indoor | €458.60 | |
| D1 | T101PCD82 | 40A | 4" | 1 | 6 1/2" | 4 | 1 hr. | 12 | Polycarbonate | €183.06 | |
| E1 | GM40AV | 40A | 2 7/8" | 2 | 6 5/8" | 96 | 15 min. | 48 | Plastic | €214.21 | |
| F1 | T101R | 40A | 3 5/8" | 1 | 6 1/2" | 2 | 1 hr. | 12 | Steel | €223.33 | |
| G1 | T171 | 40A | 3" | 1 | 5 1/8" | 2 | 1 hr. | 12 | Steel | €272.62 |
Frequently Asked Questions
How can I manually override the electromechanical switches?
- To control the loads manually, move the lever up.
- This lever will close the normally open circuit and open the normally closed circuit.
- Move the lever back to return to automatic control.
How to remove Intermatic electromechanical timers' mechanism from the case?
- First, disconnect the electrical components and remove the wiring.
- Depress the upper spring at the upper left.
- Then, grasp the dial and pull the mechanism out.
How to use an electromechanical time switch for complex timing requirements?
Users can integrate electromechanical time switches with programmable logic controllers (PLCs) for more complex timing requirements.
