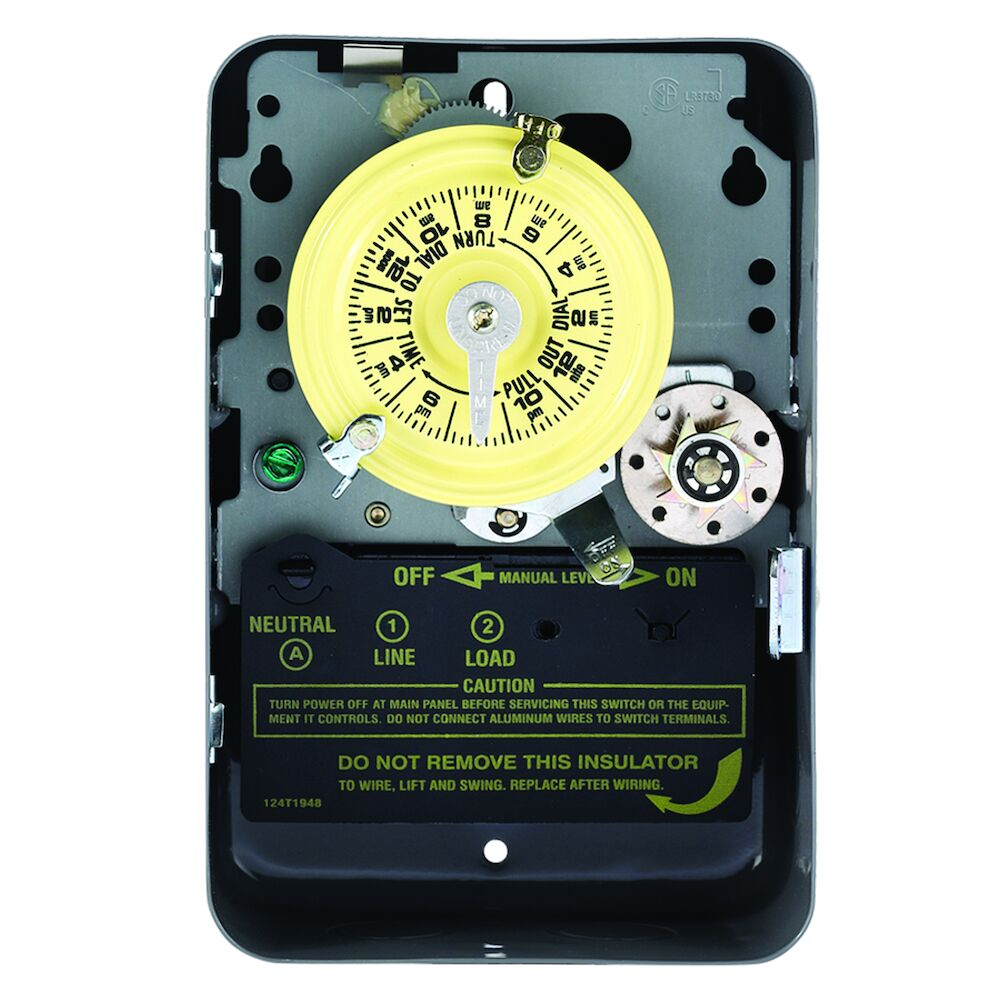

INTERMATIC T171 Electromechanical Timer w/Skipper, Indoor Enclosure, 40 A, 120 V
Item: AB9MQNModel: T171Cross Ref: 2E024
7 In Stock
Ships within 2 days via
5.00% off
€258.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electromechanical Timer |
| Amps | 40A |
| Applicable Ac Voltage Ranges | 120V AC |
| Application | Lighting |
| Body Color | Gray |
| Body Material | Metal |
| Compatible Lighting | HID, LED |
| Contact Form | SPST |
| Contact Hp @ 120v | 2 hp |
| Contact Hp @ 120v | 2 |
| Day Skipper | Yes |
| Depth | 3" |
| Display Qty | 1 |
| Enclosure Type | Steel |
| Extra Trippers | 11Z965 |
| Features | Manual Override, Three Day Skipper Screws Included |
| Finish | Enamel |
| Has Manual Override | Yes |
| Has Manual Override Cvl | Yes |
| Height | 7 13/16" |
| Indoor/outdoor | Indoor |
| Length | 7 4/5" |
| Max. Hp @ 120v | 2 hp |
| Max. Hp @ 240v | 5 hp |
| Max. On/off Cycles | 12 |
| Max. On/off Cycles | 10 , 12 |
| Max. Operating Temp. | 130°F |
| Max. Power Consumption | 3 W |
| Max. Time Setting | 24 hrs. |
| Min. On Off Time | 1 hr. |
| Min. On/off Times | 1 hr. |
| Min. Operating Temp. | -40°F |
| Min. Time Setting | 1 hr. |
| Mounting | Wall |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| No. Of Circuits | 1 |
| No. Of Poles | 1 |
| No. Of Trippers Included | 2 |
| No. Of Trippers-max. | 2 |
| Number Of Trippers Included | 2 |
| Overall Depth | 3 7/16" |
| Overall Height | 7 7/8" |
| Overall Width | 5 1/8" |
| Product Type | Timer |
| Series | T100 Series |
| Skipper Wheel | Not Included |
| Skipper Wheel Operation Mode | Not Included |
| Timer Extra Features | Manual Override, Skipper Wheel |
| Timing Interval | 1 hr. |
| Width | 5" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 1.23 |
| Ship height (cm) | 20 |
| Ship length (cm) | 8.73 |
| Ship width (cm) | 13.02 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Ideal for use with pool heaters, pumps, blowers, conveyors, electric fences, fans, filters and small commercial signs
- Skipper facility enables the preset program to be omitted on selected days of the week
- Snap-out timing mechanism with a manual On/Off override switch that doesn't interfere with the program
- Controls resistive loads up to 40 A per pole and provides up to 12 ON/OFF operations per day
- Equipped with one CUTOUT (ON), one OFF and three day-skipper screws
Product Variants
| Product | Model | Min. Time Setting | Max. On/off Cycles | Max. Time Setting | Contact Form | Enclosure Material | Amps | Depth | Indoor/outdoor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T7401B | 3.5 hrs. | 3 | 21 hrs. | SPST | - | 40A | 4" | Indoor | €458.60 | |
 |
T7401BC | 3.5 hrs. | 3 | 21 hrs. | SPST | - | 40A | 4" | Indoor | €1,351.55 | |
 |
T2005 | 2 hrs. | 42 | 22 hrs. | SPDT | - | 20A | 3" | Indoor | €468.54 | |
 |
T1905E | 15 min. | 48 | 23.75 hrs. | SPDT | - | 20A | 3" | Indoor | €301.85 | |
 |
T101 | 1 hr. | 12 | 24 hrs. | SPST | - | 40A | 3" | Indoor | €163.34 | |
 |
T103 | 1 hr. | 12 | 24 hrs. | DPST | - | 40A | 3" | Indoor | €158.98 | |
 |
T1905 | 15 min. | 48 | 23.75 hrs. | SPDT | - | 20A | 3" | Indoor | €325.61 |
