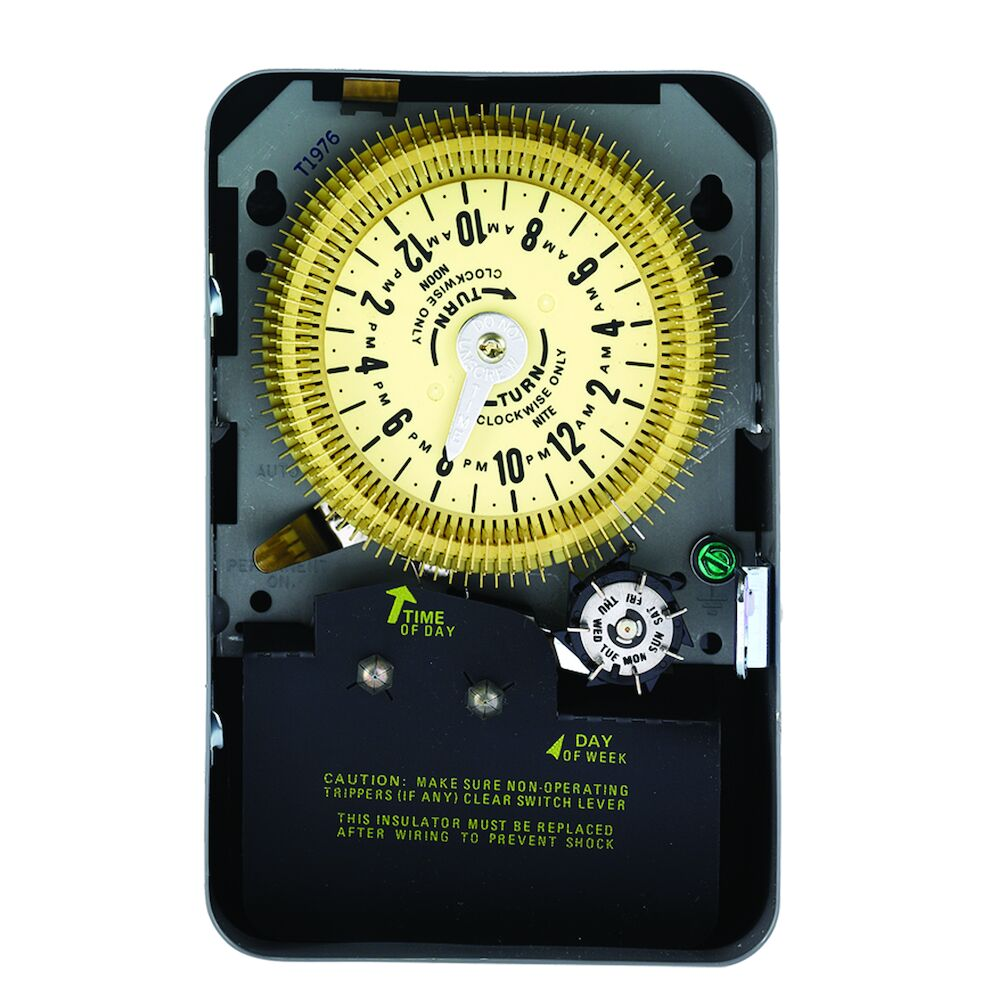

INTERMATIC T1976 Timer Multi Operation
Item: AF2PUMModel: T1976Cross Ref: 6X762
7 In Stock
Ships within 2 days via
10.00% off
€339.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electromechanical Timer |
| Applicable Ac Voltage Ranges | 208-277V AC |
| Application | Lighting |
| Body Material | Metal |
| Contact Form | SPDT |
| Contact Hp @ 120v | 1/2 |
| Contact Hp @ 240v | 1 |
| Contact Hp @ 240v | 1 hp |
| Current Rating | 20A |
| Day Skipper | Yes |
| Depth | 3" |
| Description/special Features | Manual On/Off Override Does Not Interfere With Program |
| Display Qty | 1 |
| Enclosure Type | Steel Indoor |
| Extra Trippers | 2E132 |
| Features | Captive Trippers Slide In/Out Of Dial, Skipper Wheel |
| Has Manual Override | Yes |
| Has Manual Override Cvl | Yes |
| Horsepower @ 120v - Maximum | 1/2 hp |
| Horsepower @ 240v - Maximum | 1 hp |
| Indoor/outdoor | Indoor |
| Indoor/outdoor Usage | Indoor |
| Max. On/off Cycles | 48 |
| Max. Time Setting | 23.75 hrs. |
| Maximum Power Consumption | 3 W |
| Min. Time Setting | 15 min. |
| Minimum On Off Time | 15 min. |
| Minimum On/off Times | 15 min. |
| Mounting | Hole Wall |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Number Of Circuits | 1 |
| Number Of Poles | 1 |
| Number Of Trippers - Maximum | 96 |
| Number Of Trippers Included | 96 |
| Operating Temperature - Maximum | 130°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 3 7/16" |
| Overall Height | 7 7/8" |
| Overall Width | 5 1/8" |
| Power Consumption Max W | 3 W |
| Product Type | Timer |
| Series | T1970 Series |
| Standards | Ccsaus |
| Time Setting - Max. | 24 hrs. |
| Time Setting - Maximum | 24 hrs. |
| Timer Extra Features | Skipper Wheel |
| Voltage | 208-277V AC |
| Width | 5" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 1.24 |
| Ship height (cm) | 20 |
| Ship length (cm) | 8.73 |
| Ship width (cm) | 13.02 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Special Features: Manual On/Off Override does not Interfere with Program
Product Variants
| Product | Model | Max. On/off Cycles | Min. Time Setting | Contact Form | Max. Time Setting | Enclosure Material | Depth | Number Of Poles | Number Of Trippers Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T7401B | 3 | 3.5 hrs. | SPST | 21 hrs. | - | 4" | 4 | 14 | €458.60 | |
|
T7401BC | 3 | 3.5 hrs. | SPST | 21 hrs. | - | 4" | 4 | 14 | €1,351.55 | |
 |
T2005 | 6 | - | SPDT | 22 hrs. | - | 3" | 1 | 84 | €468.54 | |
 |
T1905E | 48 | 15 min. | SPDT | 23.75 hrs. | - | 3" | 1 | 96 | €301.85 | |
 |
T101 | 12 | 1 hr. | SPST | - | - | 3" | 1 | 2 | €161.87 | |
 |
T103 | 12 | 1 hr. | DPST | - | - | 3" | 2 | 2 | €156.41 | |
|
T171 | 12 | 1 hr. | SPST | - | - | 3" | 1 | 2 | €272.62 |
