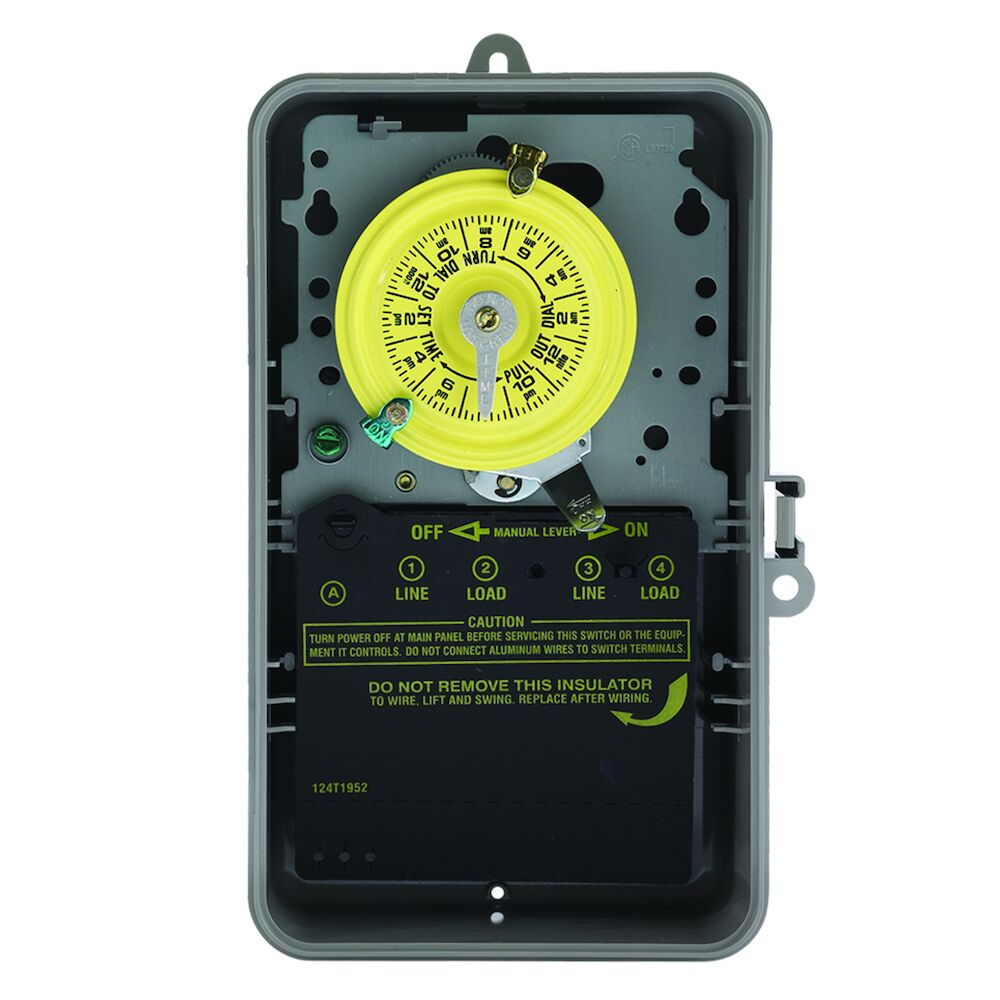

INTERMATIC T103PCD82 Electromechanical Timer 24-hour Dpst
Item: AF7EDYModel: T103PCD82Cross Ref: 20XE82
7 In Stock
Ships within 2 days via
10.00% off
€184.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electromechanical Timer |
| Amps | 40A |
| Applicable Ac Voltage Ranges | 120V AC |
| Application | Lighting |
| Body Color | Gray |
| Body Material | Plastic |
| Color | Gray |
| Compatible Lighting | HID, LED |
| Contact Form | DPST |
| Contact Hp @ 120v | 2 hp |
| Contact Hp @ 120v | 2 |
| Current Rating | 40A |
| Day Skipper | No |
| Depth | 4" |
| Description/special Features | Clear Plastic Door |
| Display Qty | 1 |
| Enclosure Material | Polycarbonate |
| Enclosure Type | Polycarbonate |
| Extra Trippers | Mfr. No. 156T1978A |
| Features | Manual Override, See Through Enclosure Door |
| Finish | Gray |
| Has Manual Override | Yes |
| Has Manual Override Cvl | Yes |
| Height | 11 1/2" |
| Horsepower @ 120v - Maximum | 2 hp |
| Horsepower @ 240v - Maximum | 5 hp |
| Indoor/outdoor Usage | Indoor/Outdoor |
| Length | 11 1/2" |
| Max. On/off Cycles | 12 |
| Maximum Power Consumption | 3 W |
| Min. Time Setting | 1 hr. |
| Minimum On Off Time | 1 hr. |
| Minimum On/off Times | 1 hr. |
| Mounting | Surface |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 3R |
| Number Of Circuits | 1 |
| Number Of Poles | 2 |
| Number Of Trippers - Maximum | 2 |
| Number Of Trippers Included | 2 |
| Number Of Trippers Included | 4 |
| Operating Temp. | -40°F to +130°F |
| Operating Temperature - Maximum | 130°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 4" |
| Overall Height | 10" |
| Overall Width | 6 1/2" |
| Power Consumption Max W | 3 W |
| Product Type | Timer |
| Series | T100 Series |
| Skipper Wheel | Not Included |
| Skipper Wheel Operation Mode | Not Included |
| Time Setting - Max. | 24 hrs. |
| Time Setting - Maximum | 24 hrs. |
| Timer Extra Features | Manual Override, See-Through Enclosure |
| Voltage | 120V AC |
| Width | 7 1/8" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 16.51 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Special Features: Clear Plastic Door
Product Variants
| Product | Model | Max. On/off Cycles | Min. Time Setting | Contact Form | Max. Time Setting | Enclosure Material | Depth | Number Of Poles | Number Of Trippers Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T7401B | 3 | 3.5 hrs. | SPST | 21 hrs. | - | 4" | 4 | 14 | €458.60 | |
|
T7401BC | 3 | 3.5 hrs. | SPST | 21 hrs. | - | 4" | 4 | 14 | €1,351.55 | |
 |
T2005 | 6 | - | SPDT | 22 hrs. | - | 3" | 1 | 84 | €468.54 | |
 |
T1905E | 48 | 15 min. | SPDT | 23.75 hrs. | - | 3" | 1 | 96 | €301.85 | |
 |
T101 | 12 | 1 hr. | SPST | - | - | 3" | 1 | 2 | €161.87 | |
 |
T103 | 12 | 1 hr. | DPST | - | - | 3" | 2 | 2 | €156.41 | |
|
T171 | 12 | 1 hr. | SPST | - | - | 3" | 1 | 2 | €272.62 |
