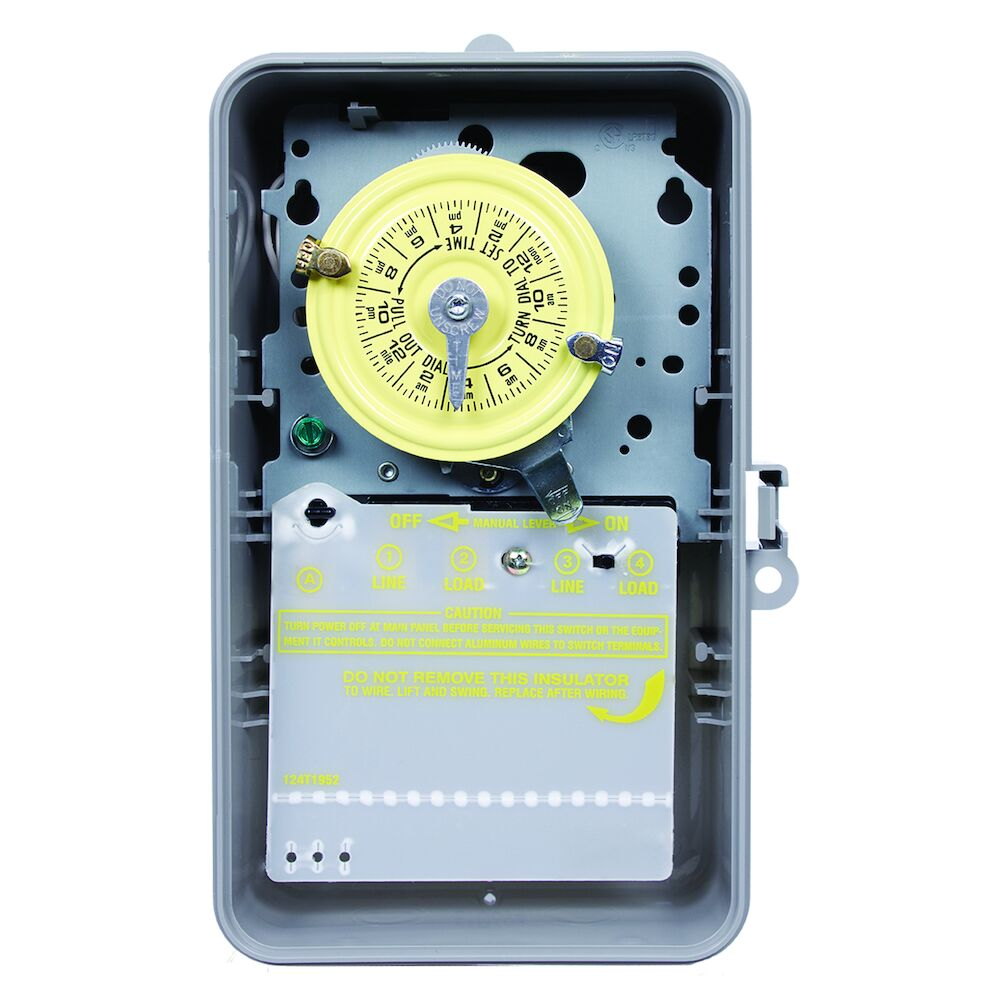

INTERMATIC T104P Timer 24 Hour Dpst
Item: AD7EXHModel: T104PCross Ref: 4E025
7 In Stock
Ships within 2 days via
5.00% off
€190.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electromechanical Timer |
| Amps | 40A |
| Applicable Ac Voltage Ranges | 208-277V AC |
| Application | Lighting |
| Body Color | Gray |
| Body Material | Plastic |
| Compatible Lighting | HID, LED |
| Contact Form | DPST |
| Contact Hp @ 120v | 2 |
| Contact Hp @ 120v | 2 hp |
| Contact Hp @ 240v | 5 |
| Contact Hp @ 240v | 5 hp |
| Day Skipper | No |
| Depth | 3 13/16" |
| Display Qty | 1 |
| Enclosure Type | Plastic |
| Extra Trippers | 2E054 |
| Features | Manual Override |
| Finish | Enamel |
| Has Manual Override | Yes |
| Has Manual Override Cvl | Yes |
| Height | 9 7/16" |
| Indoor/outdoor | Indoor, Outdoor , Outdoor |
| Length | 9 2/5" |
| Max. Hp @ 120v | 2 hp |
| Max. Hp @ 240v | 5 hp |
| Max. On/off Cycles | 12 |
| Max. Operating Temp. | 130°F |
| Max. Power Consumption | 3 W |
| Max. Time Setting | 24 hrs. |
| Min. On Off Time | 1 hr. |
| Min. On/off Times | 1 hr. |
| Min. Operating Temp. | -40°F |
| Min. Time Setting | 1 hr. |
| Mounting | Hole Wall |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 3R |
| No. Of Circuits | 1 |
| No. Of Poles | 2 |
| No. Of Trippers Included | 2 |
| No. Of Trippers-max. | 2 |
| Number Of Trippers Included | 2 |
| Overall Depth | 4" |
| Overall Height | 10" |
| Overall Width | 6 1/2" |
| Product Type | Timer |
| Series | T100 Series |
| Skipper Wheel | Not Included |
| Skipper Wheel Operation Mode | Not Included |
| Timer Extra Features | Manual Override |
| Timing Interval | 1 hr. |
| Voltage | 208-277V AC |
| Width | 5 1/2" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 1.03 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 16.51 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Special Features: Snap-out Timing Mechanism, Up to 12 On/Off Settings Per Day, Manual On/Off Override does not Alter Program, Furnished with a Maximum of 12 Trippers, Has Adjustable Time Setting, 3R Enclosures in Steel or Noncorrosive Plastic
Product Variants
| Product | Model | Min. Time Setting | Max. On/off Cycles | Max. Time Setting | Contact Form | Enclosure Material | Amps | Depth | Indoor/outdoor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T7401B | 3.5 hrs. | 3 | 21 hrs. | SPST | - | 40A | 4" | Indoor | €458.60 | |
 |
T7401BC | 3.5 hrs. | 3 | 21 hrs. | SPST | - | 40A | 4" | Indoor | €1,351.55 | |
 |
T2005 | 2 hrs. | 42 | 22 hrs. | SPDT | - | 20A | 3" | Indoor | €468.54 | |
 |
T1905E | 15 min. | 48 | 23.75 hrs. | SPDT | - | 20A | 3" | Indoor | €301.85 | |
 |
T101 | 1 hr. | 12 | 24 hrs. | SPST | - | 40A | 3" | Indoor | €163.34 | |
 |
T103 | 1 hr. | 12 | 24 hrs. | DPST | - | 40A | 3" | Indoor | €158.98 | |
 |
T171 | 1 hr. | 12 | 24 hrs. | SPST | - | 40A | 3" | Indoor | €272.62 |
