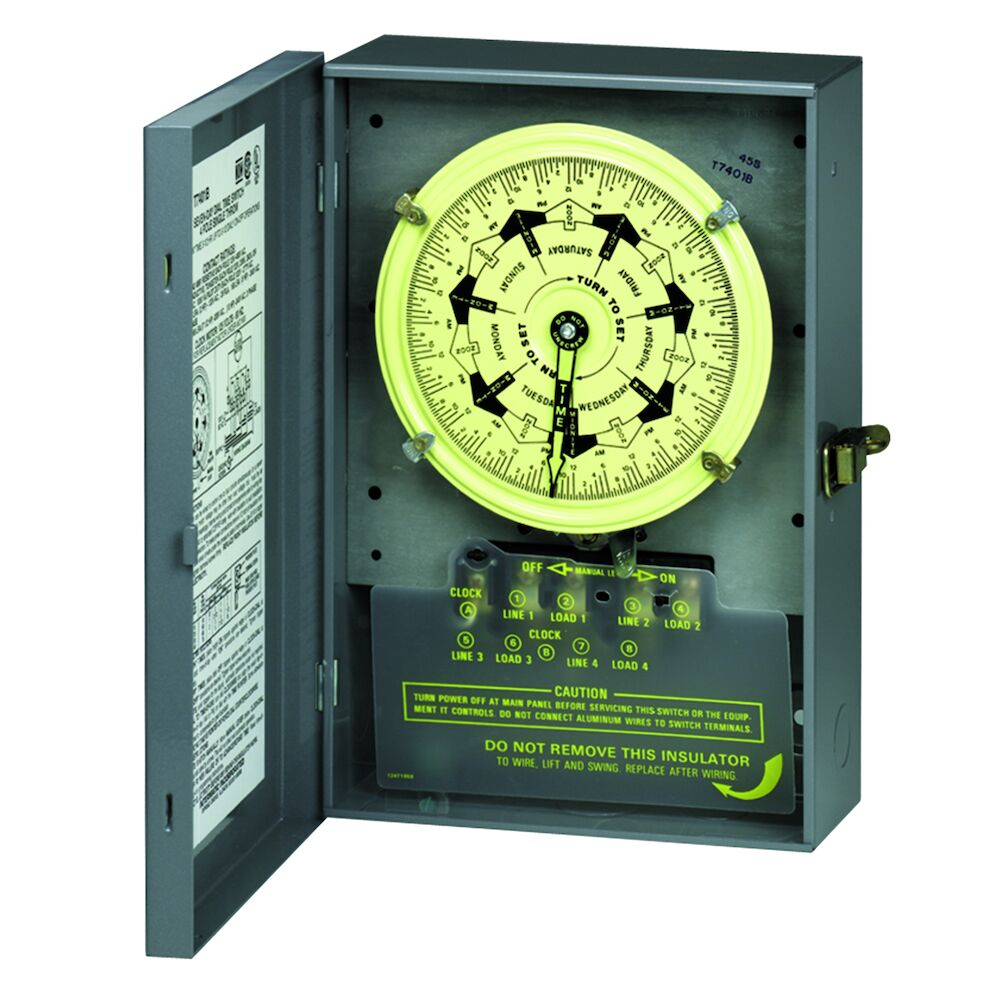

INTERMATIC T7401BC Timer 7 Day 4 Poles
Item: AB8WHKModel: T7401BCCross Ref: 2A209
7 In Stock
Ships within 2 days via
10.00% off
€1,216.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electromechanical Timer |
| Amps | 40A |
| Applicable Ac Voltage Ranges | 120V AC |
| Application | Lighting |
| Backup Protection Time | 16 hrs. |
| Body Material | Metal |
| Compatible Lighting | HID, LED |
| Contact Form | SPST |
| Contact Hp @ 120v | 2 |
| Contact Hp @ 120v | 2 hp |
| Contact Hp @ 240v | 5 |
| Contact Hp @ 240v | 5 hp |
| Current Rating | 40A |
| Day Skipper | Yes |
| Depth | 4" |
| Description/special Features | Heavy-Duty Clutchless Gears Prevent Slipping, Spring Wound Carry-Over |
| Display Qty | 1 |
| Enclosure Type | Steel Indoor |
| Extra Trippers | 11Z966 |
| Features | Carry Over Automatically Rewinds When Power Resumes, Separate Clock Motor Terminals |
| Has Manual Override | Yes |
| Has Manual Override Cvl | Yes |
| Height | 12 1/2" |
| Horsepower @ 120v - Maximum | 2 hp |
| Horsepower @ 240v - Maximum | 5 hp |
| Indoor/outdoor | Indoor |
| Indoor/outdoor Usage | Indoor |
| Max. On/off Cycles | 3 |
| Max. Time Setting | 21 hrs. |
| Maximum Power Consumption | 3 W |
| Min. Time Setting | 3.5 hrs. |
| Minimum On Off Time | 3.5 hrs. |
| Minimum On/off Times | 3.5 hrs. |
| Mounting | Wall |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Number Of Circuits | 4 |
| Number Of Poles | 4 |
| Number Of Trippers - Maximum | 14 |
| Number Of Trippers Included | 14 |
| On/off Cycles - Maximum | 28 |
| Operating Temperature - Maximum | 130°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 3 3/4" |
| Overall Height | 13 1/8" |
| Overall Width | 9" |
| Power Consumption Max W | 3 W |
| Product Type | Timer |
| Series | T7000B Series |
| Skipper Wheel | Not Included |
| Skipper Wheel Operation Mode | Not Included |
| Time Setting - Maximum | 7 Day |
| Timer Extra Features | Spring Wound Carry Over |
| Voltage | 125V AC |
| Width | 8 1/4" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 4.57 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 22.89 |
| HS code | 9107008000 |
| Country of Origin | FR |
Product Details:
- Special Features: Heavy-duty Clutchless Gears Prevent Slipping, Spring Wound Carry-Over
Product Variants
| Product | Model | Max. On/off Cycles | Min. Time Setting | Contact Form | Max. Time Setting | Enclosure Material | Depth | Number Of Poles | Number Of Trippers Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T7401B | 3 | 3.5 hrs. | SPST | 21 hrs. | - | 4" | 4 | 14 | €458.60 | |
 |
T2005 | 6 | - | SPDT | 22 hrs. | - | 3" | 1 | 84 | €468.54 | |
 |
T1905E | 48 | 15 min. | SPDT | 23.75 hrs. | - | 3" | 1 | 96 | €301.85 | |
 |
T101 | 12 | 1 hr. | SPST | - | - | 3" | 1 | 2 | €161.87 | |
 |
T103 | 12 | 1 hr. | DPST | - | - | 3" | 2 | 2 | €156.41 | |
|
T171 | 12 | 1 hr. | SPST | - | - | 3" | 1 | 2 | €272.62 | |
|
T1905 | 48 | 15 min. | SPDT | 23.75 hrs. | - | 3" | 1 | 96 | €325.61 |
