EATON E2FM Type Mining Complete Molded Case Circuit Breakers
Eaton E2FM type mining complete moulded case circuit breakers prevent electrical damage to connected devices in harsh mine environments due to overloads or short circuits. These 3-pole circuit breakers protect equipment by automatically interrupting the flow of electricity to the circuit when a... fault is detected. They can be reset once the fault has been resolved. Eaton E2FM type mining complete moulded case circuit breakers have a current rating ranging from 3 to 800A & a voltage rating of 1000Y / 577VAC or 250VDC.Read more
Filter
A
B
C
D| Style | Model | Height | Amps | Type | Trip Rating | Under Voltage Release | No. Of Poles | Voltage | Circuit Breaker Frame Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | E2FM3090S09 | - | - | - | - | - | - | - | - | €6,008.55 | |
| A | E2FM3032 | 4 3/4" | 32A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,790.54 | |
| A | E2FM3025 | 5" | 25A | Specialty Sealed | 40-60A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,665.18 | |
| A | E2FM3020 | 6" | 20A | Specialty Sealed | 750-2500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,807.67 | |
| A | E2FM050KMA02 | 6" | 50A | - | 150-500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,600.92 | |
| A | E2FM050KMLU62 | 6" | 50A | Specialty Sealed | 150-500A | 110-127V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,551.39 | |
| A | E2FM050KMA02S22 | 6" | 50A | - | 150-500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | - | RFQ
|
| A | E2FM050YMA02U62 | 6" | 50A | Specialty Sealed | 66-190A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €6,414.76 | |
| A | E2FM070MM | 6" | 70A | Specialty Sealed | 210-700A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,309.33 | |
| A | E2FM050KM | 6" | 50A | Specialty Sealed | 150-500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,571.79 | |
| A | E2FM050YMA02 | 6" | 50A | Specialty Sealed | 66-190A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,545.77 | |
| A | E2FM050YMU62 | 6" | 50A | Specialty Sealed | 66-190A | 110-127V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,009.89 | |
| A | E2FM050YMA06U14 | 6" | 50A | Specialty Sealed | 66-190A | 110-127V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | €6,373.10 | |
| A | E2FM050YM | 6" | 50A | Specialty Sealed | 66-190A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,790.54 | |
| A | E2FM100RMA02 | 6" | 100A | Specialty Sealed | 300-1000A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,206.80 | |
| A | E2FM100KMU62 | 6" | 100A | Specialty Sealed | 150-500A | 110-127V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,778.59 | |
| B | E2FM3100B04U68 | 6" | 100A | Specialty Sealed | - | 208-240V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | €6,694.84 | |
| A | E2FM100KMA13H11 | 6" | 100A | Specialty Sealed | 150-500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,257.89 | |
| A | E2FM100KMA02H11 | 6" | 100A | Specialty Sealed | 150-500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,771.04 | |
| A | E2FM100KM | 6" | 100A | Specialty Sealed | 150-500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,080.22 | |
| A | E2FM100RMA01 | 6" | 100A | Specialty Sealed | 300-1000A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,072.36 | |
| C | E2FM150TM | 6" | 150A | Specialty Sealed | 450-1500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,854.74 | |
| A | E2FM100RMA06S06 | 6" | 100A | Specialty Sealed | 300-1000A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €6,895.68 | |

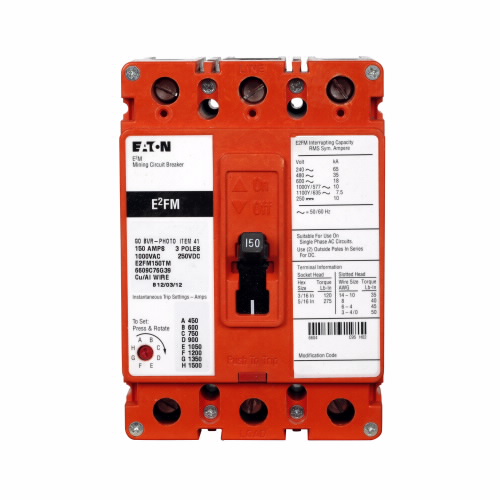

| C | E2FM150TMA02 | 6" | 150A | E2 Mining | 450-1500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €7,315.94 | |
| A | E2FM100RMA05D11S09 | 6" | 100A | Specialty Sealed | 300-1000A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €7,193.47 | |
| A | E2FM100KMU14 | 6" | 100A | Specialty Sealed | 150-500A | 110-127V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | - | RFQ
|
| B | E2FM3150 | 6" | 150A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €6,055.01 | |
| B | E2FM3100S22 | 6" | 100A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €6,214.06 | |

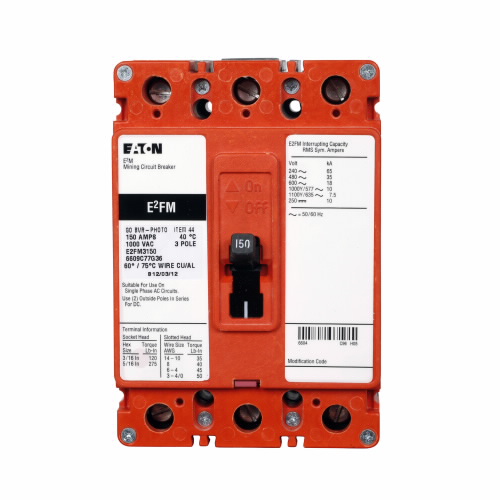

| B | E2FM3160 | 6" | 160A | E2 Mining | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | - | RFQ
|
| A | E2FM3063 | 6" | 63A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,790.54 | |
| A | E2FM3040A04 | 6" | 40A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,545.77 | |
| A | E2FM3050U65 | 6" | 50A | Specialty Sealed | - | 208-240V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,659.31 | |
| A | E2FM3080A04 | 6" | 80A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,034.59 | |
| A | E2FM3080 | 6" | 80A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,309.33 | |
| B | E2FM3100A02 | 6" | 100A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,540.01 | |
| B | E2FM3125 | 6" | 125A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,854.74 | |
| A | E2FM3016 | 6" | 16A | Specialty Sealed | 750-2500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,665.18 | |
| A | E2FM3050 | 6" | 50A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,665.18 | |
| A | E2FM3060 | 6" | 60A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | - | RFQ
|
| B | E2FM3150B04U68 | 6" | 150A | Specialty Sealed | - | 208-240V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | €8,391.48 | |
| C | E2FM150TMA08 | 6" | 150A | Specialty Sealed | 450-1500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €6,961.95 | |
| A | E2FM3070 | 6" | 70A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,309.33 | |
| A | E2FM3080B04 | 6" | 80A | - | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,911.42 | |
| B | E2FM3100B04 | 6" | 100A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,314.49 | |
| A | E2FM100RM | 6" | 100A | Specialty Sealed | 300-1000A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,309.33 | |

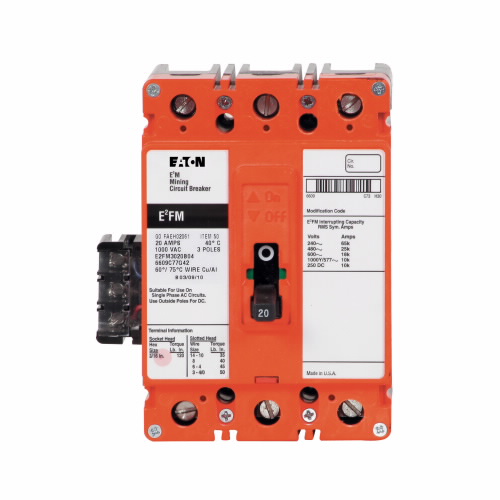

| D | E2FM3020B04 | 6" | 20A | - | 750-2500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,438.10 | |
| A | E2FM3040S09 | 6" | 40A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,699.06 | |
| A | E2FM3016A04 | 6" | 16A | Specialty Sealed | 750-2500A | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,940.31 | |
| A | E2FM3040 | 6" | 40A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €3,790.54 | |

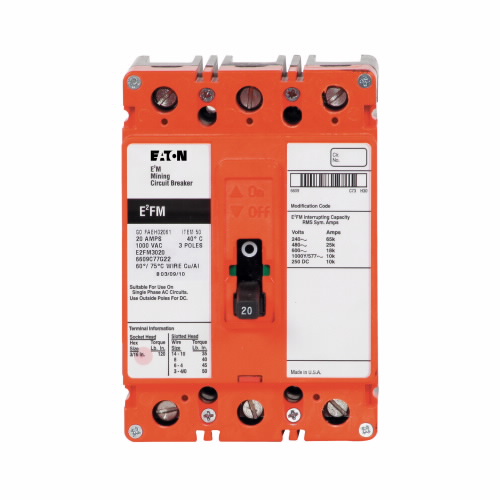

| A | E2FM3040U33 | 6" | 40A | - | - | 24V DC | 3 | 250V DC/577/1000V AC | Complete Breaker | €5,861.92 | |
| B | E2FM3100 | 6" | 100A | Specialty Sealed | - | - | 3 | 250V DC/577/1000V AC | Complete Breaker | €4,309.33 | |
| C | E2FM150TMU62 | 6" | 150A | Specialty Sealed | 450-1500A | 110-127V AC | 3 | 250V DC/577/1000V AC | Complete Breaker | €7,701.99 |
Features
- Eaton E2FM type mining complete moulded case circuit breakers have a sliding handle with ON & OFF positions for easy identification of the breaker's status.
- They have a moulded case design to house the trip unit & all current-carrying devices inside their thermal magnetic moulded case frame.
- These E2FM-type mining circuit breakers are equipped with a built-in test port for electronic field testing and a push-to-trip button to mechanically check the tripping function.
Compatible Accessories
- Shunt Trips: These devices mechanically trip the breakers remotely by applying power (from an external source) to their shunt trip terminals.
Frequently Asked Questions
What trip types are available in these Eaton E2FM type mining complete moulded case circuit breakers?
They are available in magnetic only or thermal-magnetic type for application-specific operation.
What type of terminals are available in these Eaton E2FM type mining complete moulded case circuit breakers?
Line & load terminals.
What are the interrupt ratings of these Eaton E2FM type mining complete moulded case circuit breakers?
- 65kAIC at 240VAC
- 25kAIC at 480VAC
- 18kAIC at 600VAC
- 10kAIC at 250VDC
- 10kAIC at 1000Y / 577VAC
