EATON BR Series OEM Interior Assemblies
Eaton BR Series OEM interior assemblies offer equipment manufacturers, panel builders & OEMs means for power distribution inside their equipment. These OEM interior assemblies consist of a wide variety of power distribution options from Eaton BR loadcenter product components. They provide r...eliable power distribution & circuit protection inside a compact, easily installable package. The BR interior assemblies have a maximum stab rating of 200A, indicating that the breakers mounted across from one another may not exceed the 200A handle rating. These interiors can either be mounted in horizontal (singlerow breaker mounting) or vertical (double-row breaker mounting) position.Read more
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z| Style | Model | Height | Type | Amps | Voltage | No. Of Spaces | No. Of Wires | Bus Material | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4242INT225B | - | Interior Assembly | 225A | 120/240V | 42 | 3 | Aluminum | 1 | €676.83 | |
| B | 17NEU125B | 0.05" | Neutral Assembly | 125A | - | - | 17 | - | - | €201.31 | |
| C | 1224INT125B | 1 1/2" | Interior Assembly | 125A | 120/240V | 12 | 3 | Aluminum | 1 | €208.70 | |

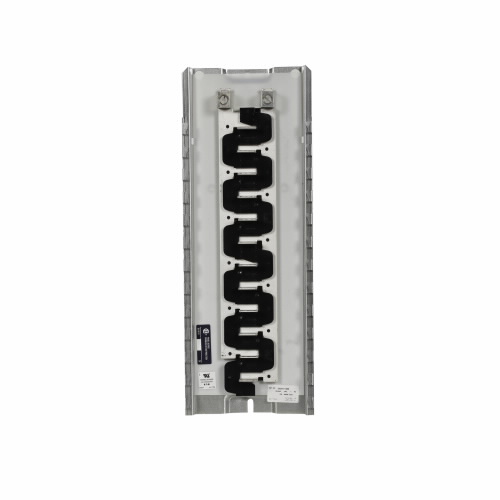

| D | 2424INT125B | 1 1/2" | Interior Assembly | 125A | 120/240V | 24 | 3 | Aluminum | 1 | €284.96 | |
| E | 24INT70B | 1 1/5" | Interior Assembly | 70A | 120/240V | 2 | 3 | Aluminum | 1 | €154.07 | |
| F | 816INT125BC | 1 3/4" | Interior Assembly | 125A | 120/240V | 8 | 3 | Copper | 1 | €275.58 | |
| G | 10NEU125B | 1" | Neutral Assembly | - | - | - | 10 | - | - | €54.67 | |
| H | 17NEU125B-1 | 1" | Neutral Assembly | 125A | - | - | - | - | - | €160.68 | |

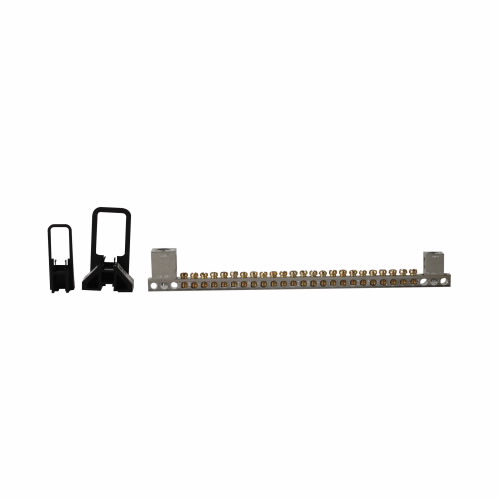

| I | 24NEU225B | 1" | Neutral Assembly | 225A | - | 24 | - | - | - | €166.32 | |

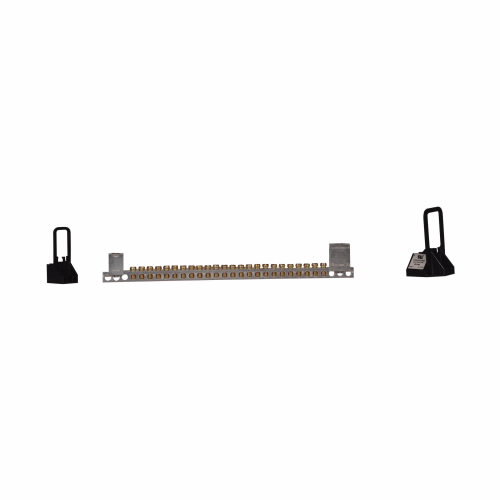

| J | 24NEU225B-1 | 1" | Neutral Assembly | 225A | - | 24 | - | - | - | €207.47 | |
| G | 10NEU125B-1 | 1" | Neutral Assembly | 125A | - | - | - | - | - | €120.67 | |
| K | 20NEU125B-1 | 1" | Neutral Assembly | 125A | - | - | - | - | - | €211.35 | |
| A | 2024INT125B | 1" | Interior Assembly | 125A | 120/240V | 20 | 3 | Aluminum | 1 | €386.43 | |
| A | 1836INT3150B | 1" | Interior Assembly | 150A | 120/208/240V | 18 | 3, 4 | Aluminum | 3 | €545.92 | |
| L | 24INT125B-1 | 1" | Interior Assembly | 125A | 120/240V | 2 | 3 | Aluminum | 1 | €180.21 | |
| M | 24INT125B | 1" | Interior Assembly | 125A | 120/240V | 2 | 3 | Aluminum | 1 | €131.24 | |
| A | 3042INT3200B | 1" | Interior Assembly | 200A | 120/208/240V | 30 | 3, 4 | Aluminum | 3 | €611.45 | |
| N | 35NEU225B | 1" | Neutral Assembly | 225A | - | 35 | - | - | - | €269.84 | |

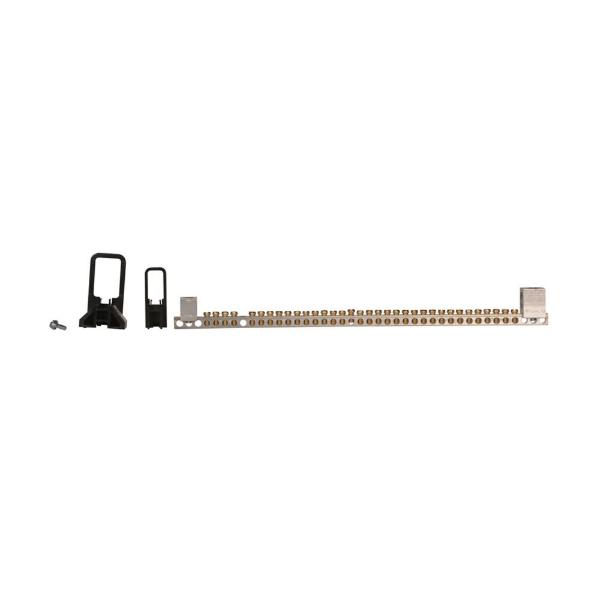

| O | 35NEU225B-1 | 1" | Neutral Assembly | 225A | - | 35 | - | - | - | €291.27 | |

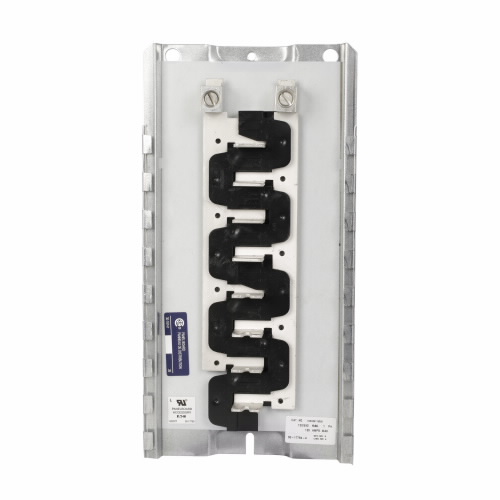

| P | 1624INT125B | 1.38" | Interior Assembly | 125A | 120/240V | 16 | 3 | Aluminum | 1 | €316.31 | |
| Q | 20NEU125B | 1/2" | Neutral Assembly | 125A | - | - | - | - | - | €147.95 | |
| R | 48INT125B | 2" | Interior Assembly | 125A | 120/240V | 4 | 3 | Aluminum | 1 | €196.25 | |
| A | 4242INT3225B-1 | 3 1/2" | Interior Assembly | 225A | 120/208/240V | 42 | 3, 4 | Aluminum | 3 | €960.80 | |
| A | 4242INT3225B | 3 1/2" | Interior Assembly | 225A | 120/208/240V | 42 | 3, 4 | Aluminum | 3 | €845.20 | |
| A | 4242INT225B-1 | 3 1/2" | Interior Assembly | 225A | 120/240V | 42 | 3 | Aluminum | 1 | €892.81 | |
| A | 3042INT3200B-1 | 3 1/4" | Interior Assembly | 200A | 120/208/240V | 30 | 3, 4 | Aluminum | 3 | €588.61 | |
| S | 3040INT200B-1 | 3 1/4" | Interior Assembly | 200A | 120/240V | 30 | 3 | Aluminum | 1 | €598.20 | |
| T | 612INT125B-1 | 3 1/4" | Interior Assembly | 125A | 120/240V | 6 | 3 | Aluminum | 1 | €239.81 | |
| A | 816INT125BC-1 | 3 1/4" | Interior Assembly | 125A | 120/240V | 8 | 3 | Copper | 1 | €338.39 | |
| S | 3040INT200B | 3 1/4" | Interior Assembly | 200A | 120/240V | 30 | 3 | Aluminum | 1 | €516.88 | |
| U | 2424INT125B-1 | 3 1/4" | Interior Assembly | 125A | 120/240V | 24 | 3 | Aluminum | 1 | €284.96 | |
| A | 2442INT3150B | 3 1/4" | Interior Assembly | 150A | 120/208/240V | 24 | 3, 4 | Aluminum | 3 | €515.27 | |
| A | 1224INT3125B-1 | 3 1/4" | Interior Assembly | 125A | 120/208/240V | 12 | 3, 4 | Aluminum | 3 | €404.72 | |
| V | 1212INT125B-1 | 3 1/4" | Interior Assembly | 125A | 120/240V | 12 | 3 | Aluminum | 1 | €229.91 | |
| A | 1224INT3125BC | 3 1/4" | Interior Assembly | 125A | 120/208/240V | 12 | 3, 4 | Copper | 3 | €523.80 | |
| C | 1224INT125B-1 | 3 1/4" | Interior Assembly | 125A | 120/240V | 12 | 3 | Aluminum | 1 | €208.70 | |
| W | 1224INT200B-1 | 3 1/4" | Interior Assembly | 200A | 120/240V | 12 | 3 | Aluminum | 1 | €437.79 | |
| A | 2442INT3150B-1 | 3 1/4" | Interior Assembly | 150A | 120/208/240V | 24 | 3, 4 | Aluminum | 3 | €653.03 | |
| A | 1224INT200BC | 3 1/4" | Interior Assembly | 200A | 120/240V | 12 | 3 | Copper | 1 | €375.84 | |
| A | 1224INT3200BC | 3 1/4" | Interior Assembly | 200A | 120/208/240V | 12 | 3, 4 | Copper | 3 | €934.08 | |
| A | 1224INT200BC-1 | 3 1/4" | Interior Assembly | 200A | 120/240V | 12 | 3 | Copper | 1 | €375.84 | |
| A | 1224INT3200BC-1 | 3 1/4" | - | 200A | 120/208/240V | 12 | 3, 4 | Copper | 3 | €794.22 | |
| X | 1224INT3125B | 3 1/4" | Interior Assembly | 125A | 120/208/240V | 12 | 3, 4 | Aluminum | 3 | €416.65 | |

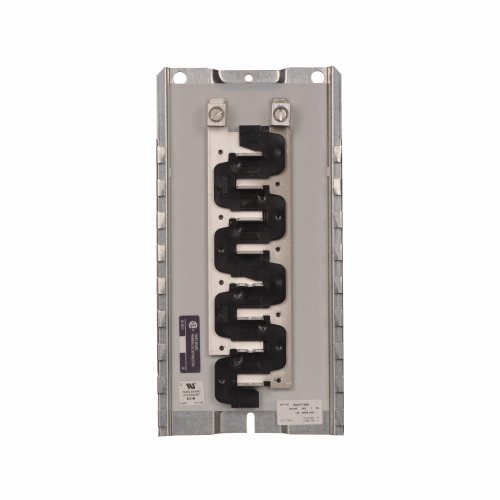

| Y | 1624INT125B-1 | 3 1/4" | Interior Assembly | 125A | 120/240V | 16 | 3 | Aluminum | 1 | €370.73 | |
| A | 1836INT3150B-1 | 3 1/4" | Interior Assembly | 150A | 120/208/240V | 18 | 3, 4 | Aluminum | 3 | €491.53 | |
| A | 816INT125B | 6 1/4" | Interior Assembly | 125A | 120/240V | 8 | 3 | Aluminum | 1 | €311.22 | |
| W | 1224INT200B | 6" | Interior Assembly | 200A | 120/240V | 12 | 3 | Aluminum | 1 | €381.18 | |
| V | 1212INT125BC | 6" | Interior Assembly | 125A | 120/240V | 12 | 3 | Copper | 1 | €273.80 | |
| Z | 816INT200B | 12" | Interior Assembly | 200A | 120/240V | 8 | 3 | Aluminum | 1 | €299.34 |
Frequently Asked Questions
What are the current ratings of these Eaton BR Series OEM interior assemblies?
These interiors feature 2 to 42 circuit space and have current ratings ranging from 70 to 225
What are some standards that these Eaton BR Series OEM interior assemblies comply with?
Federal Specifications Classification W-P-115B, Type 1 and Class 2 requirements.
What are the voltage ratings of Eaton BR Series OEM interior assemblies?
Single-phase single-row breaker-mounted interior assemblies have a voltage rating of 120 / 240VAC, whereas the three-phase double-row breaker-mounted interior assemblies have a voltage rating of 208Y / 120VAC.
What are these Eaton BR Series OEM interior assemblies made of?
Eaton BR Series OEM interior assemblies are formed from plated aluminium or copper for greater electrical conductivity.
