DWYER INSTRUMENTS 2000 Series Magnehelic Differential Pressure Gages


Dwyer Magnehelic gauges are used in isolation / medical environments. They employ simple, frictionless gauge movement to quickly indicate air or non-corrosive gas pressures that can be either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures and is IP67-rated for ...weatherproofing.Read more

Filter
DWYER INSTRUMENTS 2300-60PAA
DWYER INSTRUMENTS 2000-00B
DWYER INSTRUMENTS 2003-ASFC
DWYER INSTRUMENTS 2025D
DWYER INSTRUMENTS 2050E
DWYER INSTRUMENTS 2205F
DWYER INSTRUMENTS 2215G
DWYER INSTRUMENTS 2230H
DWYER INSTRUMENTS 2001-LTI
DWYER INSTRUMENTS 2000-1.5KPAJ
DWYER INSTRUMENTS 2000-0AVK
DWYER INSTRUMENTS 2300-10CML
DWYER INSTRUMENTS 2010-LTM
DWYER INSTRUMENTS 2202N
DWYER INSTRUMENTS 2002-ASFO
DWYER INSTRUMENTS 2000-00AVP
DWYER INSTRUMENTS 2002-AVQ
DWYER INSTRUMENTS 2000-0R
DWYER INSTRUMENTS 2330S
DWYER INSTRUMENTS 2001T
DWYER INSTRUMENTS 2002U
DWYER INSTRUMENTS 2005V
DWYER INSTRUMENTS 2010W
DWYER INSTRUMENTS 2100X
DWYER INSTRUMENTS 2210Y
DWYER INSTRUMENTS 2015Z
DWYER INSTRUMENTS 2006A1
DWYER INSTRUMENTS 2010-AVB1
DWYER INSTRUMENTS 2310C1
DWYER INSTRUMENTS 2001-AVD1
DWYER INSTRUMENTS 2302E1
DWYER INSTRUMENTS 2300-0F1
DWYER INSTRUMENTS 2060G1
DWYER INSTRUMENTS 2040H1
DWYER INSTRUMENTS 2030I1
DWYER INSTRUMENTS 2020J1
DWYER INSTRUMENTS 2008K1
DWYER INSTRUMENTS 2004L1
DWYER INSTRUMENTS 2003M1
StyleModelAccuracyRated Total PressureDifferential Pressure RangePressure Range Minor Div.Scale TypeSensor MaterialMounting Hardware IncludedAccuracy DetailsPrice
A
2300-60PA		-/+ 4%-20 in. hg to +15 psig------€134.74
B
2000-00		-2% to +2%-20 in. hg to 15 psi0 in. wc to 0.25 in. wc0.005 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€152.75
C

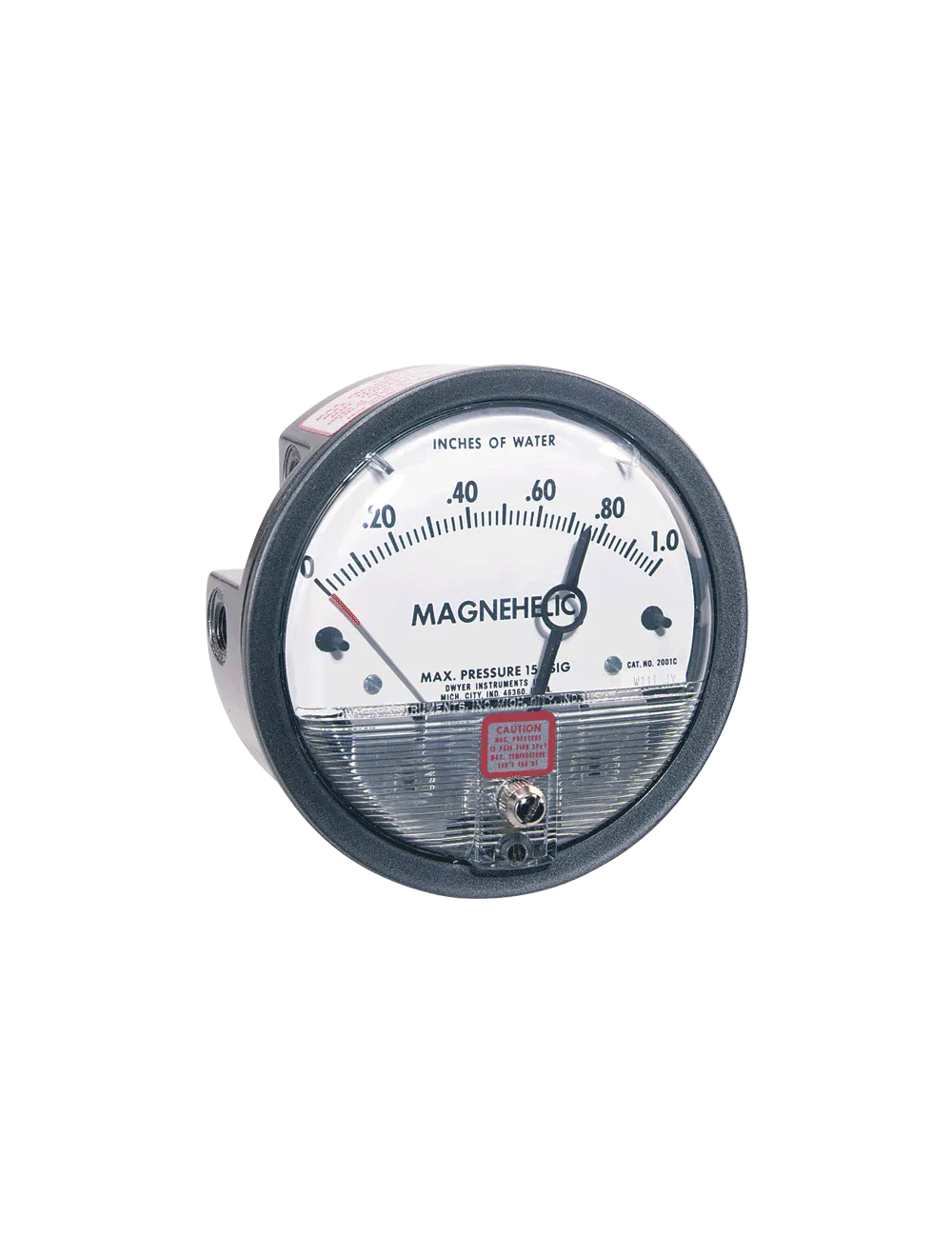

2003-ASF		-2% to +2%-------€141.41
D
2025		-2% to +2%-0 in. wc to 25 in. wc0.5 in. wcPressureSiliconeYes-€141.41
E
2050		-2% to +2%-20 in. hg to 15 psi0 in. wc to 50 in. wc1 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
F

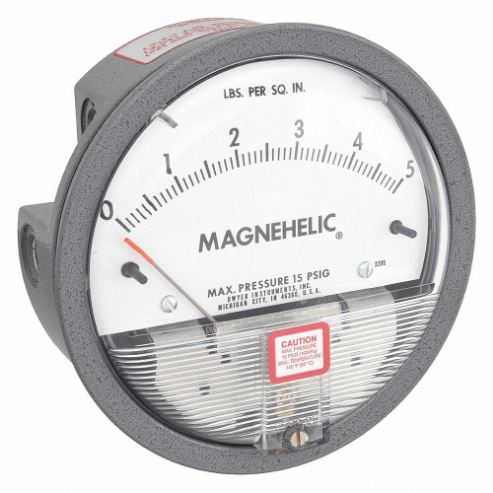

2205		-2% to +2%-20 in. hg to 15 psi0 psi to 5 psi0.1 psiPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
G
2215		-2% to +2%-20 in. hg to 15 psi0 psi to 15 psi0.5 psiPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€379.21
H
2230		-2% to +2%-20 in. hg to 15 psi0 psi to 30 psi1 psiPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€603.04
I
2001-LT		-2% to +2%-------€155.56
J
2000-1.5KPA		-2% to +2%-------€118.86
J
2000-125PA		-2% to +2%-------€131.33
K
2000-0AV		-2% to +2%-20 in. hg to 15 psi0 in. wc to 0.5 in. wc0.01 in. wcPressure, Air VelocitySilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€198.80
I
2000-100CM		-2% to +2%-------€120.06
I
2000-200CM		-2% to +2%-------€135.23
J
2000-80CM		-2% to +2%-------€134.27
L
2300-10CM		-2% to +2%-------€153.66
M
2010-LT		-2% to +2%-------€148.13
I
2003-LT		-2% to +2%-------€154.07
N
2202		-2% to +2%-------€134.21
J
2000-30CM		-2% to +2%-------€129.56
O
2002-ASF		-2% to +2%-------€140.84
P
2000-00AV		-2% to +2%-20 in. hg to 15 psi0 in. wc to 0.25 in. wc0.005 in. wcPressure, Air VelocitySilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€225.52
Q
2002-AV		-2% to +2%-20 in. hg to 15 psi0 in. wc to 2 in. wc0.05 in. wcPressure, Air VelocitySilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€155.56
R
2000-0		-2% to +2%-20 in. hg to 15 psi0 in. wc to 0.5 in. wc0.01 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€146.82
S
2330		-2% to +2%-20 in. hg to 15 psi-1 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs, +/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm, +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges Throughout Range At 70°F (21.1°C).€166.09
T
2001		-2% to +2%-20 in. hg to 15 psi0 in. wc to 1 in. wc0.02 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
U
2002		-2% to +2%-20 in. hg to 15 psi0 in. wc to 2 in. wc0.05 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
V
2005		-2% to +2%-20 in. hg to 15 psi0 in. wc to 5 in. wc0.1 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€165.82
W
2010		-2% to +2%-20 in. hg to 15 psi0 in. wc to 10 in. wc0.2 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
X
2100		-2% to +2%-20 in. hg to 15 psi0 in. wc to 100 in. wc2 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
Y
2210		-2% to +2%-20 in. hg to 15 psi0 psi to 10 psi0.2 psiPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€379.21
Z
2015		-2% to +2%-20 in. hg to 15 psi0 in. wc to 15 in. wc0.5 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€155.69
A1
2006		-2% to +2%-20 in. hg to 15 psi0 in. wc to 6 in. wc0.2 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
B1
2010-AV		-2% to +2%-20 in. hg to 15 psi0 in. wc to 10 in. wc0.2 in. wcPressure, Air VelocitySilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
C1
2310		-2% to +2%-20 in. hg to 15 psi-0.2 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€154.84
D1
2001-AV		-2% to +2%-20 in. hg to 15 psi0 in. wc to 1 in. wc0.02 in. wcPressure, Air VelocitySilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
E1
2302		-2% to +2%-20 in. hg to 15 psi-0.05 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€154.84
F1
2300-0		-2% to +2%-20 in. hg to 15 psi-0.01 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€154.84
G1
2060		-2% to +2%-20 in. hg to 15 psi0 in. wc to 60 in. wc2 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€131.38
H1
2040		-2% to +2%-20 in. hg to 15 psi0 in. wc to 40 in. wc1 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
I1
2030		-2% to +2%-20 in. hg to 15 psi0 in. wc to 30 in. wc1 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
J1
2020		-2% to +2%-20 in. hg to 15 psi0 in. wc to 20 in. wc0.5 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€156.58
K1
2008		-2% to +2%-20 in. hg to 15 psi0 in. wc to 8 in. wc0.2 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
L1
2004		-2% to +2%-20 in. hg to 15 psi0 in. wc to 4 in. wc0.1 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€141.41
M1
2003		-2% to +2%-20 in. hg to 15 psi0 in. wc to 3 in. wc0.1 in. wcPressureSilicone RubberFlange+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).€161.81
J
2001-ASF		-2% to +2%-------€140.84

Features

  • Break-resistant, clear plastic face for undistorted viewing, even from afar.
  • Precision litho-printed scale for accuracy and easy reading.
  • Patented design for quick response to pressure changes, meaning no delay in assessing critical situations.
  • Bezel to enable flush mounting in the panel.
  • Easy to see red-tipped pointer of heat-treated aluminium tubing, rigidly mounted on the helix shaft.
  • Pointer stops of molded rubber to prevent pointer over-travel without damage.
  • Conveniently located zero adjustment screw in the plastic cover accessible without removing the cover.
  • O-ring seal to provide pressure tightness.

Compatible Accessories

  • Dwyer Instruments A-605 Air Filter Kits: Adapt any standard Magnehelic gauge for use as an air filter gauge.
  • Dwyer Instruments A-432 Gauge Portable Kits: Plastic carrying case for Magnehelic gauges of standard range. Include 9 ft (2.7m) of rubber tubing (3/16 inch I.D.), stand-hang bracket & terminal tube with holder.

Standards and Approvals

  • CE
  • RoHS

Frequently Asked Questions

How will the installation of a Magnehelic gauge 150 ft away from the pressure source affect accuracy?

While accuracy will be unaffected, response time will increase proportionally to the length of the tubing.
