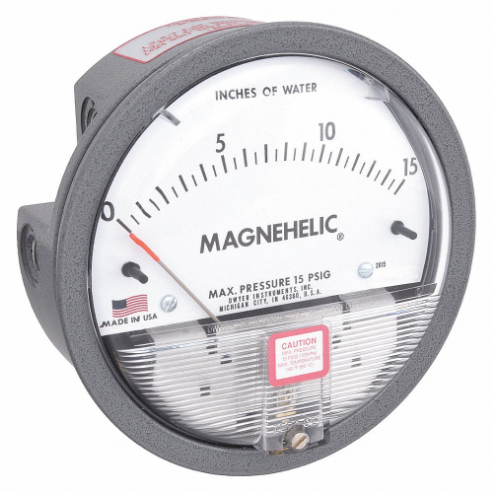

DWYER INSTRUMENTS 2015 Differential Pressure Gauge, 0 to 15 Inch WC

Item: AB3YFJModel: 2015Cross Ref: 1W481

7 In Stock

Ships within 2 days via

~~€155.69~~

5.00% off

€147.91 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Mounting Orientation	Vertical
Pressure Range Minor Div.	0.50" wc
Rated Total Pressure	-20" Hg to 15 psig
Scale Type	Pressure

Shipping Info:

Ship weight (kg)	0.86
Ship height (cm)	17.27
Ship length (cm)	15.24
Ship width (cm)	9.65
HS code	9026208000
Country of Origin	US

Product Details:

The 2000 Series Magnehelic® differential pressure gauges provide an accurate, economical indication of positive, negative, or differential air pressure in HVAC applications and building automation systems, BAS. The pressure gauge includes a 4 in (10.2 cm) easy-to-read dial and a frictionless magnetic movement in a cast aluminum housing. The differential pressure gauge is resistant to shock, vibration, and overpressure. The Magnehelic® Gauge has both back and side connections, so that it may be either surface- or flush-mounted. Ranges are available from 0 in to 0.25 in W.C. up to 10'' W.C.

Product Variants

Model	Accuracy	Rated Total Pressure	Differential Pressure Range	Pressure Range Minor Div.	Scale Type	Sensor Material	Mounting Hardware Included	Accuracy Details	Price
2330	-2% to +2%	-20 in. hg to 15 psi	-	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs, +/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm, +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges Throughout Range At 70°F (21.1°C).	€166.09
2310	-2% to +2%	-20 in. hg to 15 psi	-	0.2 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2302	-2% to +2%	-20 in. hg to 15 psi	-	0.05 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2300-0	-2% to +2%	-20 in. hg to 15 psi	-	0.01 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2060	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 60 in. wc	2 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€131.38
2040	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 40 in. wc	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€141.41
2030	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 30 in. wc	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€141.41
