DWYER INSTRUMENTS 2300-60PA Differential Pressure Gauge, Vertical Scale, 30-0-30 psi
Item: AH2CXJModel: 2300-60PACross Ref: 25F072
7 In Stock
-30 Pa to +30 Pa
Ships within 2 days via
5.00% off
€155.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Differential Pressure Gauge |
| Accuracy | -/+ 4% |
| Connection Size | 1/8" |
| Connection Type | NPT |
| Cover Material | Acrylic |
| Dial Size | 4" |
| Housing Material | Die Cast Aluminum |
| Max. Pressure | -20 in. hg to +15 psig |
| Mounting Orientation | Vertical |
| Pressure | -30 Pa to +30 Pa |
| Rated Total Pressure | -20" Hg to 15 psig |
| Temp. | +20°F to +140°F |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Details:
The 2000 Series Magnehelic® differential pressure gauges provide an accurate, economical indication of positive, negative, or differential air pressure in HVAC applications and building automation systems, BAS. The pressure gauge includes a 4 in (10.2 cm) easy-to-read dial and a frictionless magnetic movement in a cast aluminum housing. The differential pressure gauge is resistant to shock, vibration, and overpressure. The Magnehelic® Gauge has both back and side connections, so that it may be either surface- or flush-mounted. Ranges are available from 0 in to 0.25 in W.C. up to 10'' W.C.
Product Variants
| Product | Model | Sensor Material | Accuracy | Max. Pressure | Mounting Hardware Included | Case Dia. | Pressure Range Minor Div. | Scale Type | Accuracy Details | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2330 | Silicone Rubber | -2% to +2% | -20 in. hg to 15 psi | Flange | 4 3/4" | 1 in. wc | Pressure | +/-2% (-Ha Model +/-1) Of Fs, +/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm, +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges Throughout Range At 70°F (21.1°C). | €166.09 | |
 |
2310 | Silicone Rubber | -2% to +2% | -20 in. hg to 15 psi | Flange | 4 3/4" | 0.2 in. wc | Pressure | +/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C). | €167.78 | |
 |

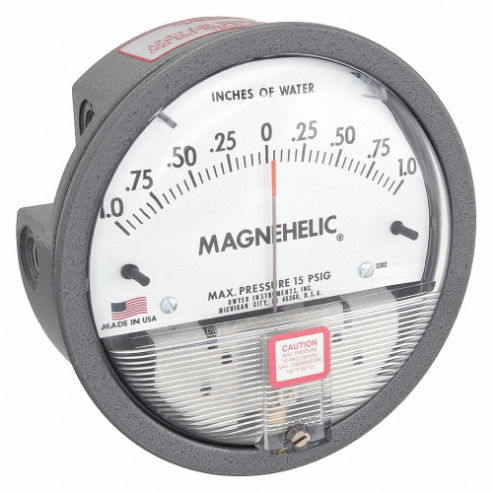

2302 | Silicone Rubber | -2% to +2% | -20 in. hg to 15 psi | Flange | 4 3/4" | 0.05 in. wc | Pressure | +/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C). | €154.84 | |
 |
2300-0 | Silicone Rubber | -2% to +2% | -20 in. hg to 15 psi | Flange | 4 3/4" | 0.01 in. wc | Pressure | +/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C). | €167.78 | |
 |
2060 | Silicone Rubber | -2% to +2% | -20 in. hg to 15 psi | Flange | 4 3/4" | 2 in. wc | Pressure | +/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C). | €131.38 | |
 |
2040 | Silicone Rubber | -2% to +2% | -20 in. hg to 15 psi | Flange | 4 3/4" | 1 in. wc | Pressure | +/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C). | €141.41 | |
 |
2030 | Silicone Rubber | -2% to +2% | -20 in. hg to 15 psi | Flange | 4 3/4" | 1 in. wc | Pressure | +/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C). | €154.90 |
