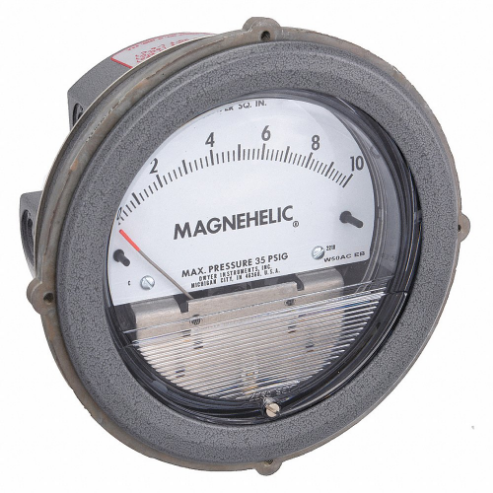

DWYER INSTRUMENTS 2210 Differential Pressure Gauge, 3 1/2 Inch Dial, 0 to 10 PSI, Die Cast Aluminium

Item: AD2NQWModel: 2210Cross Ref: 3T324

7 In Stock

Ships within 2 days via

~~€379.21~~

10.00% off

€341.29 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Differential Pressure Gauge
Accuracy	-2% to +2%
Accuracy Details	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).
Adjustable Set Points	No
Ambient Operating Temperature Range	20°F to 140°F
Application	Clean Rooms, Fan Pressure Indication, Filtration Monitoring, Flow Measurement, Hvac/R, Vacuum Applications
Basic Gauge Case Material	Metal
Bezel Material	Die Cast Aluminum
Bezel Mounting Type	Flush
Blowout Safety Back	Yes
Bolt Circle Dia.	4 1/8"
Calibration Certificate Included	No
Case Color	Gray
Case Construction	Corrosion Resistant
Case Depth	1.687"
Case Dia.	4 3/4"
Case Diameter	4.75"
Case Finish	Die Cast
Case Material	Aluminum
Case Shape	Round
Compatible Process Media	Cleanroom
Connection Size	1/8"
Connection Type	NPT
Cover Material	Acrylic
Dial Face Material	Plastic
Dial Material	Die Cast Aluminum
Dial Size	4"
Differential Gauge Connection Size	1/8"
Differential Pressure Gauge Type	Differential Pressure Gauge
Differential Pressure Range	0 psi to 10 psi
Gauge Nominal Dial Size	3 1/2"
Hazardous Location Rating	Not Rated
Housing Material	Die Cast Aluminum
Includes	Instructions, Three Mounting Adapters With Screws, Two 1/8" Npt Plugs, Two 1/8" Npt To 3/16" Id Rubber Tubing Adapters
Includes Mounting Hardware	Yes
Includes Vent Plug	Yes
Ip/nema Rating	Nema Ip67
Manufacturer Warranty Length	5 yrs.
Maximum Working Static Pressure	80 psig
Mounting Hardware Included	Flange
Mounting Orientation	Vertical
Mounting Orientation	Upright Only
Mounting Type	Flush Mount
Nominal Dial Size	4"
Non-sparking	No
Over-pressure Limit	1.72 Bar
Panel Mount Characteristics	3L Dia Holes On E Dia Bolt Circle
Panel-mountable	Yes
Pointer Characteristics	Red Tipped Pointer Of Heat Treated Aluminum Tubing Is Easy To See
Pointer Material	Aluminum
Pressure Gauge Type	Differential Pressure Gauge
Pressure Range	0 psid to 10 psid
Pressure Range Minor Div.	0.2 psi
Pressure Range Minor Div.	0.20 psi
Process Connection Gender	Female
Process Connection Location	Dual Side Or Back
Process Connection Size	1/8"
Process Connection Type	NPT
Rated Total Pressure	-20" Hg to 15 psig
Rated Total Pressure	-20 in. hg to 15 psi
Removable Bezel	No
Scale Type	Pressure
Sensor Material	Silicone Rubber
Sensor Type	Diaphragm
Series	2000 MAGNEHELIC Series
Temp. Range	+20°F to +140°F

Shipping Info:

Ship weight (kg)	1.01
Ship height (cm)	16.76
Ship length (cm)	15.49
Ship width (cm)	9.65
HS code	9026204000
Country of Origin	US

Product Details:

Differential Pressure Gauge, Gauge Nominal Dial Size 3 1/2 in, Basic Gauge Case Material Metal, Differential Gauge Connection Type FNPT, Differential Gauge Connection Size 1/8 in, Gauge Connection Location Back and Side, Differential Pressure Range Units psi, Differential Pressure Range Value 0 to 10, Gauge Accuracy +/-2.00 Percent, Body Material Die Cast Aluminum, Gauge Primary Range Smallest Graduation 0.2, Gauge Operating Temp. Range 20 Degrees to 140 Degrees F

Product Variants

Model	Accuracy	Rated Total Pressure	Differential Pressure Range	Pressure Range Minor Div.	Scale Type	Sensor Material	Mounting Hardware Included	Accuracy Details	Price
2330	-2% to +2%	-20 in. hg to 15 psi	-	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs, +/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm, +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges Throughout Range At 70°F (21.1°C).	€166.09
2310	-2% to +2%	-20 in. hg to 15 psi	-	0.2 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2302	-2% to +2%	-20 in. hg to 15 psi	-	0.05 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2300-0	-2% to +2%	-20 in. hg to 15 psi	-	0.01 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2060	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 60 in. wc	2 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€131.38
2040	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 40 in. wc	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€141.41
2030	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 30 in. wc	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€141.41
